Brake motor BMS 132S - 3.0 kW-6pole-B3
Product information "Brake motor BMS 132S - 3.0 kW-6pole-B3"

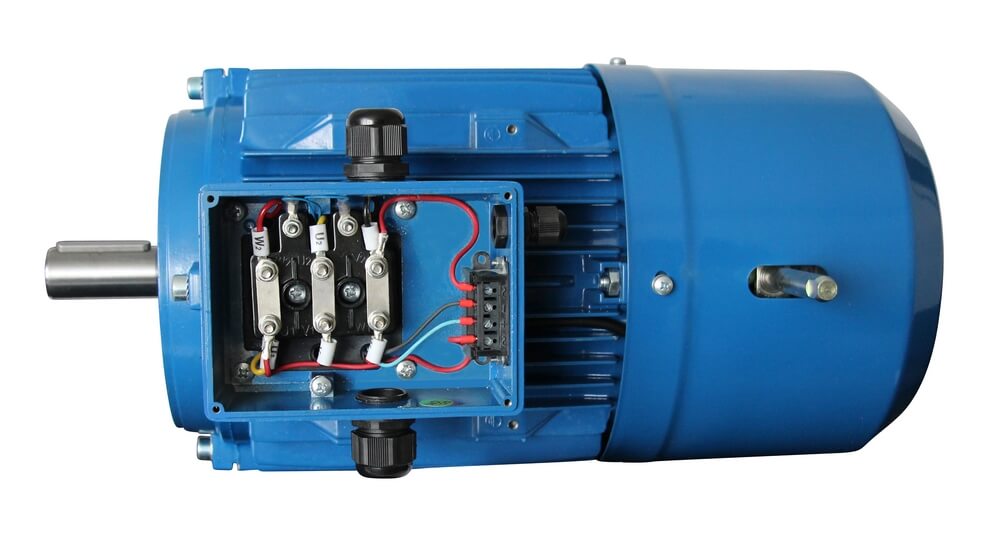

Brake motor, Power = 3.0 kW, Speed= 1000 Upm
Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% gemäß VDE 0530), Temperature sensor = 3 x PTC thermistors,
Color tone = RAL 5010 (gentian blue), Frequency = 50/60 hertz, Degree of protection = IP55, Brake= 60 Nm 230V with rectifier.
Terminal box position = top (rotatable), Housing = die cast aluminum, Insulation class = F (155°C), Welle= 38 x 80 mm,
Ball bearing = SKF, C&U o. equivalent, Cooling = Axial fan (plastic), Motor feet = can be screwed on or unscrewed.
The Electric motor is suitable for use with frequency converters and complies with IEC 60034-30: 2008.
The spring-loaded brake brakes the Electro motor in de-energized state. In inverter mode, the brake is
resp. to control the brake rectifier externally. For manual unlocking, a manual override lever is optionally available.
The brake motor is suitable for both directions of rotation. All product photos are non-binding examples!
| Efficiency Class: | IE 1 |
|---|---|
| Performance: | 3,0 kW |
| Rotation speed: | 1000 rpm / 6 polig |
| Shaft diameter: | 38 mm |
| Type of construction: | B3 |
| Efficiency Class: | IE 1 |
|---|---|
| Performance: | 3,0 kW |
| Rotation speed: | 1000 rpm / 6 polig |
| Shaft diameter: | 38 mm |
| Type of construction: | B3 |
