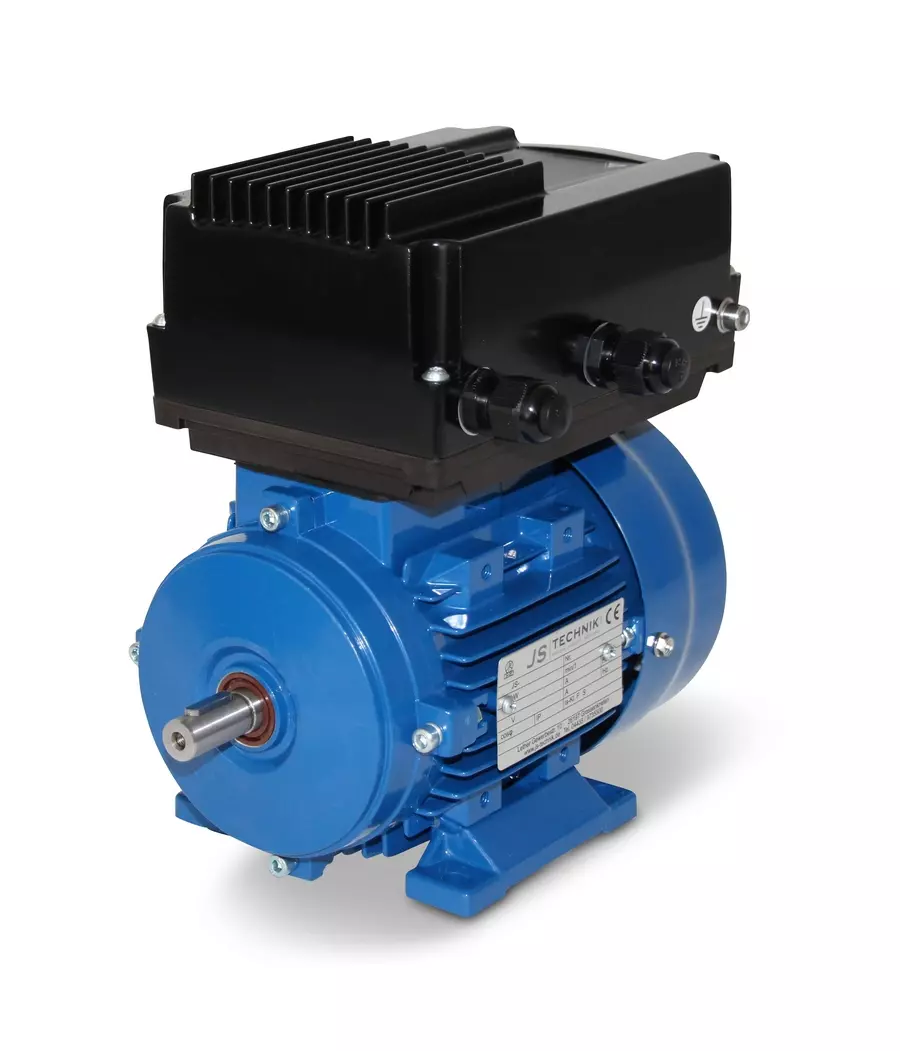

Frequency Inverter, 1x 230V, EASYdrive alpha + Three-Phase-Motor, 0.25 kW Electric motor Power= 0.25 kW, Speed= 4 pole, Shaft= 14 x 30 mm, Total Weight= 7.5 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.25 kW, Size= alpha, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 187mm x 126mm x 70mm,Mains current (input)= 4.5 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With Modbus (already included) and CANopen, the EASYdrive alpha provides compatibility with control environmentson. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts ithout external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).  Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 2 variants. First, this includes the devicein the standard version, secondly, the device with a membrane keyboard. In both versions is a potentiometeroptional to order.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!0.25kW motor with frequency inverter, infinitely variable!

Frequency Inverter, 1x 230V, EASYdrive alpha + Three-Phase-Motor, 0.37 kW Electric motor Power= 0.37 kW, Speed= 4 pole, Shaft= 14 x 30 mm, Total Weight= 7.9 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.37 kW, Size= alpha, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 187mm x 126mm x 70mm,Mains current (input)= 4.5 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With Modbus (already included) and CANopen, the EASYdrive alpha provides compatibility with control environmentson. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter, measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 2 variants. First, this includes the devicein the standard version, secondly, the device with a membrane keyboard. In both versions is a potentiometeroptional to order.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!0.37kW Electric motor with built-in frequency inverter.

Frequency Inverter, 1x 230V, EASYdrive alpha + Three-Phase- Motor, 0.37 kW Electric motor Power= 0.37 kW, Speed= 4 pole, Shaft= 14 x 30 mm, Total Weight= 7.9 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.37 kW, Size= alpha, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 187mm x 126mm x 70mm,Mains current (input)= 4.5 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With Modbus (already included) and CANopen, the EASYdrive alpha provides compatibility with control environmentson. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter, measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).  Possible variant selection! Product selection When selecting the frequency converter, make sure that there are 2 variants. First, this includes the devicein the standard version, secondly, the device with a membrane keyboard. In both versions is a potentiometeroptional to order.The illustrated "frequency converter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!0.37kW Electric motor with integrated frequency inverter.

Frequency Inverter, 1x 230V, EASYdrive alpha + Three-Phase-Motor, 0.18 kW Electric motor Power= 0.18 kW, Speed= 4 pole, Shaft= 14 x 30 mm, Total Weight= 7.5 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.25 kW, Size= alpha, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 187mm x 126mm x 70mm,Mains current (input)= 4.5 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With Modbus (already included) and CANopen, the EASYdrive alpha provides compatibility with control environmentson. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter, measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).  Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 2 variants. First, this includes the devicein the standard version, secondly, the device with a membrane keyboard. In both versions is a potentiometeroptional to order.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!0.18kW motor with frequency inverter, infinitely variable!

Frequency converter, 3x 400V EASYdrive, with electric motor 1.1kW Three-phase motor Power= 1.1 kW, speed= 6 ​​pole, shaft= 24 x 50 mm, total weight= 22.8 kg,Design= Please select, input voltage= 3 x 400 V - 50 Hz, 3 x 460 V - 60 Hz (± 5 % according to VDE 0530),Frequency= 50/60 Hertz, paint finish= RAL 5010 (gentian blue), protection class= IP55,Temperature sensor= 3 x PTC thermistors, terminal box position= top, housing= Die-cast aluminum, insulation class = F (155 °C), ball bearings = SKF, C&U, or equivalent, cooling = axial fan (plastic), Frequency converterPower = 1.1 kW, size = A, input voltage = 3 x 400V +10% (three-phase), input frequency = 50/60 Hz,output frequency = 0- 400 Hz, EMC filter = C2, protection class = IP65, dimensions = 233 mm x 153 mm x 120 mm,mains current (input) = 2.6 A. Ideal control range = 5- 60 Hz, with constant nominal torque, below 30 Hz an external fan is required for cooling. Product informationThe EASYdrive drive controllers are CE, UL and CSA certified. The EASYdrive complies with EMC class C2 (with 3-phase mains supply) or C1 (with 1-phase mains supply) without external filter measures. Possible variant selection! Product selectionThe "frequency converter with MMI control unit" shown is fully usable and contains a potentiometer built into the side.      Important information This drive is a custom-made product. Withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples! Technical changes reserved.

Frequency Inverter, 1x 230V, EASYdrive alpha + Three-Phase-Motor, 0.55 kW Electric motor Power= 0.55 kW, Speed= 4 pole, Shaft= 19 x 40 mm, Total Weight= 15.4 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.55 kW, Size= alpha, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 187mm x 126mm x 80mm,Mains current (input)= 5.8 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With Modbus (already included) and CANopen, the EASYdrive alpha provides compatibility with control environmentson. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter, measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 2 variants. First, this includes the devicein the standard version, secondly, the device with a membrane keyboard. In both versions is a potentiometeroptional to order.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!Single-phase 0.55kW frequency inverter with motor.

Frequency Inverter, 1x 230V, EASYdrive alpha + Three-Phase-Motor, 0.75 kW Electric motor Power= 0.75 kW, Speed= 4 pole, Shaft= 19 x 40 mm, Total Weight= 15.6 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.75 kW, Size= alpha, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 187mm x 126mm x 80mm,Mains current (input)= 7.3 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Optionally with mounted external fan. Please select control range. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With Modbus (already included) and CANopen, the EASYdrive alpha provides compatibility with control environmentson. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lastswithout external filter, measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 2 variants. First, this includes the devicein the standard version, secondly, the device with a membrane keyboard. In both versions is a potentiometeroptional to order.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!Single-phase 0.55kW frequency inverter + three-phase motor.

Frequency Inverter, 1x 230V, EASYdrive alpha + Three-Phase-Motor, 0.55 kW Electric motor Power= 0.55 kW, Speed= 4 pole, Shaft= 19 x 40 mm, Total Weight= 15.4 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.55 kW, Size= alpha, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 187mm x 126mm x 80mm,Mains current (input)= 5.8 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With Modbus (already included) and CANopen, the EASYdrive alpha provides compatibility with control environmentson. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 2 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard. In both versions is a potentiometeroptional to order.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!0.55kW - frequency inverter with Electric motor, 4 poles!

Frequency Inverter, 1x 230V, EASYdrive alpha + Three-Phase-Motor, 0.75 kW Electric motor Power= 0.75 kW, Speed= 4 pole, Shaft= 19 x 40 mm, Total Weight= 15.6 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.75 kW, Size= alpha, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 187mm x 126mm x 80mm,Mains current (input)= 7.3 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With Modbus (already included) and CANopen, the EASYdrive alpha provides compatibility with control environmentson. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lastswithout external filter, measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 2 variants. First, this includes the devicein the standard version, secondly, the device with a membrane keyboard. In both versions is a potentiometeroptional to order.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!0.75kW - frequency inverter - Electric motor - combination

Frequency Inverter, 1x 230V, EASYdrive + Three-Phase- Motor, 0.37 kW Electric motor Power= 0.37 kW, Speed= 4 pole, Shaft= 14 x 30 mm, Total Weight= 9.7 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.37 kW, Size= A, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C1, Degree of protection= IP65, Dimensions= 233mm x 153mm x 120mm,Mains current (input)= 4.5 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency inverter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).  Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!0.37kW frequency inverter (230V) mounted on Electric motor!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 0.55 kW Electric motor Power= 0.55 kW, Speed= 4 pole, Shaft= 19 x 40 mm, Total Weight= 15 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.55 kW, Size= A, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, 233mm x 153mm x 120mm,Mains current (input)= 1.4 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!Three-phase 0.55kW frequency inverter + three-phase motor!

Frequency Inverter, 1x 230V, EASYdrive + Three-Phase-Motor, 0.55 kW Electric motor Power= 0.55 kW, Speed= 4 pole, Shaft= 19 x 40 mm, Total Weight= 14.9 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.55 kW, Size= A, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C1, Degree of protection= IP65, Dimensions= 233mm x 153mm x 120mm,Mains current (input)= 5.6 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).   Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!0.55kW - frequency inverter with Electric motor, 4 poles!

Frequency Inverter, 1x 230V, EASYdrive + Three-Phase-Motor, 0.75 kW Electric motor Power= 0.75 kW, Speed= 4 pole, Shaft= 19 x 40 mm, Total Weight= 16.0 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.75 kW, Size= A, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C1, Degree of protection= IP65, Dimensions= 233mm x 153mm x 120mm,Mains current (input)= 6.9 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples! ​0.75kW frequency inverter mounted on 400V Electric motor!

Frequency Inverter, 3 x 400V, EASYdrive with Electric motor, 0.75 kW Electric motor Power= 0.75 kW, Speed= 4 pole, Shaft= 19 x 40 mm, Total Weight= 16 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 0.75 kW, Size= A, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, 233mm x 153mm x 120mm,Mains current (input)= 1.4 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!0.75kW - frequency inverter installed on Electric motor!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 1.1 kW Electric motor Power= 1.1 kW, Speed= 4 pole, Shaft= 24 x 50 mm, Total Weight= 20.8 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 1.1 kW, Size= A, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions=  233mm x 153mm x 120mm,Mains current (input)= 2.6 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!Three-phase 1.1kW frequency inverter mounted on 400V motor!

Frequency Inverter, 1x 230V, EASYdrive + Three-Phase-Motor, 1.1 kW Electric motor Power= 1.1 kW, Speed= 4 pole, Shaft= 24 x 50 mm, Total Weight= 20.8 kg,Type= B3, Input Voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 1.1 kW, Size= A, Input Voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C1, Degree of protection= IP65, Dimensions= 233mm x 153mm x 120mm,Mains current (input)= 9.2 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!1.1 kW frequency inverter with three-phase Electric motor!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 1.5 kW Electric motor Power= 1.5 kW, Speed= 4 pole, Shaft= 24 x 50 mm, Total Weight= 24.2 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top,Housing= Die-cast aluminium, Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 1.5 kW, Size= A, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz, Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 233mm x 153mm x 120mm,Mains current (input)= 3.3 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers.Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the device in the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!1.5 kW frequency inverter - Electric motor - combination!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 2.2 kW Electric motor Power= 2.2 kW, Speed= 4 pole, Shaft= 28 x 60 mm, Total Weight= 28.7 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminum,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 2.2 kW, Size= B, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 270mm x 189mm x 140mm,Mains current (input)= 4.6 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency inverter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!2.2kW frequency inverter - Electric motor - combination!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 3 kW Electric motorPower= 3,0 kW, Speed= 4 pole, Shaft= 28 x 60 mm, Total Weight= 33.1 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Motor feet= can be screwed or unscrewed.Frequency InverterPower= 3.0 kW, Size= B, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 270mm x 189mm x 140mm,Mains current (input)= 6.2 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency inverter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).  Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!3 kW frequency inverter mounted on an Electric motor!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 4.0 kW Electric motor Power= 4.0 kW, Speed= 4 pole, Shaft= 28 x 60 mm, Total Weight= 39 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 4.0 kW, Size= B, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 270mm x 189mm x 140mm,Mains current (input)= 7.9 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth-Adapter The "Frequency inverter with MMI control unit" variant does not require an optional control unit,in addition, a display is included in the device cover. The options mentioned can be used if required.                      Important notes This drive is a custom-made product. A withdrawal or revocation of the purchase is excluded!All product photos are non-binding examples!4kW frequency inverter mounted on Electric motor!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 5.5 kW Electric motor Power= 5.5 kW, Speed= 4 pole, Shaft= 38 x 80 mm, Total Weight= 54.5 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 5.5 kW, Size= C, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 307mm x 223mm x 181mm,Mains current (input)= 10.8 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).  Possible variant selection! Product selection When selecting the frequency converter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency converter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notes This drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!5.5kW frequency inverter mounted on a motor!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 7.5kW Electric motor Power= 7.5 kW, Speed= 4 pole, Shaft= 38 x 80 mm, Total Weight= 64.7 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 7.5 kW, Size= C, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 307mm x 223mm x 181mm,Mains current (input)= 14.8 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).Possible variant selection! Product selection When selecting the frequency converter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency converter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.         Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!7.5kW frequency inverter combined with Electric motor!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 11 kW Electric motor Power= 11 kW, Speed= 4 pole, Shaft= 42 x 110 mm, Total Weight= 143 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 11 kW, Size= D, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 414mm x 294mm x 232mm,Mains current (input)= 23.2 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency inverter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).  Possible variant selection!   Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples! 11kW three-phase motor combined with frequency inverter!

Frequency Inverter, 3x 400V, EASYdrive with Electric motor, 15 kW Electric motor Power= 15 kW, Speed= 4 pole, Shaft= 42 x 110 mm, Total Weight= 159 kg,Type= B3, Input Voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminium,Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= axial fan (plastic),Frequency InverterPower= 15 kW, Size= D, Input Voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 414mm x 294mm x 232mm,Mains current (input)= 28.2 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for coolingneeded. Product Information The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules. With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control environment of its application. The required optional control variant must be specified for orders. The EASYdrive lasts without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply). Possible variant selection! Product selection When selecting the frequency inverter, make sure that there are 3 variants. First, this includes the devicein the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI operating unit.The illustrated "frequency inverter in standard version" is fully usable and contains a built-in potentiometer,but needs to control a corresponding control panel.For this purpose, one of the following options must be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,such as Start-stop, left-right-run etc.For parameterization, one of the following options must also be ordered:- External HMI device (MMI with cable and plug)- Interface cable for PC programming- Bluetooth adapter  The variant "Frequency inverter with MMI operating unit" does not require an optional operating unit,in addition, a display is included in the device cover. The mentioned options can be used if required.     Important notesThis drive is a custom-made product. A withdrawal or cancellation of the purchase is excluded!All product photos are non-binding examples!15kW motor with frequency inverter, infinitely variable!
