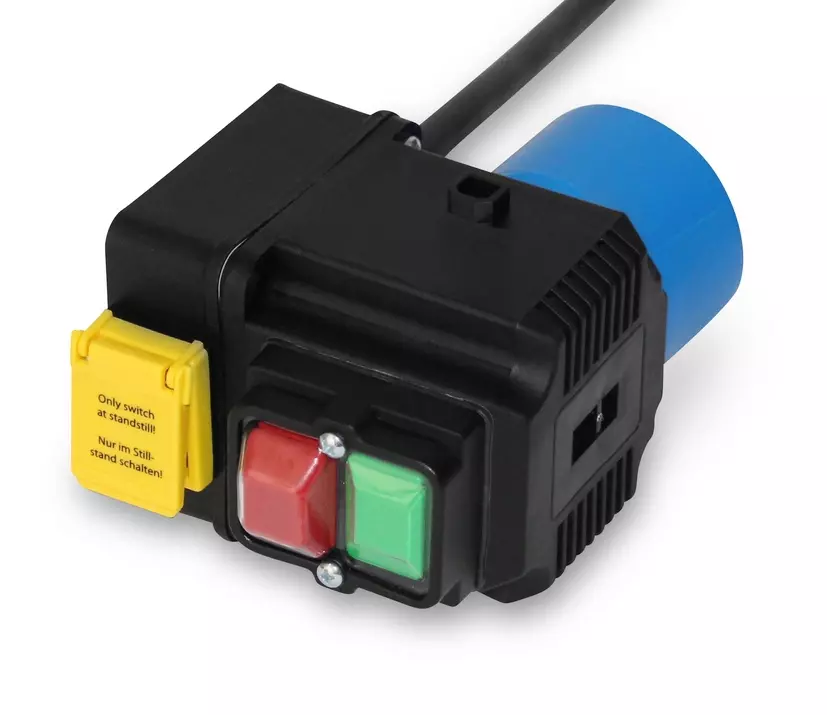

Motor switch (on-off) with selector switch right / left for 0.12 - 2.2kW at 1x 230V, for external installation, cable length approx. 90cm, Description:- Undervoltage release,- Switching capacity 16 A - 1x230V,- Ambient temperature -5°C to +40°C- Collar plug 1x230 V. Switching the direction of rotation only when the motor is at a standstill!
Motor switch, 400V, right-left rotation, on-off-stop Direction of rotation= right/left (can only be operated when the machine is at a standstill)Switch= on, off, quick stop, lockableMotor voltage= 3 x 400 VMotor current= up to 9.0A (4kW for 4-pole motor)Circuit= undervoltage releaseCable length to the motor= approx. 70 cm with cable lugsHousing= polypropyleneProtection class= IP54Plug= CEE 16A, 5-pole, 400VDimensions=175 x 95 112 mmWeight= 550g Attention, no motor protection included!
Motor switch (on-off) with electronic brake for 1.1 - 1.5 - 1.8 - 2.2 - 3.0kW at 1x 230V, for external installation, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Engine part protection via thermal sensor opener (PTO) - Protective contact plug 2P+ E, IP54, according to CEE7/VII, IP54 - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. The thermal sensor opener (PTO) must be present in the engine!
Motor switch (on-off) with electronic brake for 1.1 - 1.5 - 2.2 - 3.0 - 4.0 kW at 3 x 400V, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Engine part protection via thermal sensor opener (PTO) - CEE 16A 5-pin plug collar with phase inverter - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. The thermal sensor opener (PTO) must be present in the engine!

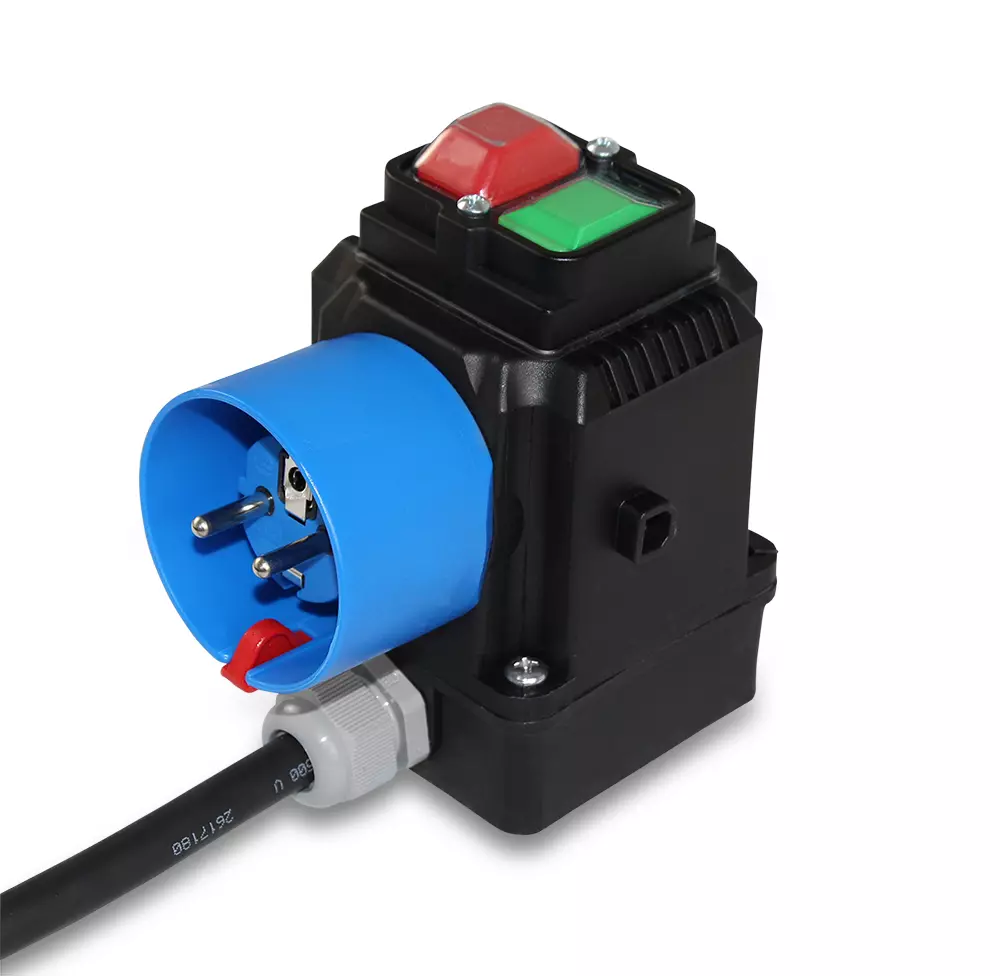

Motor switch (on-off) with electronic brake for 1.8kW, at 1 x 230V, 11.1A, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Overload protection trip (automatic reset) - Protective contact plug 2P+ E, IP54, according to CEE7/VII, IP54 - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. No external thermal sensor (PTO) necessary!
Motor switch (on-off) with electronic brake for 2.2kW, at 1 x 230V, 13.2A, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Overload protection trip (automatic reset) - Protective contact plug 2P+ E, IP54, according to CEE7/VII, IP54 - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. No external thermal sensor (PTO) necessary!
Motor switch (on-off) with electronic brake for 1.5kW, at 1 x 230V, 9.51A, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Overload protection trip (automatic reset) - Protective contact plug 2P+ E, IP54, according to CEE7/VII, IP54 - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. No external thermal sensor (PTO) necessary!
Motor switch (on-off) with electronic brake for 1.1kW at 1 x 230V, 7.18A, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Overload protection trip (automatic reset) - Protective contact plug 2P+ E, IP54, according to CEE7/VII, IP54 - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) In woodworking machines, these motor switches are used to protect against autonomous operation Restart after voltage return. No external thermal sensor (PTO) necessary!
Motor switch (on-off) with electronic brake for 3.0kW, at 3 x 400V, 6.73 A, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Overload protection trip (automatic reset) - CEE 5-pole plug collar with phase inverter - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. No external thermal sensor (PTO) necessary!
Motor switch (on-off) with electronic brake for 1.5kW at 3 x 400V, 3.41 A, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Overload protection trip (automatic reset) - CEE 5-pole plug collar with phase inverter - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. No external thermal sensor (PTO) necessary!
Motor switch (on-off) with electronic brake for 2.2kW, at 3 x 400V, 4.76A, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Overload protection trip (automatic reset) - CEE 5-pole plug collar with phase inverter - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. No external thermal sensor (PTO) necessary!
Motor switch (on-off) with electronic brake for 4.0kW, at 3 x 400V, 8.19 A, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Overload protection trip (automatic reset) - CEE 5-pole plug collar with phase inverter - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. No external thermal sensor (PTO) necessary!
Motor switch (on-off) with electronic brake for 5.5kW and 7.5kW at 3 x 400V, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Engine part protection via thermal sensor opener (PTO) - CEE 5-pole plug collar with phase inverter - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. The thermal sensor opener (PTO) must be present in the engine!
Motor switch (on-off) with electronic brake for 5.5kW and 7.5kW, at 3 x 400V, 10.5 to 16 A adjustable, for external mounting, cable length approx. 90cm, Description: - On / Off / Stop (0 - 1 / Stop) - Undervoltage trip/contactor - Electronic DC brake (motor brake) - Overload protection trip (automatic reset) - CEE 5-pole plug collar with phase inverter - with transparent PVC cover over on/off buttons - Add-on switch (closed switch version, wall or sheet metal mounting) These motor switches are used for protection in woodworking machines against independent restart after voltage return. No external thermal sensor (PTO) necessary!
Circular saw motors 1.1kW - 7.5kW
JS-Technik GmbH specialises in extensive challenges in the field of professional drive technology. We specialise in circular saw motors with brake switches, three-phase motors, frequency inverters and geared motors.
Field of application of the saw motors
JS flat motors are also used as saw motors in conjunction with a braking device. Depending on the application, our flat motors have a right-hand or left-hand thread at the shaft end. The drives are available from 1.1 kW - 2.2kW in the 230 V version and from 1.5 kilowatts - 7.5 kilowatts in the 400 V version. The flat electric motors are also often required as special motors with customised requirements. The narrow design is decisive here. However, the electric motor is predominantly used for a circular saw.
Circular saw motor power ratings
On this page you will find a selection of flat motors in aluminium design in sizes 58- 81 with an output of 1.1kW, 1.5kW, 1.8kW, 2.2kW, 3.0kW, 4.0kW, 5.5kW and 7.5kW.
Electronic braking devices for circular saw motors
Electronic brakes are used to brake squirrel-cage asynchronous machines and 1ph AC capacitor motors within 10 seconds of switching off. After switching off. Brake switches are available for external mounting in 1.1kW - 7.5kW motors.
Operating mode of flat motors
The operating mode offered for flat motors is S6. Here is a brief overview of the common operating modes of electric motors: continuous operation S1, short-time operation S2, intermittent operation S3 (without starting, without braking), intermittent operation S4 (with starting, without braking), intermittent operation S5 (with starting, with braking), continuous operation S6 (with intermittent load), reversing operation S7, continuous operation (with variable speed).
Your partner for circular saw motors
We are the ideal partner for you, because our specialised staff, combined with our extensive motor warehouse and our own final assembly, enable us to cover a wide range of applications, such as special brake motors, circular saw motors, electric motors with frequency converters, special shafts, special voltages or as electric motors in various protection classes.
