Frequency inverter, 1x 230V, SMARTdrive with electric motor, 0.37 kW Electric motor Power = 0.37 kW, Speed = 2 poles, Shaft = 14 x 30 mm, total Weight = 8,5 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 0.75kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 0.55 kW Electric motor Power = 0.55 kW, Speed = 2 poles, Shaft = 14 x 30 mm, total Weight = 8,5 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 0.75kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 0.55 kW Electric motor Power = 0.55 kW, Speed = 4 poles, Shaft = 19 x 40 mm, total Weight = 8,5 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 0.75kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 0.75 kW Electric motor Power = 0.75 kW, Speed = 2 poles, Shaft = 19 x 40 mm, total Weight = 14,9 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 0.75kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 0.75 kW Electric motor Power = 0.75 kW, Speed = 4 poles, Shaft = 19 x 40 mm, total Weight = 14,9 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 0.75kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 1.1 kW Electric motor Power = 1,1 kW, Speed = 2 poles, Shaft = 19 x 40 mm, total Weight = 17,8 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 1.5kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 1.5 kW Electric motor Power = 1.5 kW, Speed = 2 poles, Shaft = 24 x 50 mm, total Weight = 21.3 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 1.5kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 1.1 kW Electric motor Power = 1,1 kW, Speed = 4 poles, Shaft = 24 x 50 mm, total Weight = 17,8 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 1.5kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 0.55 kW Electric motor Power = 0.55 kW, Speed = 4 poles, Shaft = 19 x 40 mm, total Weight = 14.9 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 0.75kW, size = J1, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 1.5 kW Electric motor Power = 1.5 kW, Speed = 4 poles, Shaft = 24 x 50 mm, total Weight = 21.3 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 1.5kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 0.75 kW Electric motor Power = 0.75 kW, Speed = 4 poles, Shaft = 19 x 40 mm, total Weight = 15.6 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 0.75kW, size = J1, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 2.2 kW Electric motor Power = 2.2 kW, Speed = 2 poles, Shaft = 24 x 50 mm, total Weight = 25.3 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 2.2kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 1.1 kW Electric motor Power = 1.1 kW, Speed = 4 poles, Shaft = 24 x 50 mm, total Weight = 20.8 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 1.5kW, size = J1, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency inverter, 1x 230V, SMARTdrive with electric motor, 2.2 kW Electric motor Power = 2.2 kW, Speed = 4 poles, Shaft = 28 x 60 mm, total Weight = 25.3 kg,Design = B3, input Voltage = 1 x 230 V- 50 Hz,(± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 2.2kW, size = J1, input Voltage = 1 x 230V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling. Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 1.5 kW Electric motor Power = 1.5 kW, Speed = 4 poles, Shaft = 24 x 50 mm, total Weight = 24.2 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 1.5kW, size = J1, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 2.2 kW Electric motor Power = 2.2 kW, Speed = 4 poles, Shaft = 28 x 60 mm, total Weight = 28.7 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 2.2kW, size = J1, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 3.0 kW Electric motor Power = 3.0 kW, Speed = 4 poles, Shaft = 28 x 60 mm, total Weight = 33.1 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 3.0kW, size = J1, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 4.0 kW Electric motor Power = 4.0 kW, Speed = 4 poles, Shaft = 28 x 60 mm, total Weight = 39.0 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 4.0kW, size = J1, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 270mm x 190mm x 165mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter comes with some basic functionspreprogrammed. If further parameterization is necessary, we offer this adjustment workat an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 5.5 kW Electric motor Power = 5.5 kW, Speed = 4 poles, Shaft = 38 x 80 mm, total Weight = 54.5 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 5.5kW, size = J2, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 338mm x 228mm x 193.5mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 7.5 kW Electric motor Power = 7.5 kW, Speed = 4 poles, Shaft = 38 x 80 mm, total Weight = 64.7 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 7.5kW, size = J2, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 338mm x 228mm x 193.5mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!
Frequency converter, 3x 400V, SMARTdrive with electric motor, 11 kW Electric motor Power = 11 kW, Speed = 4 poles, Shaft = 42 x 110 mm, total Weight = 143 kg,Design = B3, input Voltage = 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),Frequency = 50/60 Hertz, painting = RAL 5010 (gentian blue), Protection class = IP55,Temperature sensor = 3 x PTC thermistor, Terminal box position = top, housing = die-cast aluminum,Insulation class = F (155 ° C), ball bearing = SKF, C&U, or equivalent, cooling = axial fan (plastic). Frequency inverterPower = 11kW, size = J3, input Voltage = 3 x 400V + 10% (three-phase), input frequency = 50/60 Hz,Output frequency = 0-650 Hz, EMC filter = C3, Protection class = IP66, dimensions = 380mm x 280mm x 220mm,display= 4-line plain text LCD.Ideal control range = 5-60 Hz, with the nominal torque remaining below 30 Hzan external fan is required for cooling.Optionally with mounted external fan. Please select control range. Product InformationDSP-based high-tech engine control concept with V / Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing,Thermally decoupled from the motor IP55 / NEMA4, vibration-proof (4G). Flexibly configurable 4 line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebysuitable for universal use, including retrofit - PID controller installed. EMC filter installed as standard,Optional C1 filter available with installation kit. Software tools for converter control, programming and diagnostics.Copy stick parameters available. Compatible with worldwide standards. ProgrammingThe three-phase motor with integrated SMARTdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer this adjustment work at an hourly rate of € 86 / net. Important instructionsThis drive is a custom-made product. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!

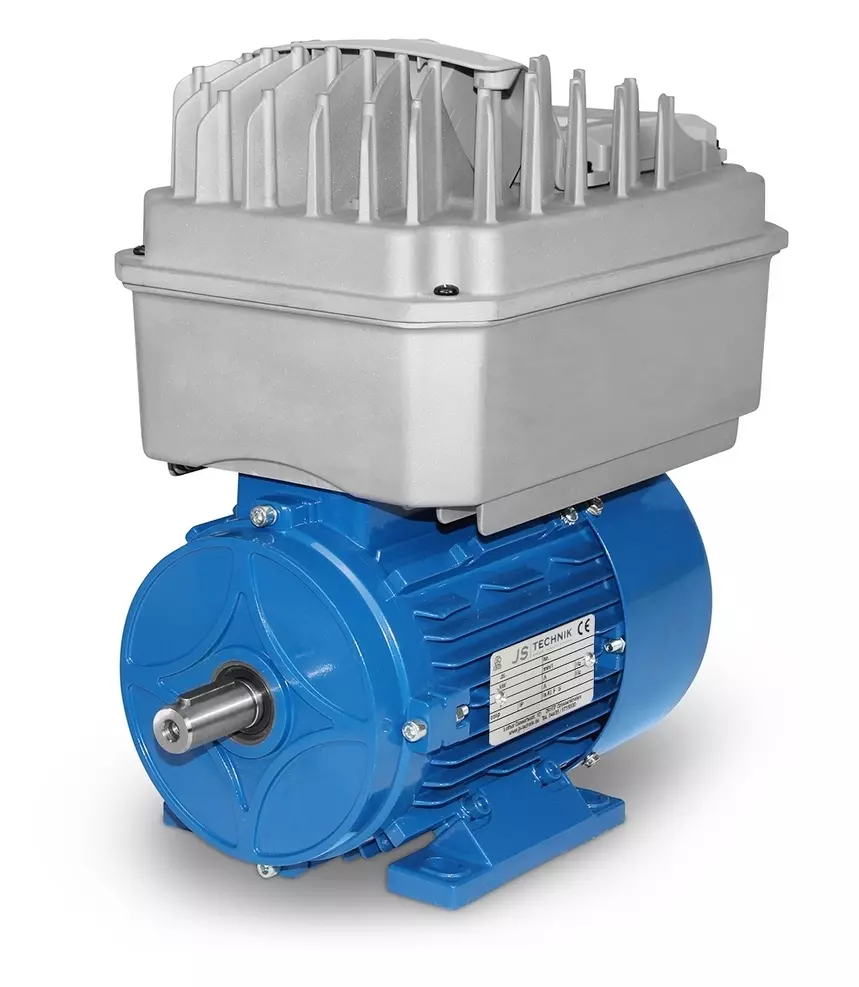

SMARTdrive - FU motor combination
Electric motors with mounted frequency inverter (SMARTdrive) are available in sizes 71, 80, 90, 100, 112, 132 and 160, with an output of 0.37kW, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3.0kW, 4kW, 5.5kW, 7.5kW and 11kW. The infinitely variable drives can be combined with almost all gearboxes on offer in a wide variety of designs.
Electric motor with frequency inverter + external keypad
Technical information
A DSP-based high-tech motor control concept with V/Hz, SENSORLESS VECTOR, CLV and PMM algorithms. Intelligent AUTOTUNING functions for quick and easy commissioning. Robust design, full metal housing, thermally decoupled from the motor, IP55/NEMA4, vibration-resistant (4G). Flexibly configurable 4-line LCD display, prepared for common field bus systems. Equipped with all standard frequency inverter functions, making it suitable for universal use, including retrofit - PID controller built in. EMC filter fitted as standard, optional C1 filter available with installation kit. Software tools for inverter control, programming and diagnostics, parameter copy stick available. Compatible with globally applicable standards.
Frequency inverter - structure
SMARTdrive inverters consist of 2 housing halves, the base housing and the cover. The base has a mounting flange for direct mounting on the motor terminal board. The power terminals for the motor, the EMC filter and the capacitors are housed in the housing base. The control board with removable control terminals and the power board are located in the cover. This favours optimum heat dissipation. The removable control panel is located in the cover.
