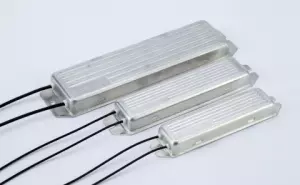

MCRA-200 braking resistor for 150 watts 600 ohms Dimensions: L = 230mm W = 60mm H = 20mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!
MCRA-100 braking resistor for 100 watts 1200 Ohm Dimensions: L = 150mm W = 35mm H = 19mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!

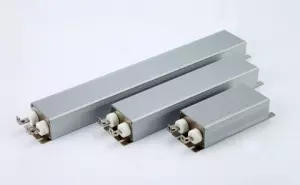

Braking resistor MCRF-300 for 300 watts 300 ohms Dimensions: L = 190mm W = 70mm H = 45mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!
Braking resistor MCRF-400 for 400 watts 200 ohms Dimensions: L = 220mm W = 70mm H = 45mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!
Brake chopper with braking resistor size A for EASYdrive. 100 W, 100 ohms; IP65, connecting cable 510mm, L = 110mm W = 80mm H = 15mm. -only additional price, cannot be ordered individually- All product photos are non-binding examples!
Brake chopper with braking resistor size B for EASYdrive. 200 W, 50 ohms; IP65, connecting cable 510mm, L = 216mm W = 80mm H = 15mm. -only additional price, cannot be ordered individually- All product photos are non-binding examples!
Braking resistor MCRF-1000 for 1000 watts 85 ohms Dimensions: L = 340mm W = 70mm H = 45mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!
Braking resistor MCRF-600 for 600 watts 130 ohms Dimensions: L = 260mm W = 70mm H = 45mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!
Braking resistor MCRF-1200 for 1200 watts 60 ohms Dimensions: L = 400mm W = 70mm H = 45mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!
Brake chopper with braking resistor size C for EASYdrive 240 W or 400 W, 72 ohms; IP65, connecting cable 510 mm. -only additional price, cannot be ordered individually- All product photos are non-binding examples!
Braking resistor MCRF-2000 for 2000 watts 40 ohms Dimensions: L = 510mm W = 70mm H = 45mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!
Braking resistor MCRF-2500 for 2400 watts 30 ohms Dimensions: L = 470mm W = 98mm H = 68mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!
Brake chopper with braking resistor size D for EASYdrive 2 x 240 W or 2 x 400 W, 72 ohms; IP65, connecting cable 510mm, 2 x L = 216mm W = 80mm H = 30mm. -only additional price, cannot be ordered individually- All product photos are non-binding examples!

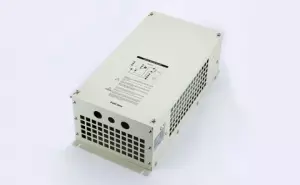

Braking resistor MCRF-ST-5000 for 5000 watts 12 ohms EXP Dimensions: L = 550mm W = 180mm H = 182mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!
Braking resistors for frequency converters
Our company specialises in comprehensive challenges in the field of electrical drive technology with a focus on frequency inverters, three-phase motors and geared motors. Of course, we also offer the necessary accessories for our products. To illustrate this, we have set up a corresponding accessories overview page. Here you will find, for example, the necessary potentiometers, shielded connection cables, mounting adapters, control cables, braking resistors, EMC filters, various interface cards / field bus systems, external switches in different versions and much more. In the category listed here, you can select various braking resistors for JS-Technik frequency inverters.
Frequency inverters with short delivery times
We are the ideal partner for you with decades of experience and a large warehouse. In most cases, we can cover short-term requirements immediately. Top quality, a competent team and a competitive price are our top priorities. If you cannot find your frequency inverter here in the online shop, please send us an enquiry by email or simply contact us directly by telephone.
