Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 19 rpm, Ratio (i)= 69.33, Torque (M²)= 90 Nm, Permitted overhung loads (radial)= 5870 N, Operating factor (fs)= 2.2, Type= B3, Output shaft= 25 mm, Weight= 25 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 11 rpm, Ratio (i)= 123.66, Torque (M²)= 161 Nm, The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. Permitted overhung loads (radial)= 5370 N, Operating factor (fs)= 1.2, Type= B3, Output shaft= 25 mm, Weight= 25 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 27 rpm, Ratio (i)= 48.08, Torque (M²)= 63 Nm, Permitted overhung loads (radial)= 5960 N, Operating factor (fs)= 3.2, Type= B3, Output shaft= 25 mm, Weight= 25 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.37 kW, Speed (n²)= 104 rpm, Ratio (i)= 13.25, Torque (M²)= 34 Nm, Permitted overhung loads (radial)= 3850 N, Operating factor (fs)= 5.6, Type= B3, Output shaft= 25 mm, Weight= 28 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.37 kW, Speed (n²)= 71 rpm, Ratio (i)= 19.31, Torque (M²)= 49 Nm, Permitted overhung loads (radial)= 4320 N, Operating factor (fs)= 4.1, Type= B3, Output shaft= 25 mm, Weight= 28 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.25 kW, Speed (n²)= 40 rpm, Ratio (i)= 32.40, Torque (M²)= 60 Nm, Permitted overhung loads (radial)= 5230 N, Operating factor (fs)= 3.4, Type= B3, Output shaft= 25 mm, Weight= 25 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.25 kW, Speed (n²)= 29 rpm, Ratio (i)= 44.81, Torque (M²)= 82 Nm, Permitted overhung loads (radial)= 5760 N, Operating factor (fs)= 2.4, Type= B3, Output shaft= 25 mm, Weight= 25 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.25 kW, Speed (n²)= 19 rpm, Ratio (i)= 69.33, Torque (M²)= 127 Nm, Permitted overhung loads (radial)= 5650 N, Operating factor (fs)= 1.5, Type= B3, Output shaft= 25 mm, Weight= 25 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.25 kW, Speed (n²)= 11 rpm, Ratio (i)= 123.66, Torque (M²)= 225 Nm, Permitted overhung loads (radial)= 4560 N, Operating factor (fs)= 0.9, Type= B3, Output shaft= 25 mm, Weight= 25 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.37 kW, Speed (n²)= 20 rpm, Ratio (i)= 69.33, Torque (M²)= 178 Nm, Permitted overhung loads (radial)= 5210 N, Operating factor (fs)= 1.1, Type= B3, Output shaft= 25 mm, Weight= 28 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.37 kW, Speed (n²)= 48 rpm, Ratio (i)= 28.73, Torque (M²)= 74 Nm, Permitted overhung loads (radial)= 4850 N, Operating factor (fs)= 2.7, Type= B3, Output shaft= 25 mm, Weight= 28 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.37 kW, Speed (n²)= 29 rpm, Ratio (i)= 48.08, Torque (M²)= 123 Nm, Permitted overhung loads (radial)= 5590 N, Operating factor (fs)= 1.6, Type= B3, Output shaft= 25 mm, Weight= 28 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.37 kW, Speed (n²)= 15 rpm, Ratio (i)= 90.77, Torque (M²)= 230 Nm, Permitted overhung loads (radial)= 4250 N, Operating factor (fs)= 0.8, Type= B3, Output shaft= 25 mm, Weight= 28 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.55 kW, Speed (n²)= 75 rpm, Ratio (i)= 18.05, Torque (M²)= 70 Nm, Permitted overhung loads (radial)= 4140 N, Operating factor (fs)= 2.9, Type= B3, Output shaft= 25 mm, Weight= 34 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.55 kW, Speed (n²)= 103 rpm, Ratio (i)= 13.25, Torque (M²)= 51 Nm, Permitted overhung loads (radial)= 3790 N, Operating factor (fs)= 3.7, Type= B3, Output shaft= 25 mm, Weight= 34 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.55 kW, Speed (n²)= 35 rpm, Ratio (i)= 39.17, Torque (M²)= 151 Nm, Permitted overhung loads (radial)= 5070 N, Operating factor (fs)= 1.3, Type= B3, Output shaft= 25 mm, Weight= 34 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.55 kW, Speed (n²)= 24 rpm, Ratio (i)= 55.76, Torque (M²)= 215 Nm, Permitted overhung loads (radial)= 4740 N, Operating factor (fs)= 0.9, Type= B3, Output shaft= 25 mm, Weight= 34 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.55 kW, Speed (n²)= 56 rpm, Ratio (i)= 24.42, Torque (M²)= 94 Nm, Permitted overhung loads (radial)= 4500 N, Operating factor (fs)= 2.1, Type= B3, Output shaft= 25 mm, Weight= 34 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.75 kW, Speed (n²)= 104 rpm, Ratio (i)= 13.25, Torque (M²)= 69 Nm, Permitted overhung loads (radial)= 3690 N, Operating factor (fs)= 2.8, Type= B3, Output shaft= 25 mm, Weight= 37 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.75 kW, Speed (n²)= 76 rpm, Ratio (i)= 18.05, Torque (M²)= 94 Nm, Permitted overhung loads (radial)= 4010 N, Operating factor (fs)= 2.1, Type= B3, Output shaft= 25 mm, Weight= 37 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.75 kW, Speed (n²)= 137 rpm, Ratio (i)= 10.11, Torque (M²)= 53 Nm, Permitted overhung loads (radial)= 3420 N, Operating factor (fs)= 3.2, Type= B3, Output shaft= 25 mm, Weight= 37 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.75 kW, Speed (n²)= 48 rpm, Ratio (i)= 28.73, Torque (M²)= 149 Nm, Permitted overhung loads (radial)= 4490 N, Operating factor (fs)= 1.3, Type= B3, Output shaft= 25 mm, Weight= 37 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0.75 kW, Speed (n²)= 31 rpm, Ratio (i)= 44.81, Torque (M²)= 235 Nm, Permitted overhung loads (radial)= 4230 N, Operating factor (fs)= 0.8, Type= B3, Output shaft= 25 mm, Weight= 37 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel helical geared motor with oil-tight Electric motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 1.1 kW, Speed (n²)= 277 rpm, Ratio (i)= 5.06, Torque (M²)= 38 Nm, Permitted overhung loads (radial)= 2700 N, Operating factor (fs)= 3.6, Type= B3, Output shaft= 25 mm, Weight= 44 kg. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Cable outlet= on the back. The spur gear units are equipped with an open motor adapter (PAM). A shaft pinion is mounted on the motor shaft. The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The helical gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

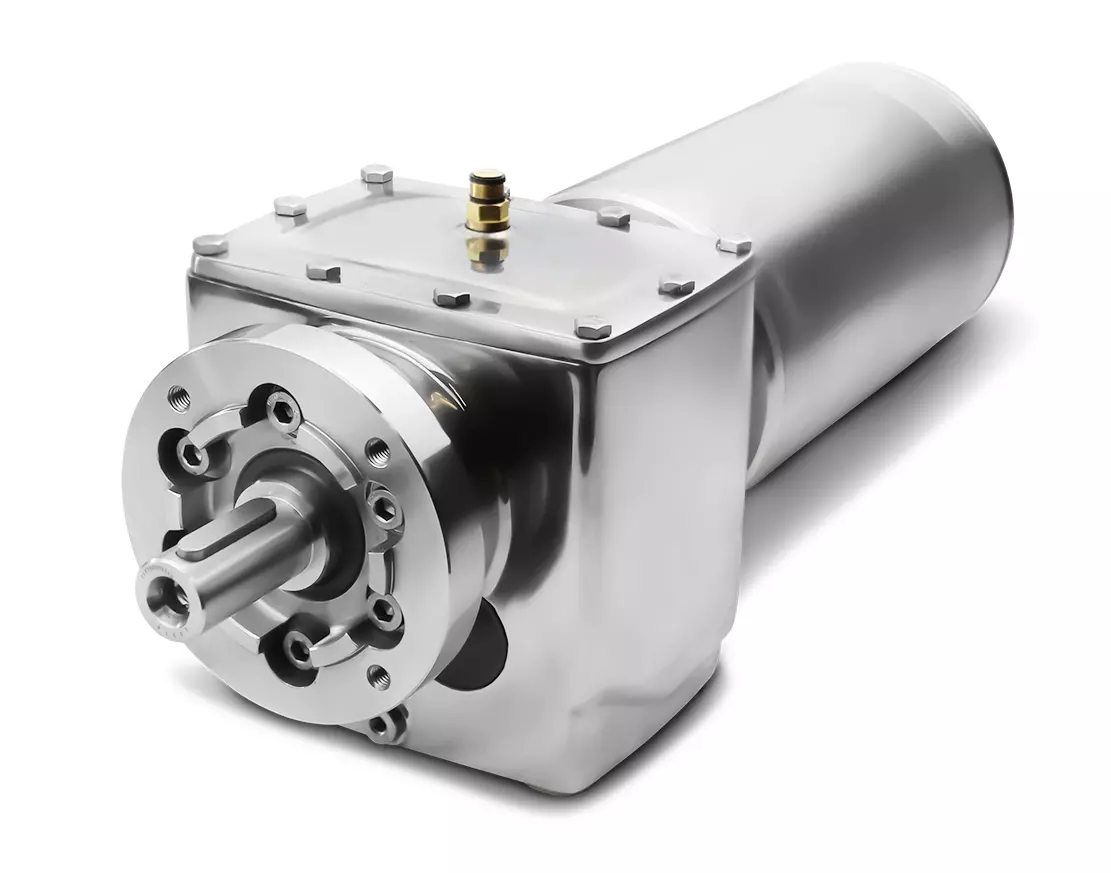

Stainless steel helical geared motors up to 7.5 kW
JS-Technik's broad product portfolio offers the right stainless steel geared motor for hygienic applications in the chemical, petrochemical, pharmaceutical, and food industries. These motors are the ideal solution for aggressive environments with high demands on hygiene, cleanliness, and corrosion protection.
Advantages of stainless steel helical geared motors
Stainless steel helical geared motors are manufactured in accordance with HACCP and EHEDG regulations. They offer extreme corrosion resistance and exceptional resistance to harsh chemicals. With conventional gearboxes, the chipping of paint or metal during cleaning can lead to production issues; stainless steel geared motors prevent this. These units are available with matching flanges and terminal boxes.
Special technical features:
- Smooth surface (food, beverage, pharmaceutical industry, etc.)
- No dirt deposits or bacteria centres
- Reduced interfering edges due to lack of cooling fins
- Excellent cleaning properties
- Up to 1.5 kW in protection class IP69K (higher power in IP66)
- Three-phase motor without fan (cleanroom feature)
- Designed for harsh continuous operation
- Above-average service life and optimum running smoothness
Geared motors with protection class IP69K
Protection class IP69K was developed for high-pressure jet cleaning at high temperatures. The code number "6" stands for protection against the ingress of dust, and the number "9" for protection during high-pressure cleaning at close distances. Originally developed for motor vehicles, the latest version of the IEC 60529 standard now refers to IP69 (IP69K = IP69).
