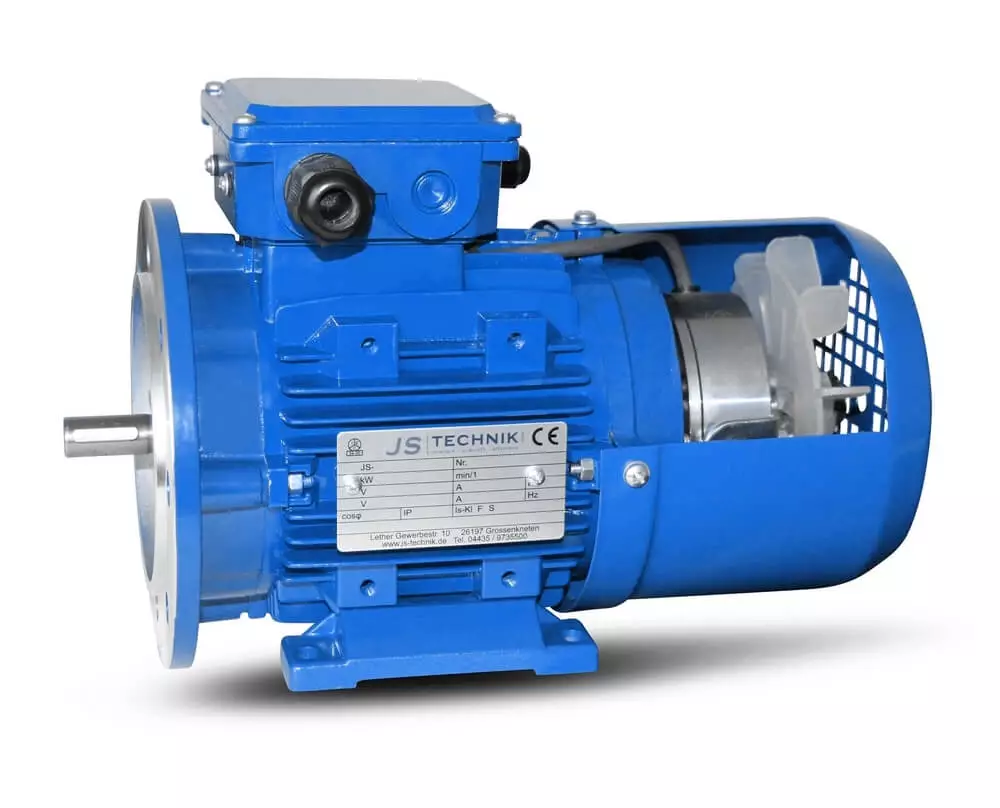

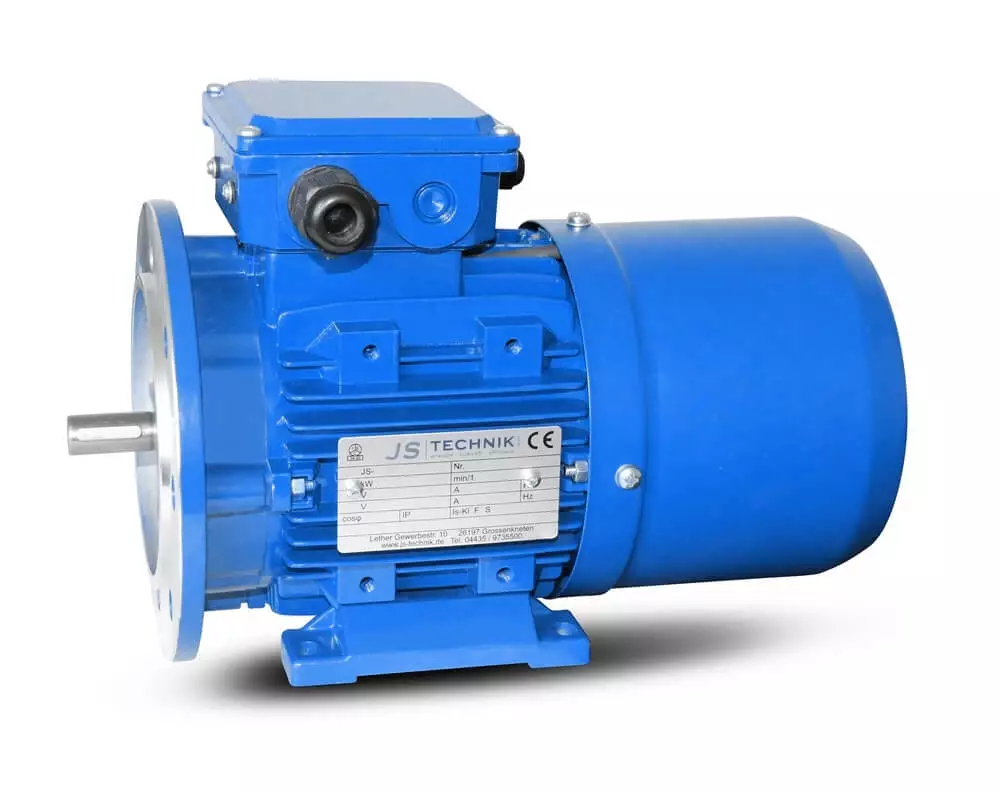

Brake motor BMS 132S - 5.5 kW-4pole-B35
Product information "Brake motor BMS 132S - 5.5 kW-4pole-B35"
Brake motor, Power = 5,5 kW, Speed=1500 Upm
Voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% gemäß VDE 0530), Temperaturfühler= 3 x PTC-Kaltleiter,
Farbton= RAL 5010 (Enzianblau), Frequenz= 50/60 Hertz, Schutzart= IP55, Bremse= 70 Nm, 400V with rectifier.

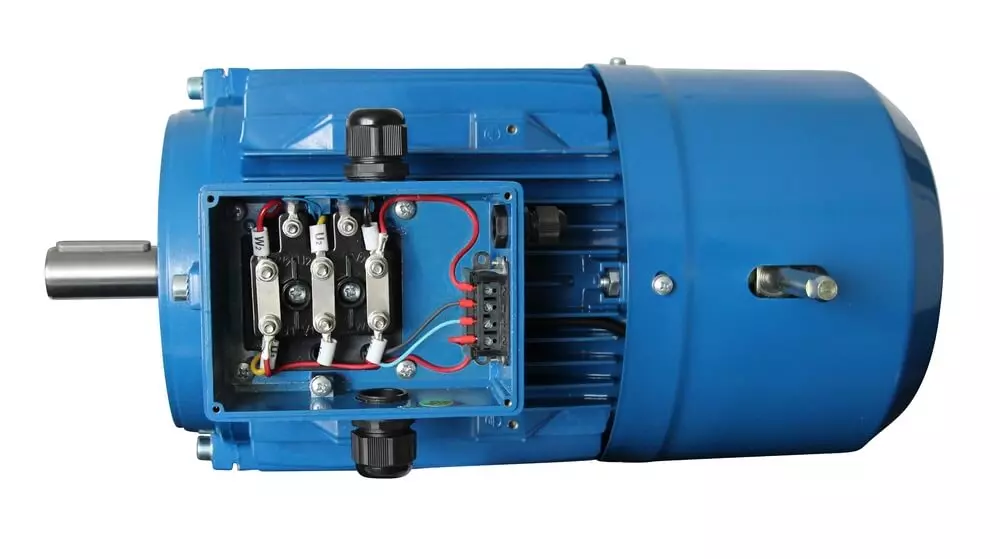

Terminal box position = top (rotatable), Housing = die cast aluminum, Insulation class = F (155°C), Welle= 38 x 80 mm,
Ball bearing = SKF, C&U or equivalent, Cooling = Axial fan (plastic), Motor feet = can be screwed on or unscrewed.
The Electric motor is suitable for use with frequency converters and complies with IEC 60034-30: 2008.
The spring-loaded brake brakes the Electro motor in de-energized state. In inverter mode, the brake is
resp. to control the brake rectifier externally. For manual unlocking, a manual override lever is optionally available.
The brake motor is suitable for both directions of rotation. All product photos are non-binding examples! Technical changes reserved.
| Performance: | 5,5 kW |
|---|---|
| Rotation speed: | 1500 rpm / 4 polig |
| Shaft diameter: | 38 mm |
| Type of construction: | B3 B5 (B35) |
| Efficiency Class: | IE 1 |
| Performance: | 5,5 kW |
|---|---|
| Rotation speed: | 1500 rpm / 4 polig |
| Shaft diameter: | 38 mm |
| Type of construction: | B3 B5 (B35) |
| Efficiency Class: | IE 1 |
