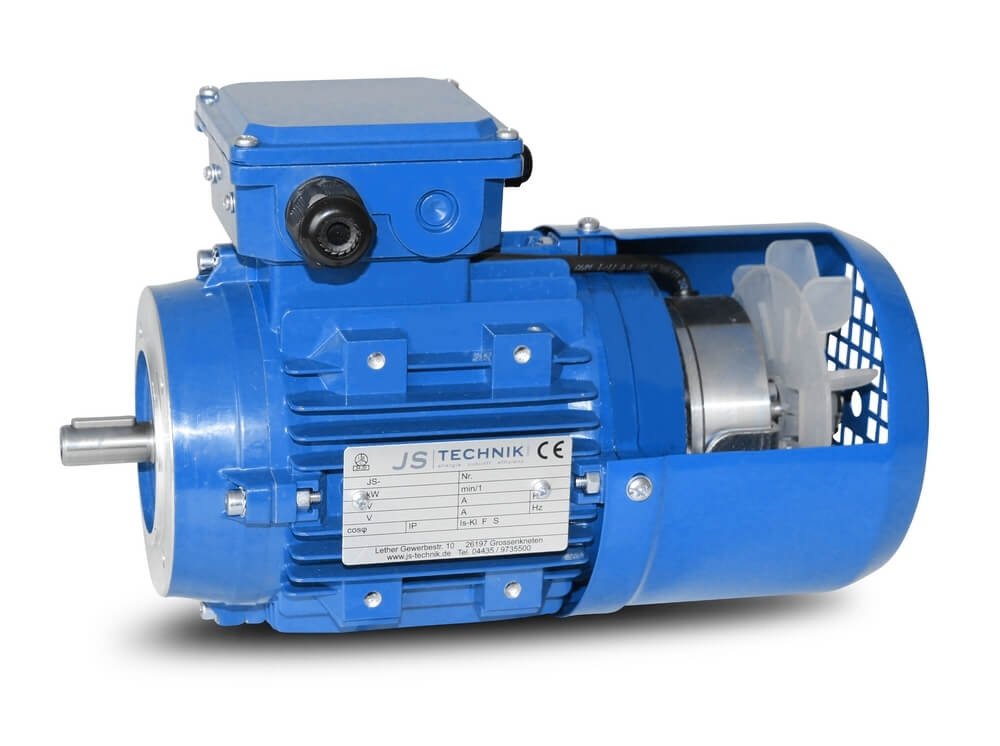

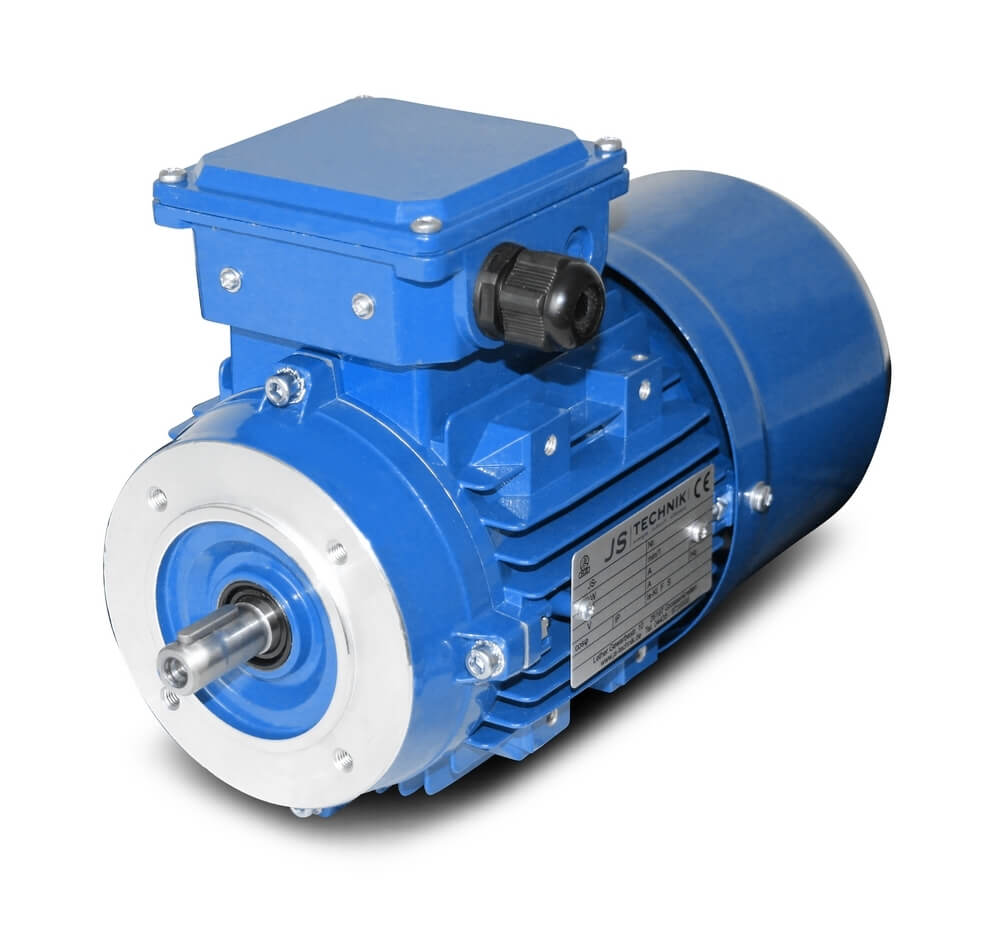

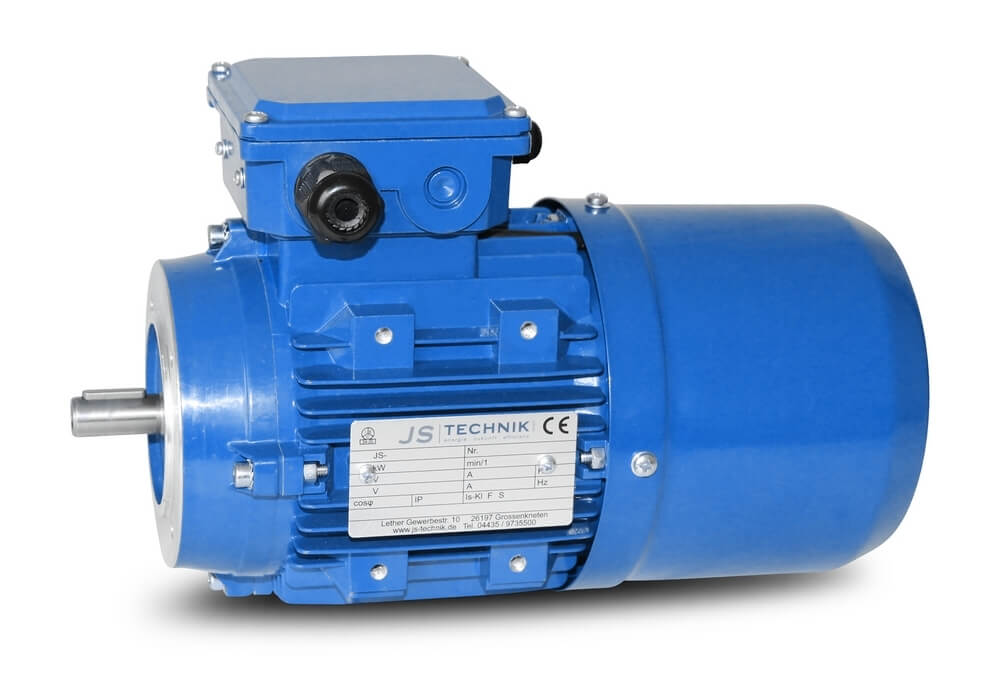

Brake motor BMS 801 - 0.37 kW-6pole-B14
£403.51
Available, delivery time: about 3-4 business days
Product information "Brake motor BMS 801 - 0.37 kW-6pole-B14"
Brake motor, Power = 0,37 kW, Speed= 1000 Upm
Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% gemäß VDE 0530), Temperature sensor = 3 x PTC thermistors, p>
Color tone = RAL 5010 (gentian blue), Frequency = 50/60 hertz, Degree of protection = IP55, Brake= 8 Nm, 230V with rectifier. p>
Terminal box position = top (rotatable), Housing = die cast aluminum, Insulation class = F (155°C), Welle= 19 x 40 mm, p>
Ball bearing = SKF, C&U or equivalent, Cooling = Axial fan (plastic), Motor feet = can be screwed on or unscrewed.
The Electric motor is suitable for use with frequency converters and complies with IEC 60034-30: 2008.
The spring-loaded brake brakes the Electro motor in de-energized state. In inverter mode, the brake is
resp. to control the brake rectifier externally. For manual unlocking, a manual override lever is optionally available.
The brake motor is suitable for both directions of rotation. All product photos are non-binding examples! Technical changes reserved.
| Performance: | 0,37 kW |
|---|---|
| Rotation speed: | 1000 rpm / 6 polig |
| Shaft diameter: | 19 mm |
| Type of construction: | B14 |
| Efficiency Class: | IE 1 |
Accesories
Hand release for mechanically unlocking the brake Mounted on the engine or brake. Only in conjunction with a JS brake motor. Cannot be ordered individually! All product photos are non-binding examples! Technical changes reserved.
Brake coil 24V/DC, exchangeable. Available as an option for BMS series motors. ! Only an additional charge - not available separately! Image shows additional equipment "manual release"!All product photos are non-binding examples! Subject to technical changes.
Kaltleiterauslösegerät, Motorschutz, PTC-Auswertung Operating voltage：AC 220V Allowable volt tolerance：±20% Frequency：50～60Hz Self-consuming power：<0.8VA Allowable environment temperature：-30～70℃ Rated current of switch：7A Operating resistance：3KΩ (1±10%) Restoring resistance：1500～1800Ω Weight：0.2Kg
Frequency inverter , 0.4 kW, 230V, 2.4A, IP20, EMC filter integrated - EMC filter C2 - Potentiometer for speed control - Attachment to mounting plates or DIN rail - Side-by-side installation possible (2 mm distance between the FU) - Easy connection via RJ45 port - Standard IO: 3x DI, 1x DO, 1x AI (0-10V), 1x AO (0-10V) - Brake chopper for 1.5kW and 2.2kW versions - Overload capacity 150% for 1 min - Programming with DriveView9 operating software via RJ45 connection on the M100 (Advanced only! The standard version does not have an RJ45 interface! Please select version.) Excerpt from spec. Features: - DC braking - Jog operation - 3-wire operation - Dwell operation (dwell time operation) - Slip compensation - PID control - Energy saving operation - Speed search - Automatic restart 0.4kW frequency converter for 0.37 kW three-phase motor!
Special flange for Electro motors the size 71 Flange B14 in big version.Ø140 x 95 x 115 mm, (P x N x M)screw thread= 4 x M8 The special flanges do not fit the motors in a reduced size! ! only surcharge in exchange - not available individually!
Heating band for a standstill heater for electric motors of size 56-63-71-80-90 The standstill heater is used to prevent the formation of condensation during breaks in operation.
