CMRV063/030 DC100, 12V, 0.14 kW, 5.6 rpm, IP66 Worm gear motor

£511.75*

Prices incl. VAT plus shipping costs

Delivery time on demand

Product number: C030063066005000A205O1

Shipping fees: Article + Packaging

Downloads

Product information "CMRV063/030 DC100, 12V, 0.14 kW, 5.6 rpm, IP66 Worm gear motor"

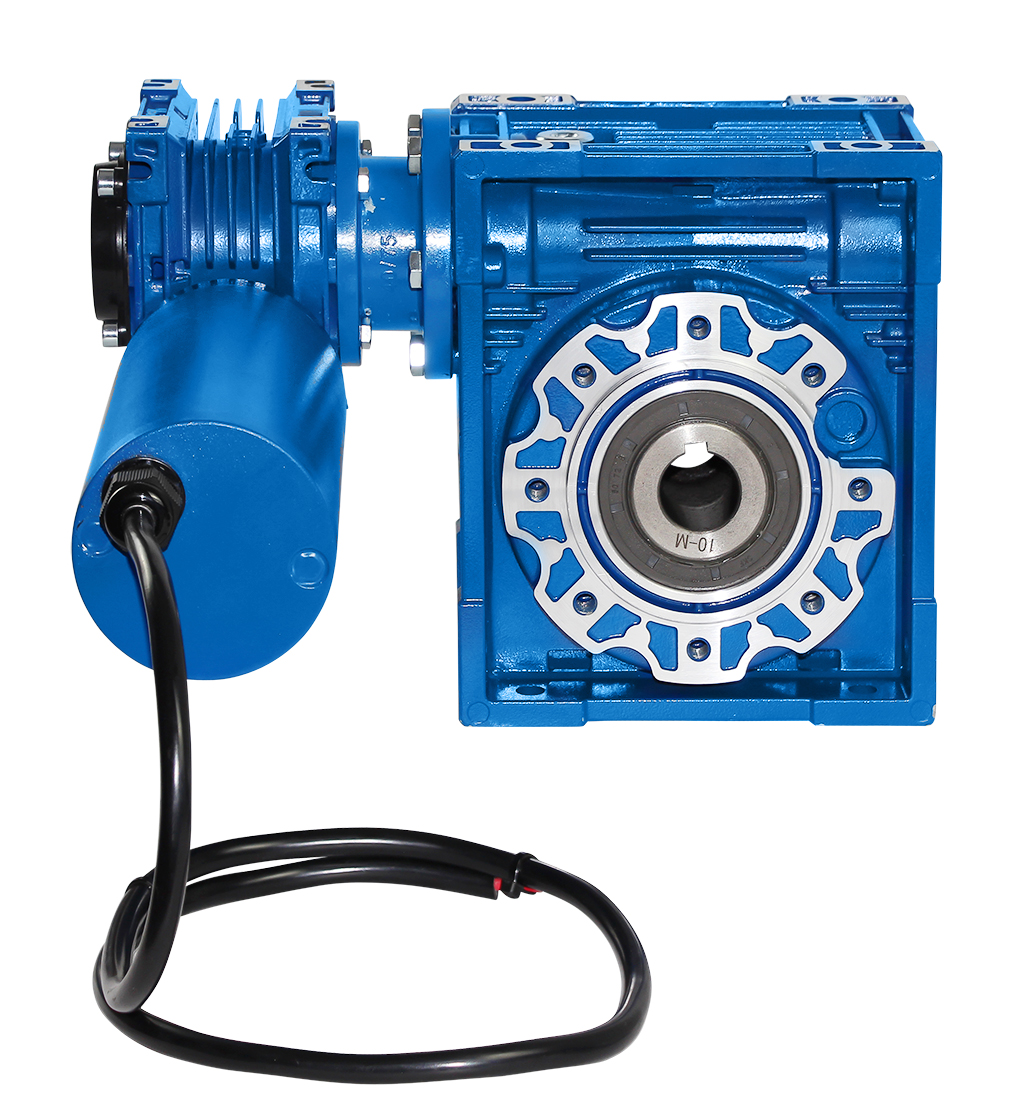

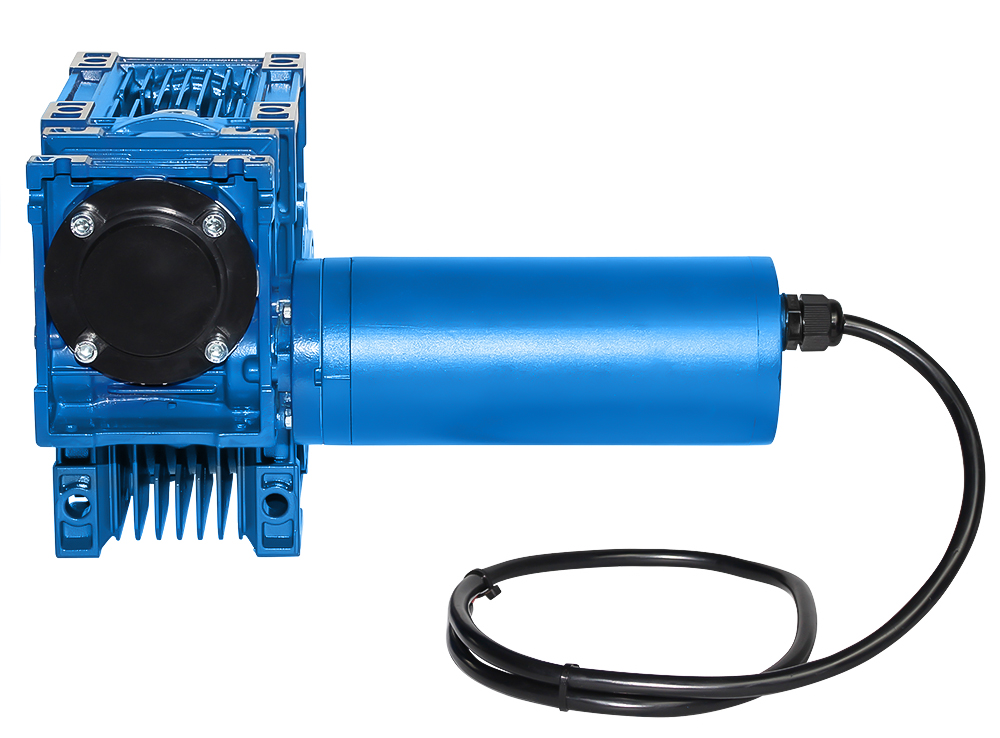

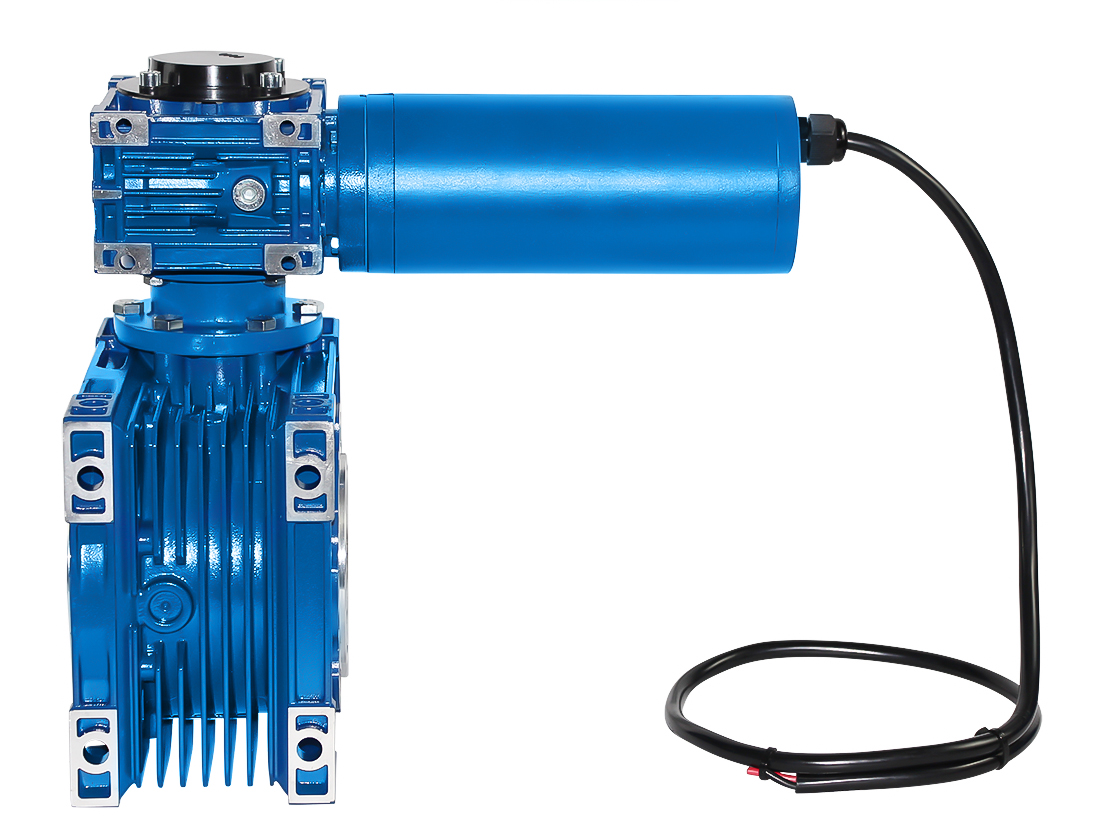

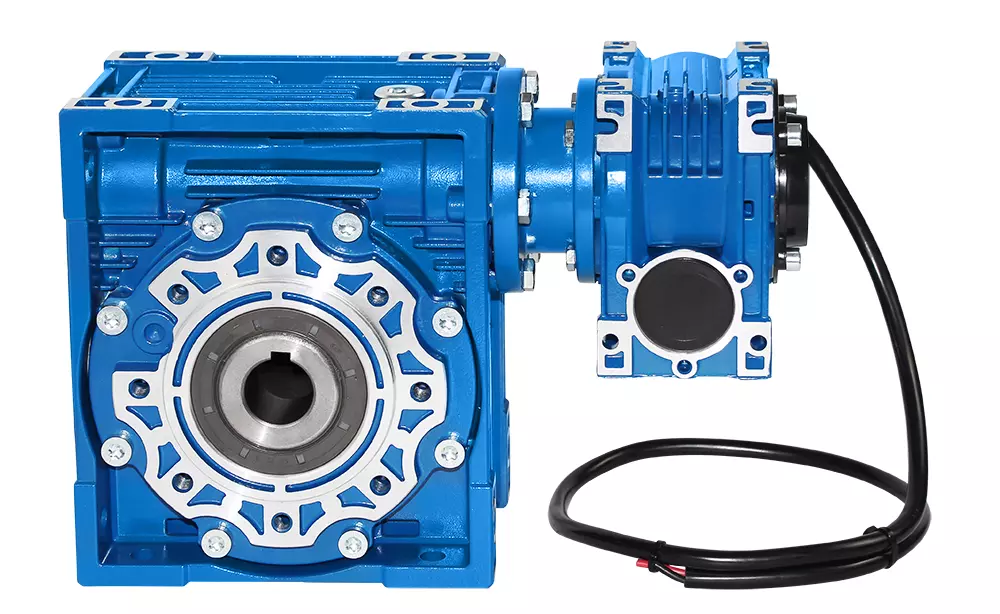

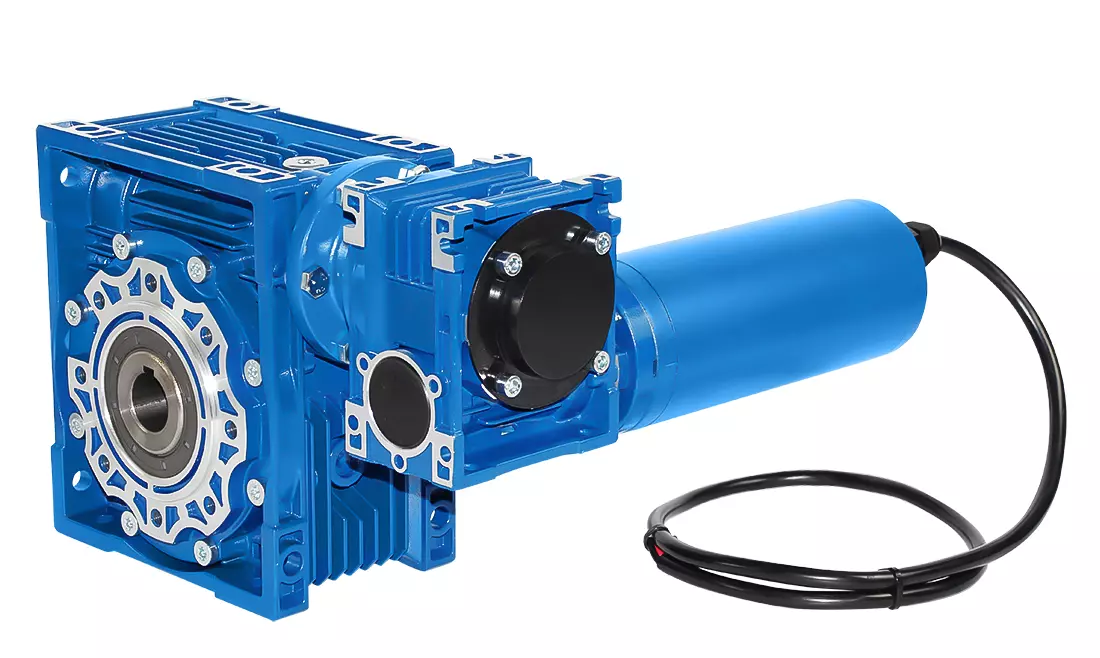

Double worm gear with DC motor, IP66, Power= 0.14 kW, Speed= 5.6 rpm

Voltage= 1 x 12 Volt, Protection class= gear IP55, motor IP66, Current consumption= 12V/16.8 A,

Operating mode = S2 (short-term operation), Hollow shaft= 25 mm, Motor speed= 2 poles, Gear ratio (i)= 500,

Torque= 100 Nm, operating factor (f.s.)= 1.07, connection= external cable (1m), weight= 11.6 kg.

An external speed control is optionally available.

The gear motor can be operated in both directions of rotation and is filled with oil when delivered.

According to VDE 0105 and IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel.

From gear size 110, the installation position must be specified.

All product photos are non-binding examples!

Performance:	0,14 kW
Torque:	51 to 100 Nm
Rotation speed:	5 to 10 rpm
Shaft diameter:	25 mm
Type of construction:	Double worm gear
Tension:	12 V DC
Protection class:	IP66
Series:	CMRV-series

Properties "CMRV063/030 DC100, 12V, 0.14 kW, 5.6 rpm, IP66 Worm gear motor"

Performance:	0,14 kW
Torque:	51 to 100 Nm
Rotation speed:	5 to 10 rpm
Shaft diameter:	25 mm
Type of construction:	Double worm gear
Tension:	12 V DC
Protection class:	IP66
Series:	CMRV-series

Accesories

DC motor control 20 A without control box

Speed control for DC motors The PLN20 speed control is suitable for DC motors up to 350 W / 20 A.Extensive control variants of the DC motor are possible. These can be found in the catalog included in the download. Motor start and stop times:- Acceleration ramp: 0.5 - 10 sec- Deceleration ramp: 0.5 - 10 sec Special features:Room temperature: 0°C / +40°C (alarm below zero) Dimensions:146 mm x 177 mm x 34 mm Attention: Individual electrical protection must be carried out on site by qualified personnel! Alle Produktfotos sind unverbindliche Beispiele! Technische Änderungen vorbehalten.

£352.90*

Details

DC-Motorsteuerung-Drehzahlregler-Gleichstrommotoren-Schaltkasten

DC motor control 20 A with control box

Speed control for DC motors in the control box Pre-wired DC motor control unit with potentiometer (5–10 kΩ), left-off-right rotation switch and motor control mounted in the control box. The speed control is suitable for DC motorsup to 350 W / 20 A . Motor switch-on and switch-off times:- Acceleration ramp: 0.5 - 10 sec- Deceleration ramp: 0.5 - 10 sec Special features:Room temperature: 0°C / +40°C (alarm below zero) Dimensions:350 mm x 250 mm x 155 mmAttention: Individual electrical protection must be carried out on site by qualified personnel! Alle Produktfotos sind unverbindliche Beispiele! Technische Änderungen vorbehalten.

£762.27*

Details

CMRV 063 FC output flange

Output flange for CMRV 040 Ø 200 x 130 x 165 mm. B5 Depth: 45 mm,, All product photos are non-binding examples! Technical changes reserved.

£22.43*

Details

CMRV 063 FB output flange

Output flange for CMRV 063 Ø 180 x 115 x 150 mm. B5 Depth: 59 mm, All product photos are non-binding examples! Technical changes reserved.

£24.84*

Details

CMRV 063 FD output flange

Output flange for CMRV 040 Ø 200 x 130 x 165 mm. B5 Depth: 54 mm,, All product photos are non-binding examples! Technical changes reserved.

£24.71*

Details

CMRV 063 torque arm

Torque arm for CMRV 063 All product photos are non-binding examples! Technical changes reserved.

£26.64*

Details

CMRV 063-output shaft

Output shaft with feather key for worm gear CMRV 063, 25 x 50mm All product photos are non-binding examples! Technical changes reserved.

£25.49*

Details

CMRV 063-double output shaft

Double output shaft with feather key for worm gear CMRV 063, 25 x 50mm, both sides All product photos are non-binding examples! Technical changes reserved.

£30.28*

Details
