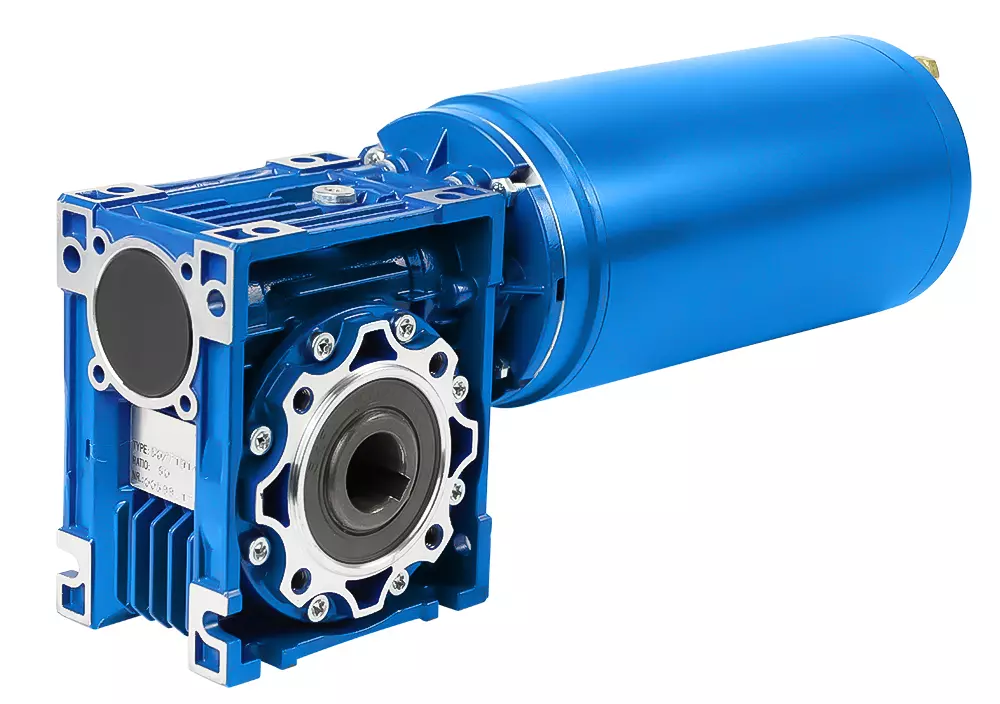

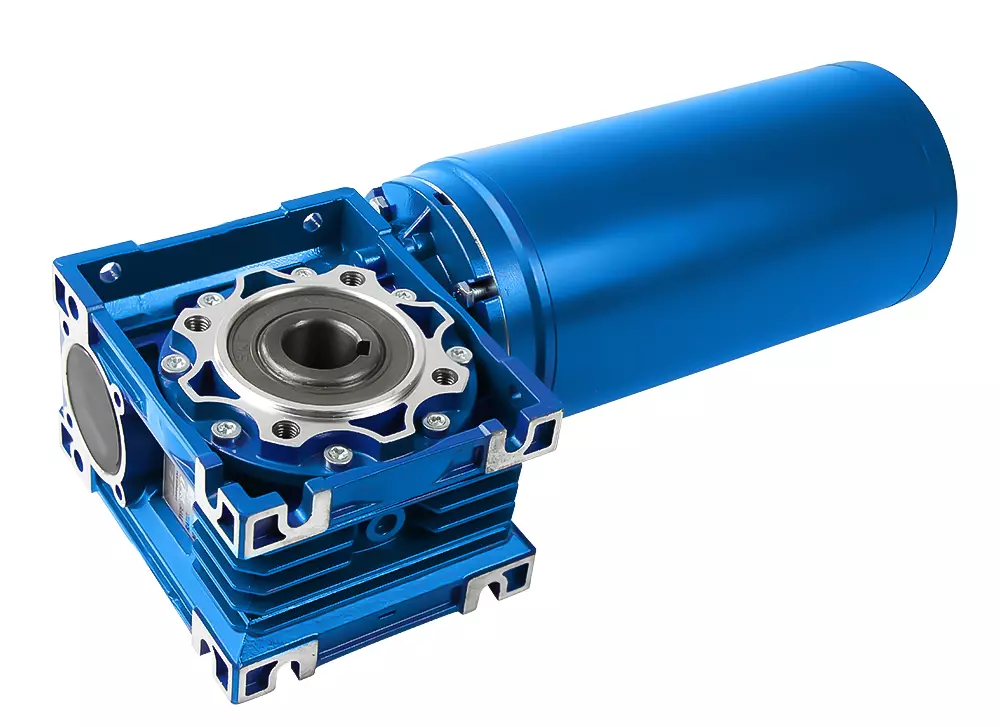

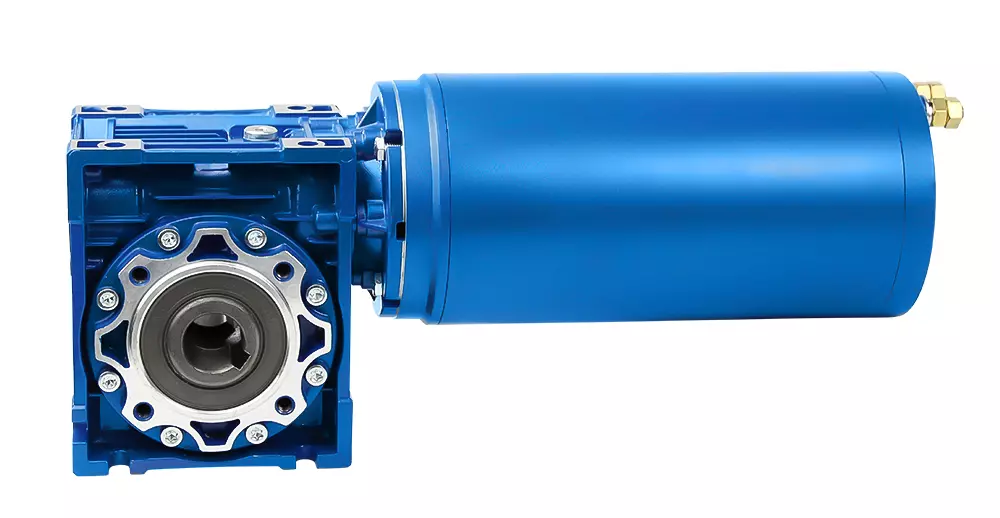

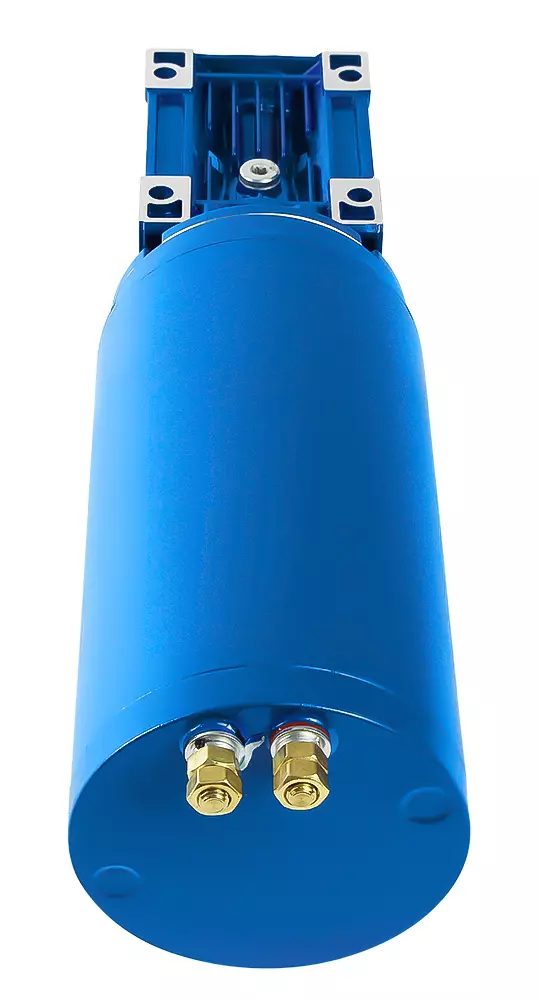

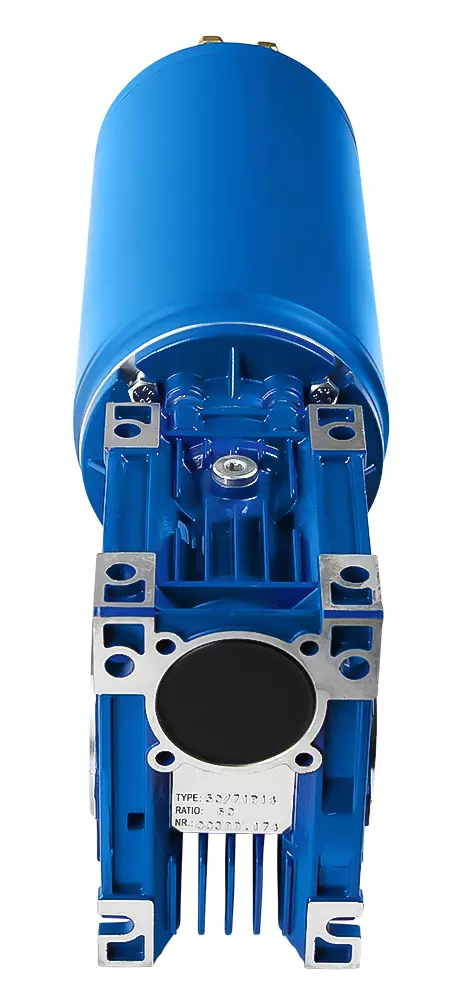

CMRV063 DC600-2, 12V, 0,80 kW, 100 rpm, IP66 Worm Gearbox Motor
Product information "CMRV063 DC600-2, 12V, 0,80 kW, 100 rpm, IP66 Worm Gearbox Motor"
Worm gear with DC motor, IP66, Power= 0.80 kW (S2 operation), Speed= 100 rpm
Voltage= 12 volts DC, Degree of protection= gearbox IP55, motor IP66, Current consumption= 12 V/94.4 A,
Operating mode= S2 (short-time operation), Hollow shaft= 25 mm, Motor Speed= 2 pole, Translation (i)= 30,
Torque= 60.0 Nm, Service factor (f.s.)= 1.8, Connection= Clamp bolt, Weight= 13.1 kg.
An external speed control is available as an option. The gearbox can be operated in both directions of rotation
and includes an oil fill upon delivery. In accordance with VDE 0105 and IEC 364, all work on the
Electrical drive to be carried out only by qualified specialist personnel.
All product photos are non-binding examples! Technical changes reserved.
| Performance: | 0,80 kW |
|---|---|
| Torque: | 51 to 100 Nm |
| Rotation speed: | 51 to 100 rpm |
| Shaft diameter: | 25 mm |
| Type of construction: | Standard worm gear |
| Tension: | 12 V DC |
| Protection class: | IP66 |
| Series: | CMRV-series |
| Performance: | 0,80 kW |
|---|---|
| Torque: | 51 to 100 Nm |
| Rotation speed: | 51 to 100 rpm |
| Shaft diameter: | 25 mm |
| Type of construction: | Standard worm gear |
| Tension: | 12 V DC |
| Protection class: | IP66 |
| Series: | CMRV-series |
