Drives for the most
challenging requirements

Your partner for powerful drive technology.

Discover our extensive range of products, from electric motors through geared motors to frequency inverters, and benefit from our expertise. We will get your project moving!

Contact

New : Energy-saving motors in IE5 (Ultra Premium Efficiency) now available!

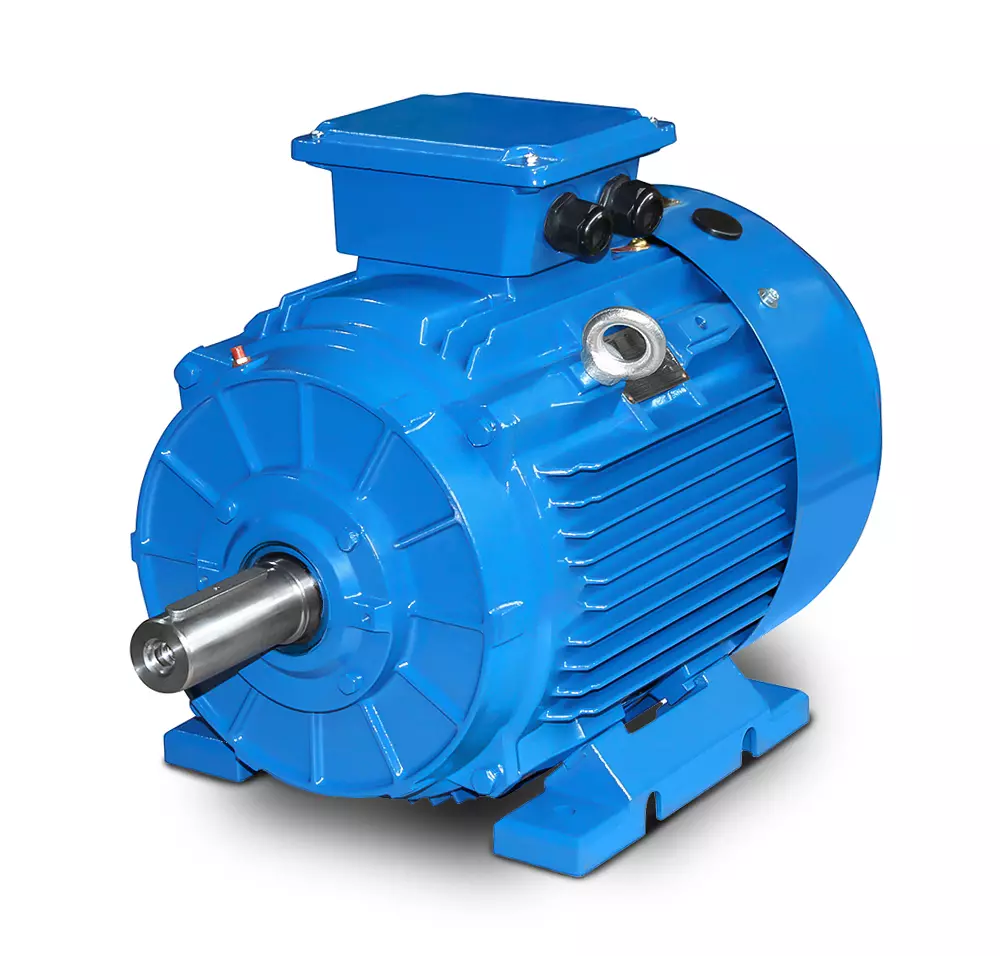

Three-phase motor IE5 160M-4, 11 kW, 4 pole, B3

Electric motor, power=11 kW, speed=1500 rpm, design=B3 Shaft=42 x 110 mm, voltage=3 x 400/690 V-50 Hz, 3 x 480/830 V-60 Hz (± 5% according to VDE 0530), frequency=50/60 Hertz. Efficiency class=IE5, efficiency=94.6%, paint finish=RAL 5010 (gentian blue), protection class=IP55, temperature sensor=3 x PTC thermistors, Operating mode=S1- 100% ED, terminal box position=top, housing=grey cast iron, insulation class=F (155°C), Ball bearing=SKF or equivalent, cooling=axial fan (plastic), motor feet=screwable (if available). The motor bearings are designed for clutch operation. For belt drive, we recommend reinforced cylindrical roller bearings. The electric motor is suitable for use with frequency inverters and for both directions of rotation. In accordance with VDE 0105 and IEC 364, all work on the electric drive must only be carried out by qualified personnel Qualified personnel. For modifications or special designs, please send us an enquiry. All product photos are non-binding examples! Subject to technical changes.

£962.71*

Details

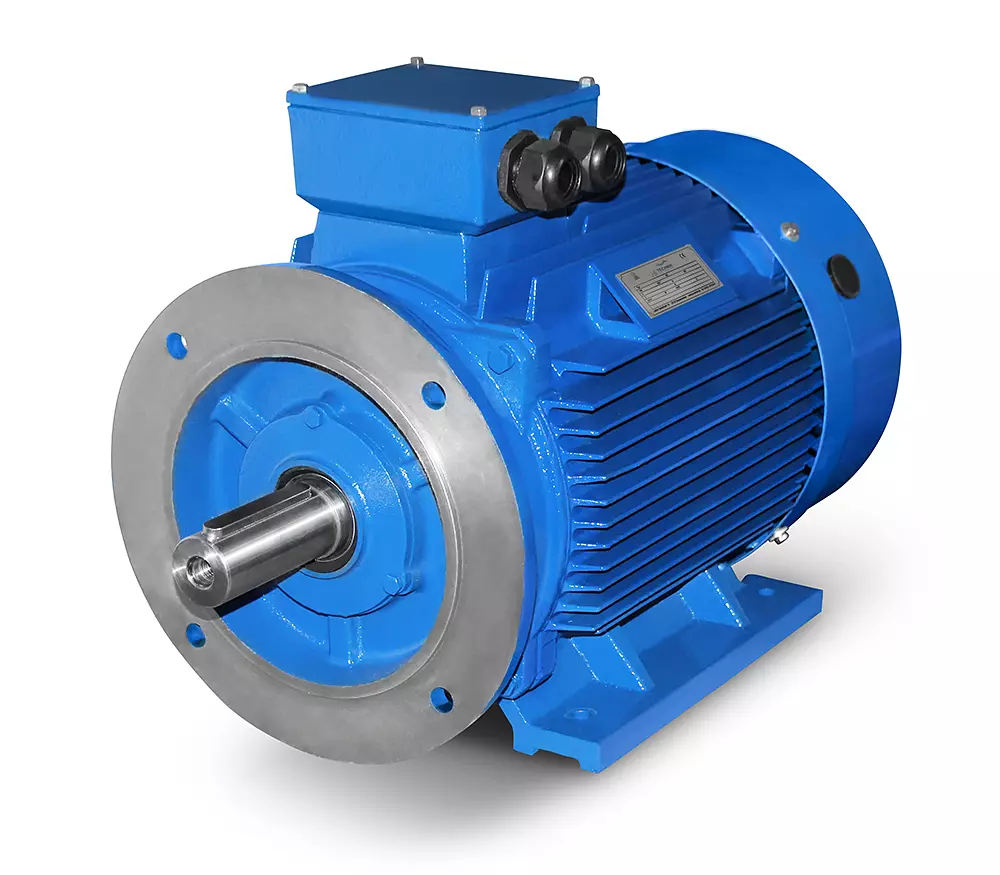

Three-phase motor IE5 180L-4, 22 kW, 4 pole, B5

Electric motor, power=22 kW, speed=1500 rpm, design=B5 Shaft=48 x 110 mm, voltage=3 x 400/690 V-50 Hz, 3 x 480/830 V-60 Hz (± 5% according to VDE 0530), frequency=50/60 Hertz. Efficiency class=IE5, efficiency=95.5%, paint finish=RAL 5010 (gentian blue), protection class=IP55, temperature sensor=3 x PTC thermistors, Operating mode=S1- 100% ED, Terminal box position=top, Housing=grey cast iron, Insulation class=F (155°C), Ball bearing=SKF or equivalent, cooling=axial fan (plastic), motor feet=screwable (if available). The motor bearings are designed for clutch operation. For belt drive, we recommend reinforced cylindrical roller bearings The electric motor is suitable for use with frequency inverters and for both directions of rotation. In accordance with VDE 0105 and IEC 364, all work on the electric drive must only be carried out by qualified personnel Qualified personnel. For modifications or special designs, please send us an enquiry. All product photos are non-binding examples! Subject to technical changes.

£2,028.78*

Details

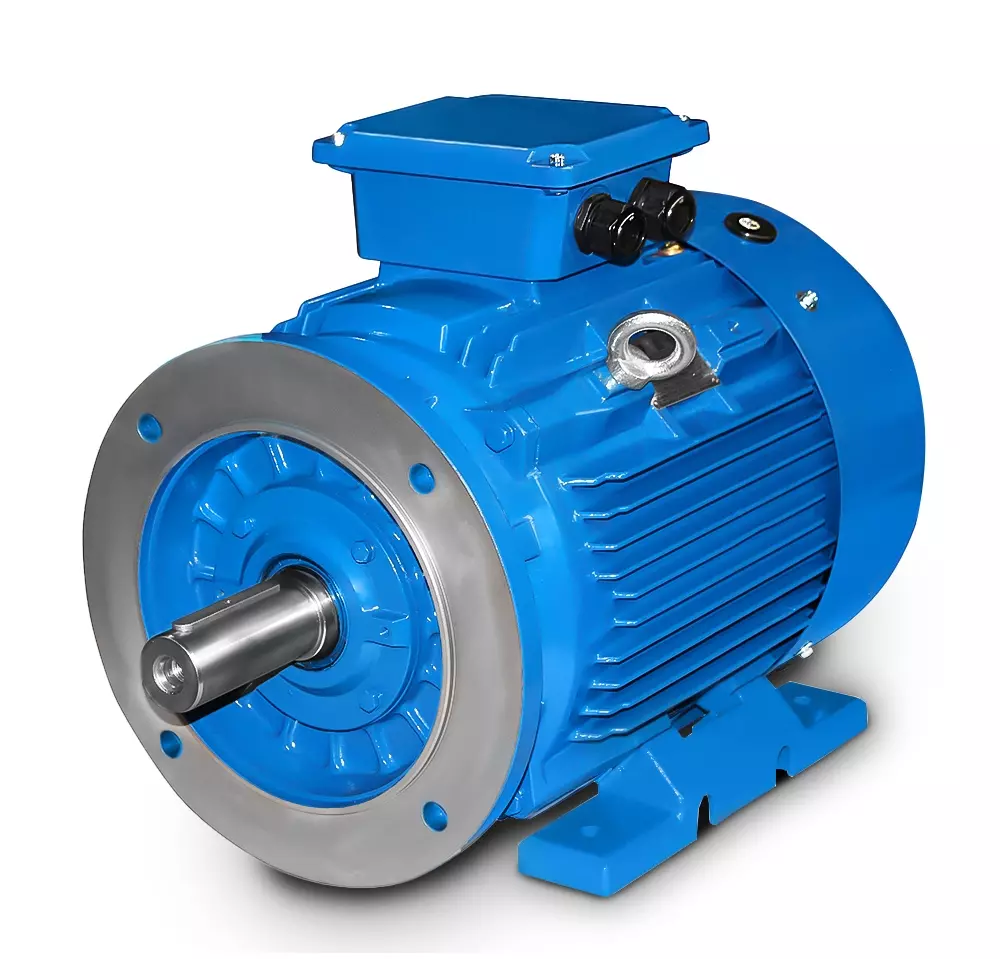

Three-phase motor IE5 250M-4, 55 kW, 4 pole, B35

Electric motor, power=55 kW, speed=1500 rpm, design=B35 Shaft=65 x 140 mm, voltage=3 x 400/690 V-50 Hz, 3 x 480/830 V-60 Hz (± 5% according to VDE 0530), frequency=50/60 Hertz. Efficiency class=IE5, efficiency=96.5%, paint finish=RAL 5010 (gentian blue), protection class=IP55, temperature sensor=3 x PTC thermistors, Operating mode=S1- 100% ED, terminal box position=top, housing=grey cast iron, insulation class=F (155°C), with relubrication device, Ball bearing=SKF or equivalent, cooling=axial fan (plastic), motor feet=screwable (if available). The motor bearings are designed for clutch operation. For belt drive, we recommend reinforced cylindrical roller bearings The electric motor is suitable for use with frequency inverters and for both directions of rotation. In accordance with VDE 0105 and IEC 364, all work on the electric drive must only be carried out by qualified personnel Qualified personnel. For modifications or special designs, please send us an enquiry. All product photos are non-binding examples! Subject to technical changes.

£4,423.95*

Details

Lorem ipsum

At vero eos et accusam et justo

Button

Lorem ipsum

At vero eos et accusam et justo

Button

Lorem ipsum

At vero eos et accusam et justo

Button

Lorem ipsum

At vero eos et accusam et justo

Button

DC gearboxes in various designs:

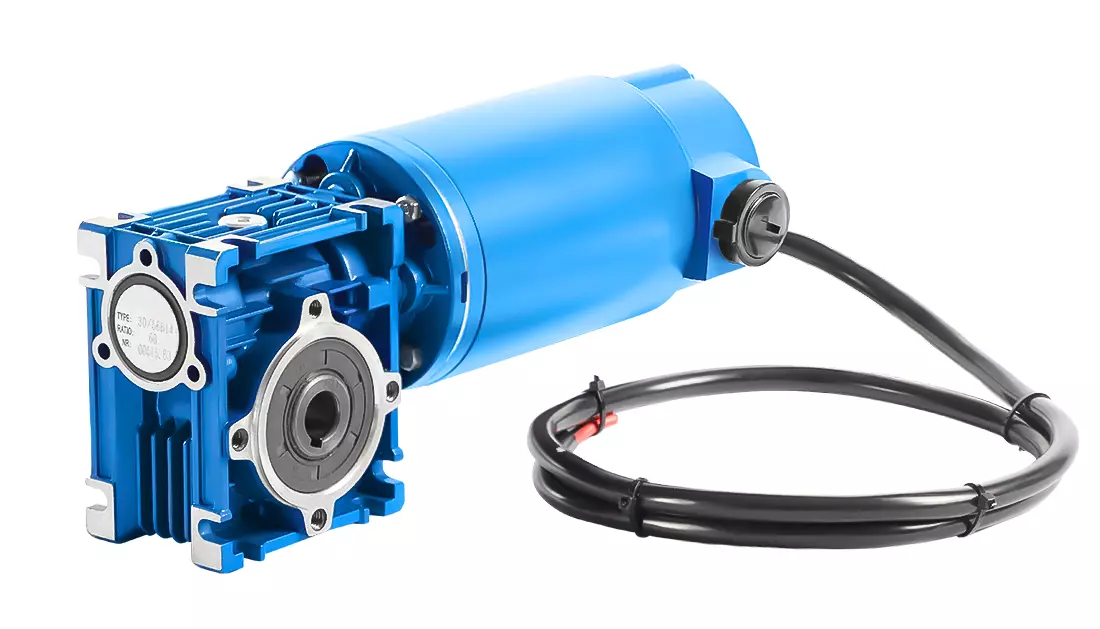

CMRV040 DC100-2, 24V, 0.14 kW, 30 rpm, IP40 Worm Gearbox Motor

Worm gear with DC motor, IP40, Power= 0.14 kW (S2 operation), Speed= 30 rpm Voltage= 24 volts DC, Degree of protection= gearbox IP55, motor IP40, Current consumption= 24 V/8.4 A, Operating mode= S2 (short-time operation), Hollow shaft= 18 mm, Motor Speed= 2 pole, Translation (i)= 100, Torque= 25.0 Nm, Service factor (f.s.)= 1.0, Connection= lead-out cable (1m), Weight= 4.7 kg. An external speed control is optionally available. Version with brake, encoder or others Protection classes on request. The gearbox can be operated in both directions of rotation and contains one oil filling upon delivery. According to VDE 0105 and IEC 364, all work on the electric drive is only permitted carried out by qualified specialist personnel. All product photos are non-binding examples! Technical changes reserved.

From £331.79*

Details

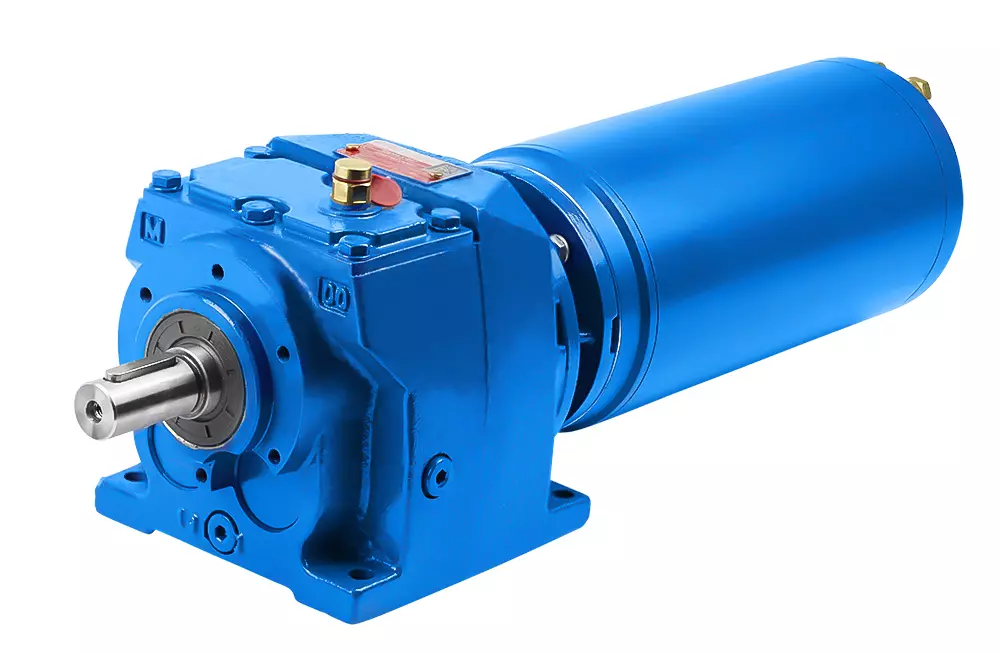

MV003-DC250-2, 24V, 0.35kW, 204 rpm, IP66 spur gear motor

Spur gear motor with DC Motor, IP66, power= 0.35 kW (S2 operation), Speed= 204 rpm Voltage= 24 volts DC, Degree of protection= Gearbox IP55, Motor IP66, Current consumption= 24V/20.5A, Operating mode= S2 (short-time operation), Shaft= 20 mm x 40 mm, Motor speed= 2 pole, Translation (i)= 14.67, Torque= 18.0 Nm, Service factor (fs)= 4.0, Connection= clamping bolt, Weight= 16.2 kg An external speed control is available as an option. The gearbox can be operated in both directions of rotation and includes an oil fill upon delivery. In accordance with VDE 0105 and IEC 364, all work on the Electrical drive to be carried out only by qualified specialist personnel. All product photos are non-binding examples! Technical changes reserved. When ordering, please select the desired installation position and design!

£672.48*

Details

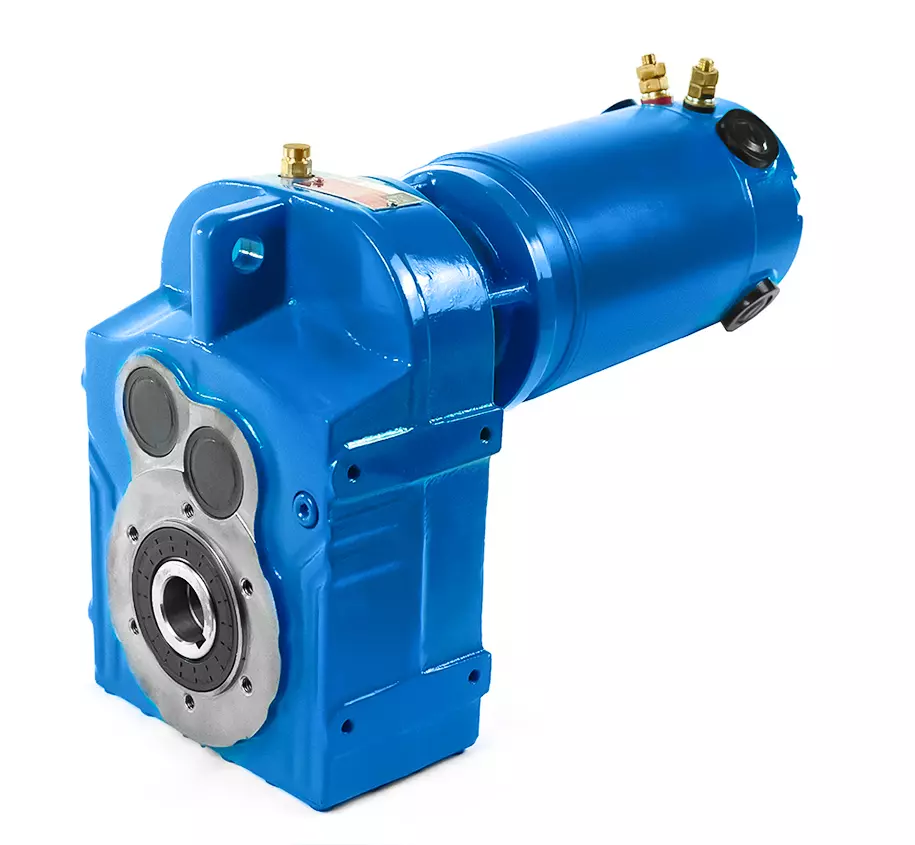

DV173-DC250-2-0.35 kW-32 U/min Flat gear motorr

Square gear motor with DC motor, IP66, power= 0.35 kW (S2 operation), speed= 32 rpm Voltage= 12 or 24 volts DC, protection class= gear IP55, motor IP66, current consumption= 12V/38.5 A, 24V/20.5 A, Operating mode= S2 (short-term operation), hollow shaft= 30 mm, motor speed= 2 poles, gear ratio (i)= 91.25 Torque= 109 Nm, service factor (fs)= 1.8, connection= clamping bolt, weight= 20.0 kg An external speed control is optionally available. The gear can be operated in both directions of rotation and is supplied with an oil filling. According to VDE 0105 and IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel. All product photos are non-binding examples! Technical changes reserved. When ordering, please select the desired installation position and version!

£815.98*

Details

Click here for the latest special offers:

Electric motor M3 160M-11 kW-2pole-B3

Electro motor, Three-phase motor, Power= 11 kW, Speed= 3000 rpm Voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/60 Hertz. Efficiency class= IE3, Efficiency= 91,2%, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Temperature sensor= 3 x PTC thermistors, Weight= 119,0kg, Operating mode= S1- 100% DC, Terminal box position= top, Housing= Cast iron, Insulation class= F (155°C), Ball bearing= SKF or equivalent, Cooling= axial fan (Plastic), Motor feet= fixed potted (if present).The engine mounting is designed for clutch operation. We recommend reinforced Cylindrical roller bearings for belt drives.The Electric motor is suitable for frequency converter use and for both directions of rotation. According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples! Technical changes reserved.

£498.35* £664.46* (25% saved)

Details

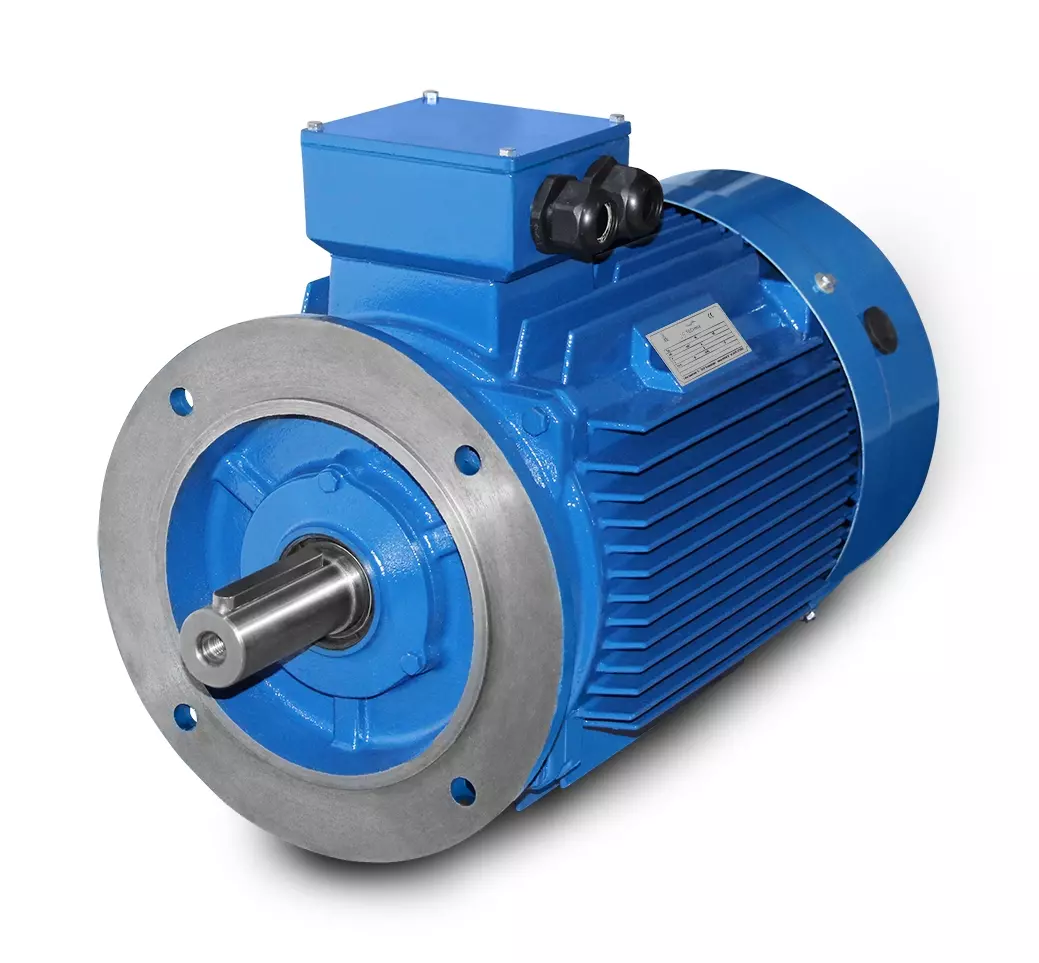

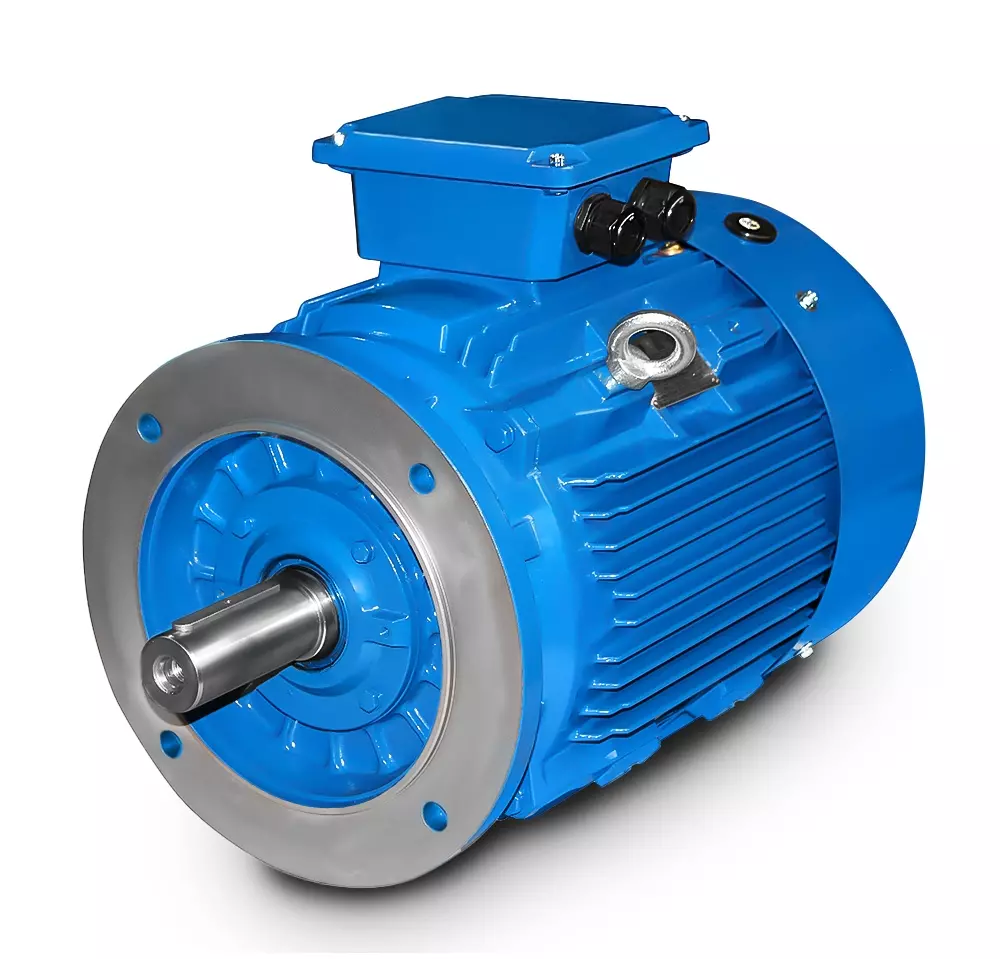

Electric motor M3 200L-30 kW-4pole-B5

Electro motor, Three-phase motor, Power= 30 kW, Speed= 1500 rpm Voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/60 Hertz. Efficiency class= IE3, Efficiency= 93,6%, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Temperature sensor= 3 x PTC thermistors, Operating mode= S1- 100% DC, Terminal box position= top, Housing= Cast iron, Insulation class= F (155°C), with relubrication device , Ball bearing= SKF or equivalent, Cooling= axial fan (Plastic), Motor feet= fixed potted (if present).The engine mounting is designed for clutch operation. We recommend reinforced Cylindrical roller bearings for belt drives.The Electric motor is suitable for frequency converter use and for both directions of rotation. According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples! Technical changes reserved.

£1,110.31* £1,480.42* (25% saved)

Details

Electric motor M3 160L-11 kW-6pole-B35

Electro motor, Three-phase motor, Power= 11 kW, Speed= 1000 rpm Voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/60 Hertz. Efficiency class= IE3, Efficiency= 89,1%, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Temperature sensor= 3 x PTC thermistors, Weight= 132 kg, Operating mode= S1- 100% DC, Terminal box position= top, Housing= Cast iron, Insulation class= F (155°C), Ball bearing= SKF or equivalent, Cooling= axial fan (Plastic), Motor feet= fixed potted (if present).The engine mounting is designed for clutch operation. We recommend reinforced Cylindrical roller bearings for belt drives.The Electric motor is suitable for frequency converter use and for both directions of rotation. According to VDE 0105 or IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples! Technical changes reserved.

£598.99* £798.66* (25% saved)

Details

Information

• Geared motors | Electric Motors | Frequency Inverters

As a drive technology company, we are accurately the right address if you are looking for high-quality electric motors, gear motors, frequency inverters and products from the field of professional electric drive technology. Our range of products includes three-phase motors, brake motors, single-phase motors, worm gear motors, helical gear motors, bevel gear motors, flat gear motors, frequency inverters and many more.

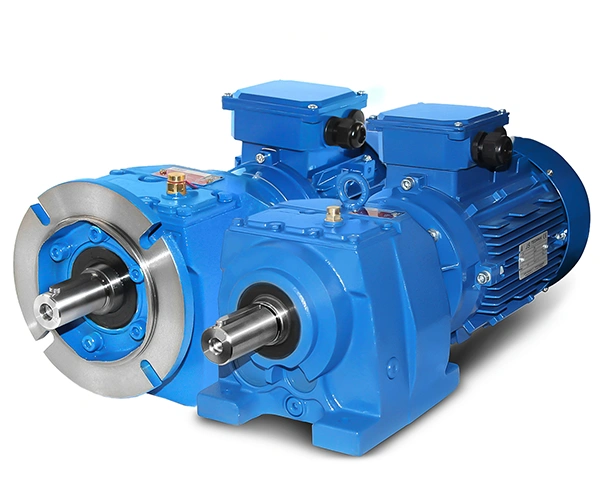

• Gear motors

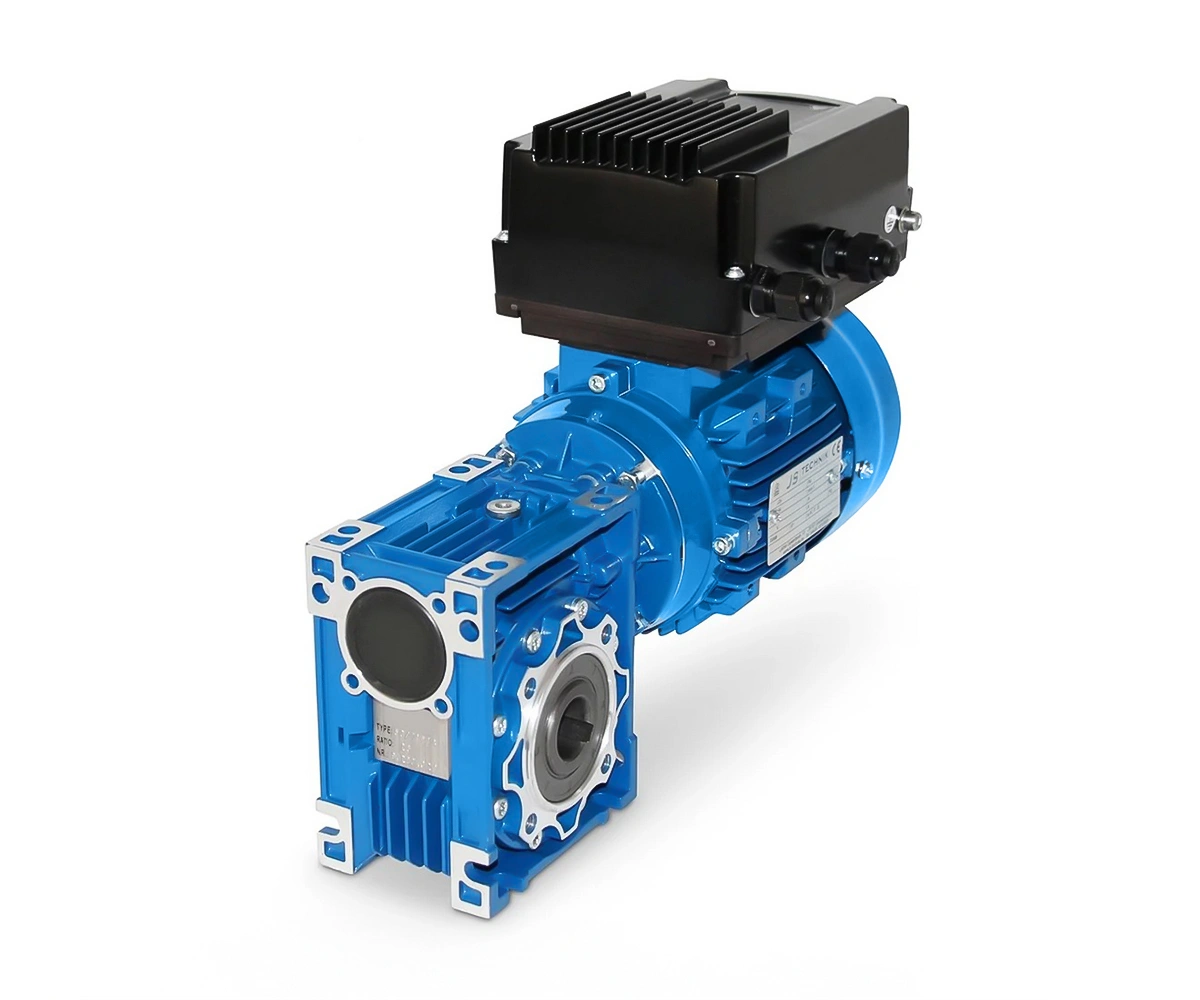

We offer many modifications in our production of electric motors and gear motors according to customer specifications. For example, three-phase motors with rotary encoders, spring-loaded brakes, external fans, reduced frame sizes or with integrated frequency inverter. These special motors are also available in combination with our extensive range of gearboxes, such as worm gearboxes with a DC motor, either ATEX-designed, made of stainless steel or equipped with a special shaft.

• Quality according to ISO 9001

From electric motors through geared motors to frequency inverters, we are your partner for powerful drive technology. We supply you with electric motors for the most challenging requirements. We set high standards for quality, environmental protection, occupational safety and data protection. Our products meet the highest quality standards and are certified according to
ISO 9001: 2015.

• Electric motors

Professional support is essential, especially when purchasing an electric motor, geared motor or frequency inverter. We would like to point out our telephone advice and assistance with product decisions. In addition, for most products you will receive the appropriate data sheet, operating instructions, step file and the associated catalog. These can also be found in the download area.

• Large warehouse - short delivery time

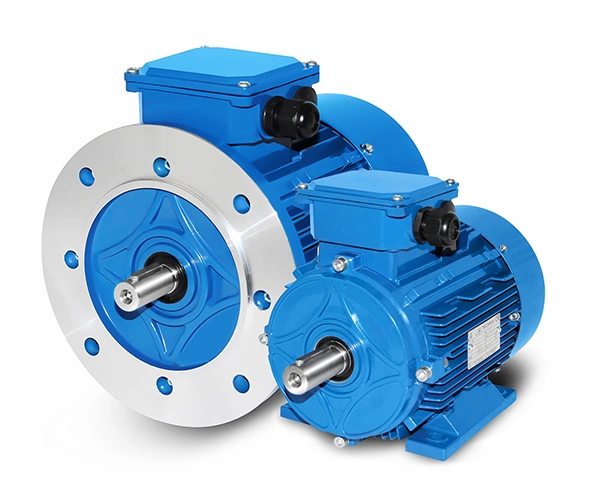

In addition to aluminium electric motors up to 15 kW of common mounting types such as B3, B5, B35, B14, B34, we also stock B3 mount, B5 mount as well as B35 mount gray cast iron three-phase motors up to 450 kW. In the geared motors segment, we have specialized in worm gear motors and spur gear motors and can deliver a wide variety of combinations at short notice. There is also the option of self-collection and express delivery the next day.

• Extensive accessories

We offer a wide range of accessories for our ever-growing product range of electric motors, gear motors and frequency inverters. Here is a small excerpt: external fans, special flanges, spring-loaded brakes, clamping rails, motor switches with brakes, circuit breakers, potentiometers, PTC thermistor tripping devices, cylindrical roller bearings,torque arms, output shafts, braking resistors, shaft couplings and much more.

• Electric Motors - Energy Saving Calculator

The energy saving calculator from JS-Technik is a helpful tool that allows you to determine the energy savings obtained through the efficiency classes IE1, IE2, IE3, IE4 and IE5 for electric motors. The energy cost savings can be calculated over several years. The higher purchase costs of an IE4 electric motor are usually justified by the better efficiency and are significantly more economical in the long term. This is particularly true with high annual operating hours.

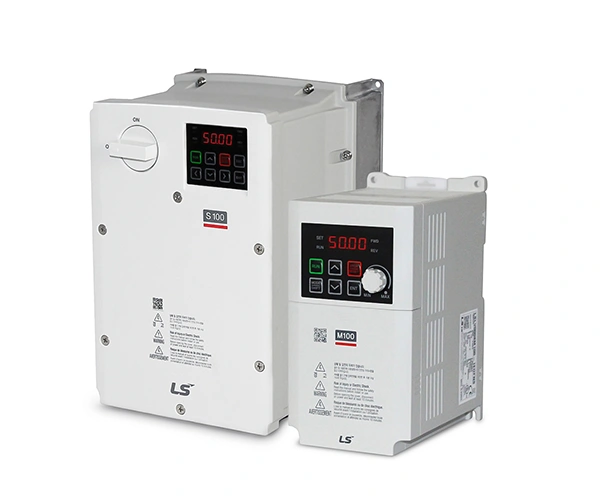

• Frequency inverters

The high-quality frequency inverters with their extensive options are difficult to beat in their price range. Here we offer the M100, G100, S100, H100 and iS7 series. The EASYdrive and Smartdrive frequency inverters are usually mounted directly on the three-phase motor. These inverters can, however, also be ordered without a motor, and wall mounting is also possible. Various optional interface cards are available on all of our frequency inverters.
