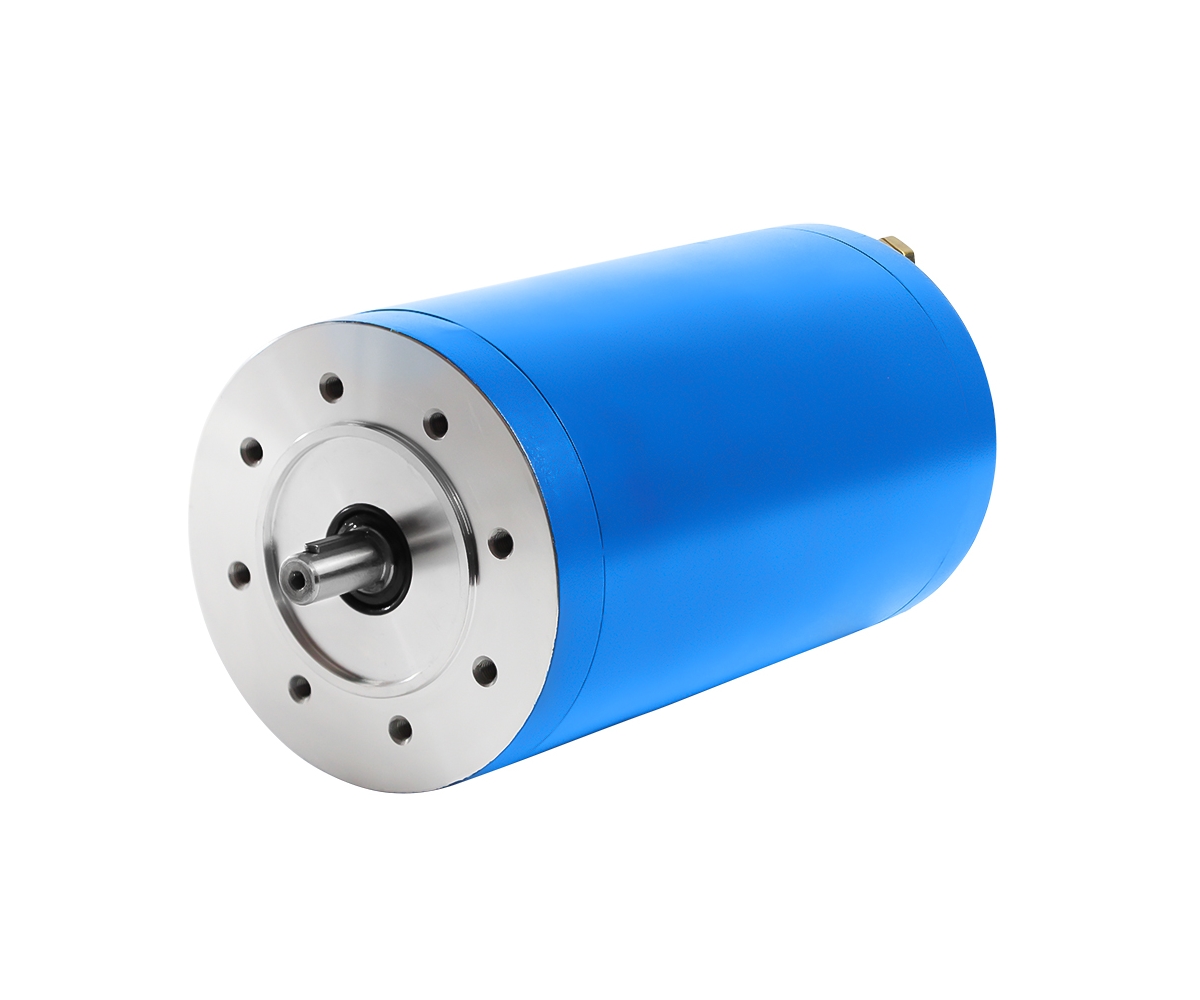

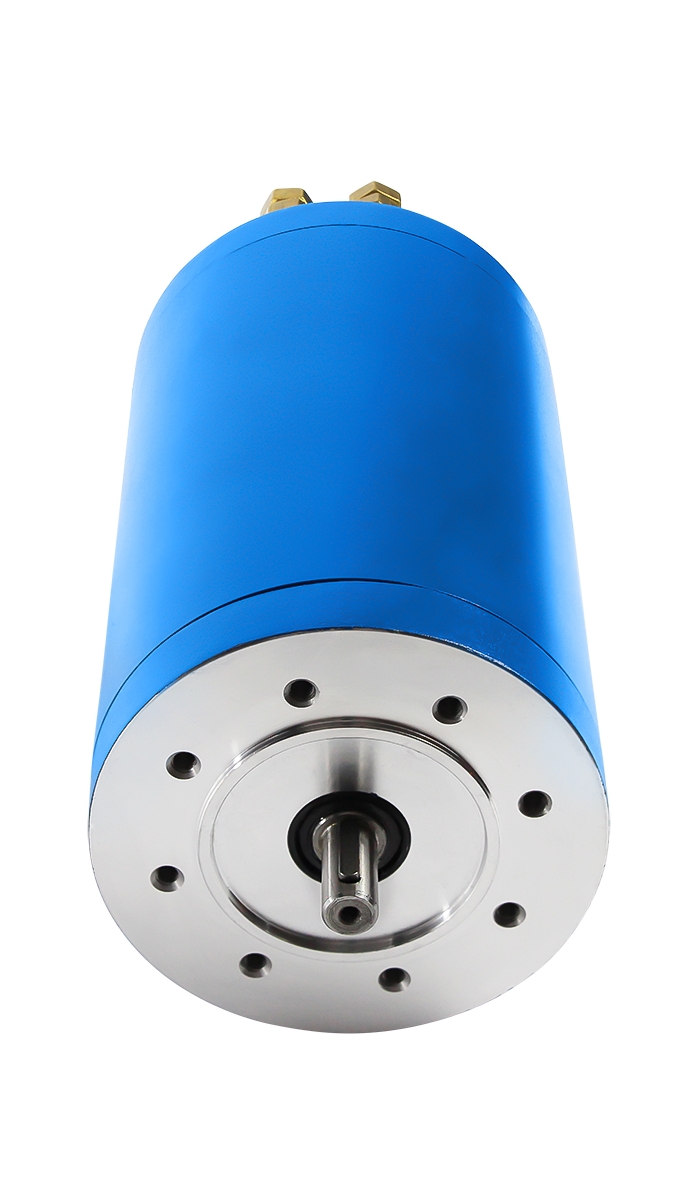

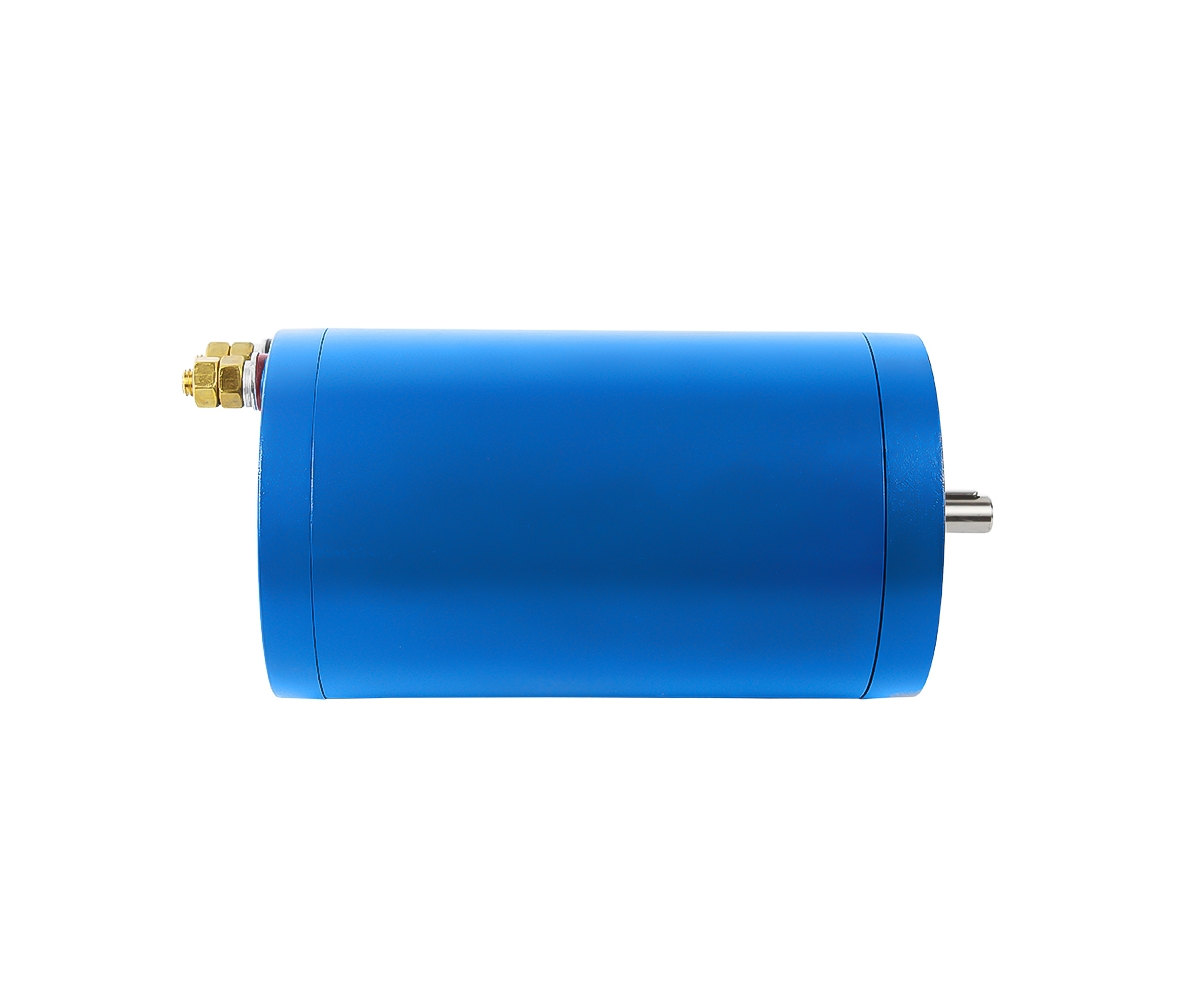

DC motor EC600, 24V, 0,80 kW- 2pol- B14, IP66, IEC71
Product number:
1LF7690D04A208
Product information "DC motor EC600, 24V, 0,80 kW- 2pol- B14, IP66, IEC71"
DC motor, Voltage= 24 V-DC, Shaft 11x23 mm,
Operating mode= S2 (short-term operation), Weight= 7.1 kg, Current consumption= 24V/47.2A,

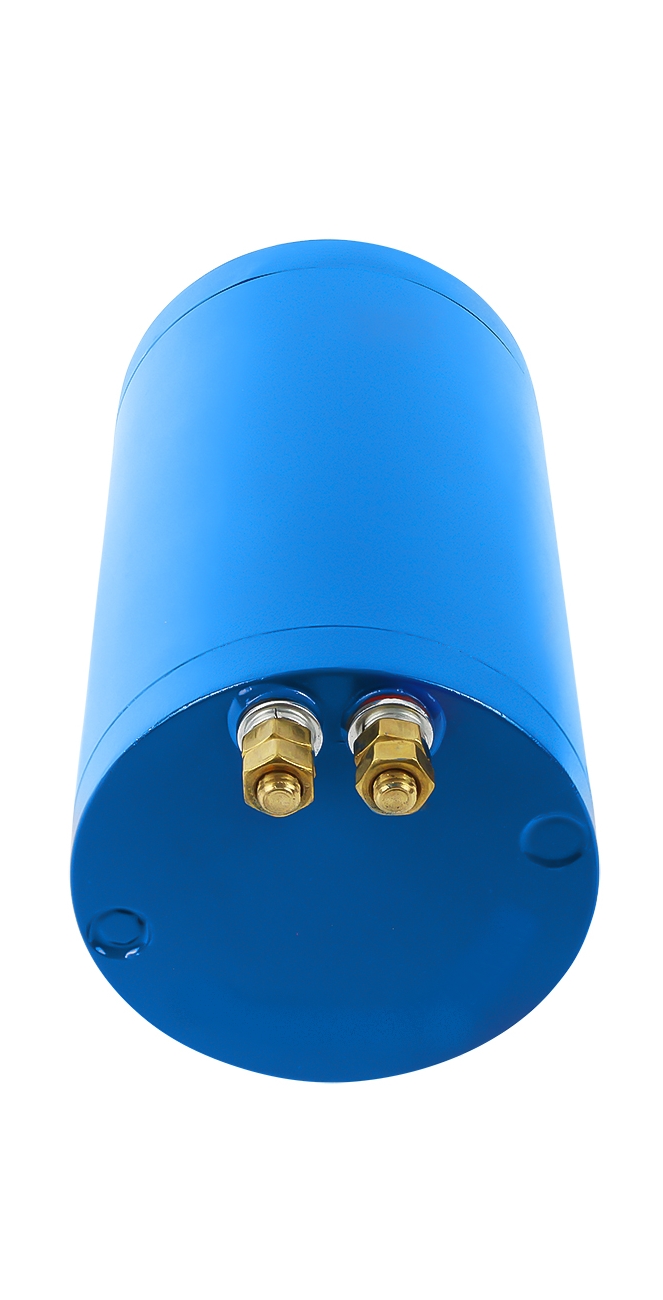

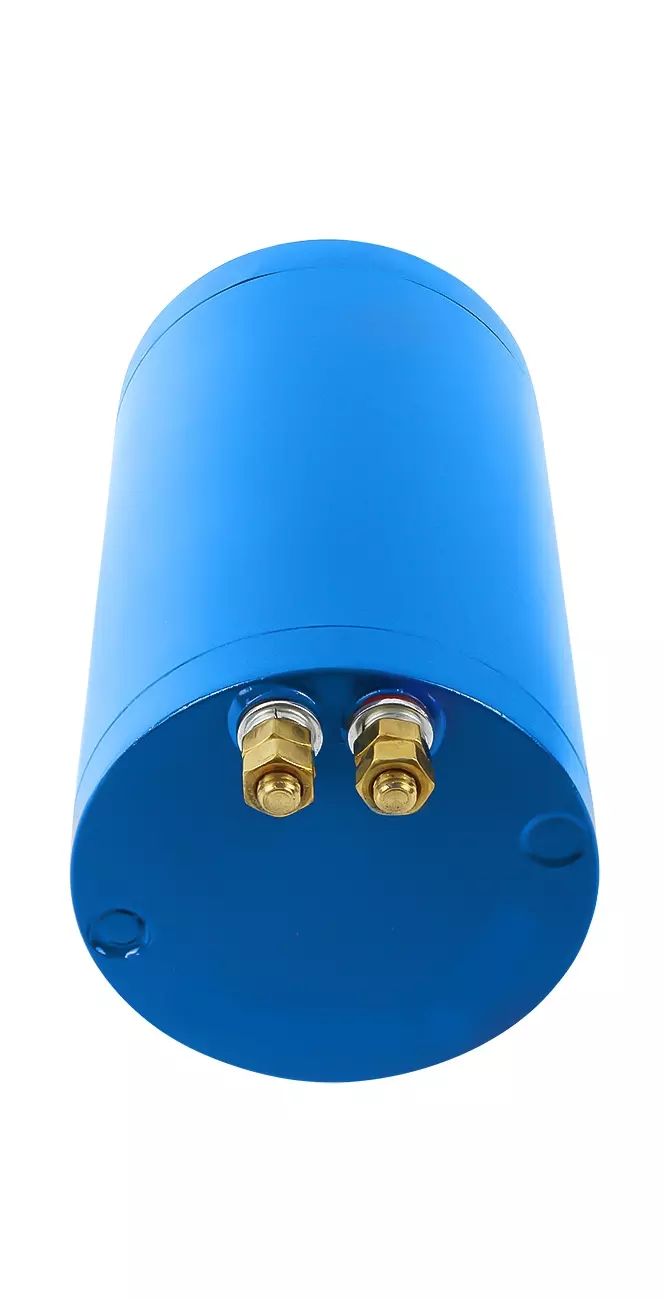

Motor speed= 2-pole, Connection= clamping bolt, Flange 105x70x85 mm,
Protection class= IP66.
In accordance with VDE 0105 or IEC 364, all work on the electric drive must only be carried out by qualified specialist personnel.
All product photos are non-binding examples! Technical changes reserved.
| Flange dimensions: | 105 x 70 x 85 mm |
|---|---|
| For size: | BG 71 |
| Operating mode: | S2 |
| Performance: | 0,80 kW |
| Shaft dimensions: | 14 x 30 mm |
| Rotation speed: | 3000 rpm / 2 polig |
| Shaft diameter: | 14 mm |
| Type of construction: | B14 |
| Tension: | 24 V DC |
| Protection class: | IP66 |
| Direction of rotation: | Left, Right |
Properties "DC motor EC600, 24V, 0,80 kW- 2pol- B14, IP66, IEC71"
| Flange dimensions: | 105 x 70 x 85 mm |
|---|---|
| For size: | BG 71 |
| Operating mode: | S2 |
| Performance: | 0,80 kW |
| Shaft dimensions: | 14 x 30 mm |
| Rotation speed: | 3000 rpm / 2 polig |
| Shaft diameter: | 14 mm |
| Type of construction: | B14 |
| Tension: | 24 V DC |
| Protection class: | IP66 |
| Direction of rotation: | Left, Right |
