DV172-63-4-0,18 kW-47 rpm Parallel shaft gearmotor
Downloads
- JS- DV172 / DV173- Maßzeichnung / Data sheet
- JS- Elektromotor- MS2 632- Datenblatt / Data sheet
- JS- DV172 / DV173- MX63- Step
- JS- DV-Serie- Katalog / Catalog
- JS- DV-Serie- Betriebsanleitung
- JS- DV-series- Operating instructions
- JS- Elektromotoren- Betriebsanleitung
- JS- Electric motors- Operation instructions
Product information "DV172-63-4-0,18 kW-47 rpm Parallel shaft gearmotor"

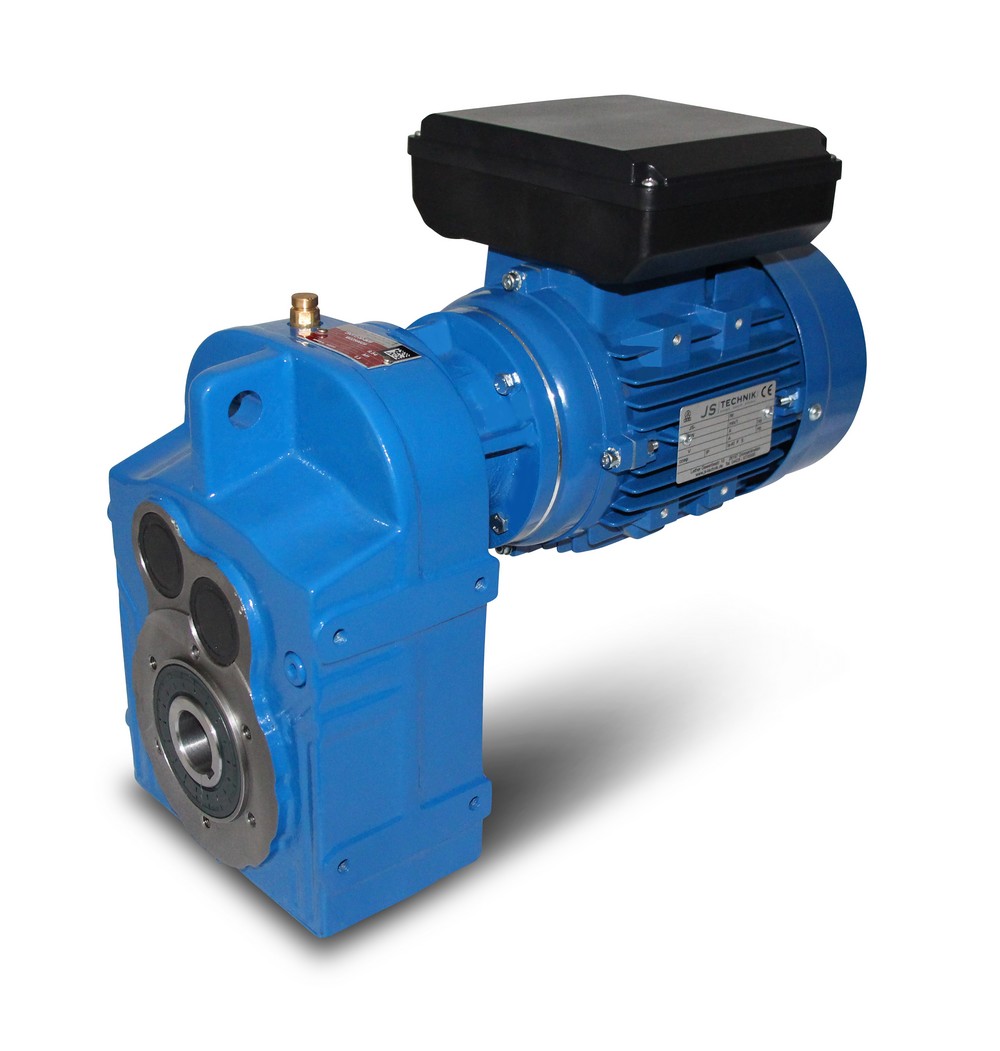

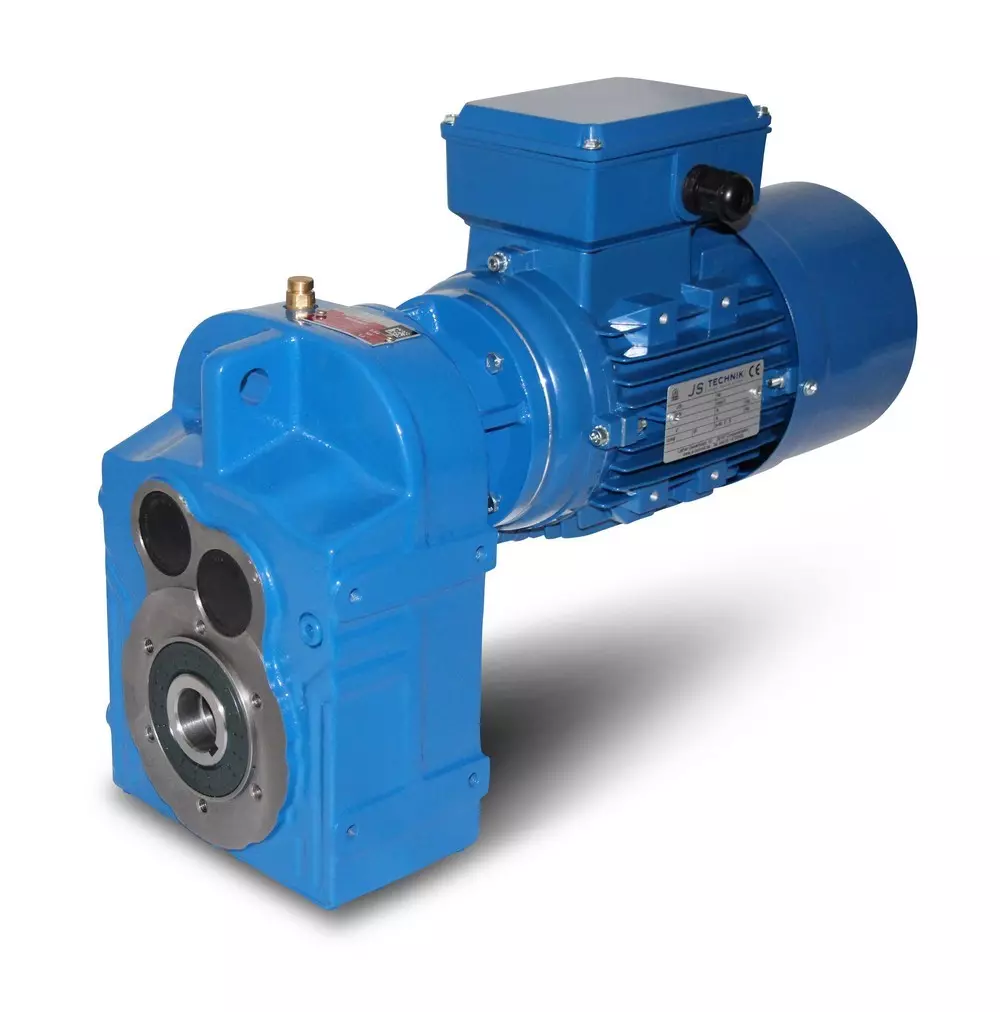

Parallel shaft gearmotor with IEC flange between gearbox and Electro motor
Voltage= 3 x 230/400 V-50 Hz, 3 x 400/690 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz.
Power= 0,18 kW, Speed (n²)= 47 rpm, Ratio (i)= 29,67, Torque (M²)= 34 Nm,
Operating factor (fs)= 5,8, Type= B3, Hollow shaft= 30 mm, Weight= 17 kg, Paint= RAL5010.
Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable).
The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008.
The bevel gear can be operated in both directions and contains an oil filling on delivery.
According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel
perform. For modifications or special designs please send inquiry.
When ordering, please select the desired installation position.
Important instructions
This drive is a custom-made product. A resignation or revocation of the purchase is excluded!
All product photos are non-binding examples!
| Performance: | 0,18 kW |
|---|---|
| Rotation speed: | 11 to 50 rpm |
| Series: | D-series |
| Shaft diameter: | 30 mm |
| Torque: | 26 to 50 Nm |
| Performance: | 0,18 kW |
|---|---|
| Rotation speed: | 11 to 50 rpm |
| Series: | D-series |
| Shaft diameter: | 30 mm |
| Torque: | 26 to 50 Nm |
