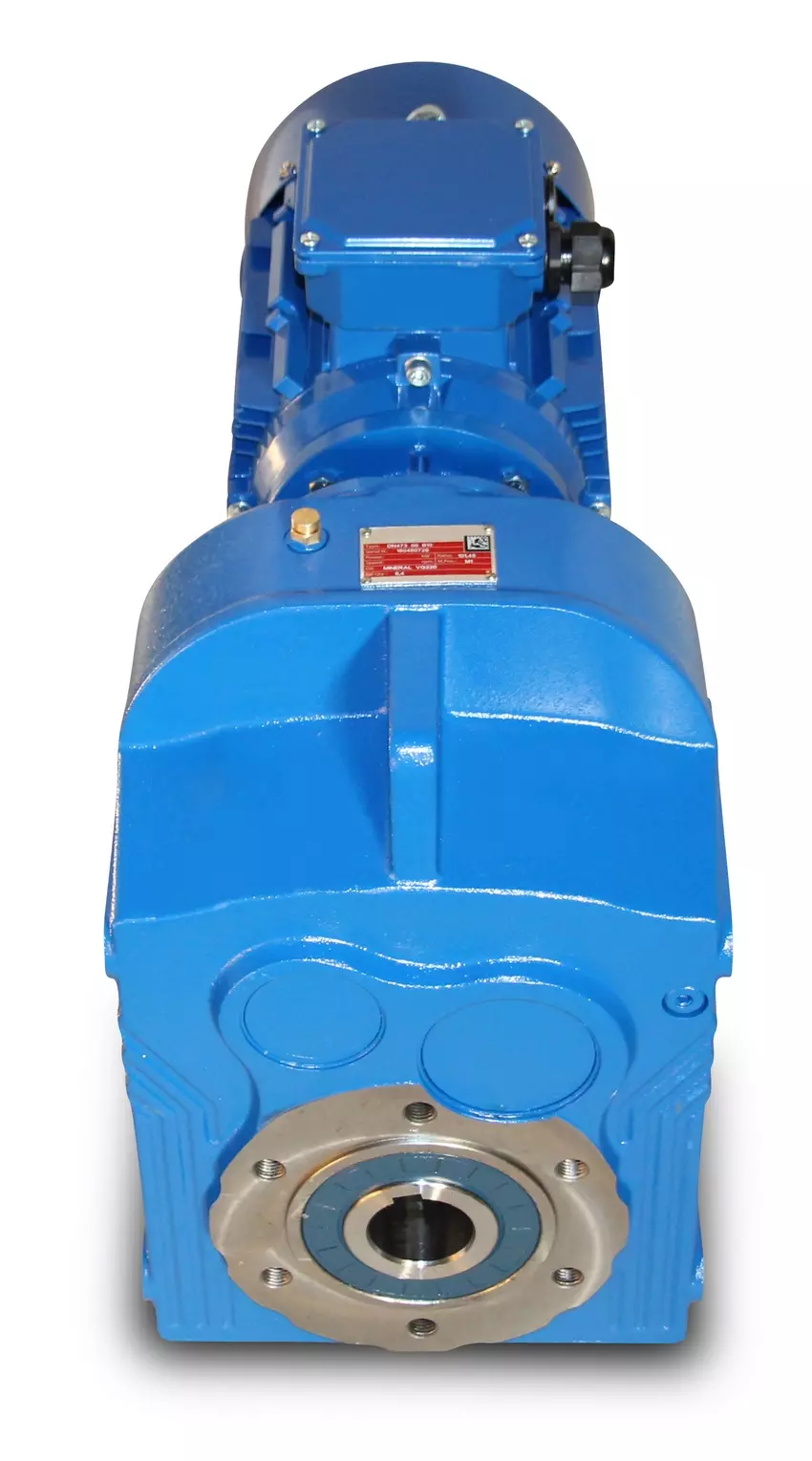

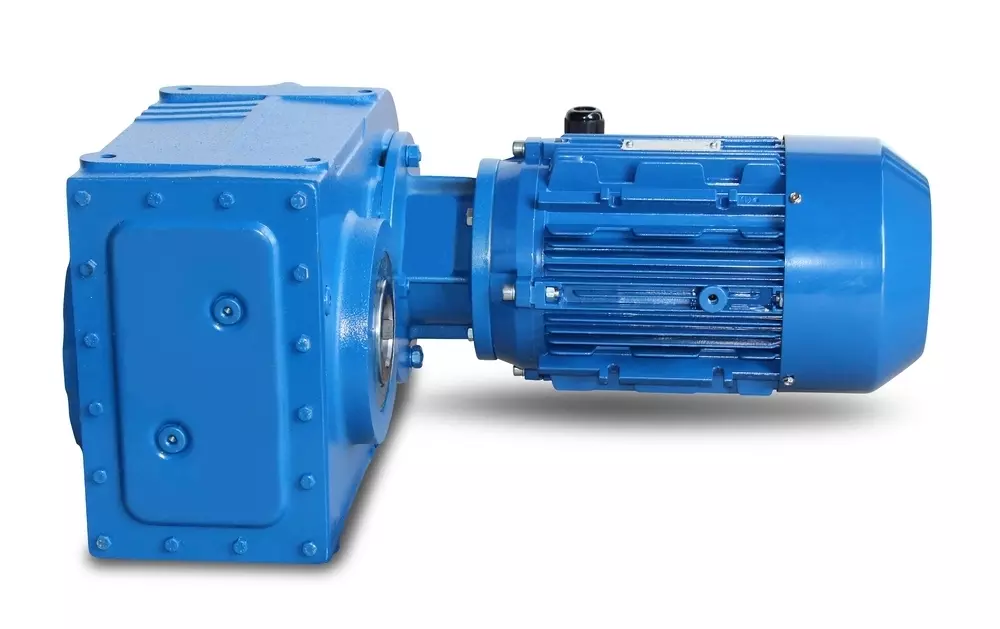

DV473-100-4-2,2 kW-20 rpm Parallel shaft gearmotor

£1,576.72*

Prices incl. VAT plus shipping costs

Delivery time Approx. 36 working days

Mounting position for gearmotors

Product number: DV473510100706A000T1

Shipping fees: Article + Packaging

Downloads

Product information "DV473-100-4-2,2 kW-20 rpm Parallel shaft gearmotor"

Parallel shaft gearmotor with IEC flange between gearbox and Electro motor

Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz.

Power= 2,2 kW, Speed (n²)= 20 rpm, Ratio (i)= 70,59, Torque (M²)= 1003 Nm,

Operating factor (fs)= 1,5, Type= B3, Hollow shaft= 50 mm, Weight= 116 kg, Paint= RAL5010.

Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable).

The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008.

The bevel gear can be operated in both directions and contains an oil filling on delivery.

According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel

perform. For modifications or special designs please send inquiry.

When ordering, please select the desired installation position.

Important instructions
This drive is a custom-made product. A resignation or revocation of the purchase is excluded!
All product photos are non-binding examples!

Performance:	2,2 kW
Torque:	1001 to 2000 Nm
Rotation speed:	11 to 50 rpm
Shaft diameter:	50 mm
Series:	D-series

Properties "DV473-100-4-2,2 kW-20 rpm Parallel shaft gearmotor"

Performance:	2,2 kW
Torque:	1001 to 2000 Nm
Rotation speed:	11 to 50 rpm
Shaft diameter:	50 mm
Series:	D-series

Accesories

DV47 output shaft

Output shaft with feather key for parallel shaft gearmotor DV472, DV473, DV474, DV475 und DV476, 50 x 100 mm The shaft is permanently installed and can only be ordered with geared motor. All product photos are non-binding examples! Technical changes reserved.

£94.86*

Details

DV47 output flange default

Output flange for parallel shaft gearmotor DV472, DV473, DV474, DV475 und DV476 Ø 350 x 250 x 300 mm. B5 All product photos are non-binding examples! Technical changes reserved.

£61.18*

Details

Frequency Inverter LS 0022S100-4EOFNS

Frequency inverter, 2.2 kW, IP20, 380V- 400V- 420V- 480V, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection, Ride Through (LV Trip Delay) protection, Under Load Trip protection, Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

£296.63*

Details

Frequency inverter LS 022M100

Frequency inverter , 2.2 kW, 1 x 230V, 10.0A, IP20, EMC filter integrated - EMC filter C2- Potentiometer for speed control- Attachment to mounting plates or DIN rail- Side-by-side installation possible (2 mm distance between the FU)- Easy connection via RJ45 port- Standard IO: 3x DI, 1x DO, 1x AI (0-10V), 1x AO (0-10V)- Brake chopper for 1.5kW and 2.2kW versions- Overload capacity 150% for 1 min- Programming with DriveView9 operating software via RJ45 connection on the M100(Advanced only! The standard version does not have an RJ45 interface! Please select version.) Excerpt from spec. Features:- DC braking- Jog operation- 3-wire operation- Dwell operation (dwell time operation)- Slip compensation- PID control- Energy saving operation- Speed search- Automatic restart 2.2kW frequency converter , 230V, available at short notice!

From £203.43*

Details

DV47 output flange default

Output flange for parallel shaft gearmotor DV472, DV473, DV474, DV475 und DV476 Ø 300 x 230 x 265 mm. B5 All product photos are non-binding examples! Technical changes reserved.

£61.18*

Details

External fan unit size 100

External fan, external fan unit, Motor size 100 Isoclass F, Protection class IP56, Weight 3.7kg, Multivoltage. 1x230 V-50 Hz, 45 watts, 0.19 A, 2900 rpm, 142 m3/h, capacitor 3µF1x240 V-60 Hz, 55 watts, 0.23 A, 3400 rpm, 142 m3/h, capacitor 3µF3x230/400 V-50 Hz, 40 watts, 0.19 A/0.12 A, 2900 rpm, 142 m3/h3x 254/460 V-60 Hz, 55 watts, 0.19/0.11 A, 3400 rpm, 142 m3/hPainted RAL5010, total length 185 mm, inner diameter 197 mm To install the external fan it is necessary to remove the fan cover andremove the fan blade. If an extension cannot be used,the shaft has to be shortened. If ordered with a motor, the external fan can also be installedto be delivered. Please select version.

From £200.13*

Details

Frequency Inverter LS 0022S100-4EXFNS

Frequency inverter, 2.2 kW, 380V- 400V- 420V- 480V, IP66, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection,Ride Through (LV Trip Delay) protection, Under Load Trip protection, Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

£552.37*

Details

Engine options

230V-Option 2.2 kW – 4pol for D-Serie

single-phase option in 1x230V-50Hz, for helical geared reducer motors with 2,2kW-Motor in 4pole version, with Operating and starting capacitor. ! Always operate drive only under load, starting torque lower than with three-phase motor ! ! Only surcharge for the Motor and only available in conjunction with associated three-phase geared motor ! All product photos are non-binding examples!optional:On / off switch with reversing switch for left / right rotation, undervoltage release,Collar plug = 1 x 230 V, switching capacity = 16 A, ambient temperature = -5 ° C to + 40 ° C,Line between motor and switch housing = approx. 90 cm.

From £38.13*

Details

Brakemotor-Option 2.2 kW – 4pol for D-Serie

Brakemotor-Option 2.2 kW – 4pol for parallel shaft gearmotors. Brake= 32 Nm 230V with rectifire. ! Only surcharge for the Motor and only available in conjunction with associated three-phase geared motor ! All product photos are non-binding examplesAll product photos are non-binding examples!

£319.20*

Details
