EV 063NV01 - 0.25 kW 2.4 rpm- 1 x 230 V- Grill gear motor
Product number:
Y7040020630366EA.1
Shipping fees:
Article + Packaging
Product information "EV 063NV01 - 0.25 kW 2.4 rpm- 1 x 230 V- Grill gear motor"

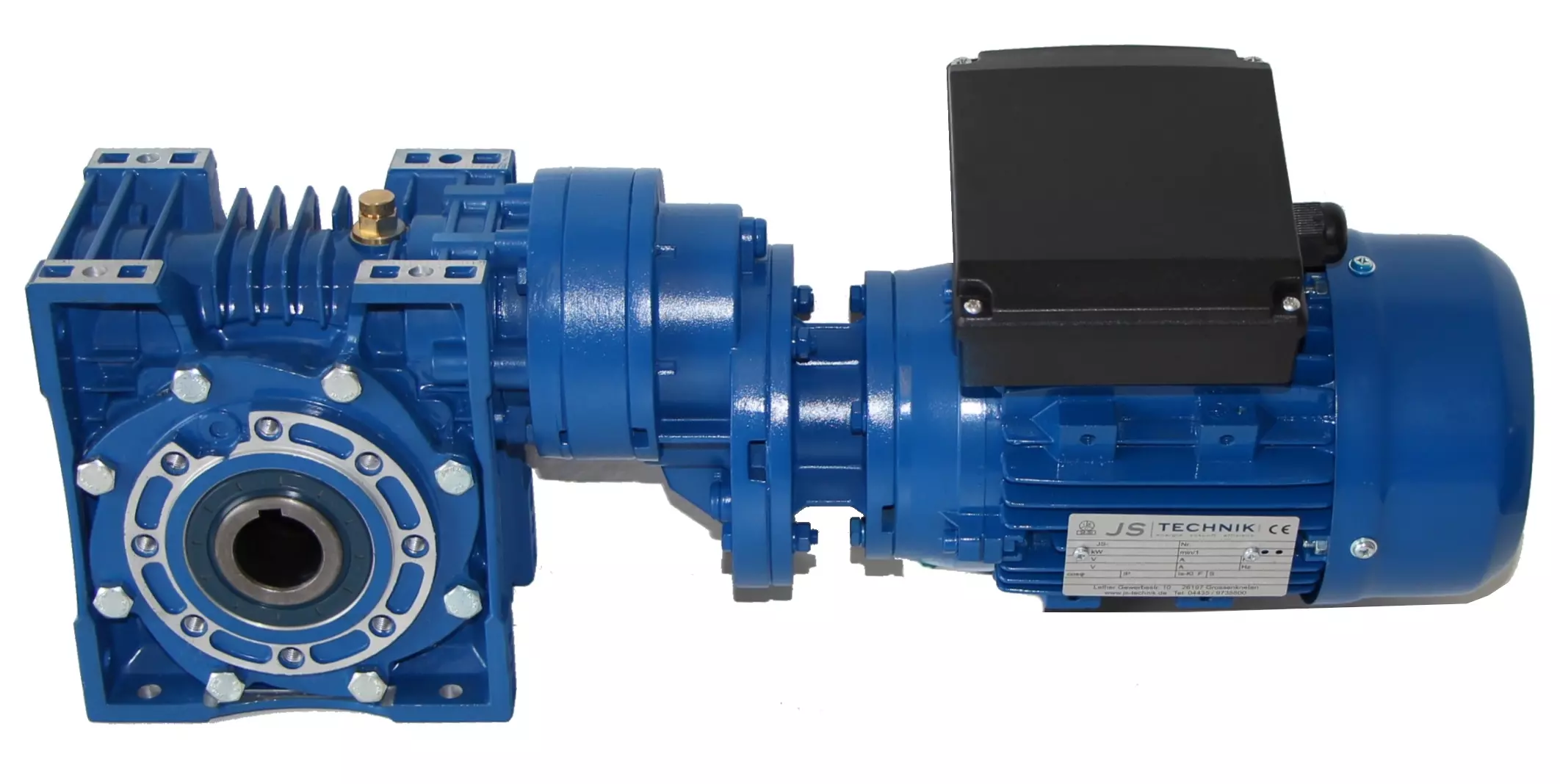

Grill motor as worm gear + 1-phase motor, Power= 0.25 kW,
Voltage= 1 x 230/400 V-50 Hz (± 5% according to VDE 0530), Degree of protection= IP55,
Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 2.4 rpm, Ratio (i)= 366,
Torque= 100 Nm, Service factor (fs)= 1.0, Hollow shaft= 30 mm. Weight= 17.4 kg,
Color= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC thermistors,
Housing= die-cast aluminum, Ball bearing= SKF, C & U or equivalent, Cooling= axial fan (plastic).
The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008.
The geared motor can be operated in both directions and contains an oil filling on delivery.
All product photos are non-binding examples!
| Performance: | 0,25 kW |
|---|---|
| Torque: | 301 to 400 Nm |
| Rotation speed: | 1 to 4.9 rpm |
| Shaft diameter: | 30 mm |
| Series: | EV-series |
Properties "EV 063NV01 - 0.25 kW 2.4 rpm- 1 x 230 V- Grill gear motor"
| Performance: | 0,25 kW |
|---|---|
| Torque: | 301 to 400 Nm |
| Rotation speed: | 1 to 4.9 rpm |
| Shaft diameter: | 30 mm |
| Series: | EV-series |
