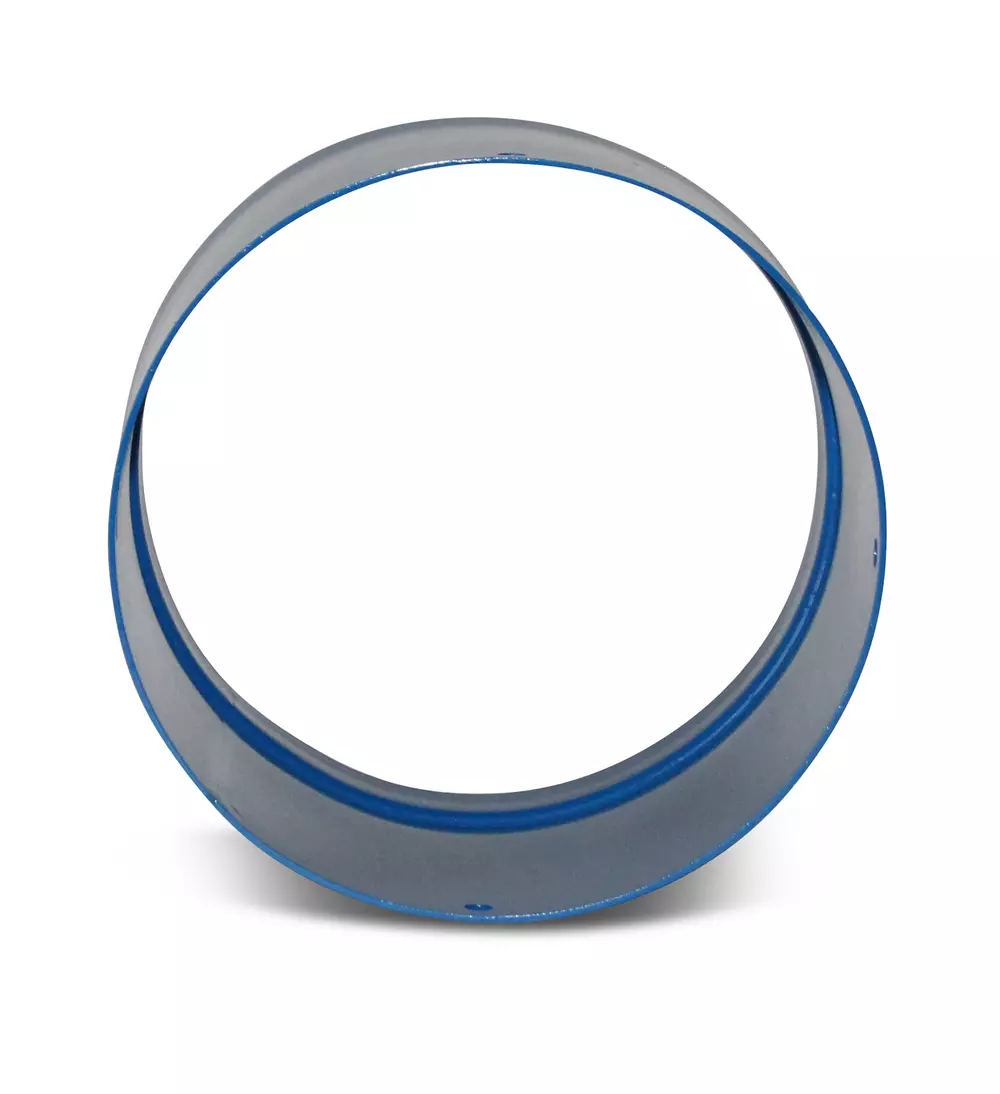

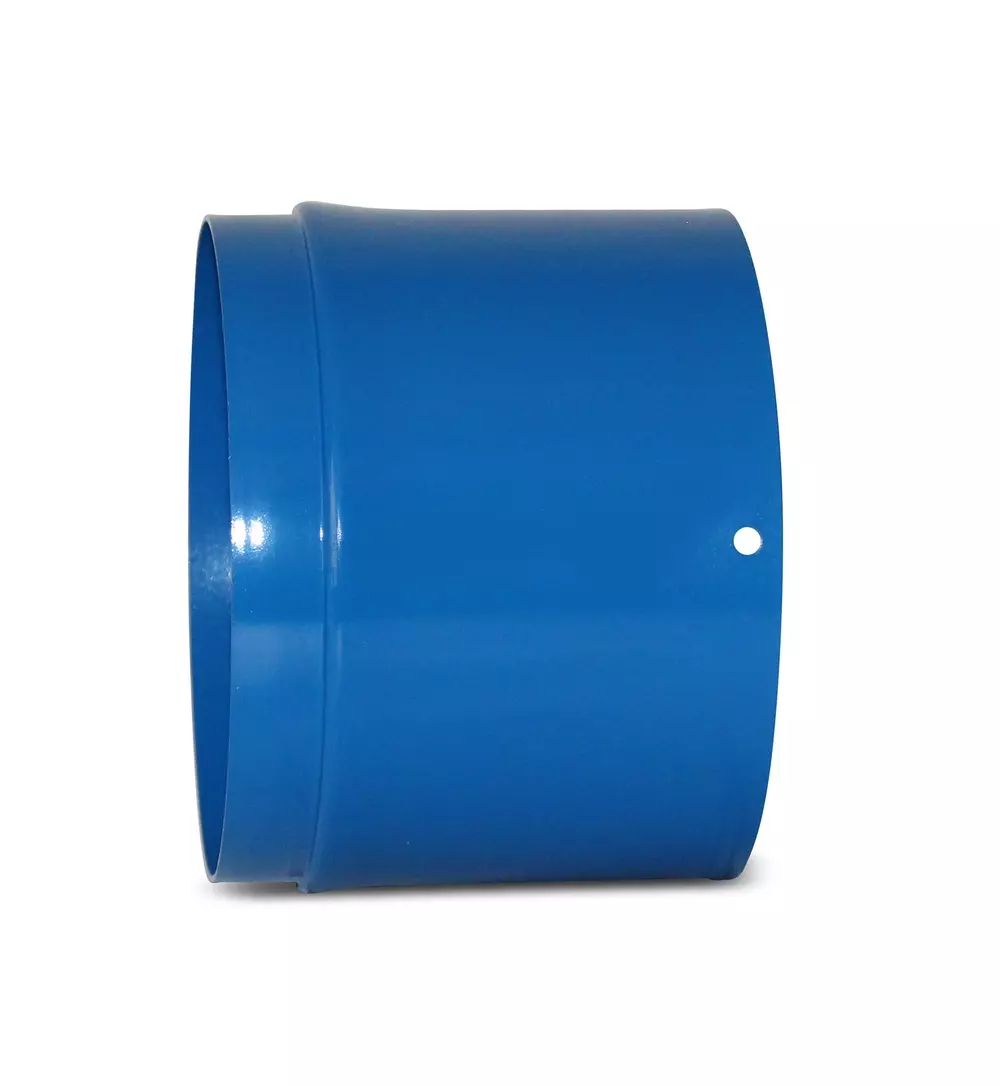

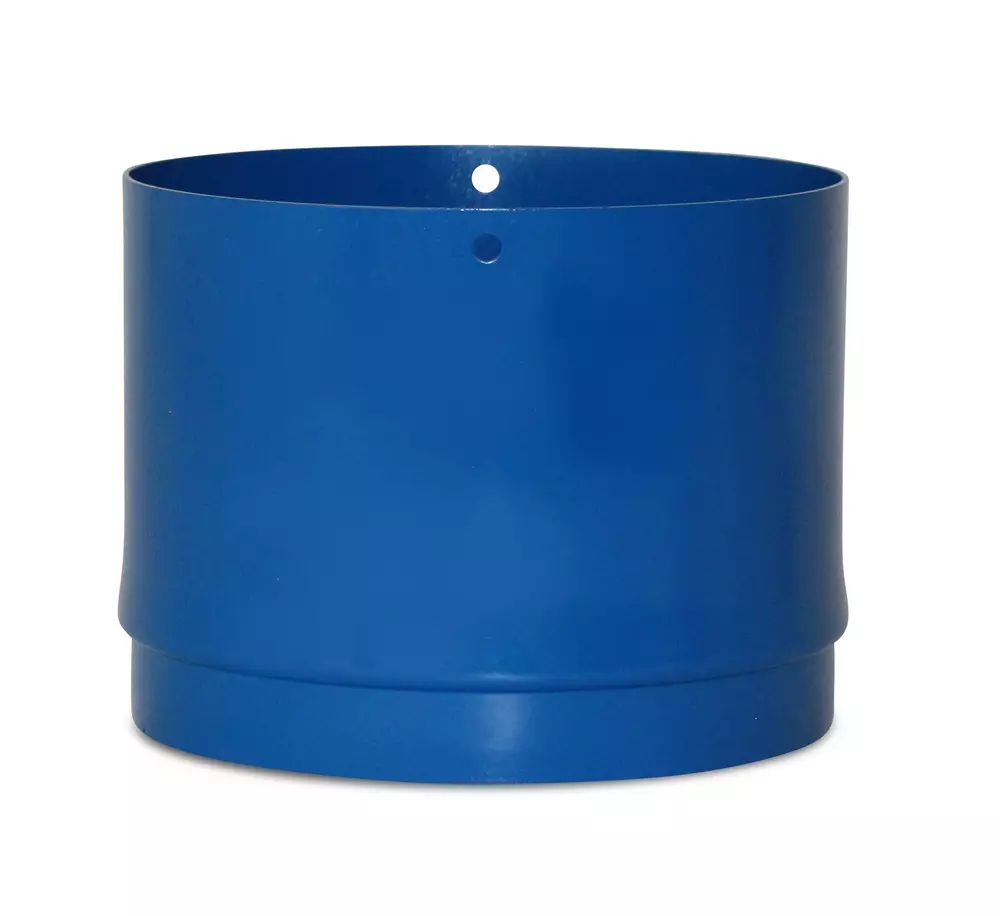

Extension for external fan BG132

£40.46*

Prices incl. VAT plus shipping costs

Available, delivery time: about 3-4 business days

Product number: ZzargeG132

Shipping fees: Article + Packaging

Downloads

JS- Zarge Datenblatt / Data sheet

Product information "Extension for external fan BG132"

Extension for external fan of the size 132 to equip motors with external fan, without
the wave to shorten.

! not individually orderable ! Only in conjunction with external fan size 100.

For size:	BG 132
Protective roofs:	extension / frame

Properties "Extension for external fan BG132"

For size:	BG 132
Protective roofs:	extension / frame

Accesories

External fan unit size 160

External fan, external fan unit, motor size 160 Insulation class F, protection class IP56, weight approx. 8 kg, multi-voltage. 1x230 V-50/60 Hz, 85 watts, 0.5/0.35 A, 1490/1730 rpm, x m3/h, capacitor 5µF3x230/400 V-50/60 Hz, 95/90 watts, 0.62/0.55 A, 1490/1790 rpm,3x400 V-50/60 Hz, 95/90 watts, 0.36/0.32 A, 1490/1750 rpm,Paint finish RAL5010, total length 280 mm, free dimension 155 mm, inner diameter 311 mm To install the external fan, it is necessary to remove the fan cover and the fan blade. If an extension cannot be used, the shaft must be shortened. If ordered with a motor, the external fan can also be delivered assembled. Please select the version.

From £227.86*

Details

External fan unit size 180

External fan, external fan unit, motor size 180 Insulation class F, protection class IP56, weight approx. 10 kg, multi-voltage. 1x230 V-50/60 Hz, 165 watts, 0.69 A, 2800/3300 rpm, x m3/h, capacitor 6µF3x230/400 V-50/60 Hz, 140/230 watts, 0.4/0.6 A, 2800/3300 rpm,3x400 V-50/60 Hz, 140/230 watts, 0.23/0.36 A, 2800/3300 rpm,Paint finish RAL5010, total length 335 mm, clearance 210 mm, inner diameter 357 mm To install the external fan, it is necessary to remove the fan cover and the fan blade. If an extension cannot be used, the shaft must be shortened. If ordered with a motor, the external fan can also be delivered assembled. Please select the version.

From £269.14*

Details

External fan unit size 200

External fan, external fan unit, motor size 200 Insulation class F, protection class IP56, weight approx. x.x kg, multi-voltage. 1x230 V-50/60 Hz, 165 watts, 0.69 A, 2800/3300 rpm, x m3/h, capacitor 6µF3x230/400 V-50/60 Hz, 140/230 watts, 0.4/0.6 A, 2800/3300 rpm,3x400 V-50/60 Hz, 140/230 watts, 0.23/0.36 A, 2800/3300 rpm,Paint finish RAL5010, total length 342 mm, clearance 217 mm, inner diameter 396 mm To install the external fan, it is necessary to remove the fan cover and the fan blade. If an extension cannot be used, the shaft must be shortened. If ordered with a motor, the external fan can also be delivered assembled. Please select the version.

From £294.47*

Details

External fan unit size 225

External fan, external fan unit, motor size 225 Insulation class F, protection class IP56, weight approx. 18 kg, multi-voltage. 3x230/400 V-50/60 Hz, 110/170 watts, 0.47/0.51 A, 1460/1730 rpm,3x400 V-50/60 Hz, 110/170 watts, 0.27/0.3 A, 1460/1730 rpm,Paint finish RAL5010, total length 408 mm, clearance 213 mm, inner diameter 456 mm To install the external fan, it is necessary to remove the fan cover andthe fan blade. If an extension cannot be used,the shaft must be shortened. If ordered with a motor, the external fan can also be delivered assembled. Please select the version.

From £350.05*

Details

External fan unit size 250

External fan, external fan unit, motor size 250 Insulation class F, protection class IP56, weight approx. 20 kg, multi-voltage. 3x230/400 V-50/60 Hz, 110/170 watts, 0.47/0.51 A, 1460/1730 rpm,3x400 V-50/60 Hz, 110/170 watts, 0.27/0.3 A, 1460/1730 rpm,Paint finish RAL5010, total length 426 mm, clearance 231 mm, inner diameter 504 mm To install the external fan, it is necessary to remove the fan cover andthe fan blade. If an extension cannot be used,the shaft must be shortened. If ordered with a motor, the external fan can also be delivered assembled. Please select the version.

From £419.68*

Details

External fan unit size 280

External fan, external fan unit, motor size 280 Insulation class F, protection class IP56, weight approx. 26 kg, 2415 m³/h. 3x230/400 V-50/60 Hz, 0.255/0.3 watts, 1.5/1.1 A, 1450/1680 rpm,paint RAL5010, total length 475 mm, clearance 260 mm, inner diameter 556 mm To install the external fan, it is necessary to remove the fan cover and the fan blade. If an extension cannot be used, the shaft must be shortened. If ordered with a motor, the external fan can also be delivered assembled. Please select the version.

From £268.15*

Details

External fan unit size 315

External fan, external fan unit, motor size 315 Insulation class F, protection class IP56, weight approx. 36 kg, 2415 m³/h. 3x230/400 V-50/60 Hz, 0.255/0.3 watts, 1.5/1.1 A, 1450/1680 rpm,paint RAL5010, total length 570 mm, clearance 340 mm, inner diameter 678 mm To install the external fan, it is necessary to remove the fan cover and the fan blade. If an extension cannot be used, the shaft must be shortened. If ordered with a motor, the external fan can also be delivered assembled. Please select the version.

From £287.19*

Details

External fan unit size 132

External fan, external fan unit, motor size 132 Isoclass F, Protection class IP56, Weight 3.7kg, Multivoltage. 1x230 V-50 Hz, 45 watts, 0.45 A, 1450 rpm, 337 m3/h, capacitor 3µF1x240 V-60 Hz, 65 watts, 0.35 A, 1750 rpm, 337 m3/h, capacitor 3µF3x230/400 V-50 Hz, 55 watts, 0.4 A/0.23 A, 1450 rpm, 337 m3/h3x 254/460 V-60 Hz, 55 watts, 0.37/0.21 A, 1750 rpm, 337 m3/hPainted RAL5010, total length 225 mm, inner diameter 256 mm To install the external fan it is necessary to remove the fan cover andremove the fan blade. If an extension cannot be used,the shaft has to be shortened. If ordered with a motor, the external fan can also be installedto be delivered. Please select version.

From £161.53*

Details
