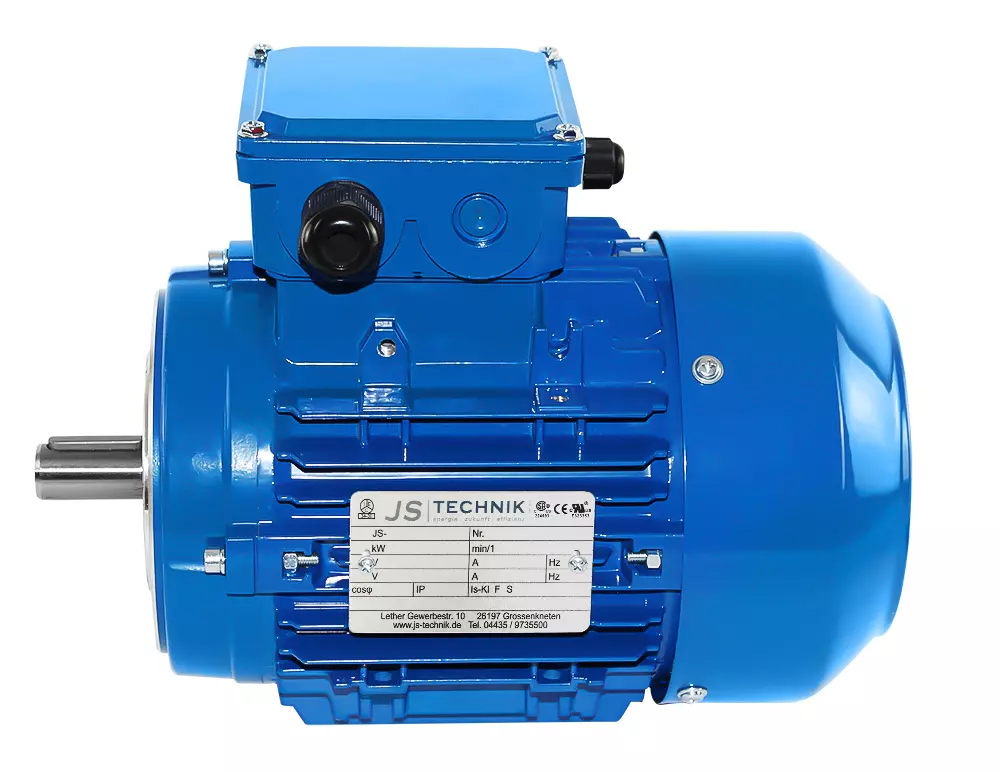

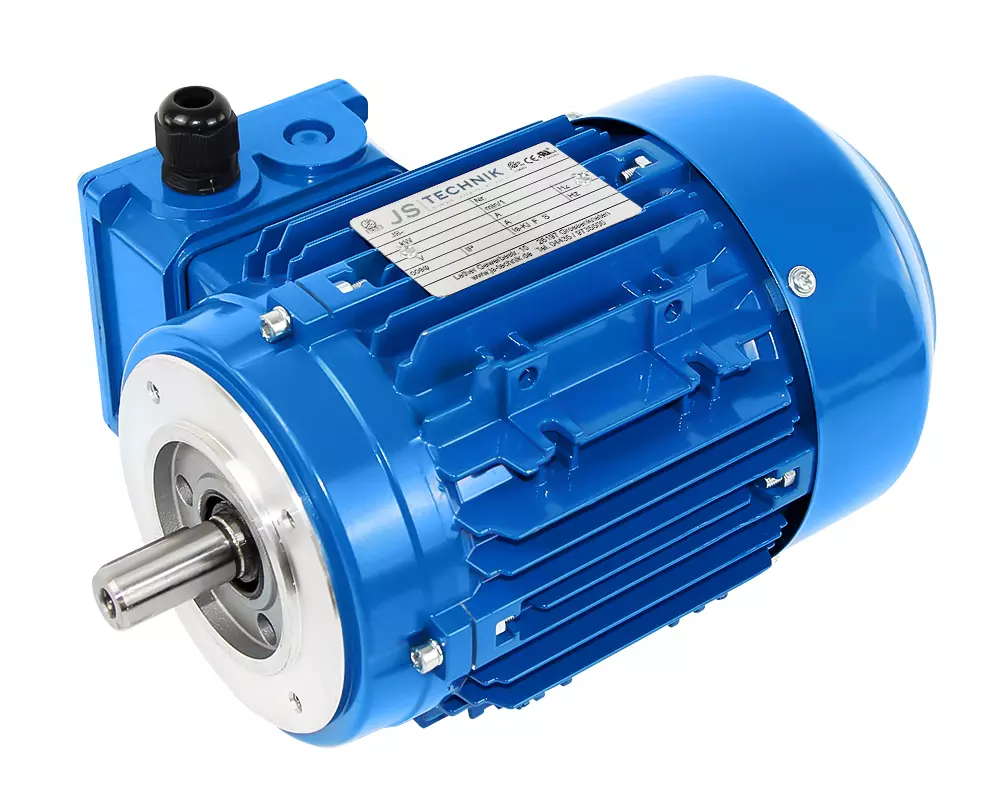

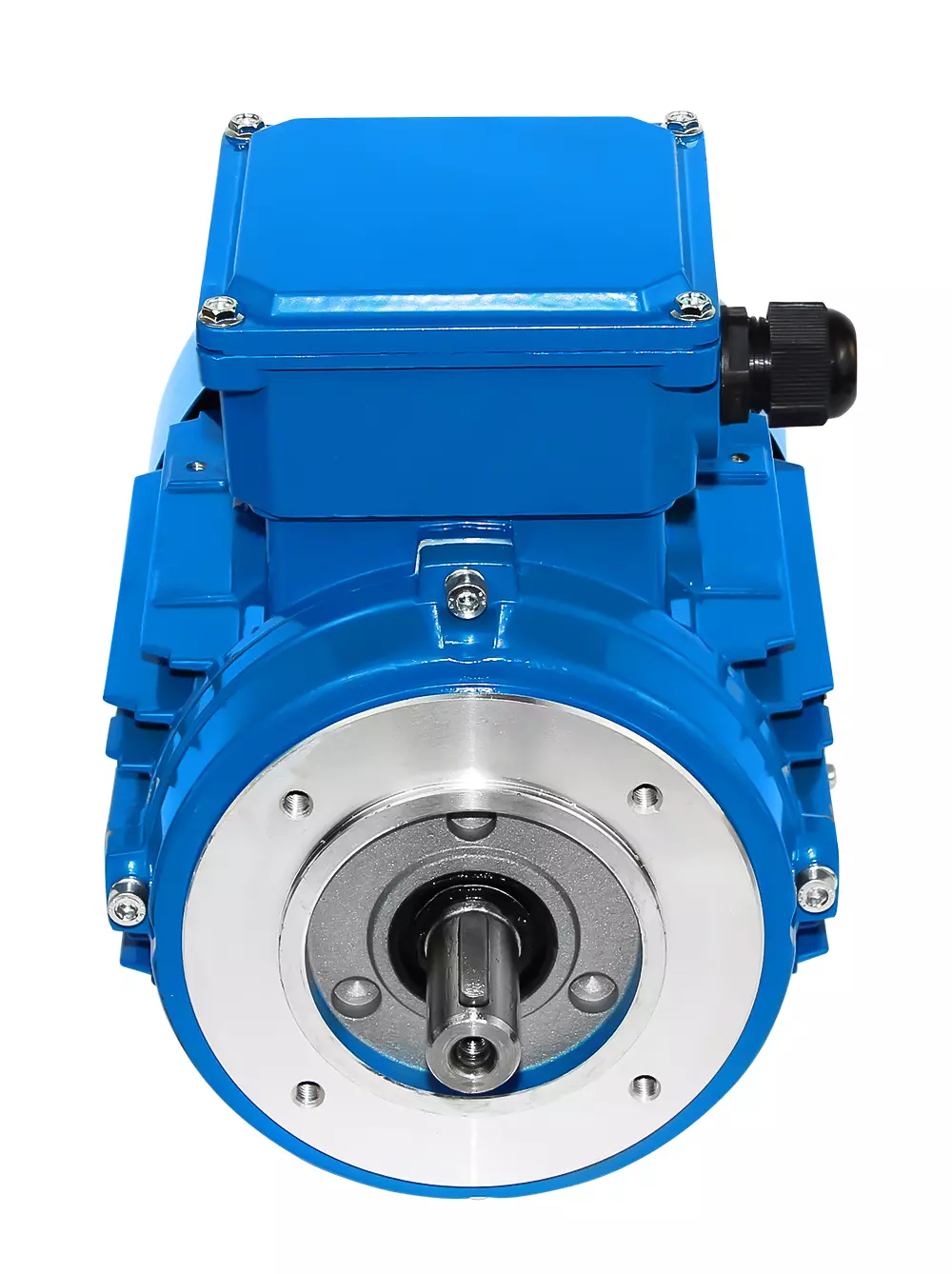

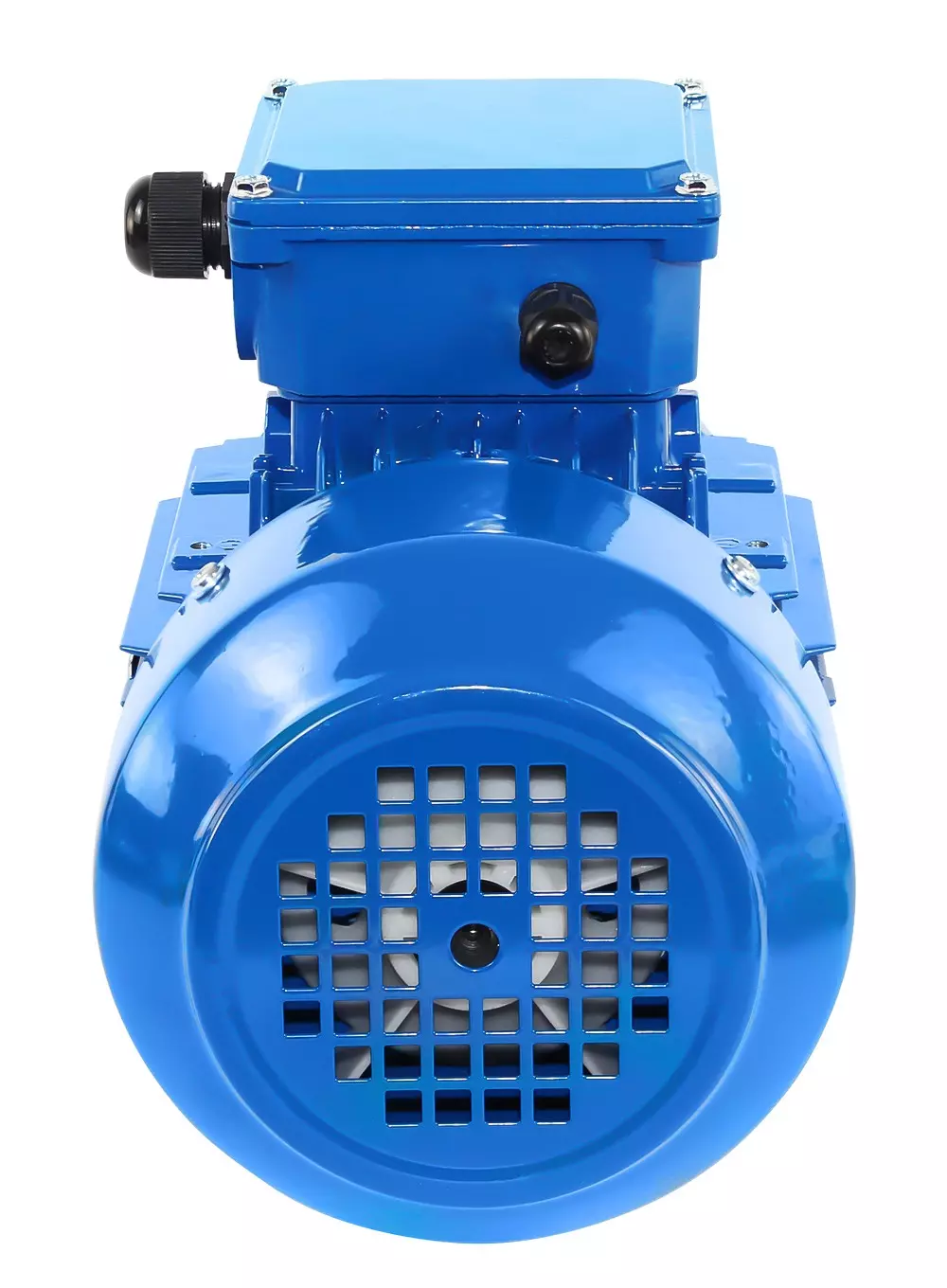

Three-phase motor T5A 712 0.12 kW- 8-pole-B14

JS-Technik GmbH

£191.72*

Prices incl. VAT plus shipping costs

Delivery time on demand

Product number: 5A27023104A000

Shipping fees: Article + packaging

Downloads

Product information "Three-phase motor T5A 712 0.12 kW- 8-pole-B14"

Three-phase motor, electric motor, power=0.12 kW, speed=8 poles

Type=B14, shaft=14 x 30 mm, voltage=3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),

Frequency=50/60 Hertz, efficiency class=IE5, efficiency=67.4 %, paint finish=RAL 5010 (gentian blue),

Protection class=IP55, Temperature sensor=3 x PTC thermistors, Weight=8.6 kg, Terminal box position=top (rotatable),

Cable glands=1 x M20, 1 x M16, Housing=Die-cast aluminium, Insulation class=F (155°C),

Ball bearing=SKF, C&U, or equivalent, cooling=axial fan (plastic), motor feet=can be screwed on or unscrewed.

The electric motor is suitable for use with frequency inverters and for both directions of rotation.

In accordance with VDE 0105 and IEC 364, all work on the electric drive must only be carried out by qualified personnel

Qualified personnel. For modifications or special designs, please send us an enquiry.

Helpful tips on electric motors can be found in the FAQ section. All product photos are non-binding examples!

Subject to technical changes.

Flange dimensions:	105 x 70 x 85 mm
Frequency:	50 Hz, 60 Hz
Installation altitude:	1000 m
Performance:	0,12 kW
Rotation speed:	750 rpm / 8 polig
Shaft diameter:	14 mm
Type of construction:	B14
Efficiency Class:	IE 5
Size:	Standard

Properties "Three-phase motor T5A 712 0.12 kW- 8-pole-B14"

Flange dimensions:	105 x 70 x 85 mm
Frequency:	50 Hz, 60 Hz
Installation altitude:	1000 m
Performance:	0,12 kW
Rotation speed:	750 rpm / 8 polig
Shaft diameter:	14 mm
Type of construction:	B14
Efficiency Class:	IE 5
Size:	Standard
