Saw motor KSE 58A2 - 1.1 kW - Rotation right

Saw motor, Flat motor, 1.1 kW, 3000 rpm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 1 x 230 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 9.4 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 1.1 kW motors at 1 x 230 V, collar plug, 2P + E earthing contact plug, 7.18 A, to CEE7 / VII, IP 54.

From £158.79*

Details

Saw motor KSE 58B2 - 1.5 kW - Rotation right

Saw motor, Flat motor, 1.5 kW, 3000 rpm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 1 x 230 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 11.3 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 1.5 kW motors at 1 x 230 V, collar plug, 2P + E earthing contact plug, 9.5 A, to CEE7 / VII, IP 54.

From £180.29*

Details

Saw motor KSD 58A2 - 1.5 kW - Rotation right

Saw motor, Flat motor, 1.5 kW, 3000 rpm, 3 x 230/400 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 9.6 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 1.5 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 3.41 A, to CEE7 / VII, IP 54.

From £158.99*

Details

Saw motor KSE 58C2 - 1.8 kW - Rotation left

Saw motor, Flat motor, 1.8 kW, 3000 rpm, 1 x 230 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 1 x 230 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 12.4 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 1.8 kW motors at 1 x 230 V, collar plug, 2P + E earthing contact plug, 11.1 A, to CEE7 / VII, IP 54.

From £261.33*

Details

Saw motor KSD 58B2 - 2.2 kW - Rotation right

Saw motor, Flat motor, 2.2 kW, 3000 rpm, 3 x 230/400 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 12.3 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 2.2 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 4.76 A, to CEE7 / VII, IP 54.

From £186.56*

Details

Saw motor KSD 58A2 - 1.5 kW - Rotation left

Saw motor, Flat motor, 1.5 kW, 3000 rpm, 3 x 230/400 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 9.6 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 1.5 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 3.41 A, to CEE7 / VII, IP 54.

From £278.79*

Details

Saw motor KSE 58C2 - 1.8 kW - Rotation right

Saw motor, Flat motor, 1.8 kW, 3000 rpm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 1 x 230 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 12.4 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 1.8 kW motors at 1 x 230 V, collar plug, 2P + E earthing contact plug, 11.1 A, to CEE7 / VII, IP 54.

From £191.87*

Details

Saw motor KSD 63A2 - 2.2 kW - Rotation right

Saw motor, Flat motor, 2.2 kW, 3000 rpm, 3 x 230/400 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 12.0 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 2.2 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 4.76 A, to CEE7 / VII, IP 54.

From £190.44*

Details

Saw motor KSE 63B2 - 2.2 kW - Rotation left

Saw motor, Flat motor, 2.2 kW, 3000 rpm, 1 x 230 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 1 x 230 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 13.5 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 2.2 kW motors at 1 x 230 V, collar plug, 2P + E earthing contact plug, 13.2 A, to CEE7 / VII, IP 54.

From £304.55*

Details

Saw motor KSD 58B2 - 2.2 kW - Rotation left

Saw motor, Flat motor, 2.2 kW, 3000 rpm, 3 x 230/400 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 12.3 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 2.2 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 4.76 A, to CEE7 / VII, IP 54.

From £306.36*

Details

Saw motor KSD 74A2 - 4.0 kW - Rotation right

Saw motor, Flat motor, 4.0 kW, 3000 rpm, 3 x 400/690 Volt, Direction of rotation right, left-hand thread, Clambing flange with 30 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 400/690 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 14.0 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 4.0 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 6.73 A, to CEE7 / VII, IP 54.

From £314.42*

Details

Saw motor KSD 63B2 - 3.0 kW - Rotation right

Saw motor, Flat motor, 3.0 kW, 3000 rpm, 3 x 230/400 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 14.0 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 3.0 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 6.73 A, to CEE7 / VII, IP 54.

From £228.45*

Details

Saw motor KSE 63B2 - 2.2 kW - Rotation right

Saw motor, Flat motor, 2.2 kW, 3000 rpm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 1 x 230 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 13.5 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 2.2 kW motors at 1 x 230 V, collar plug, 2P + E earthing contact plug, 13.2 A, to CEE7 / VII, IP 54.

From £235.09*

Details

Saw motor KSD 63A2 - 2.2 kW - Rotation left

Saw motor, Flat motor, 2.2 kW, 3000 rpm, 3 x 230/400 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 12.0 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 2.2 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 4.76 A, to CEE7 / VII, IP 54.

From £330.37*

Details

Saw motor KSD 63B2 - 3.0 kW - Rotation left

Saw motor, Flat motor, 3.0 kW, 3000 rpm, 3 x 230/400 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 14.0 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 3.0 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 6.73 A, to CEE7 / VII, IP 54.

From £368.37*

Details

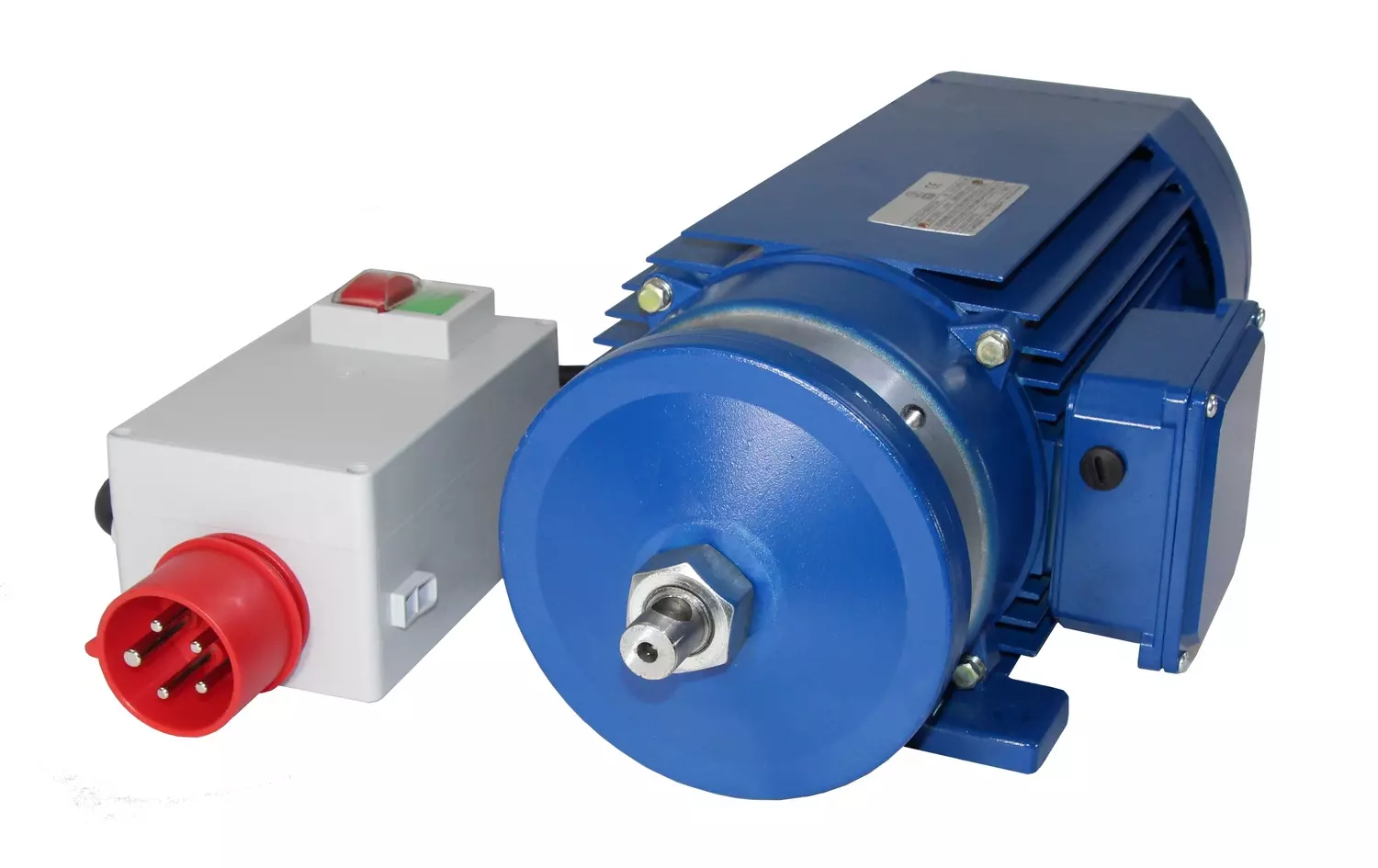

400V Kreissaegemotor 5,5kW + 7,5kW + Motorschalter mit elektronischer Bremse

Saw motor KSD 81A2 - 5.5 kW - Rotation right

Saw motor, Flat motor, 5.5 kW, 3000 rpm, 3 x 400/690 Volt, Direction of rotation right, left-hand thread, Clambing flange with 40 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 400/690 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 28.2 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 5.5 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 10.5 A, to CEE7 / VII, IP 54.

From £447.15*

Details

Saw motor KSD 81B2 - 7.5 kW - Rotation right

Saw motor, Flat motor, 7.5 kW, 3000 rpm, 3 x 400/690 Volt, Direction of rotation right, left-hand thread, Clambing flange with 40 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 400/690 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 39.0 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 7.5 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 14.1 A, to CEE7 / VII, IP 54.

From £542.13*

Details

Saw motor KSD 74A2 - 4.0 kW - Rotation left

Saw motor, Flat motor, 4.0 kW, 3000 rpm, 3 x 400/690 Volt, Direction of rotation left, right-hand thread, Clambing flange with 30 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 400/690 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 14.0 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 4.0 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 6.73 A, to CEE7 / VII, IP 54.

From £484.55*

Details

Saw motor KSD 81A2 - 5.5 kW - Rotation left

Saw motor, Flat motor, 5.5 kW, 3000 rpm, 3 x 400/690 Volt, Direction of rotation left, right-hand thread, Clambing flange with 40 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 400/690 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 28.2 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 5.5 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 10.5 A, to CEE7 / VII, IP 54.

From £677.68*

Details

Saw motor KSD 81B2 - 7.5 kW - Rotation left

Saw motor, Flat motor, 7.5 kW, 3000 rpm, 3 x 400/690 Volt, Direction of rotation left, right-hand thread, Clambing flange with 40 mm mounting, Operating mode S6-40% Construction type= B34, Voltage= 3 x 400/690 V-50 Hz, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Thermal contact (PTO), Weight= 39.0 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Depending on the equipment with or without mounted switch (please select). witch with electronic brake and integrated thermal contact release. Electronic brakes are used to decelerate ashless-type asynchronous motors and 1Ph AC capacitor motors within 10 seconds of being turned off. For external mounting, approx. 90 cm cable length, for 7.5 kW motors at 1 x 400 V, collar plug, 2P + E earthing contact plug, 14.1 A, to CEE7 / VII, IP 54.

From £772.66*

Details

Circular saw motors 1.1kW - 7.5kW

JS-Technik GmbH specialises in extensive challenges in the field of professional drive technology. We specialise in circular saw motors, three-phase motors, frequency inverters and geared motors. You can also buy high-quality and affordable circular saw motors from our company.

Field of application of the saw motors

JS circular saw motors are also used as saw motors in conjunction with a braking device. Depending on the application, our saw motors have a right-hand or left-hand thread at the shaft end. The drives are available from 1.1kW - 2.2kW in the 230 V version and from 1.5 kilowatts - 7.5 kilowatts in the 400 V version. The flat electric motors are also often required as special motors with customised requirements. The narrow design is decisive here. However, the electric motor is mainly used for a circular saw for cutting wood.

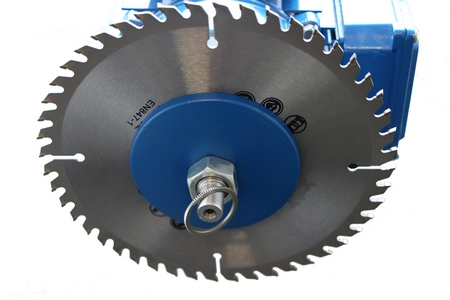

Electric motor + saw blade + reduction ring

Circular saw motor power ratings

On this page you will find a selection of circular saw motors in aluminium design in sizes 58- 81, with an output of 1.1kW, 1.5kW, 1.8kW, 2.2kW, 3.0kW, 4.0kW, 5.5kW and 7.5kW.

Electronic braking devices for circular saw motors

Electronic brakes are used to brake squirrel-cage asynchronous machines and 1ph AC capacitor motors within 10 seconds of switching off. After switching off. Brake switches are available for external mounting in 1.1kW - 7.5kW motors.

Operating mode of circular saw motors

The operating mode offered by the saw motors is S6. Here is a brief overview of the common operating modes of electric motors: continuous operation S1, short-time operation S2, intermittent operation S3 (without starting, without braking), intermittent operation S4 (with starting, without braking), intermittent operation S5 (with starting, with braking), continuous operation S6 (with intermittent load), reversing operation S7, continuous operation (with variable speed).

Your partner for circular saw motors

We are the ideal partner for you because our specialised staff, combined with an extensive motor warehouse and our own final assembly, enable us to cover a wide range: special brake motors, circular saw motors, electric motors with frequency converters, special shafts, special voltages or as electric motors in various protection classes.
