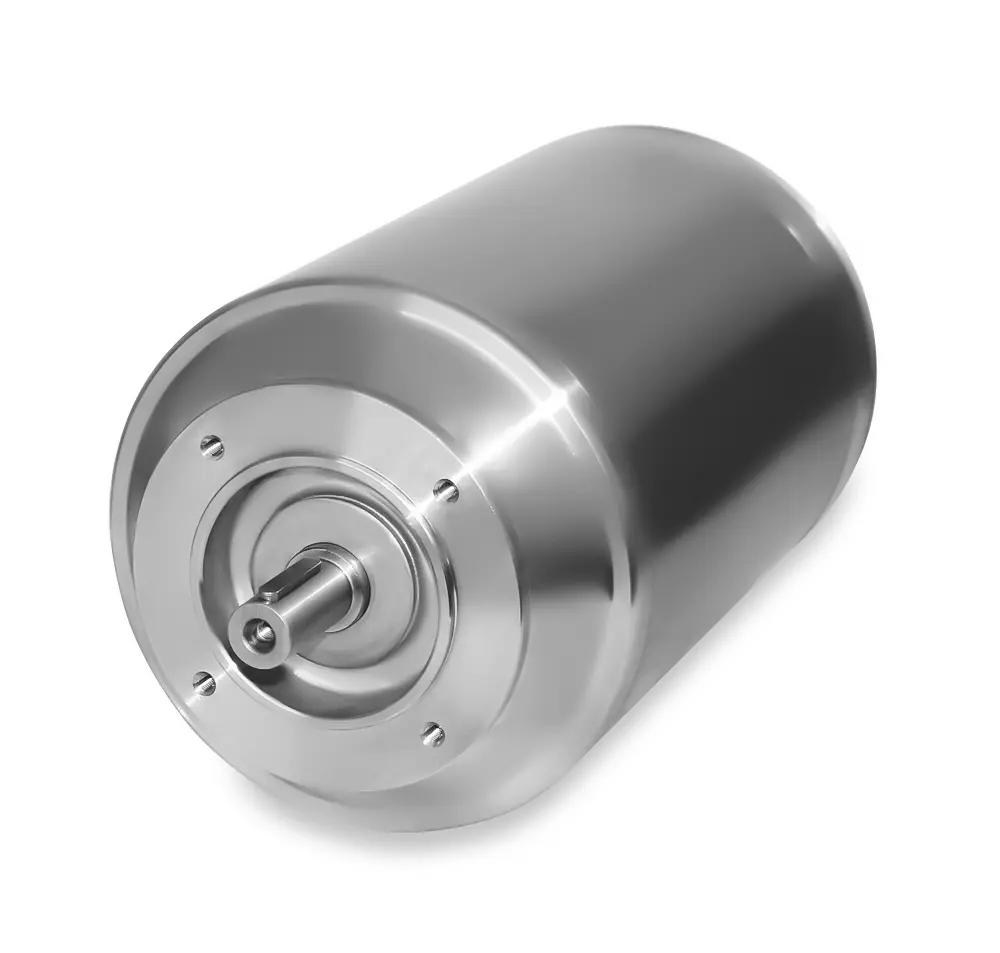

Electric motor in stainless steel design
Stainless steel motors are also known as smooth-jacket motors or smooth motors and are used where particularly high standards of hygiene and ease of cleaning are required. We offer you the ideal drive solution for hygiene-sensitive and cleaning-intensive areas. The stainless steel motors are designed in such a way that their surface is particularly easy to clean. The housing is made entirely of high-quality stainless steel. Recesses and potential "dirt traps" have been consistently avoided in the surface design. This makes cleaning easy and the fanless design ensures exemplary hygiene. In addition, there is no dust and dirt turbulence without a fan.

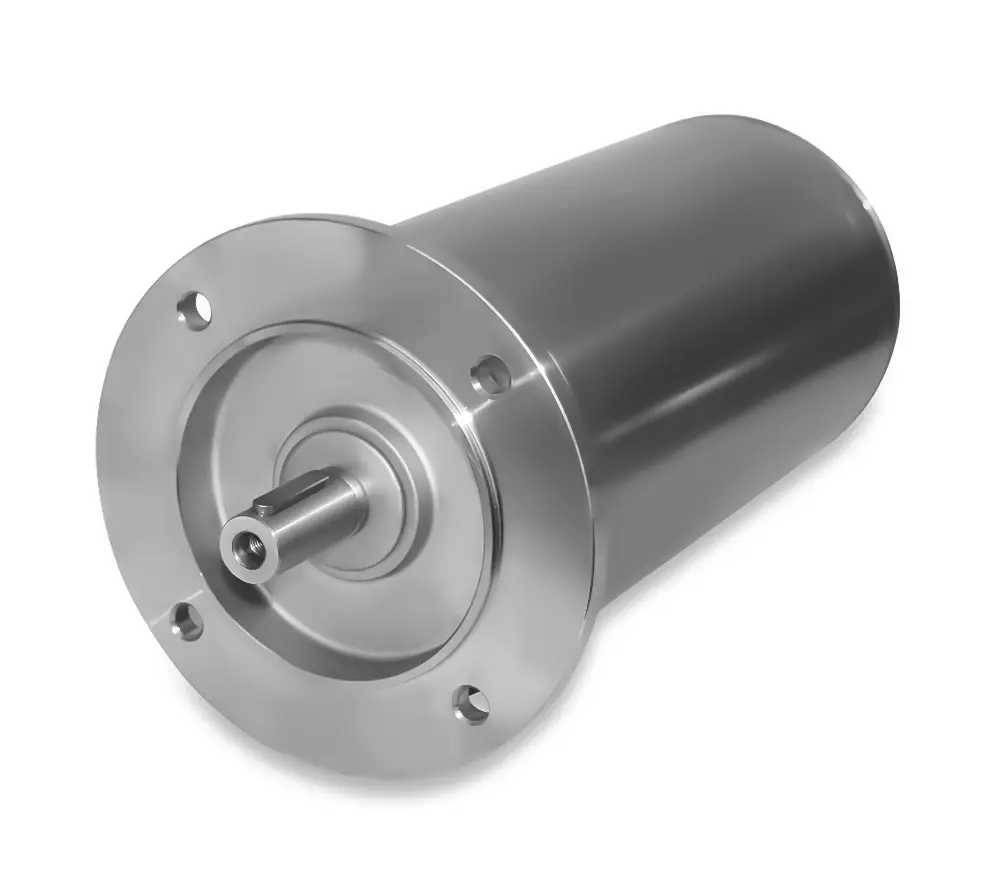

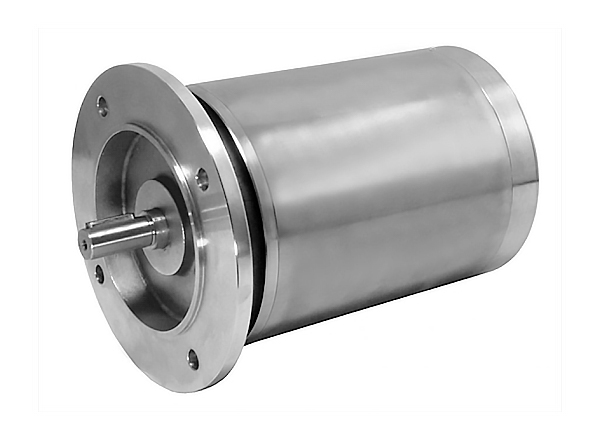

Electric motor with stainless steel housing in B5
Protection class IP69K
The IP69K protection class was developed for high-pressure jet cleaning at high temperatures. The code number "6" stands for protection against the ingress of dust, the number "9" for protection during high-pressure cleaning at close distances.the IP69K protection class was introduced in 1993 and is based on the DIN40050-9 standard. It was originally developed for motor vehicles to protect against the ingress of foreign bodies such as dust or dirt and hot water jets.The latest version of the IEC60529 standard now only refers to IP69 (IP69K=IP69).
Special technical features:
-smooth surface (food, beverage, pharmaceutical industry, etc.)
-no dirt deposits and bacteria centres
-reduced interfering edges due to lack of cooling fins.
-good cleaning properties
-protection class IP69K,
-three-phase motor without fan (important cleanroom feature)
-designed for harsh continuous operation
-above-average service life
-optimum running smoothness
Delivery programme:
The stainless steel motors offered in the shop are available in power sizes from 0.12kW to 1.5kW with a short delivery time. If required, we can also offer you a suitable stainless steel geared motor. These variants can also be found in the online shop.
