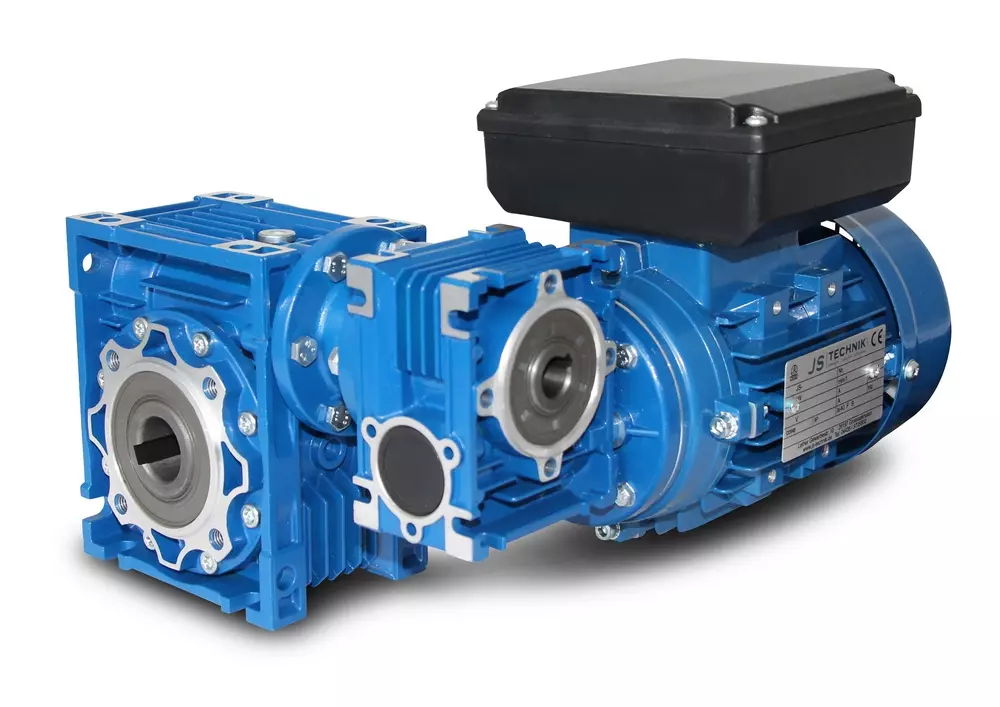

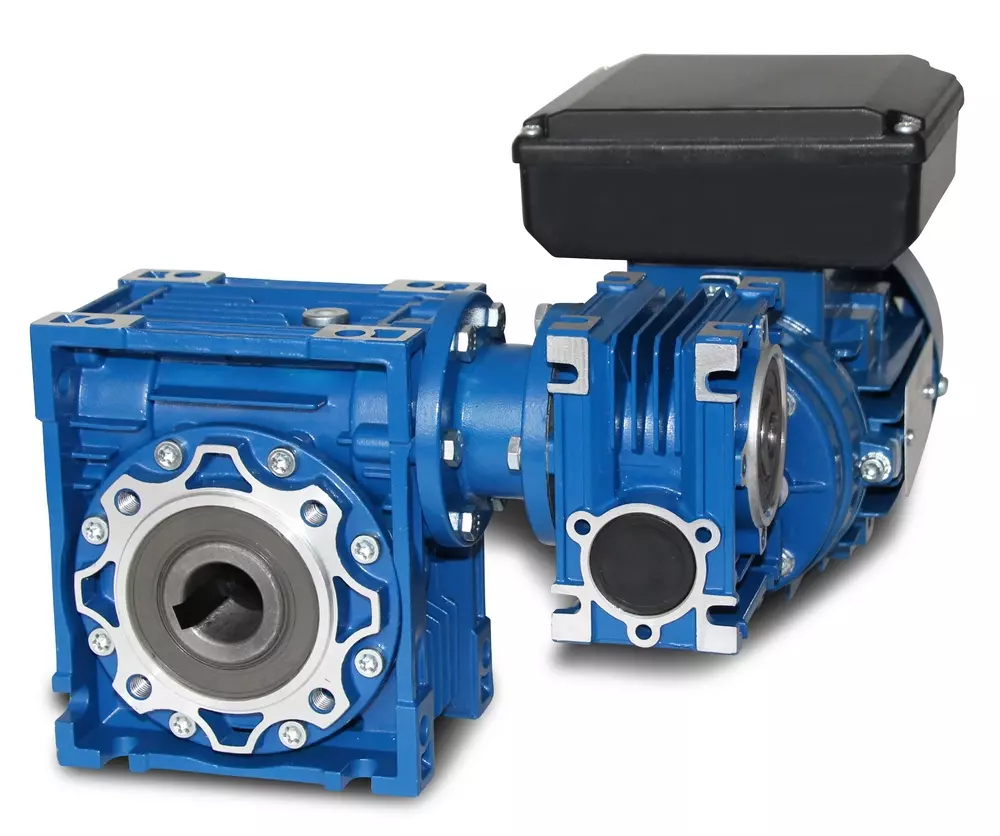

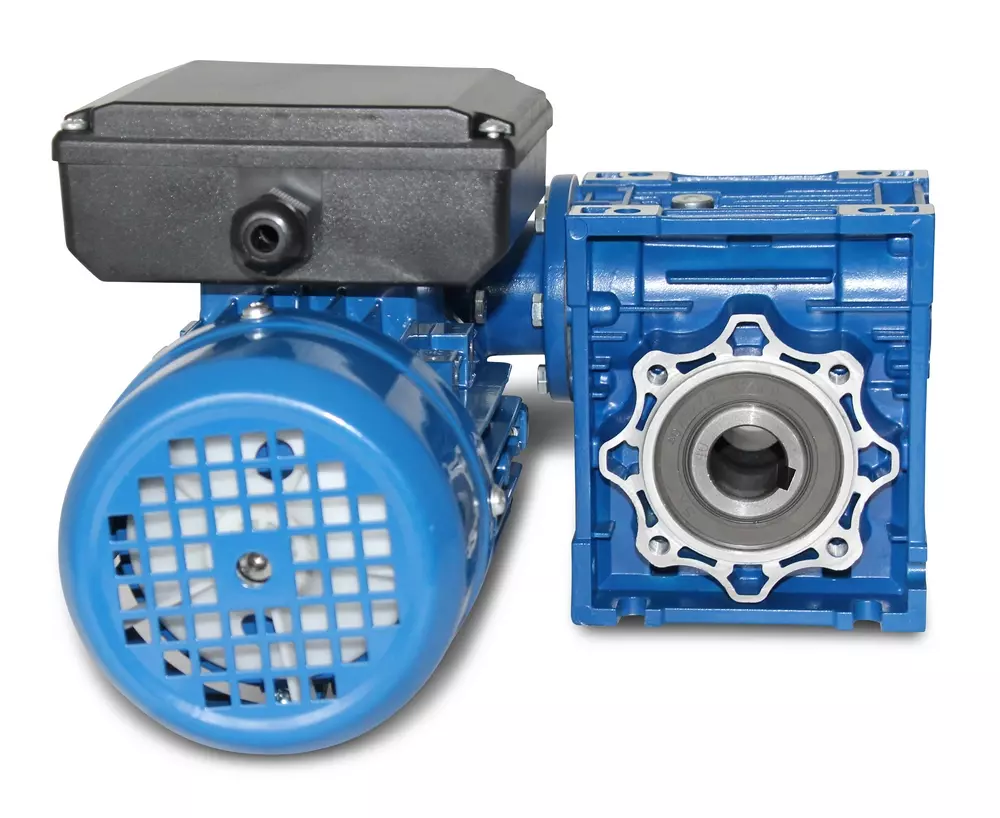

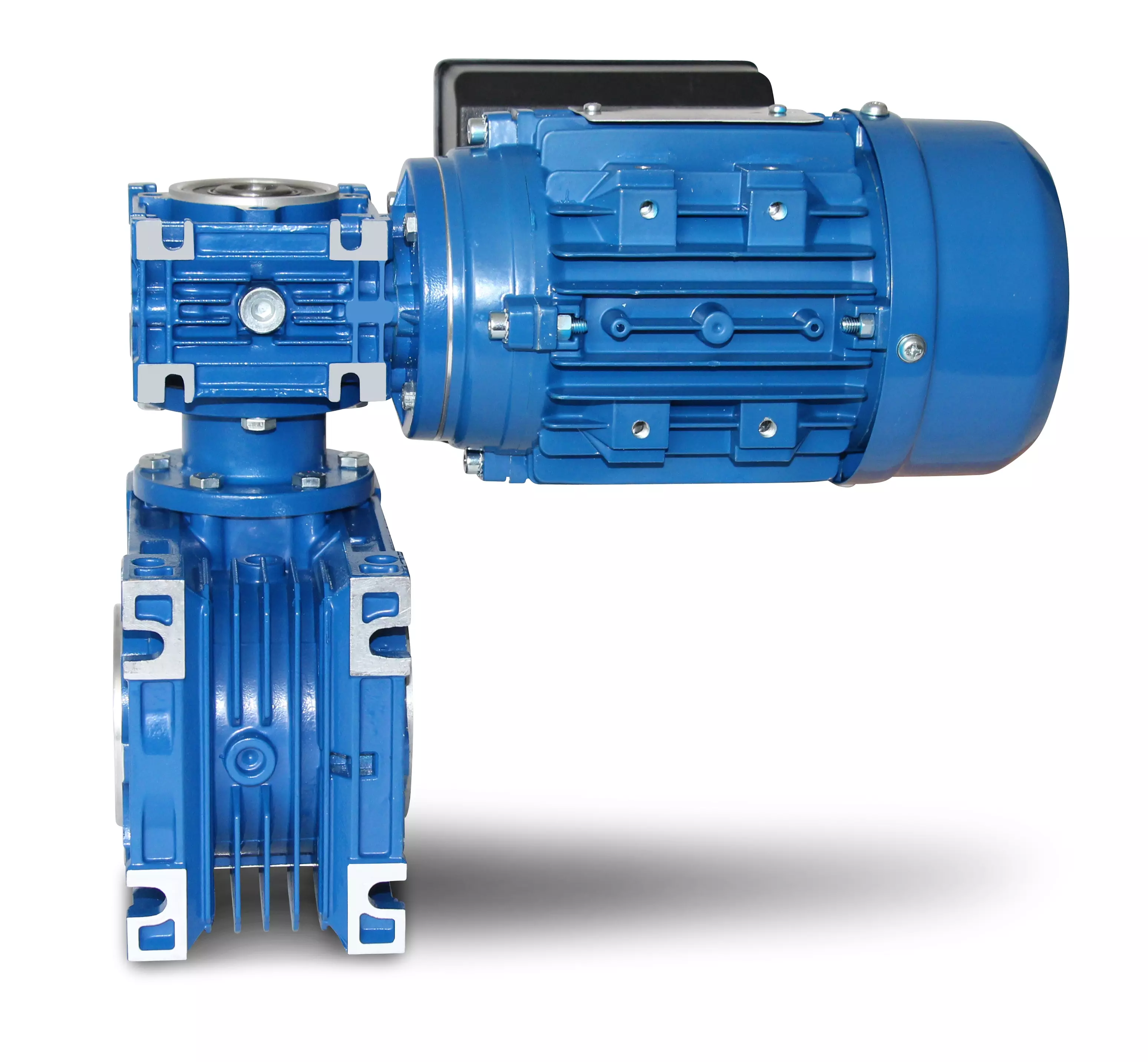

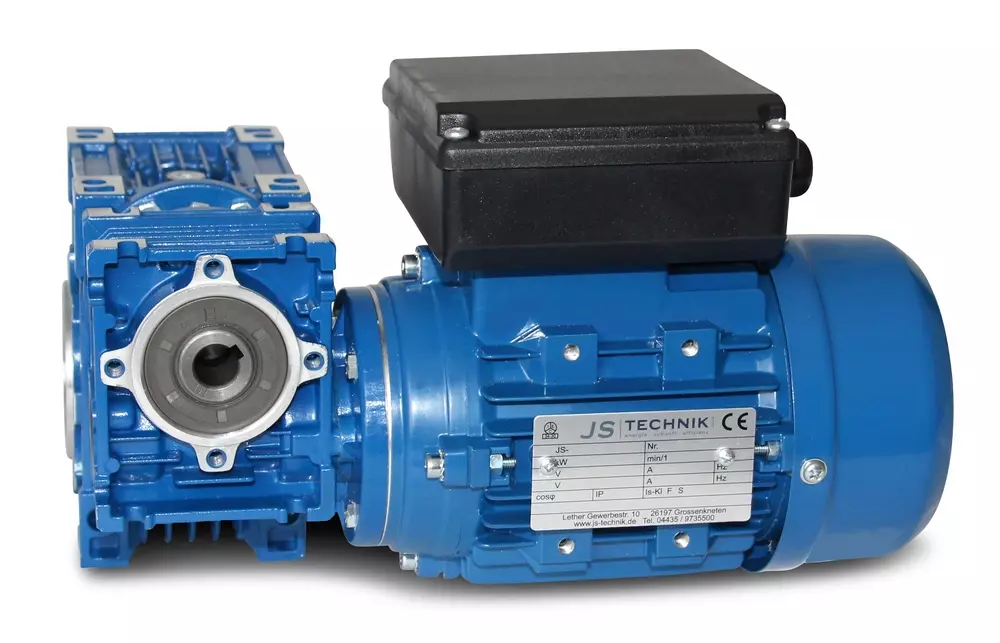

CMRV063/030 632-4 - 0.18 kW - 3.5 rpm- Worm Gear Motor
Product information "CMRV063/030 632-4 - 0.18 kW - 3.5 rpm- Worm Gear Motor"
Worm Gearbox with pre- stage, Power= 0.18 kW, Speed= 3.5 rpm, <,
Voltage= 1 x 230(± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 400, Torque= 222 Nm,
Service factor (f.s.)= 1.0, Terminal box= top (rotatable), Weight= 13 kg, Paint= RAL 5010 (gentian blue),
Temperature sensor= 1 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent,
Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and
contains an oil filling on delivery. Open Hollow shafts are to be closed with caps.
In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
All product photos are non-binding examples! Technical changes reserved.
| Performance: | 0,18 kW |
|---|---|
| Torque: | 201 to 300 Nm |
| Rotation speed: | 1 to 4.9 rpm |
| Shaft diameter: | 25 mm |
| Type of construction: | Double worm gear |
| Series: | CMRV-series |
| Performance: | 0,18 kW |
|---|---|
| Torque: | 201 to 300 Nm |
| Rotation speed: | 1 to 4.9 rpm |
| Shaft diameter: | 25 mm |
| Type of construction: | Double worm gear |
| Series: | CMRV-series |
