CMRV063 P150-4, 12V, 0.75 kW, 35 rpm, worm gear motor
Product information "CMRV063 P150-4, 12V, 0.75 kW, 35 rpm, worm gear motor"

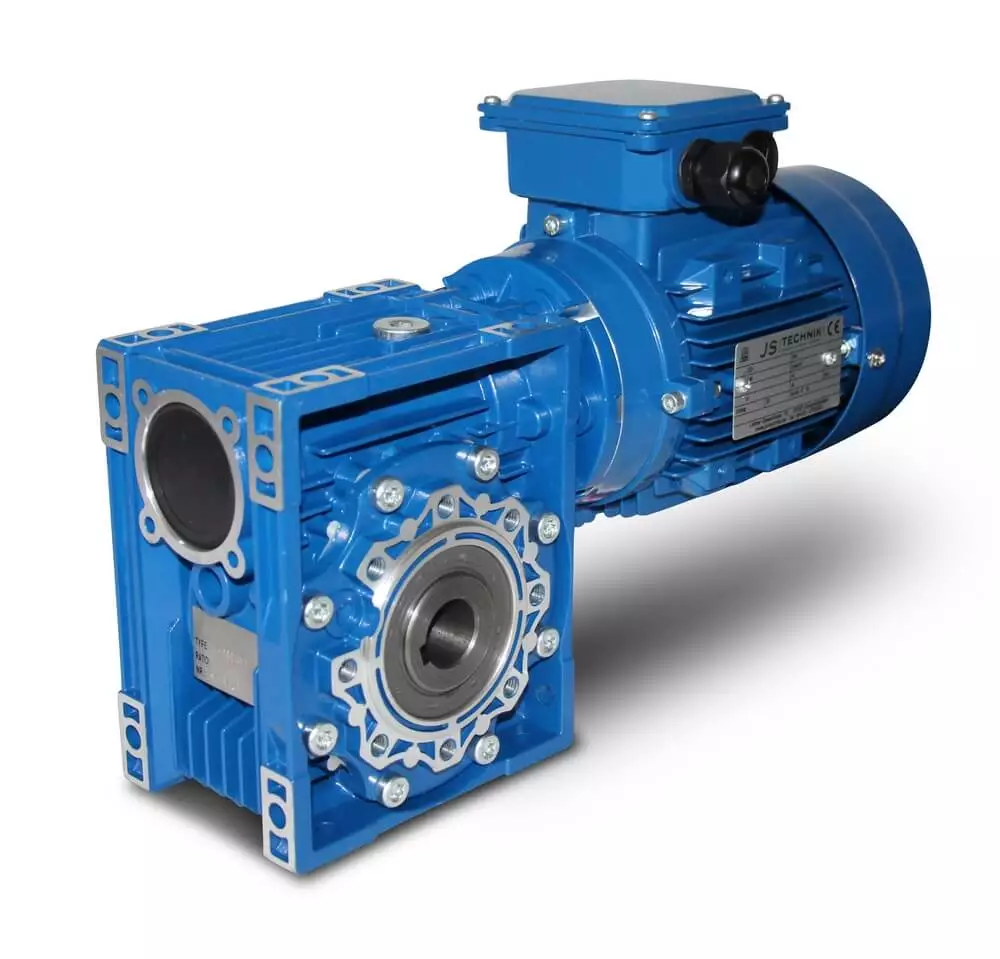

Worm geared motor with DC motor, power = 0.75 kW, speed = 35 rpm
Voltage= 12 volts DC, protection class= IP54, motor= IEC90, duty cycle= S1- 100%, current consumption= 82 A,
Hollow shaft= 25 mm, installation position M1-M6, motor speed= 4 poles, gear ratio (i)= 40, torque= 143 Nm,
Operating factor (f.s.)= 1.0, terminal box= top (rotatable), weight= 24 kg, color= primed,
The worm gear motor complies with IEC 60034-30:2008. The geared motor can be operated in both directions of rotation and is supplied with an oil filling. According to VDE 0105 and IEC 364, all work on the electric drive must be carried out only by qualified personnel. For modifications or special designs, please send an inquiry.
Important Information
This drive unit is a custom-made product. Returns or cancellations are not accepted!
All product photos are for illustrative purposes only. Technical specifications are subject to change.
| Performance: | 0,75 kW |
|---|---|
| Torque: | 101 to 200 Nm |
| Rotation speed: | 11 to 50 rpm |
| Shaft diameter: | 25 mm |
| Type of construction: | Standard worm gear |
| Tension: | 12 V DC |
| Protection class: | IP54 |
| Series: | CMRV-series |
| Performance: | 0,75 kW |
|---|---|
| Torque: | 101 to 200 Nm |
| Rotation speed: | 11 to 50 rpm |
| Shaft diameter: | 25 mm |
| Type of construction: | Standard worm gear |
| Tension: | 12 V DC |
| Protection class: | IP54 |
| Series: | CMRV-series |
