CMRV063+PC071 712-6 - 0.25 kW - 6 rpm- Worm Gear Motor
Product information "CMRV063+PC071 712-6 - 0.25 kW - 6 rpm- Worm Gear Motor"
Worm gear motor (worm gear box, helical spur gear three-phase motor)
Voltage= 1 x 230V-50 Hz, (± 5% according to VDE 0530),
Degree of protection = IP55, Isoclass= F (155°C), Operating mode= S1, Duty cycle = S1- 100%,
Hollow shaft = 25 mm, Engine Speed= 6 pole, Ratio(i)= 150, Torque= 211 Nm,
Service factor(f.s.)= 1, Terminal box = top (rotatable), Weight= 16 kg, Color= RAL 5010 (gentian blue),
Temperature sensor= 1 x PTC thermistors, Housing= Die-cast aluminum, Ball bearings= SKF, C & U or equivalent,
Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and
contains an oil filling on delivery. Open Hollow shafts are to be closed with caps.
In accordance to the VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel.

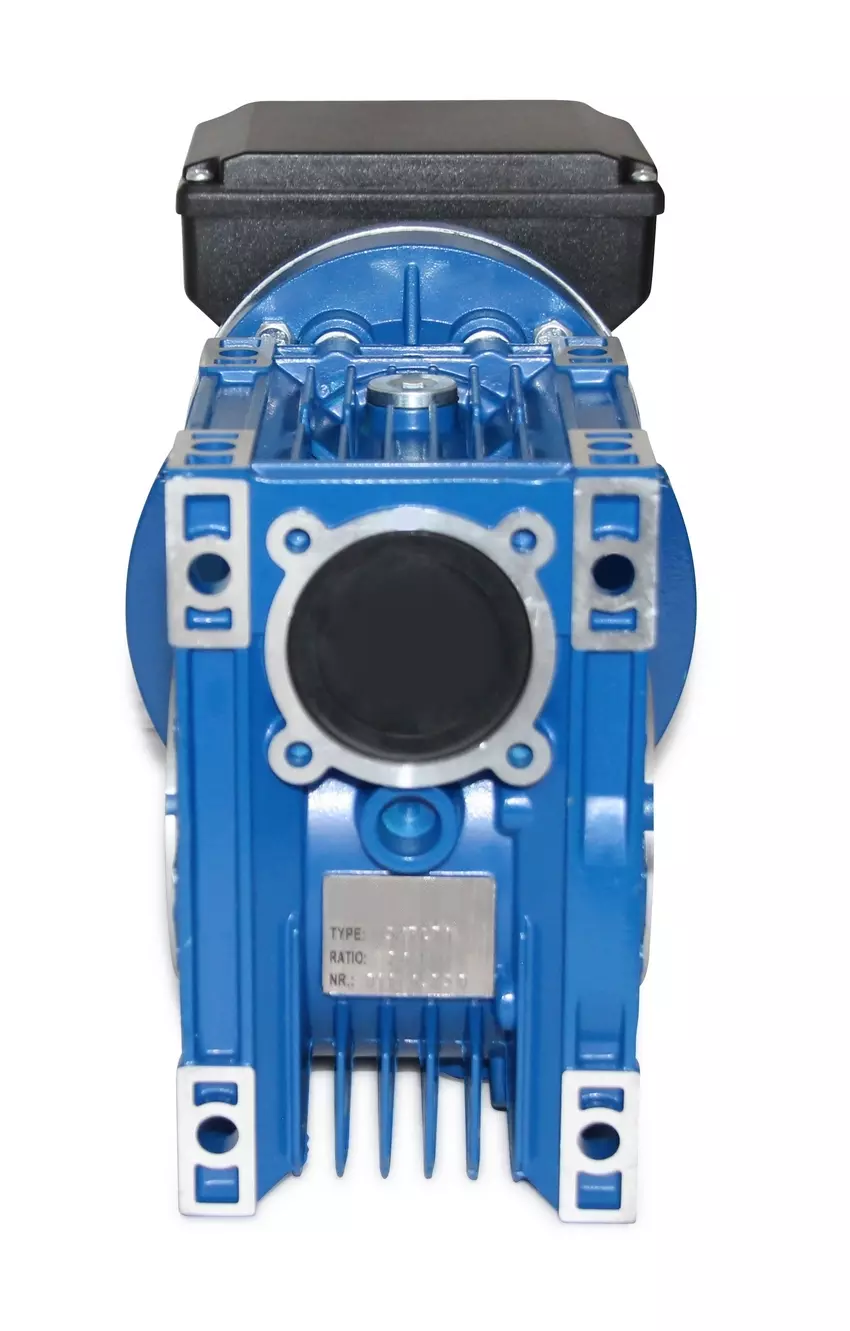

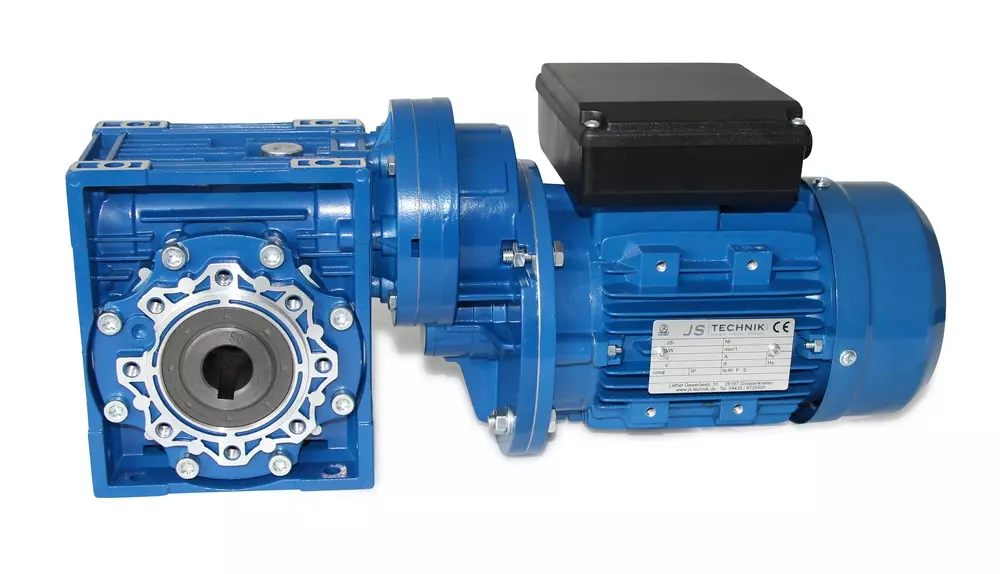

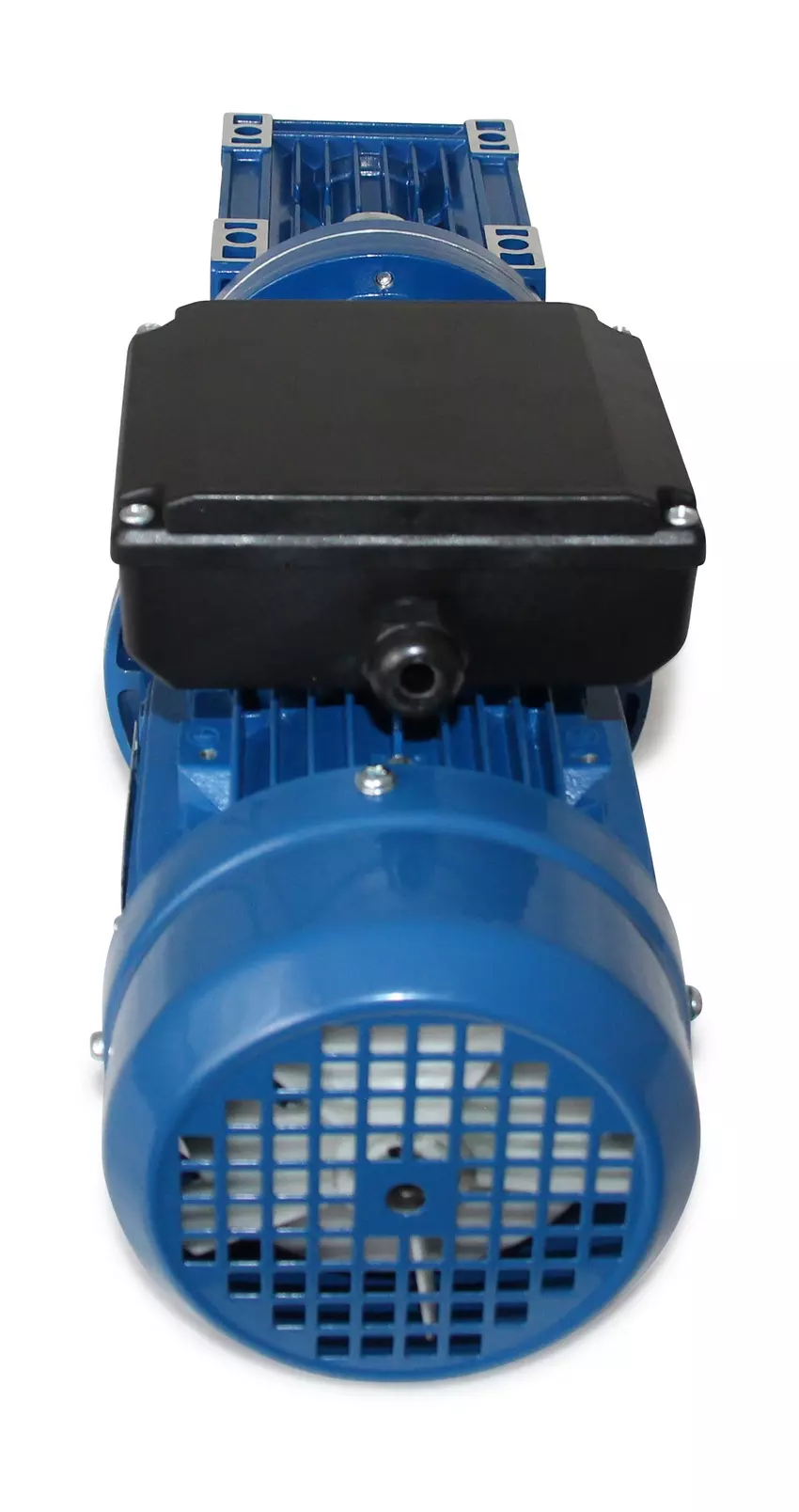

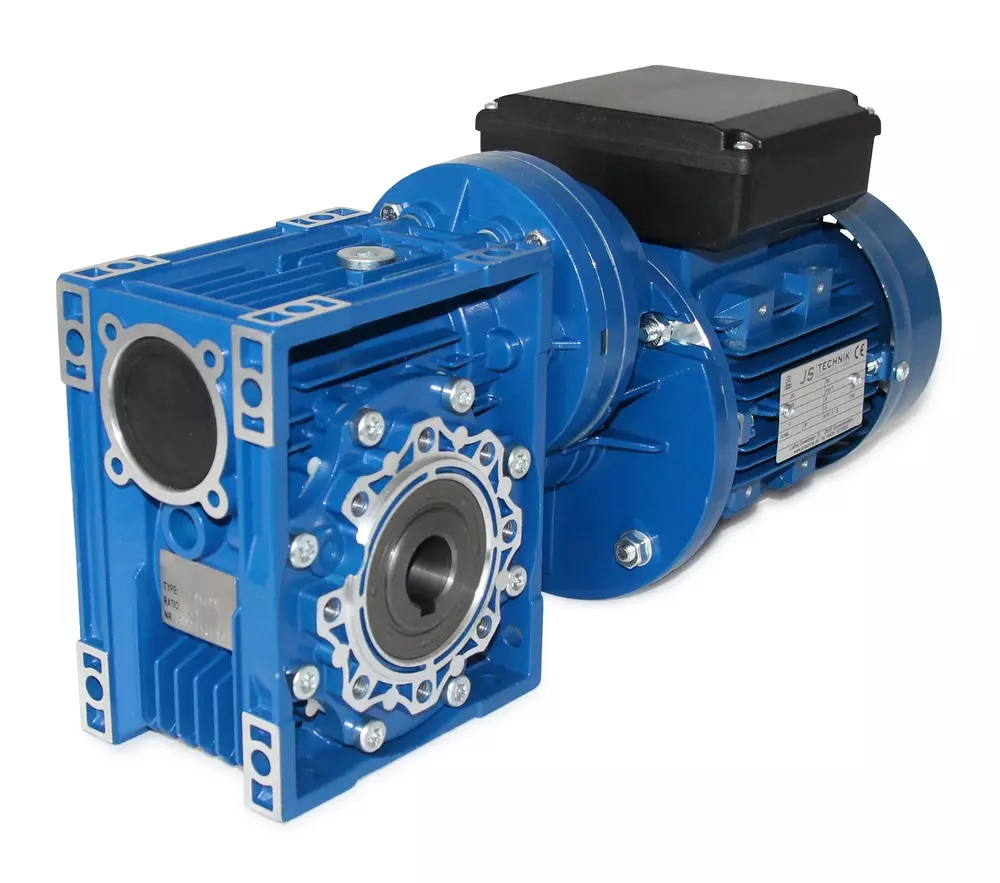

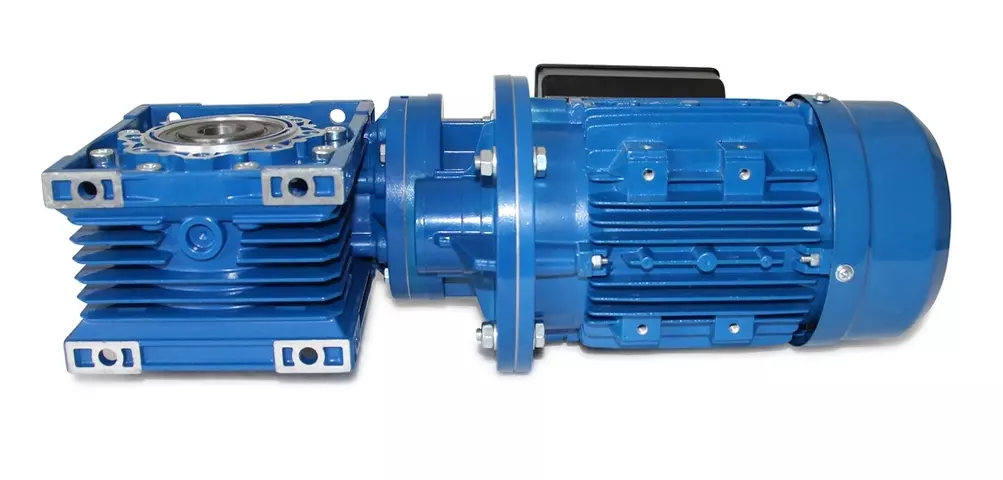

All product photos are non-binding examples!
| Performance: | 0,25 kW |
|---|---|
| Torque: | 201 to 300 Nm |
| Rotation speed: | 5 to 10 rpm |
| Shaft diameter: | 25 mm |
| Type of construction: | Worm gear with preliminary stage |
| Series: | CMRV-series |
| Performance: | 0,25 kW |
|---|---|
| Torque: | 201 to 300 Nm |
| Rotation speed: | 5 to 10 rpm |
| Shaft diameter: | 25 mm |
| Type of construction: | Worm gear with preliminary stage |
| Series: | CMRV-series |
