CMRV090+V10 801- 4- 0.55 kW- 2.5-12.5 rpm Worm gear variable speed motor
Product information "CMRV090+V10 801- 4- 0.55 kW- 2.5-12.5 rpm Worm gear variable speed motor"
Worm variable speed gear motor, Power= 0.55 kW, Speed= 2.5 - 12.5 rpm,
Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),
Protection type= IP55, iso class= F (155°C), Operating mode= S1, Duty cycle= S1- 100%, Total length= approx. 631 mm,
Hollow shaft = 35 mm, motor speed = 4 poles, translation with adjustment unit (i) = 112 - 560
Transmission only worm gear (i) = 80, torque = 189 Nm - 309 Nm, operating factor ( f.s.)= 1,
terminal box= above (rotatable), weight= 31 kg, color= RAL 5010 (gentian blue),
temperature sensor= 3 x PTC thermistor, gear housing = aluminum, ball bearing = SKF, C&U or equivalent,
Cooling= axial fan (plastic). For technical reasons, the variable speed worm gear motor should
cannot be operated with a frequency converter. The drive corresponds to IEC 60034-30:2008,
is suitable for both directions of rotation and is supplied with an oil filling. Open hollow shafts are to be sealed with
a cover cap. This can be ordered under the heading "Accessories". According to
VDE 0105 and IEC 364, all work on the electric drive may only be carried out by qualified personnel.
As usual with variable speed gears, speed control by turning the handwheel is only permitted during operation!
A change in speed while stationary can damage the stepless adjustment unit.
All product photos are non-binding examples! Technical changes reserved.
| Control range: | here. 2 bis 20 rpm |
|---|---|
| Performance: | 0,55 kW |
| Shaft diameter: | 35 mm |
| Series: | CMRV-series |
| Control range: | here. 2 bis 20 rpm |
|---|---|
| Performance: | 0,55 kW |
| Shaft diameter: | 35 mm |
| Series: | CMRV-series |

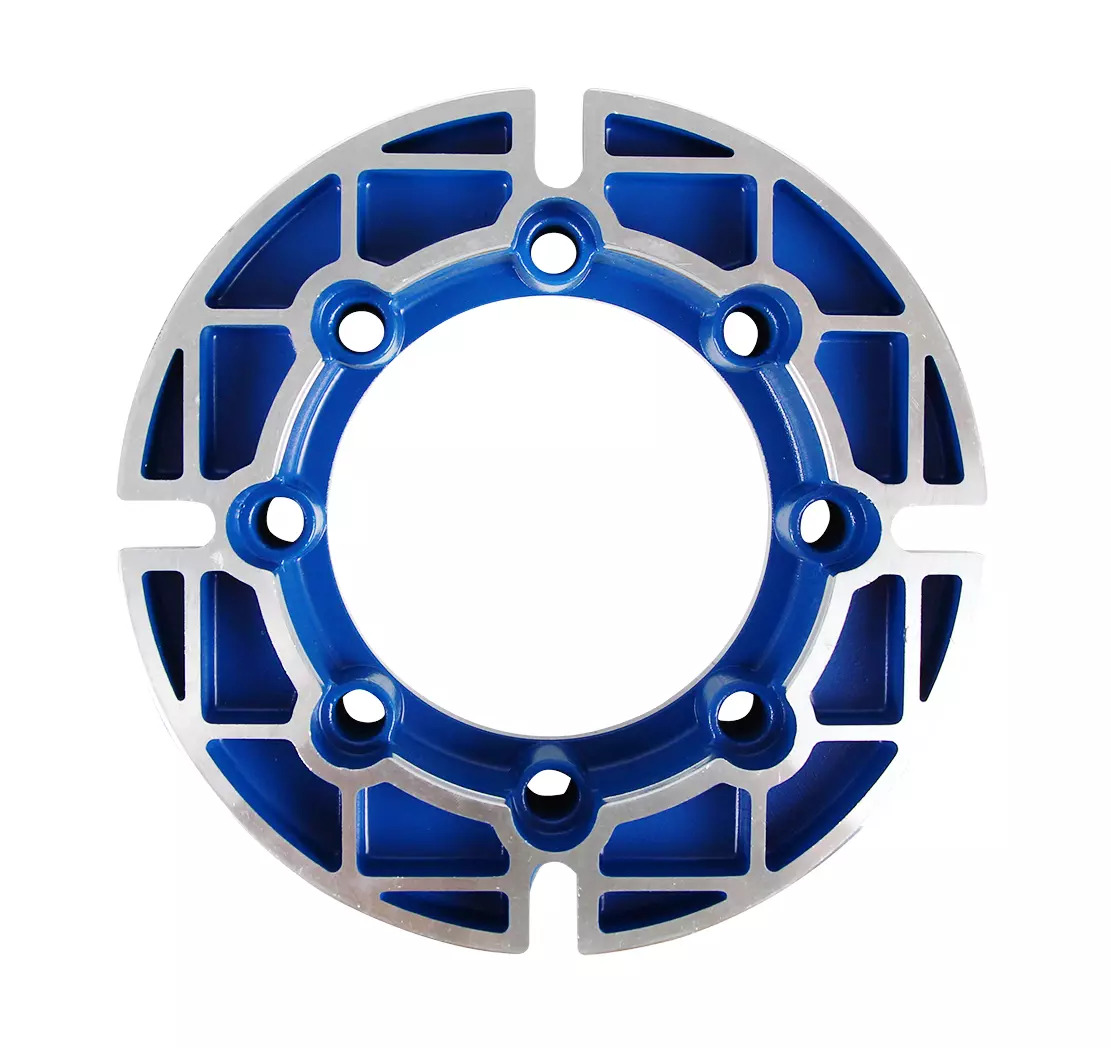

Accesories
