CMRV110/050 DC180, 12V, 0.25 kW, 1.6 rpm, IP40 Worm gear motor
Product information "CMRV110/050 DC180, 12V, 0.25 kW, 1.6 rpm, IP40 Worm gear motor"

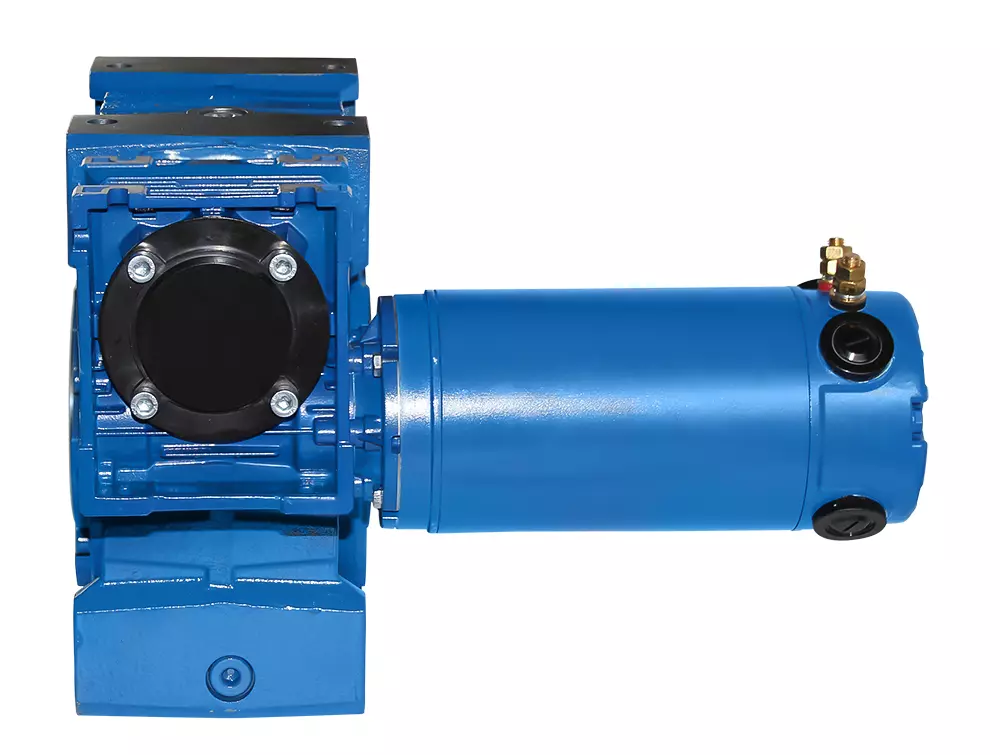

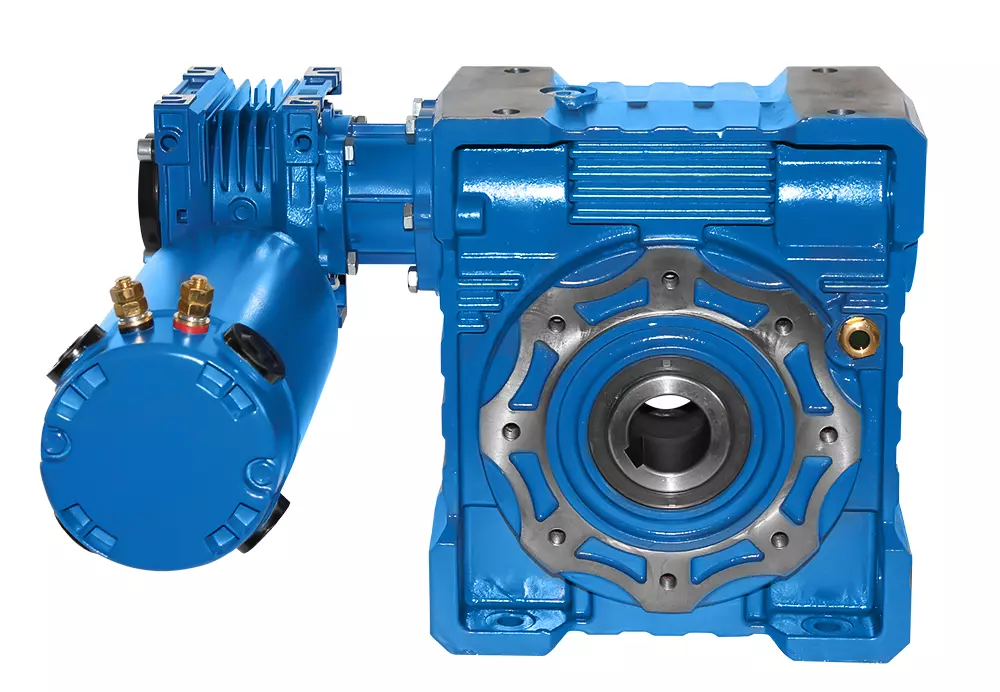

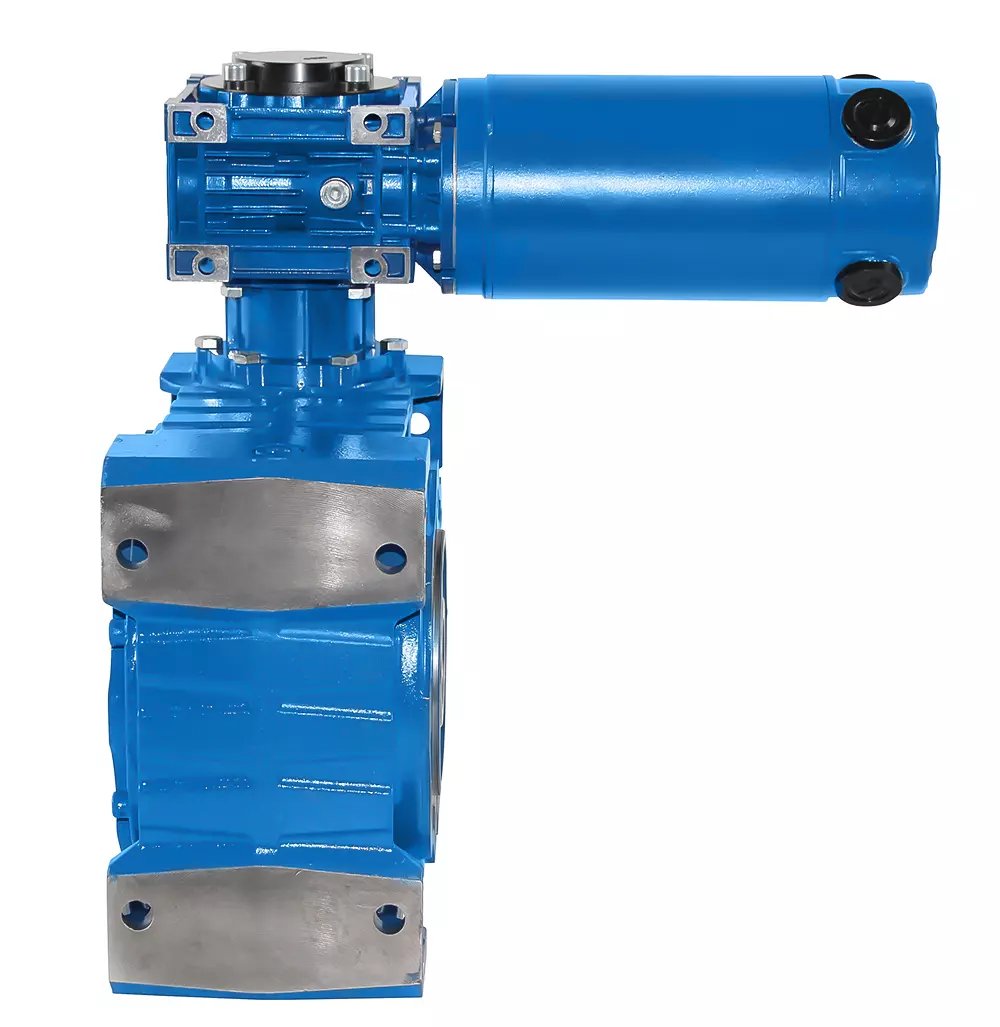

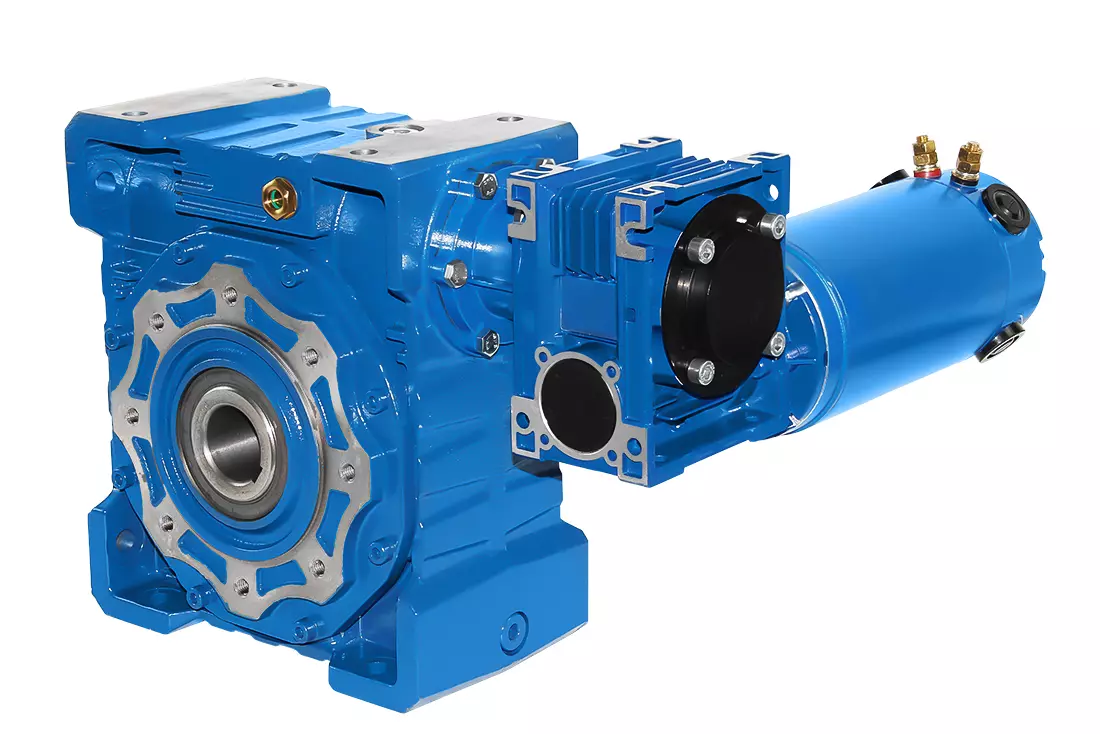

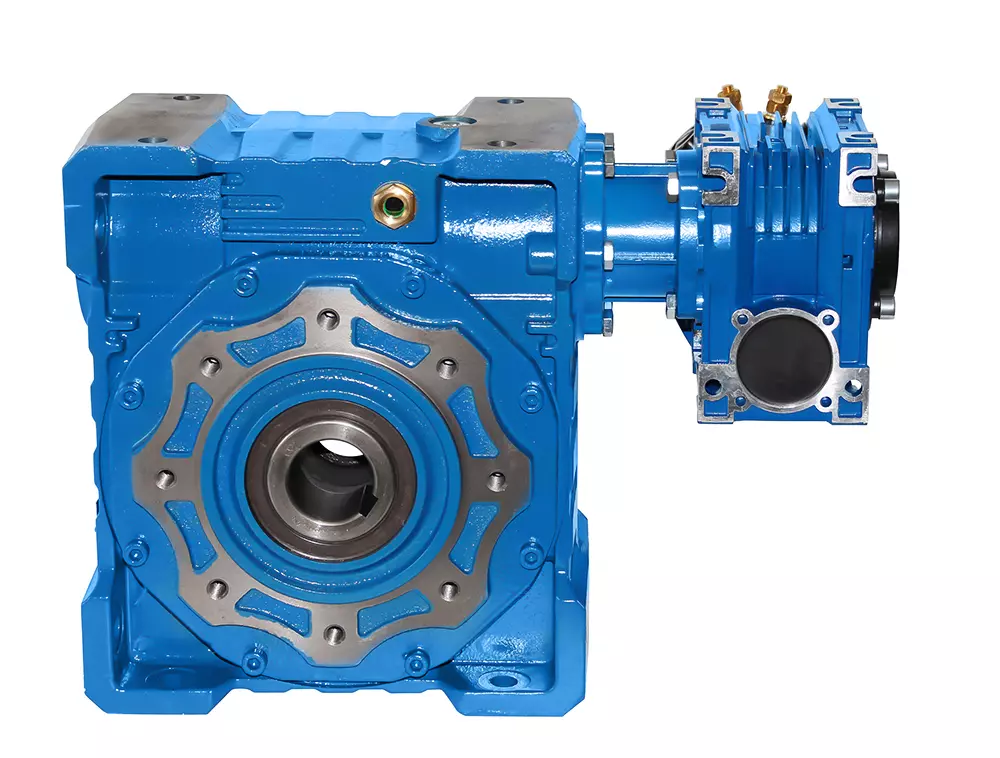

Double worm gear with DC motor, IP40, Power= 0.25 kW, Speed= 1.6 rpm
Voltage= 1 x 12 Volt, Protection class= gear IP55, motor IP40, Current consumption= 12V/30,0 A,
Operating mode = S2 (short-term operation), Hollow shaft= 42 mm, Motor speed= 2 poles, Gear ratio (i)= 1800,
Torque= 608 Nm, operating factor (f.s.)= 2.0, connection= external cable (1m), weight= 46.5 kg.
An external speed control is optionally available.
The gear motor can be operated in both directions of rotation and is filled with oil when delivered.
According to VDE 0105 and IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel.
From gear size 110, the installation position must be specified.
Important Information
This drive unit is a custom-made product. Returns or cancellations are not accepted!
All product photos are for illustrative purposes only. Technical specifications are subject to change.
| Performance: | 0,25 kW |
|---|---|
| Torque: | 501 to 1000 Nm |
| Rotation speed: | 1 to 4.9 rpm |
| Shaft diameter: | 42 mm |
| Type of construction: | Double worm gear |
| Tension: | 12 V DC |
| Protection class: | IP40 |
| Series: | CMRV-series |
| Performance: | 0,25 kW |
|---|---|
| Torque: | 501 to 1000 Nm |
| Rotation speed: | 1 to 4.9 rpm |
| Shaft diameter: | 42 mm |
| Type of construction: | Double worm gear |
| Tension: | 12 V DC |
| Protection class: | IP40 |
| Series: | CMRV-series |
