CMRV110/050 DC600, 12V, 0.8 kW, 7 rpm, IP40 Worm gear motor
Product information "CMRV110/050 DC600, 12V, 0.8 kW, 7 rpm, IP40 Worm gear motor"

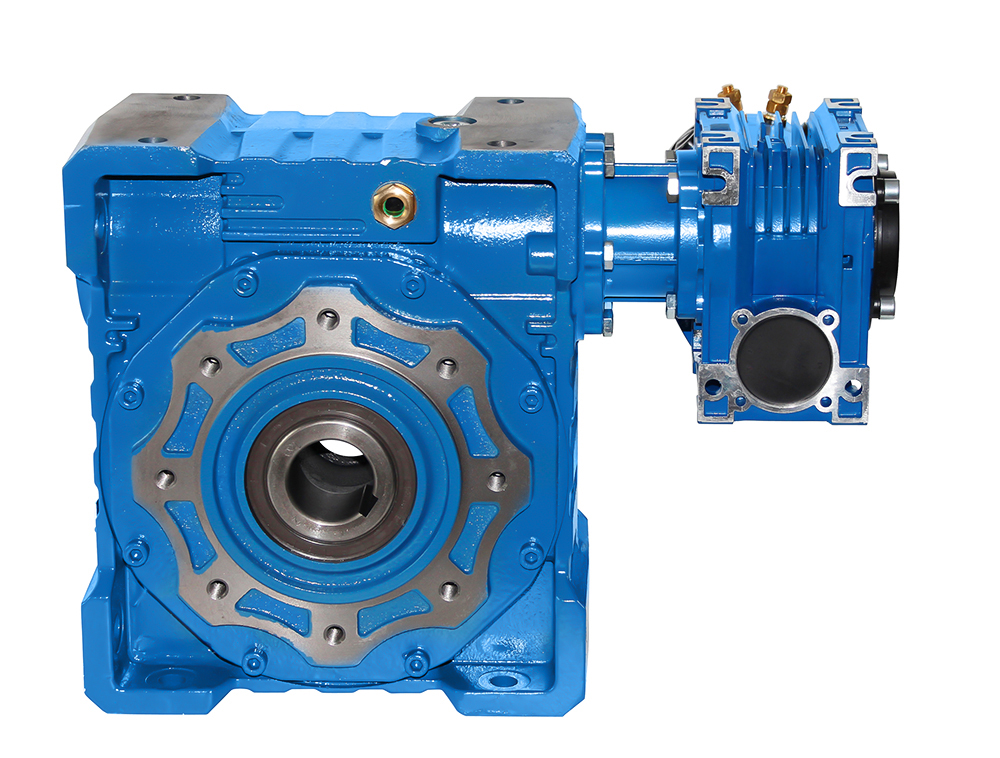

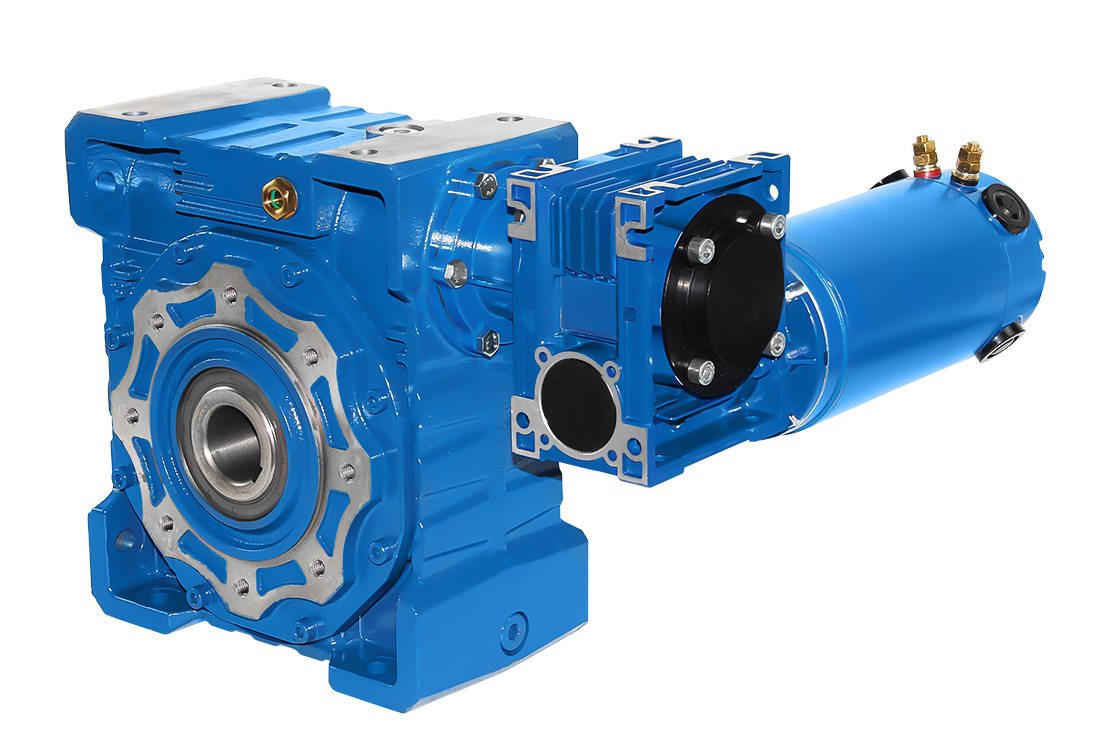

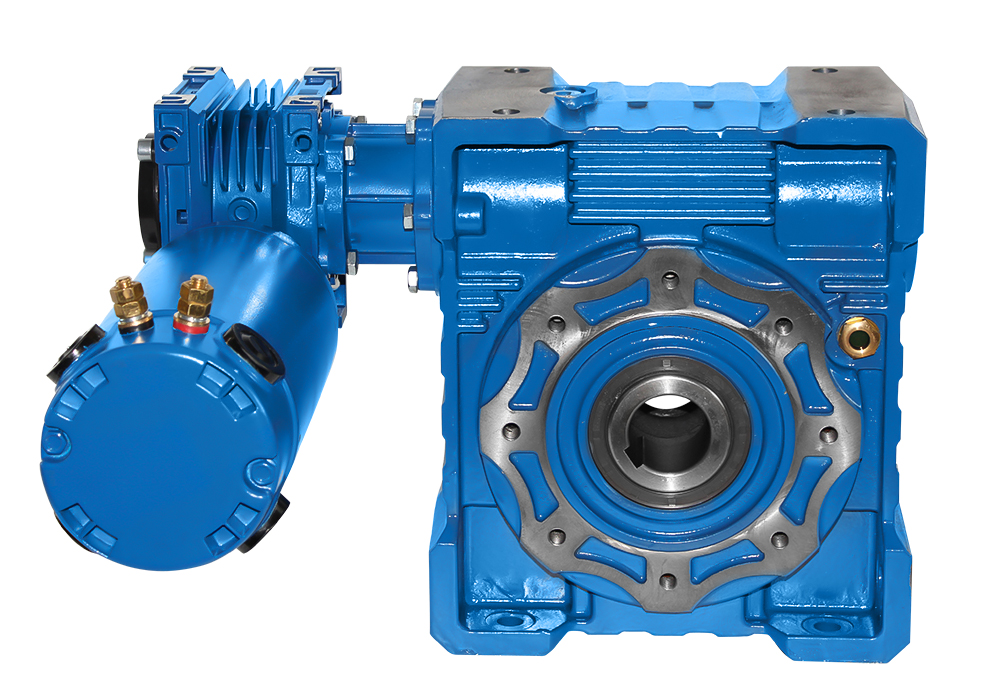

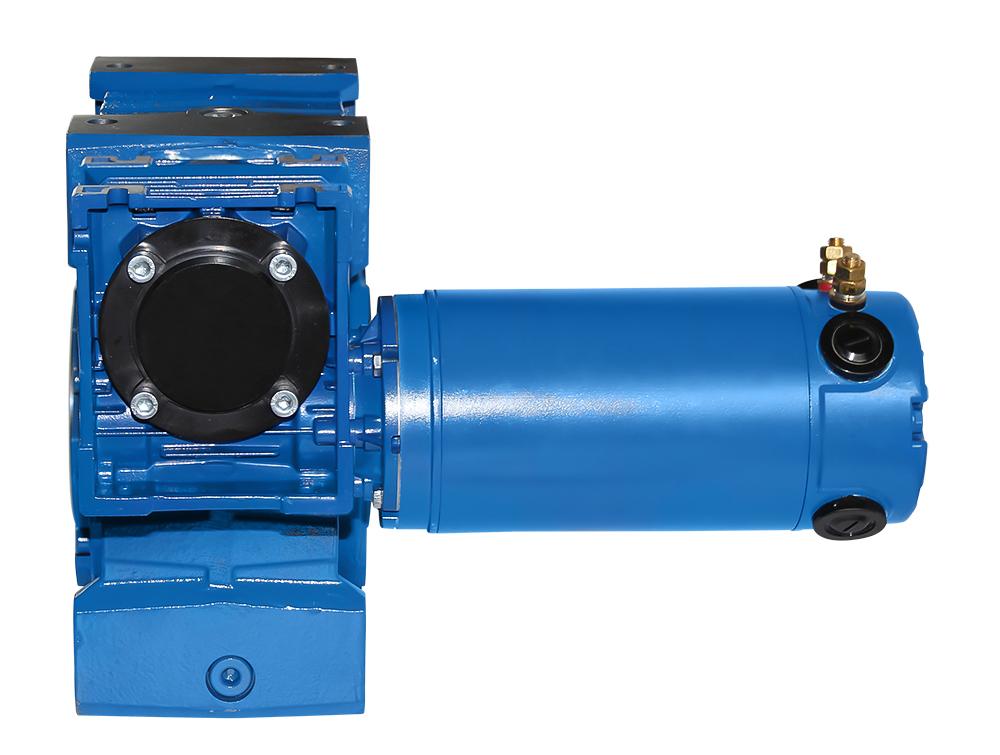

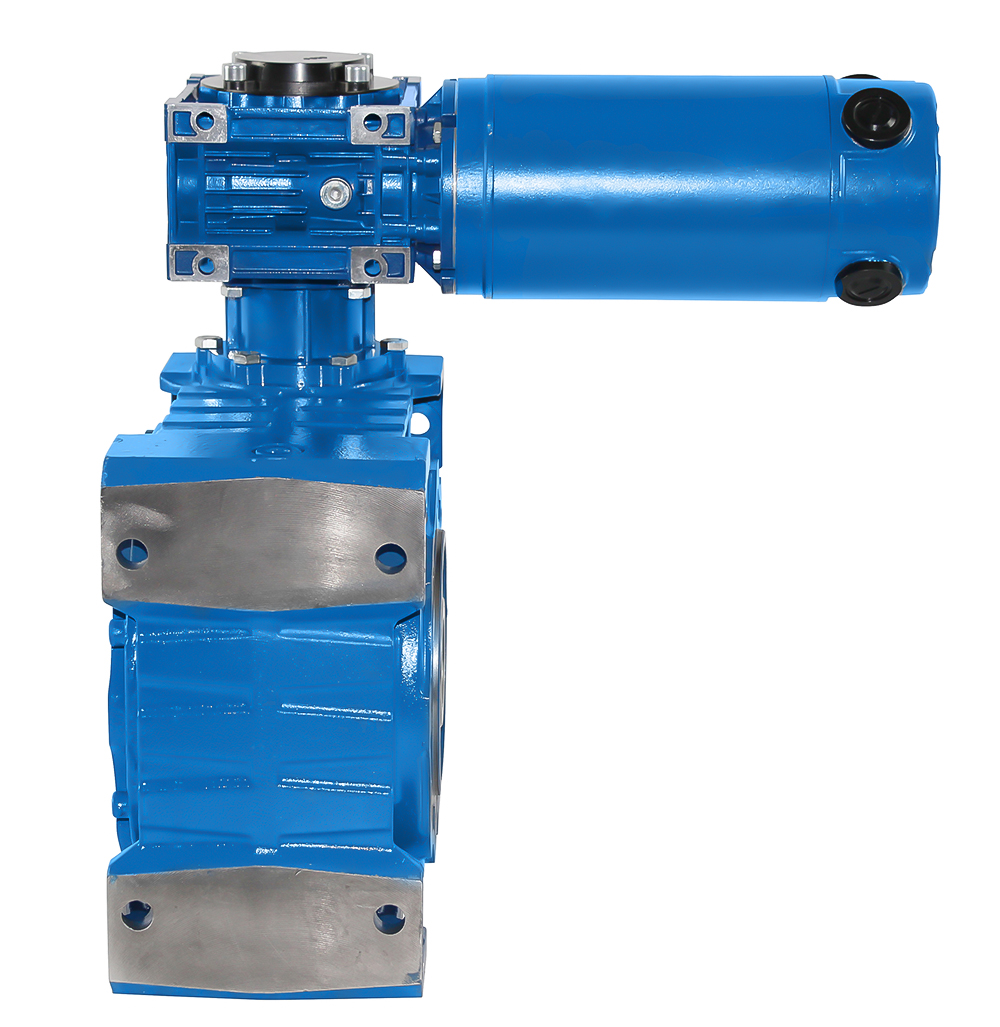

Double worm gear with DC motor, IP40, Power= 0.8 kW, Speed= 7 rpm
Voltage= 1 x 12 Volt, Protection class= gear IP55, motor IP40, Current consumption= 12V/94,4 A,
Operating mode = S2 (short-term operation), Hollow shaft= 42 mm, Motor speed= 2 poles, Gear ratio (i)= 400,
Torque= 580 Nm, operating factor (f.s.)= 0.98, connection= Clamp bolt, weight= 47.5 kg.
The gear motor can be operated in both directions of rotation and is filled with oil when delivered.
According to VDE 0105 and IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel.
From gear size 110, the installation position must be specified.
All product photos are non-binding examples!
| Performance: | 0,80 kW |
|---|---|
| Protection class: | IP40 |
| Rotation speed: | 5 to 10 rpm |
| Series: | CMRV-series |
| Shaft diameter: | 42 mm |
| Tension: | 12 V DC |
| Torque: | 501 to 1000 Nm |
| Type of construction: | Double worm gear |
| Performance: | 0,80 kW |
|---|---|
| Protection class: | IP40 |
| Rotation speed: | 5 to 10 rpm |
| Series: | CMRV-series |
| Shaft diameter: | 42 mm |
| Tension: | 12 V DC |
| Torque: | 501 to 1000 Nm |
| Type of construction: | Double worm gear |
