CMRV150/063 801-4 - 0.55 kW - 0.8 rpm- Worm Gear Motor

£1,695.40*

Prices incl. VAT plus shipping costs

Delivery time Approx. 8-10 working days

Mounting position for gearmotors

Product number: C063150306118000A000T4

Shipping fees: Article + Packaging

Downloads

Product information "CMRV150/063 801-4 - 0.55 kW - 0.8 rpm- Worm Gear Motor"

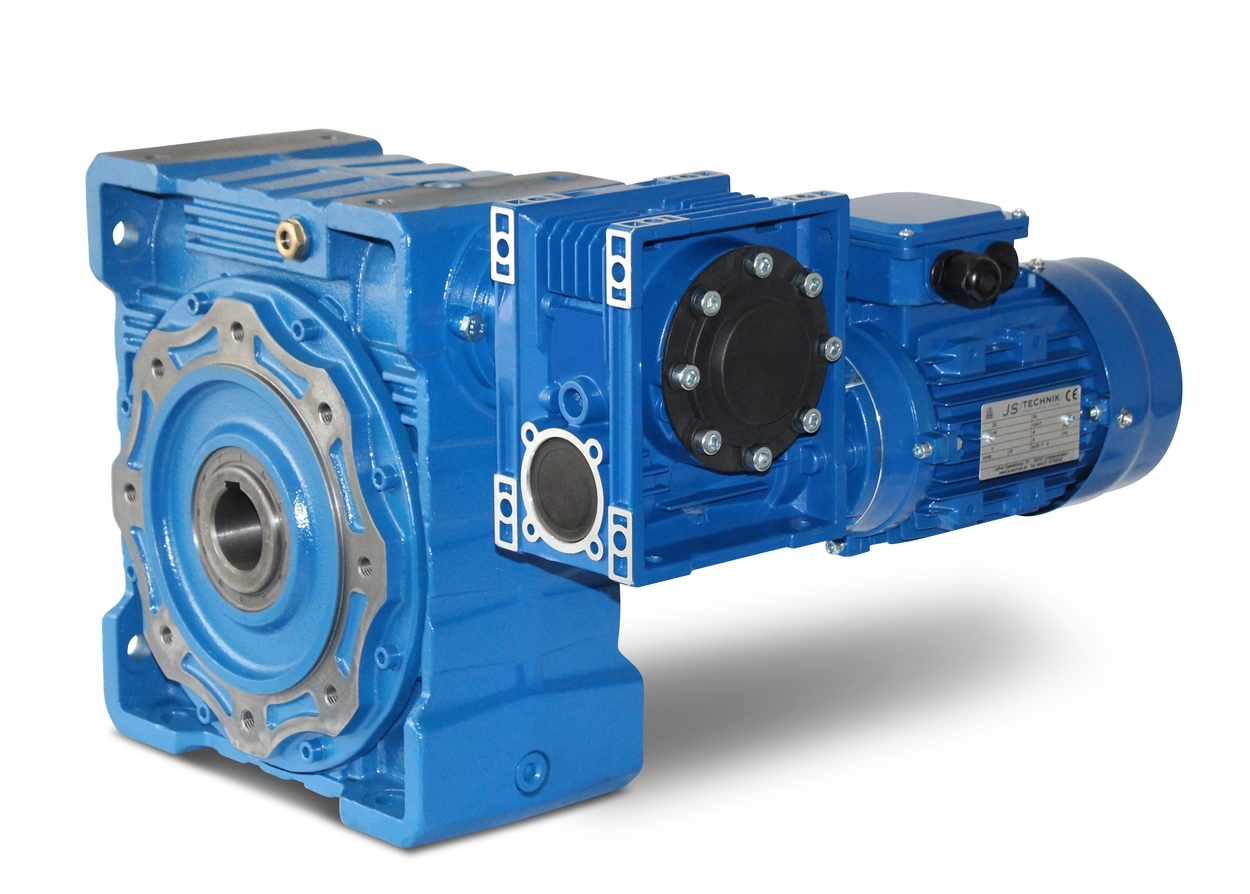

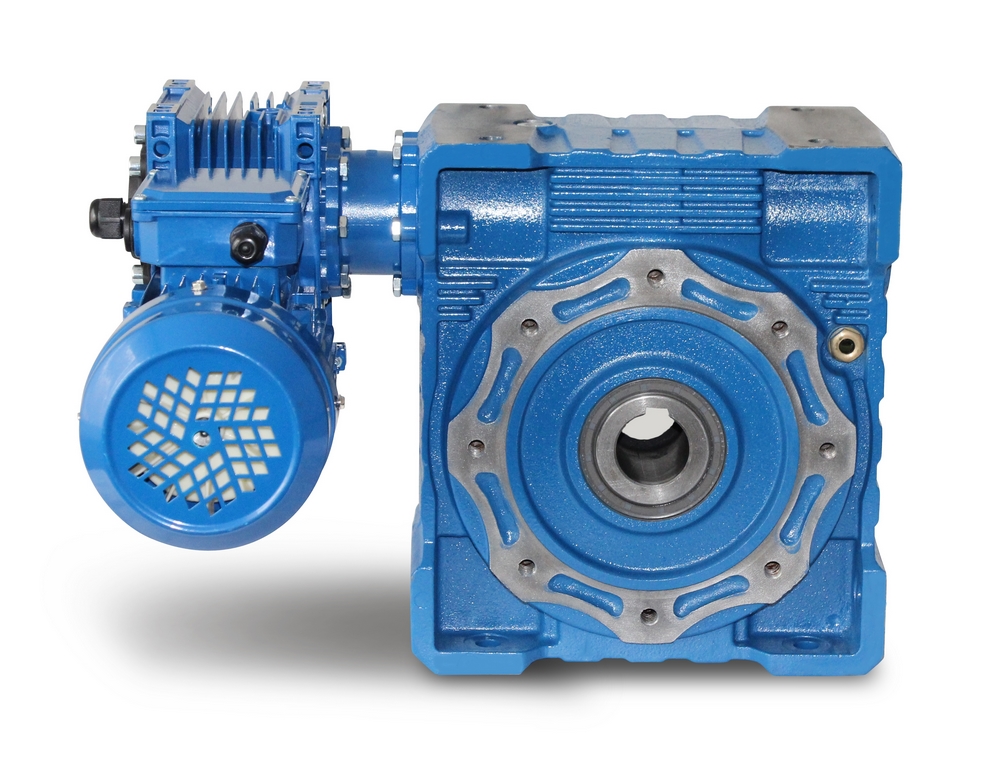

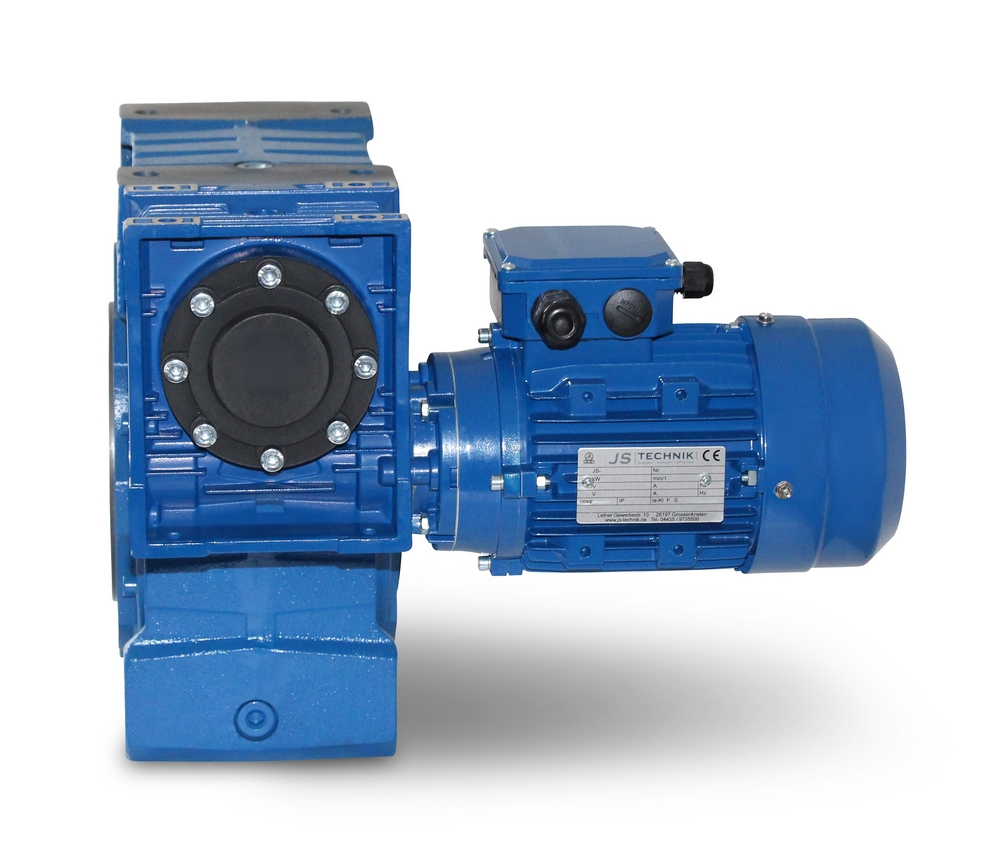

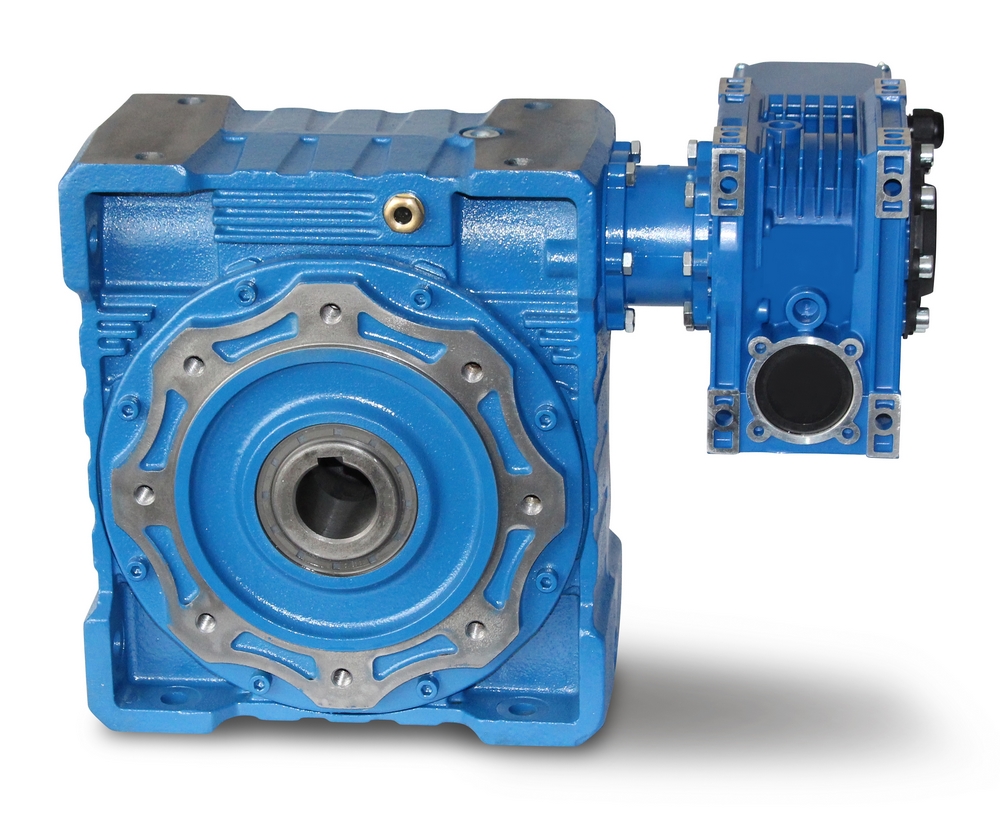

Double Worm Geared Motor, Power= 0,55 kW, Speed= 0,8 rpm

Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),

Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%,

Hollow shaft= 50 mm, Engine Speed= 4 pole, Ratio (i)= 1800, Torque= 2638 Nm,

Service factor (f.s.)= 0,8, Terminal box= top (rotatable), Weight= 108,22kg. Paint= RAL 5010 (gentian blue),

Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent,

Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and

complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and

contains an oil filling on delivery. Open Hollow shafts are to be closed with caps.

In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified

From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

Performance:	0,55 kW
Rotation speed:	< 1 rpm
Series:	CMRV-series
Shaft diameter:	50 mm
Torque:	2001 to 3000 Nm
Type of construction:	Double worm gear

Properties "CMRV150/063 801-4 - 0.55 kW - 0.8 rpm- Worm Gear Motor"

Performance:	0,55 kW
Rotation speed:	< 1 rpm
Series:	CMRV-series
Shaft diameter:	50 mm
Torque:	2001 to 3000 Nm
Type of construction:	Double worm gear
