DV372-112-4-4 kW-79 rpm Parallel shaft gearmotor

€1,434.59*

Prices incl. VAT plus shipping costs

Delivery time Approx. 36 working days

Mounting position for gearmotors

Product number: DV372512100176A000TM

Shipping fees: Article + Packaging

Downloads

Product information "DV372-112-4-4 kW-79 rpm Parallel shaft gearmotor"

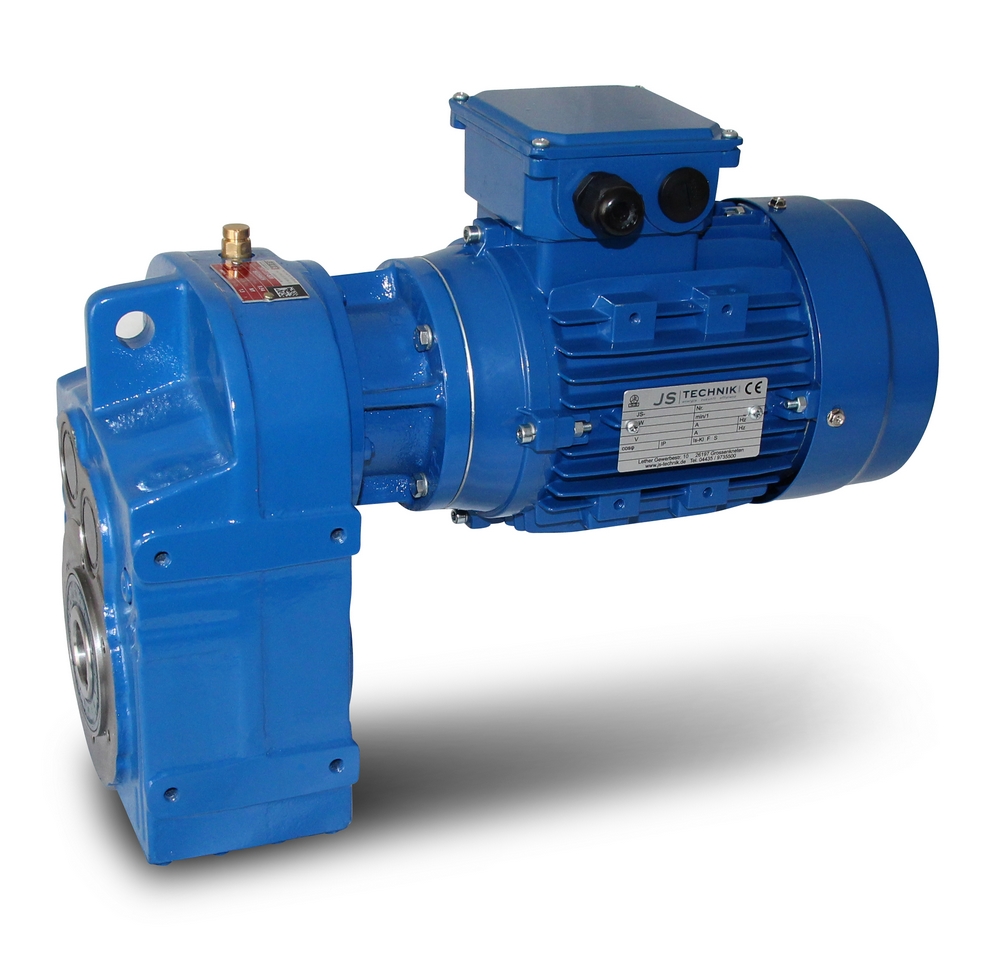

Parallel shaft gearmotor with IEC flange between gearbox and Electro motor

Voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz.

Power= 4 kW, Speed (n²)= 79 rpm, Ratio (i)= 17,65, Torque (M²)= 464 Nm,

Operating factor (fs)= 1,8, Type= B3, Hollow shaft= 40 mm, Weight= 81 kg, Paint= RAL5010.

Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable).

The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008.

The bevel gear can be operated in both directions and contains an oil filling on delivery.

According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel

perform. For modifications or special designs please send inquiry.

When ordering, please select the desired installation position.

Important instructions
This drive is a custom-made product. A resignation or revocation of the purchase is excluded!
All product photos are non-binding examples!

Performance:	4,0 kW
Rotation speed:	51 to 100 rpm
Series:	D-series
Shaft diameter:	40 mm
Torque:	401 to 500 Nm

Properties "DV372-112-4-4 kW-79 rpm Parallel shaft gearmotor"

Performance:	4,0 kW
Rotation speed:	51 to 100 rpm
Series:	D-series
Shaft diameter:	40 mm
Torque:	401 to 500 Nm
