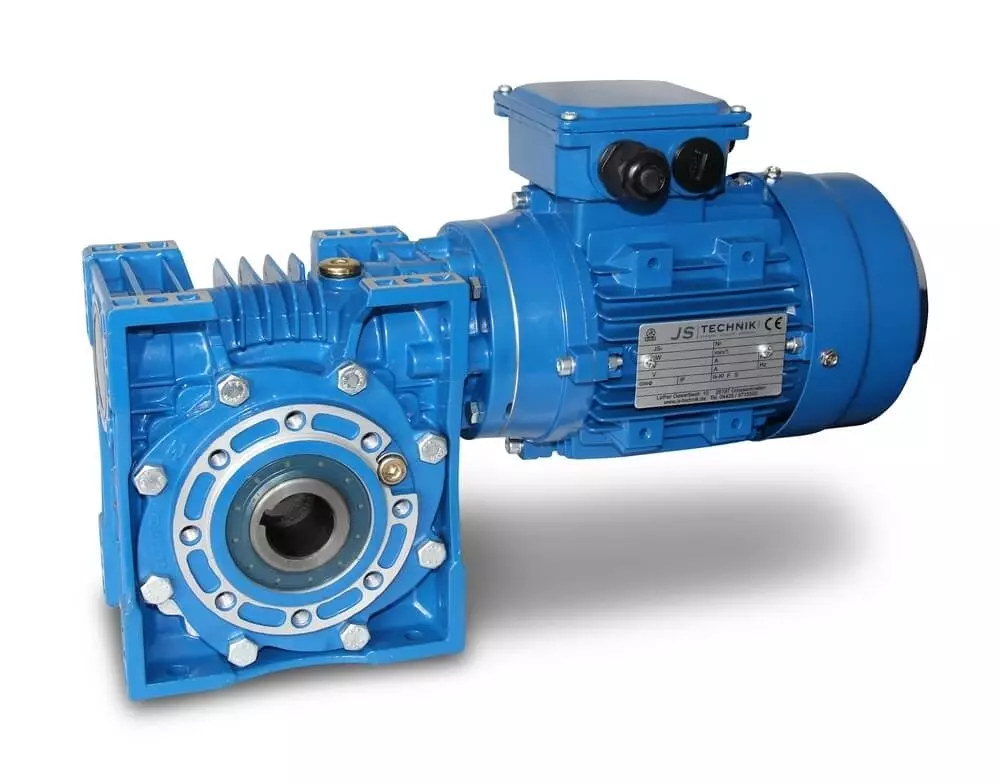

EV 063-712 - 0.25 kW - 9,0 rpm Worm Worm gear Motor
Product information "EV 063-712 - 0.25 kW - 9,0 rpm Worm Worm gear Motor"
Worm gear motor, power= 0.25 kW,
Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),
Protection class= IP55, insulation class= F (155°C), operating mode= S1- 100% ED, speed (n²)= 9.0 rpm,
Transmission ratio (i)= 100, torque= 114 Nm, operating factor (fs)= 0.9, hollow shaft= 30 mm.
Weight= 12.9 kg, color= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistors,
Housing = die-cast aluminum, ball bearing = SKF, C&U or equivalent, cooling = axial fan (plastic).
The worm gear motor is suitable for frequency converter operation and complies with IEC 60034-30:2008.
The gear motor can be operated in both directions of rotation and contains an oil filling upon delivery.
In accordance with VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel.
Please send an inquiry for modifications or special designs.
All product photos are non-binding examples! Technical changes reserved.
| Performance: | 0,25 kW |
|---|---|
| Torque: | 101 to 200 Nm |
| Rotation speed: | 5 to 10 rpm |
| Shaft diameter: | 30 mm |
| Series: | EV-series |
| Performance: | 0,25 kW |
|---|---|
| Torque: | 101 to 200 Nm |
| Rotation speed: | 5 to 10 rpm |
| Shaft diameter: | 30 mm |
| Series: | EV-series |
