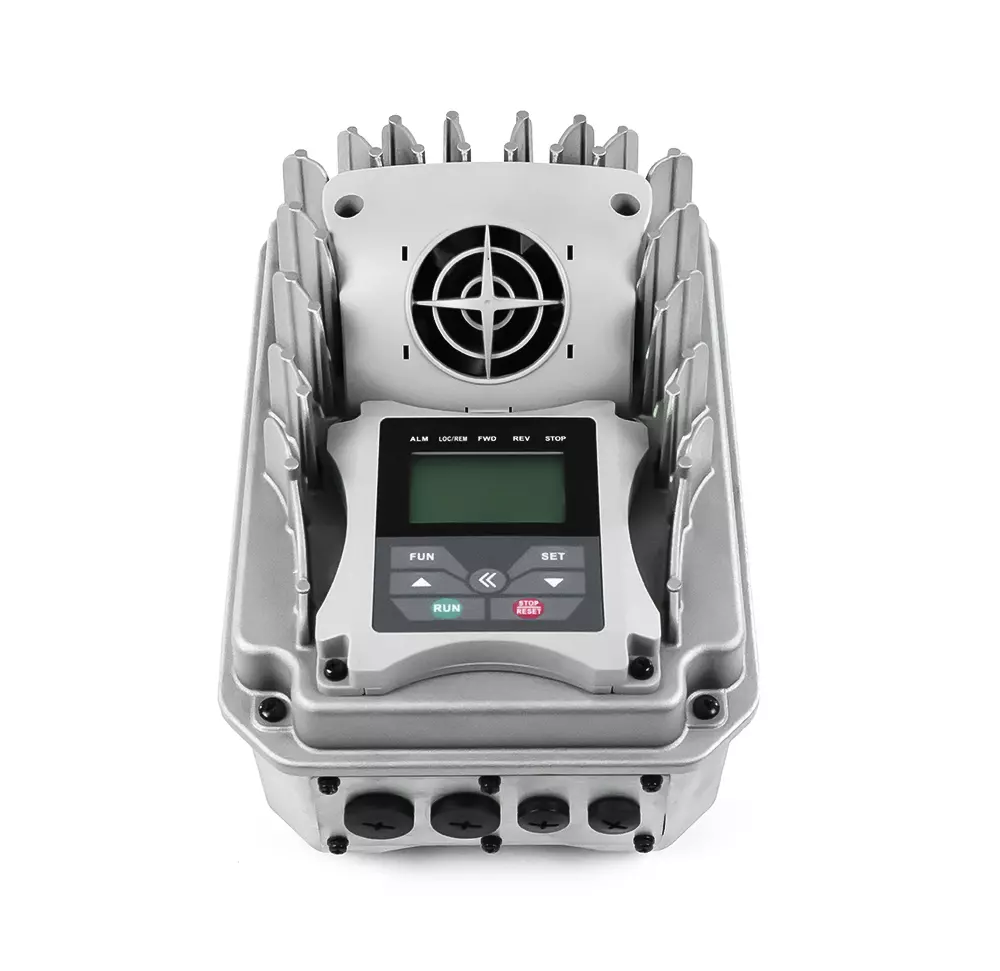

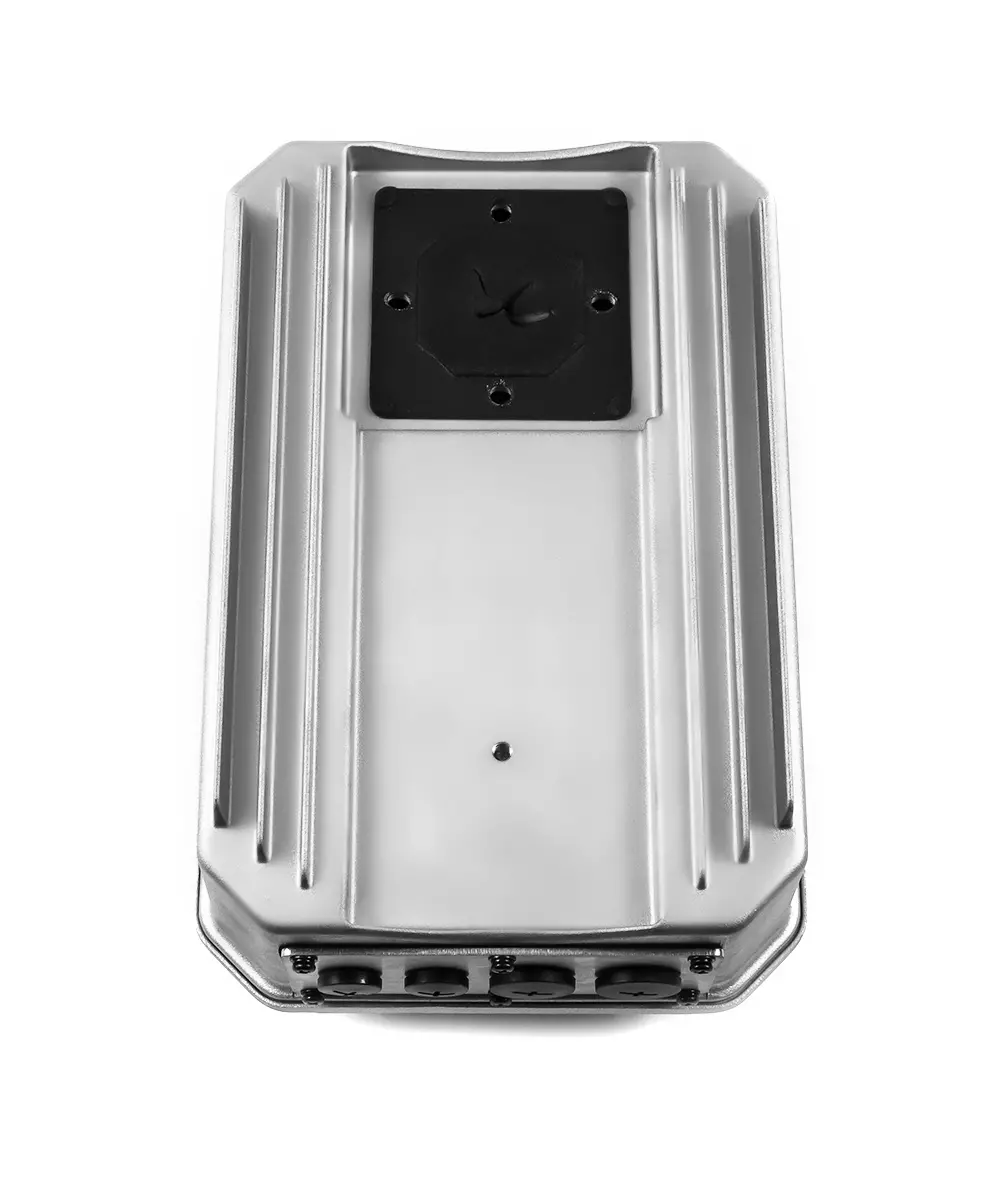

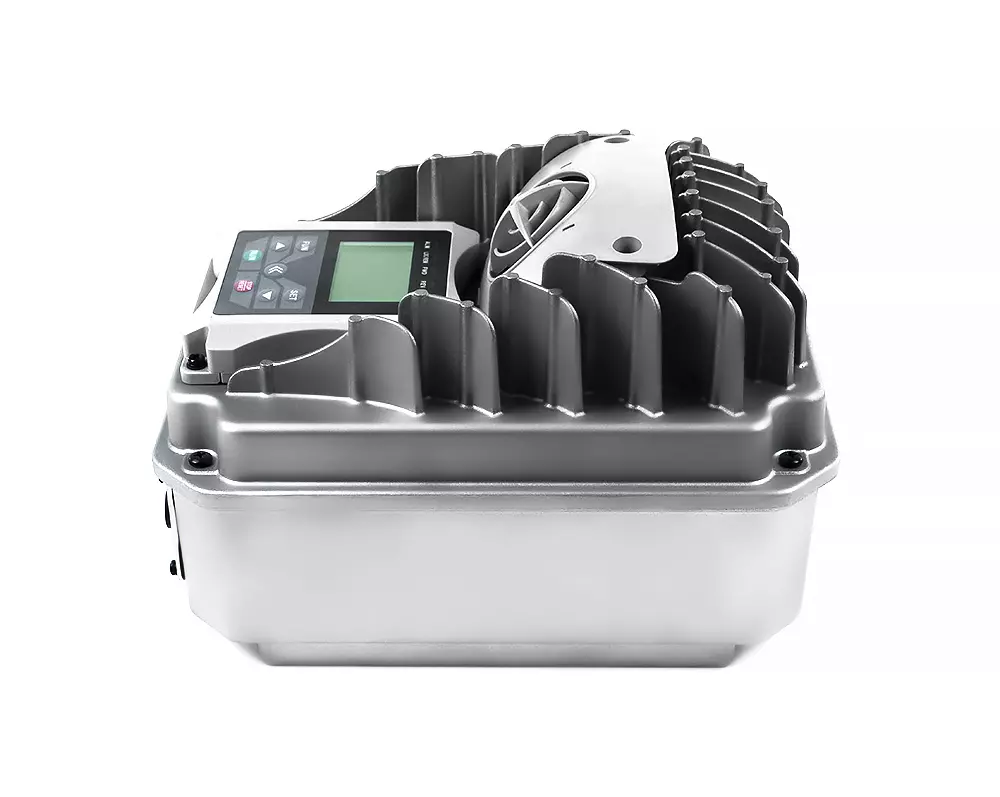

Frequency inverter SMARTdrive SD400A-0220
Product information "Frequency inverter SMARTdrive SD400A-0220"
Frequency converter, 3x 400V, SMARTdrive 2.2kW
Power=2.2kW, Size=J1, Input voltage=3 x 4030V +10% (single-phase), Input frequency=50/60 Hz,
Output frequency=0- 650 Hz, EMC filter=C3, Protection class=IP66, Dimensions=approx. 270mm x 190mm x 165mm,
Display=4 line plain text LCD. Ideal control range=5 - 60 Hz, With constant nominal torque,
Product Information
DSP based high-tech motor control concept with V/Hz, SENSORLESS VECTOR, CLV and PMM algorithms.
Intelligent AUTOTUNING functions for easy and quick commissioning. Robust design, full metal housing,
thermally decoupled from the motor IP55/NEMA4, vibration-proof (4G). Flexible, configurable 4-line LCD display.
Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, thereby
Suitable for universal use, including retrofit PID controller installed. EMC filter installed as standard,
Optional C1 filter with installation kit available. Software tools for inverter control, programming and diagnostics.
Parameter copy stick available. Compatible with globally applicable standards.
Important Information
This drive unit is a custom-made product. Returns or cancellations are not accepted!
All product photos are for illustrative purposes only. Technical specifications are subject to change.
| Performance: | 2,2 kW |
|---|---|
| Tension: | 3 x 400 V |
| Protection class: | IP66 |
| Series: | SMARTdrive SD400 0,55kW - 11,0kW |
| Performance: | 2,2 kW |
|---|---|
| Tension: | 3 x 400 V |
| Protection class: | IP66 |
| Series: | SMARTdrive SD400 0,55kW - 11,0kW |
