MV272/B5+V30-100-4 - 3,0 kW – 32-160 rpm Helical geared motor speed variator
Downloads
Product information "MV272/B5+V30-100-4 - 3,0 kW – 32-160 rpm Helical geared motor speed variator"

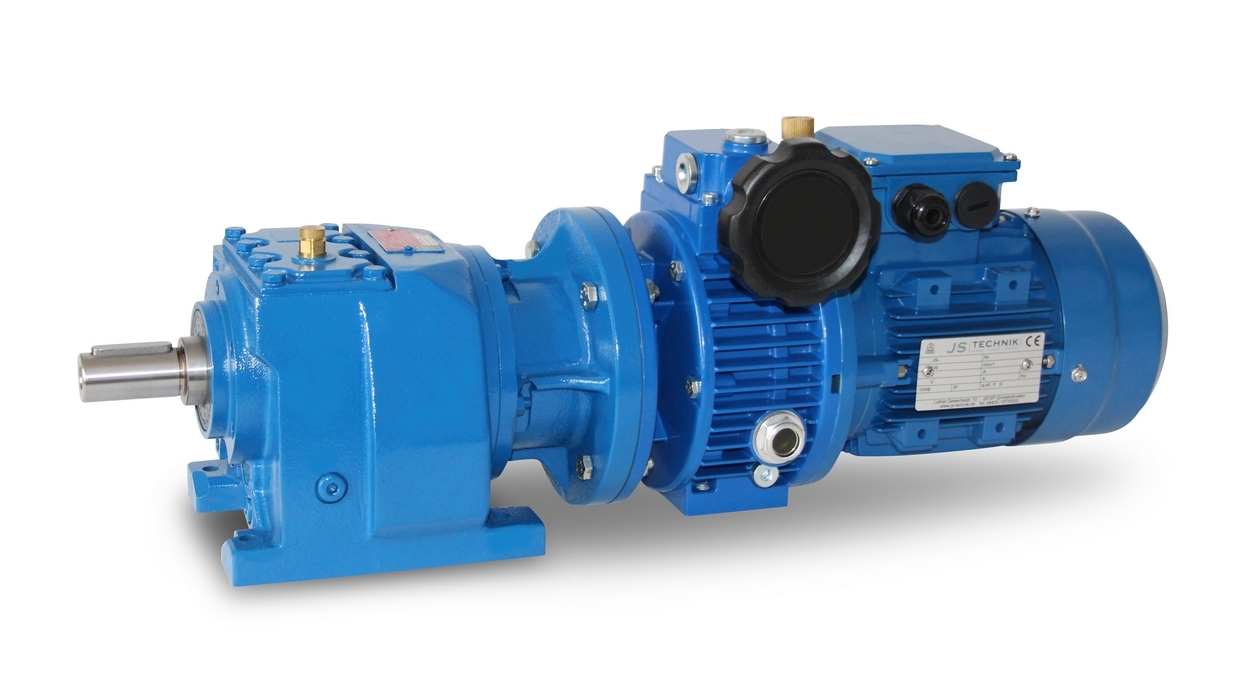

Helical geared motor with handwheel speed control
Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency = 50/60 Hertz.
Power= 3.0 kW, Speed= 32 - 160 rpm, Reduction with adjustment unit (i)= 8.7 – 43.4, only Ratio gear(i)= 6,21,
Torque (M²)= 123 - 246 Nm, Service factor (fs)= 1.35 – 2.7, Type = B3 (B35 for an extra charge), Shaft= 35x70 mm,
Weight, = 50.5 kg, Paint= RAL5010, Temperature sensor = 3 x PTC thermistors, Operating mode= S1- 100% ED,
The variable Speed motor corresponds to the IEC 60034-30: 2008.
The gear motor can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364
all work on the electric drive must only be carried out by qualified specialist personnel.
The Speed adjustment is only allowed when the engine is running. Do not adjust when standing!
When ordering, please select the desired mounting position!
All product photos are non-binding examples! Technical changes reserved.
| Control range: | here. 30 bis 180 rpm |
|---|---|
| Performance: | 3,0 kW |
| Series: | M-series |
| Shaft diameter: | 35 mm |
| Control range: | here. 30 bis 180 rpm |
|---|---|
| Performance: | 3,0 kW |
| Series: | M-series |
| Shaft diameter: | 35 mm |
