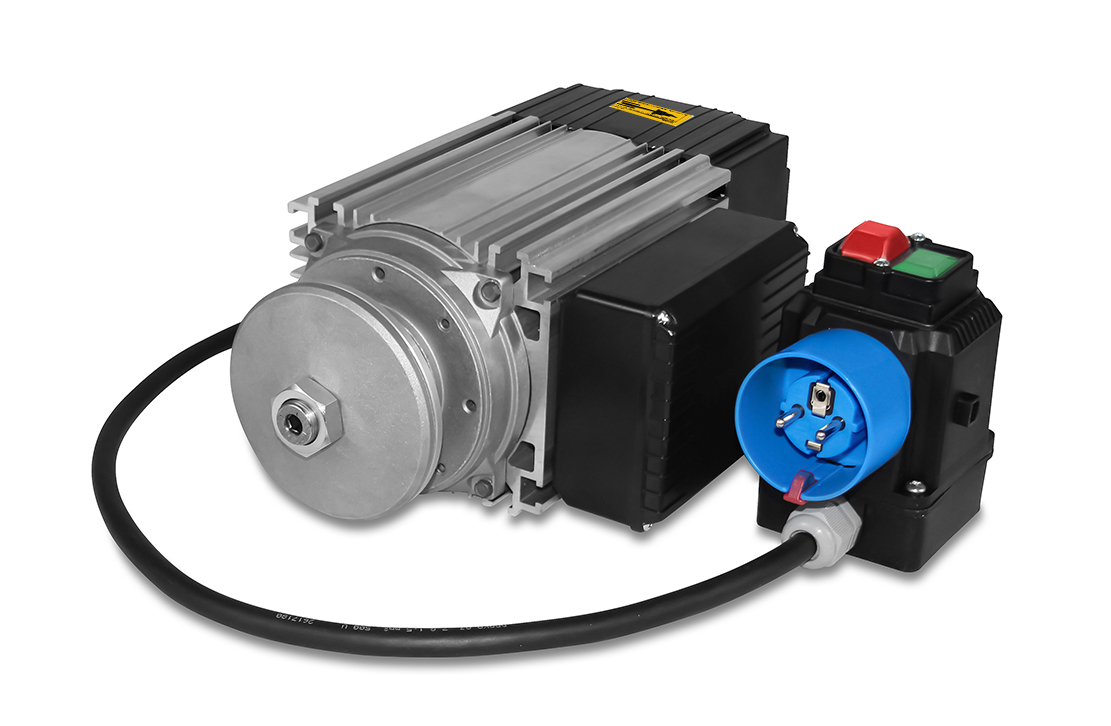

Flat motor E58SB2 – 1.1 kW-B14 - Rotation right

Saw motor, Flat motor, 1.1 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 10.8 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Available with or without a switch with an electronic brake (please select design).

From £211.15*

Details

Flat motor D65SB2 – 2.2 kW-B34 - Rotation right

Saw motor, Flat motor, 2.2 kW, 2800 Upm, 3 x 230/400 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED, Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Degree of protection= IP55, Weight= 12.4 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £262.19*

Details

Flat motor E65SA2 - 1.5 kW-B14 - Rotation right

Saw motor, Flat motor, 1.5 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 12.4 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £273.62*

Details

Flat motor E65SB2 - 1.8 kW-B34 - Rotation left

Saw motor, Flat motor, 1.8 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B34, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 13.2 kg, Terminal box position= left, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £274.51*

Details

Flat motor D65SC2 – 3.0 kW-B34 - Rotation left

Saw motor, Flat motor, 3.0 kW, 3000 Upm, 3 x 230/400 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED, Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Degree of protection= IP55, Weight= 13.7 kg, Terminal box position= left, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £274.51*

Details

Flat motor E65SB2 - 1.8 kW-B34 - Rotation right

Saw motor, Flat motor, 1.8 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B34, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 13.2 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £274.51*

Details

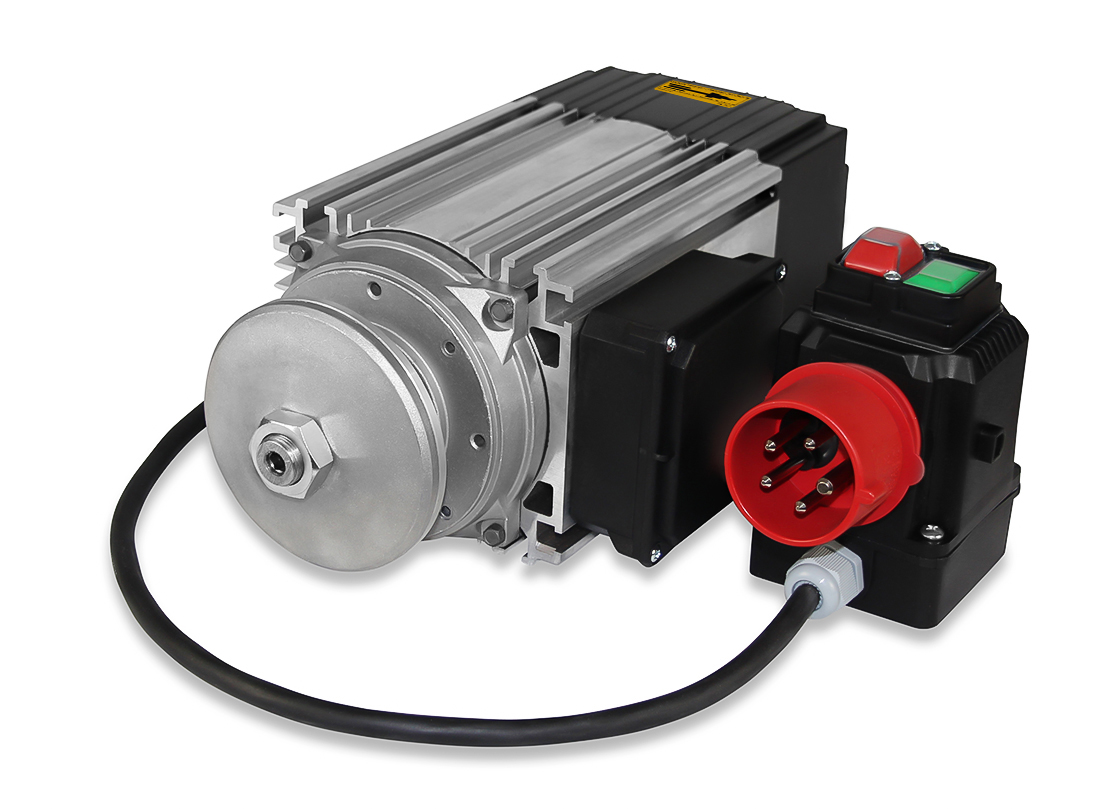

Flat motor D65SA2 - 1.5 kW-B14 - Rotation right

Saw motor, Flat motor, 1.5 kW, 2800 Upm, 3 x 230/400 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED, Construction type= B14, Voltage= 3 x 230/400 V-50 Hz, Degree of protection= IP55, Weight= 11.1 kg, Terminal box position= right, with feets, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £275.39*

Details

Flat motor D65SA2 - 1.5 kW-B14 - Rotation left

Saw motor, Flat motor, 1.5 kW, 2800 Upm, 3 x 230/400 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED, Construction type= B14, Voltage= 3 x 230/400 V-50 Hz, Degree of protection= IP55, Weight= 11.1 kg, Terminal box position= left, with feets, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £275.39*

Details

Flat motor D65SB2 – 2.2 kW-B14 - Rotation right

Saw motor, Flat motor, 2.2 kW, 2800 Upm, 3 x 230/400 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED, Construction type= B14, Voltage= 3 x 230/400 V-50 Hz, Degree of protection= IP55, Weight= 12.4 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £279.79*

Details

Flat motor E65SB2 - 1.8 kW-B14 - Rotation right

Saw motor, Flat motor, 1.8 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 13.2 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £292.10*

Details

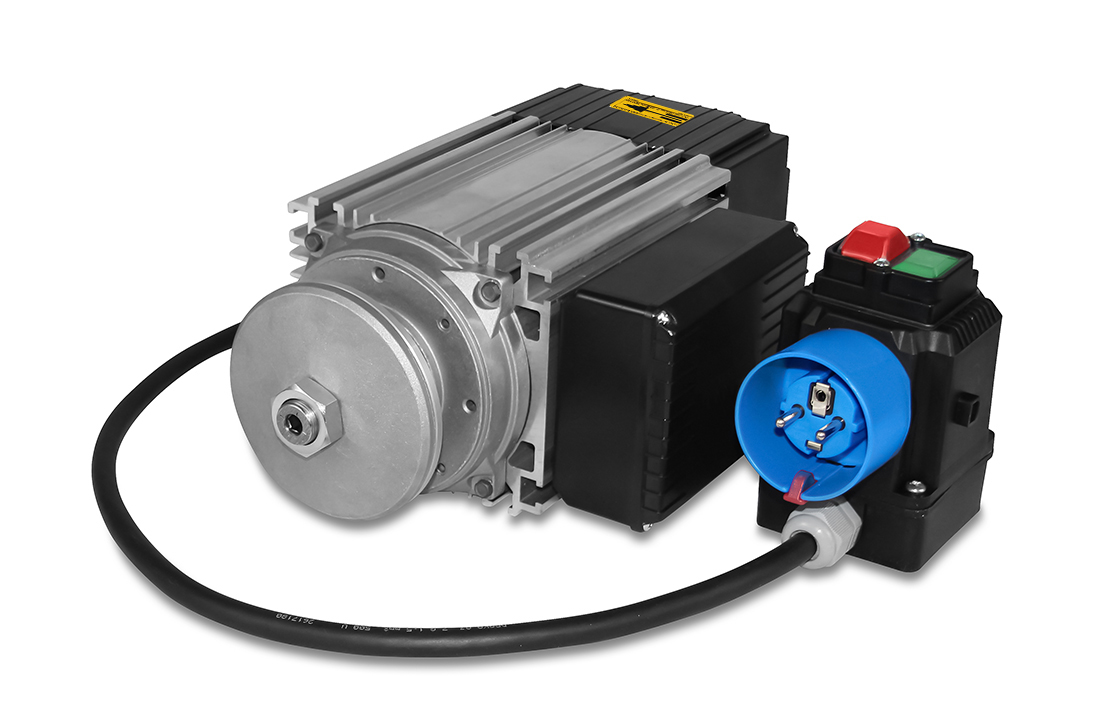

Flat motor E58SB2 – 1.1 kW-B14 - Rotation left

Saw motor, Flat motor, 1.1 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 10.8 kg, Terminal box position= left, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Available with or without a switch with an electronic brake (please select design).

From £211.15*

Details

Flat motor E65MA2 – 2.6 kW-B14 - Rotation left

Saw motor, Flat motor, 2.6 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Thermal contact (PTO), Weight= 15.6 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Available with or without motorswitch with electronic brake (please select design).

From £316.74*

Details

Flat motor E65MA2 – 2.6 kW-B14 - Rotation right

Saw motor, Flat motor, 2.6 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Thermal contact (PTO), Weight= 15.6 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Available with or without motorswitch with electronic brake (please select design).

From £316.74*

Details

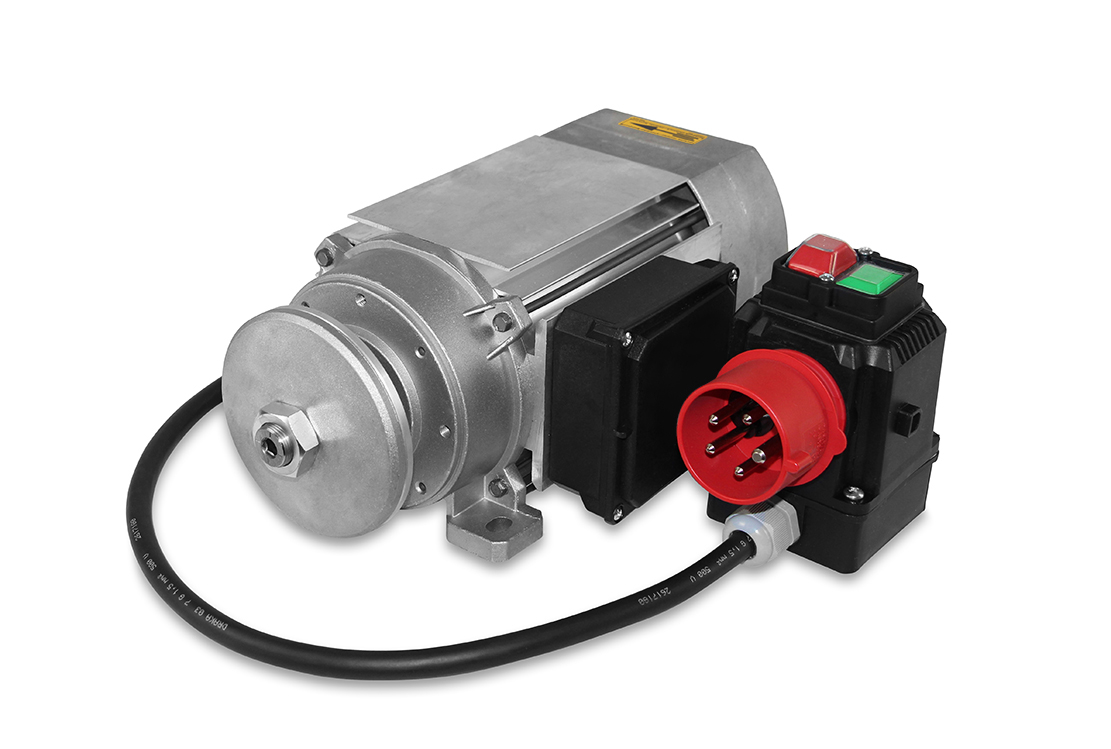

Flat motor D65SA2 - 1.5 kW-B34 - Rotation left

Saw motor, Flat motor, 1.5 kW, 2800 Upm, 3 x 230/400 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED, Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Degree of protection= IP55, Weight= 11.1 kg, Terminal box position= left, with feets, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £256.02*

Details

Flat motor E65SA2 - 1.5 kW-B34 - Rotation left

Saw motor, Flat motor, 1.5 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B34, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 12.4 kg, Terminal box position= left, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £256.02*

Details

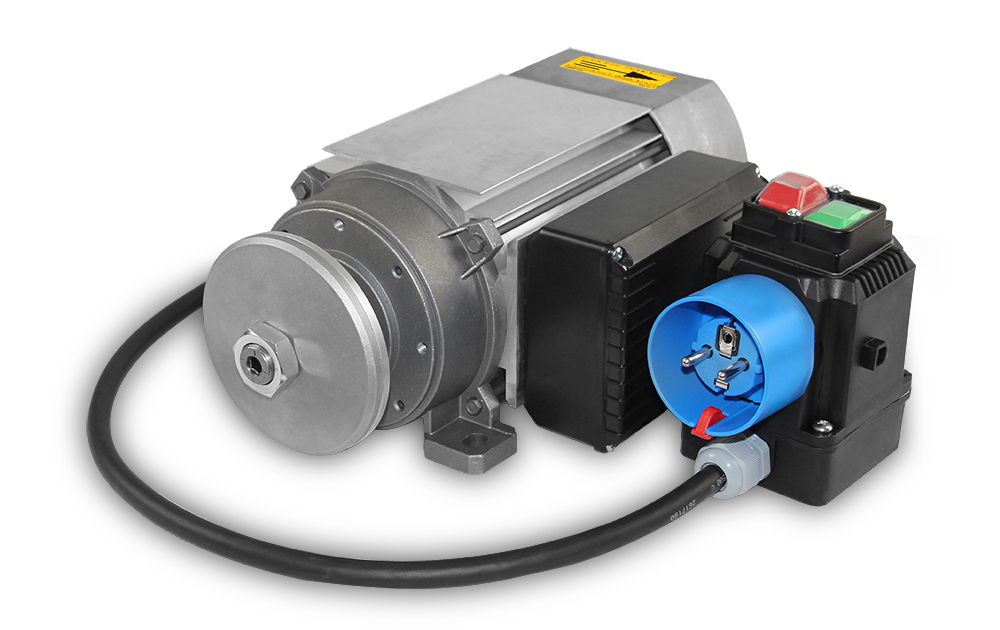

Flat motor E65SA2 - 1.5 kW-B34 - Rotation right

Saw motor, Flat motor, 1.5 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B34, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 12.4 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £256.02*

Details

Flat motor D65SA2 - 1.5 kW-B34 - Rotation right

Saw motor, Flat motor, 1.5 kW, 2800 Upm, 3 x 230/400 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED, Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Degree of protection= IP55, Weight= 11.1 kg, Terminal box position= right, with feets, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £256.02*

Details

Flat motor D65SC2 – 3.0 kW-B34 - Rotation right

Saw motor, Flat motor, 3.0 kW, 3000 Upm, 3 x 230/400 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED, Construction type= B34, Voltage= 3 x 230/400 V-50 Hz, Degree of protection= IP55, Weight= 13.7 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £274.51*

Details

Flat motor E65SA2 - 1.5 kW-B14 - Rotation left

Saw motor, Flat motor, 1.5 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 12.4 kg, Terminal box position= left, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £273.62*

Details

Flat motor E65SC2 - 2.2 kW-B34 - Rotation right

Saw motor, Flat motor, 2.2 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B34, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 14.5 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake, motorswitch with electronic brake or with spring-loaded brake (please select design).

From £281.54*

Details

Flat motor D65SB2 – 2.2 kW-B14 - Rotation left

Saw motor, Flat motor, 2.2 kW, 2800 Upm, 3 x 230/400 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED, Construction type= B14, Voltage= 3 x 230/400 V-50 Hz, Degree of protection= IP55, Weight= 12.4 kg, Terminal box position= left, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £279.79*

Details

Flat motor E65SB2 - 1.8 kW-B14 - Rotation left

Saw motor, Flat motor, 1.8 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 13.2 kg, Terminal box position= left, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £292.10*

Details

Flat motor E65SC2 - 2.2 kW-B14 - Rotation left

Saw motor, Flat motor, 2.2 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation left, right-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 14.5 kg, Terminal box position= left, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £299.14*

Details

Flat motor E65SC2 - 2.2 kW-B14 - Rotation right

Saw motor, Flat motor, 2.2 kW, 2800 Upm, 1 x 230 Volt, Direction of rotation right, left-hand thread, Clambing flange with 25.4 mm mounting, Operating mode S6-40% ED Construction type= B14, Voltage= 1 x 230 V-50 Hz, Degree of protection= IP55, Weight= 14.5 kg, Terminal box position= right, According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified to carry out specialized personnel. All product photos are non-binding examples! Optionally available without brake or motorswitch with electronic brake (please select design).

From £299.14*

Details

Saw motors / flat motors Design

The drives are available in 2 - 4 - 6 pole versions, i.e. 3000 rpm, 1500 rpm and 1000 rpm. The power spectrum ranges from 1.1kW, 1.5 kW, 2.2kW, 3.0kW, 4kW, 5.5kW, 7.5kW, 11kW, 15kW to 18kW. A single-phase version is also available from 1.1kW, 1.8kW, 2.2kW to 2.6kW.The motor is available as a left-hand or right-hand version.

Technical data

The saw motors are manufactured in accordance with international standard IEC 60034-1. They comply with the following European legislation:
- 2006/95 / EC ("Low Voltage Directive")
- 2004/108 / EC ("electromagnetic compatibility")
- 2002/95 / EC ("RoHS")

Degree of protection / material

IP55 from MR58 to MR93; IP65 for the MR107 series. Structural housing made of extruded aluminium, die-cast cage, aluminium rotor, C45 steel shaft, self-lubricating double shield, radial ball bearings dimensioned for high loads, nylon fan, heat-resistant fan cover. Aluminium. The flange is equipped with a clamping nut.

Saw motors

Flat motors or saw motors are designed for applications where high performance with reduced centre distance is required compared to the IEC standard series. They are ideal for sawing, chipping, grinding and drilling in various machine systems Drilling in various machine systems.
