Frequency inverter , 0.4 kW, 230V, 2.4A, IP20, EMC filter integrated - EMC filter C2 - Potentiometer for speed control - Attachment to mounting plates or DIN rail - Side-by-side installation possible (2 mm distance between the FU) - Easy connection via RJ45 port - Standard IO: 3x DI, 1x DO, 1x AI (0-10V), 1x AO (0-10V) - Brake chopper for 1.5kW and 2.2kW versions - Overload capacity 150% for 1 min - Programming with DriveView9 operating software via RJ45 connection on the M100 (Advanced only! The standard version does not have an RJ45 interface! Please select version.) Excerpt from spec. Features: - DC braking - Jog operation - 3-wire operation - Dwell operation (dwell time operation) - Slip compensation - PID control - Energy saving operation - Speed search - Automatic restart 0.4kW frequency converter for 0.37 kW three-phase motor!

Frequency inverter , 0.75 kW, 230V, 4.2A, IP20, EMC filter integrated - EMC filter C2- Potentiometer for speed control- Attachment to mounting plates or DIN rail- Side-by-side installation possible (2 mm distance between the FU)- Easy connection via RJ45 port- Standard IO: 3x DI, 1x DO, 1x AI (0-10V), 1x AO (0-10V)- Brake chopper for 1.5kW and 2.2kW versions- Overload capacity 150% for 1 min- Programming with DriveView9 operating software via RJ45 connection on the M100(Advanced only! The standard version does not have an RJ45 interface! Please select version.) Excerpt from spec. Features:- DC braking- Jog operation- 3-wire operation- Dwell operation (dwell time operation)- Slip compensation- PID control- Energy saving operation- Speed search- Automatic restart   0.75kW frequency converter , single-phase (1 x 220 / 230 / 240 V)

Frequency inverter , 1.5 kW, 230V, 7.5A, IP20, EMC filter integrated - EMC filter C2 - Potentiometer for speed control - Attachment to mounting plates or DIN rail - Side-by-side installation possible (2 mm distance between the FU) - Easy connection via RJ45 port - Standard IO: 3x DI, 1x DO, 1x AI (0-10V), 1x AO (0-10V) - Brake chopper for 1.5kW and 2.2kW versions - Overload capacity 150% for 1 min - Programming with DriveView9 operating software via RJ45 connection on the M100 (Advanced only! The standard version does not have an RJ45 interface! Please select version.) Excerpt from spec. Features: - DC braking - Jog operation - 3-wire operation - Dwell operation (dwell time operation) - Slip compensation - PID control - Energy saving operation - Speed search - Automatic restart 1.5kW frequency converter (single-phase) buy cheap!

Frequency inverter , 2.2 kW, 1 x 230V, 10.0A, IP20, EMC filter integrated - EMC filter C2- Potentiometer for speed control- Attachment to mounting plates or DIN rail- Side-by-side installation possible (2 mm distance between the FU)- Easy connection via RJ45 port- Standard IO: 3x DI, 1x DO, 1x AI (0-10V), 1x AO (0-10V)- Brake chopper for 1.5kW and 2.2kW versions- Overload capacity 150% for 1 min- Programming with DriveView9 operating software via RJ45 connection on the M100(Advanced only! The standard version does not have an RJ45 interface! Please select version.) Excerpt from spec. Features:- DC braking- Jog operation- 3-wire operation- Dwell operation (dwell time operation)- Slip compensation- PID control- Energy saving operation- Speed search- Automatic restart   2.2kW frequency converter , 230V, available at short notice!

Frequency inverter, 0,4kW, 380V- 480V, 1,3A, IP20, including operation panel • V/f control, sensorless vector control selectable• PID controller for advanced process control• High torque throughout the engine speed range• 0.1-400Hz output frequency• 1-15kHz clock frequency• Input voltage range -15% to +10%• Error register: last 5 errors• Analog input 0 to +10Vdc / -10 to +10Vdc• 150% torque at 0.5Hz• Degree of protection IP20, UL type 1 (optional)• Torque amplification (boost) manual/automatic• Input signal PNP/NPN selectable• Control and parameter setting for a second motor• Integrated dynamic braking transistor as standard• Automatic tuning: motor vector measurement and autotuning• Integrated communication RS485 (LS Bus / Modbus RTU) with RJ45• Fan with on/off control, easily replaceable

Frequency inverter, 0.75kW, 380V- 480V, 1,3A, IP20, including operation panel • V/f control, sensorless vector control selectable• PID controller for advanced process control• High torque throughout the engine speed range• 0.1-400Hz output frequency• 1-15kHz clock frequency• Input voltage range -15% to +10%• Error register: last 5 errors• Analog input 0 to +10Vdc / -10 to +10Vdc• 150% torque at 0.5Hz• Degree of protection IP20, UL type 1 (optional)• Torque amplification (boost) manual/automatic• Input signal PNP/NPN selectable• Control and parameter setting for a second motor• Integrated dynamic braking transistor as standard• Automatic tuning: motor vector measurement and autotuning• Integrated communication RS485 (LS Bus / Modbus RTU) with RJ45• Fan with on/off control, easily replaceable

Frequency converter, 0.4 kW, 3 x 400 Volt, IP20, built-in LED control panel, EMC filter (C3) Advanced sensorless control functions High starting torque of 200% even at 0.5 Hz High power density, compact dimensions, through-hole mounting Integrated EMC filter (C3) Compliance with global standards CE, UL, cUL Heavy duty 150% for 1 minute or normal duty 120% for 1 minute Autotuning function when stationary or rotating Optional protection class IP66/NEMA4X with integrated main switch (up to 22 kW) Safe stop "STO" integrated Torque Off), redundant input circuitry Integrated display with easy operation, external remote display possible Smart copy function, which does not require the S100 to be powered on Simple fan replacement, with the replacement time displayed automatically PLC sequences programmable with function blocks Digital and analog I/O, Modbus TCP, Ethernet/IP, Profibus DP, CANopen (in preparation: Profinet, EtherCAT)

Frequency inverter, VFD, 0.8 kW, IP20, 380V- 400V- 420V- 480V, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection, Ride Through (LV Trip Delay) protection, Under Load Trip protection, Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

Frequency inverter, 1.5kW, 380V- 480V, 1,3A, IP20, including operation panel • V/f control, sensorless vector control selectable• PID controller for advanced process control• High torque throughout the engine speed range• 0.1-400Hz output frequency• 1-15kHz clock frequency• Input voltage range -15% to +10%• Error register: last 5 errors• Analog input 0 to +10Vdc / -10 to +10Vdc• 150% torque at 0.5Hz• Degree of protection IP20, UL type 1 (optional)• Torque amplification (boost) manual/automatic• Input signal PNP/NPN selectable• Control and parameter setting for a second motor• Integrated dynamic braking transistor as standard• Automatic tuning: motor vector measurement and autotuning• Integrated communication RS485 (LS Bus / Modbus RTU) with RJ45• Fan with on/off control, easily replaceable

Frequency inverter, 2.2kW, 380V- 480V, 1,3A, IP20, including operation panel • V/f control, sensorless vector control selectable• PID controller for advanced process control• High torque throughout the engine speed range• 0.1-400Hz output frequency• 1-15kHz clock frequency• Input voltage range -15% to +10%• Error register: last 5 errors• Analog input 0 to +10Vdc / -10 to +10Vdc• 150% torque at 0.5Hz• Degree of protection IP20, UL type 1 (optional)• Torque amplification (boost) manual/automatic• Input signal PNP/NPN selectable• Control and parameter setting for a second motor• Integrated dynamic braking transistor as standard• Automatic tuning: motor vector measurement and autotuning• Integrated communication RS485 (LS Bus / Modbus RTU) with RJ45• Fan with on/off control, easily replaceable

Frequency inverter, VFD, 1.5 kW, IP20, 380V- 400V- 420V- 480V, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection, Ride Through (LV Trip Delay) protection, Under Load Trip protection, Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

Frequency converter, 1x 230V, SMARTdrive 0.37 kW Power=0.4kW, Size=J1, Input voltage=1 x 230V +10% (single-phase), Input frequency=50/60 Hz,Output frequency=0- 650 Hz, EMC filter=C3, Protection class=IP66, Dimensions=approx. 270mm x 190mm x 165mm,Display=4 line plain text LCD. Ideal control range=5 - 60 Hz, With constant nominal torque, Product Information DSP based high-tech motor control concept with V/Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for easy and quick commissioning. Robust design, full metal housing,thermally decoupled from the motor IP55/NEMA4, vibration-proof (4G). Flexible, configurable 4-line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebySuitable for universal use, including retrofit PID controller installed. EMC filter installed as standard,Optional C1 filter with installation kit available. Software tools for inverter control, programming and diagnostics.Parameter copy stick available. Compatible with globally applicable standards. All product photos are non-binding examples! Technical changes reserved.

Frequency inverter, 2.2 kW, IP20, 380V- 400V- 420V- 480V, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection, Ride Through (LV Trip Delay) protection, Under Load Trip protection, Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

Frequency converter, 1x 230V, SMARTdrive 0.75kW Power=0.75kW, Size=J1, Input voltage=1 x 230V +10% (single-phase), Input frequency=50/60 Hz,Output frequency=0- 650 Hz, EMC filter=C3, Protection class=IP66, Dimensions=approx. 270mm x 190mm x 165mm,Display=4 line plain text LCD. Ideal control range=5 - 60 Hz, With constant nominal torque, Product Information DSP based high-tech motor control concept with V/Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for easy and quick commissioning. Robust design, full metal housing,thermally decoupled from the motor IP55/NEMA4, vibration-proof (4G). Flexible, configurable 4-line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebySuitable for universal use, including retrofit PID controller installed. EMC filter installed as standard,Optional C1 filter with installation kit available. Software tools for inverter control, programming and diagnostics.Parameter copy stick available. Compatible with globally applicable standards. All product photos are non-binding examples! Technical changes reserved.

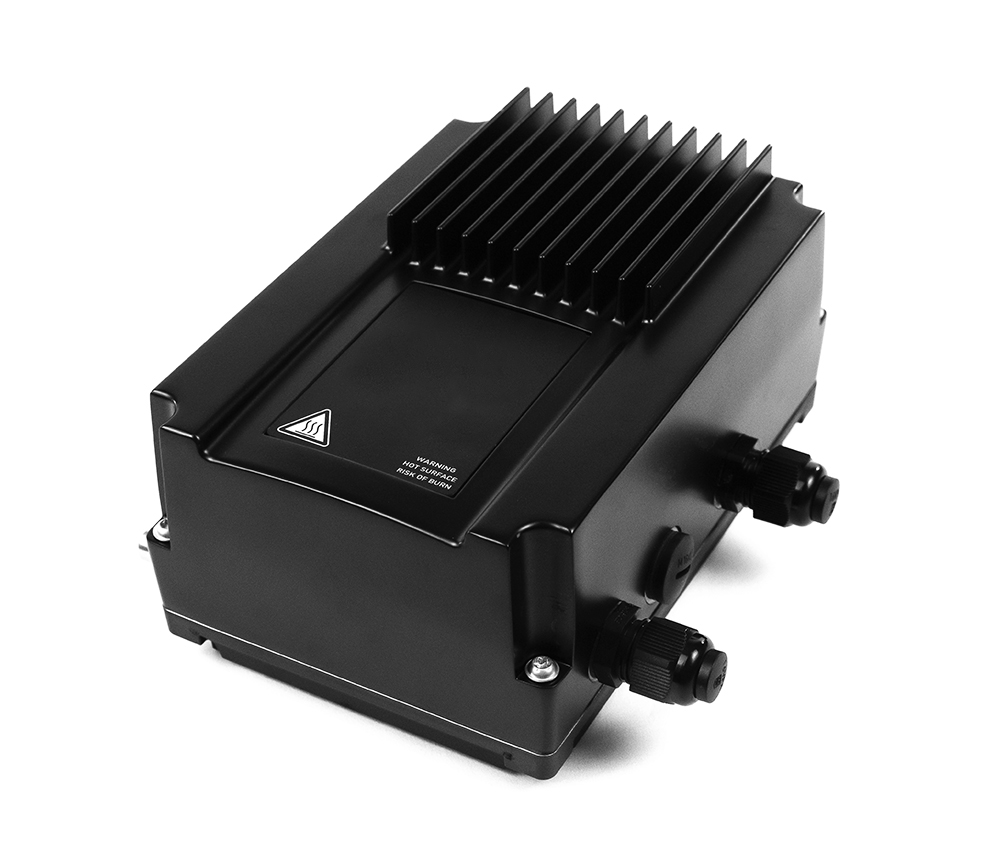

Frequency Inverter, 1x 230V, EASYdrive alpha 0.25 kW Frequency inverterPower= 0.25 kW, Size= alpha, Input voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0- 400 Hz, EMC filter= C2, Protection class= IP65, Dimensions= 187mm x 126mm x 70mm,Rated current output, eff. [IN at 8 kHz]= 1.4 A, Mains current (input)= 4.5 A, Product InformationThe Frequency inverter optionally offers the possibility  to become “bus capable” with the help of fieldbus modules.With Modbus (already included) and CANopen, the EASYdrive offers  alpha compatibility with control environments. The required optional control variant must be specified when ordering. The EASYdrive  alpha drive controllers are CE, UL and CSA certified.  The EASYdrive lasts without external filter measuresthe  EMC class C2 (with 1-phase mains supply).                      ! Possible variant selection!   Product selectionWhen selecting the frequency inverter, it should be noted that there are 2 variants. Firstly, this includes the devicein standard version and secondly the device with a membrane keyboard. There is a potentiometer in both versionsoptional to order.The one shown “ Frequency inverter in standard version” is fully usable.but requires a corresponding control panel to control it. One of the following options must be ordered:- External control device (MMI with cable and plug)- Interface cable for PC programming  - Bluetooth adapter The variant "Frequency inverter with membrane keyboard” offers the possibility of controlling the FU directly,such as start-stop, left-right running, etc. One of the following options must also be ordered for parameterization:- External control device  (MMI with cable and connector)- Interface cable for PC programming  - Bluetooth adapter  The variant "Frequency inverter with MMI control unit"  needed  no optional control panel,There is also a display in the device lid. The options mentioned are if required  usable.          All product photos are non-binding examples! Technical changes reserved.

Frequency converter, 1x 230V, SMARTdrive 1.5 kW Power=1.5kW, Size=J1, Input voltage=1 x 230V +10% (single-phase), Input frequency=50/60 Hz,Output frequency=0- 650 Hz, EMC filter=C3, Protection class=IP66, Dimensions=approx. 270mm x 190mm x 165mm,Display=4 line plain text LCD. Ideal control range=5 - 60 Hz, With constant nominal torque, Product Information DSP based high-tech motor control concept with V/Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for easy and quick commissioning. Robust design, full metal housing,thermally decoupled from the motor IP55/NEMA4, vibration-proof (4G). Flexible, configurable 4-line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebySuitable for universal use, including retrofit PID controller installed. EMC filter installed as standard,Optional C1 filter with installation kit available. Software tools for inverter control, programming and diagnostics.Parameter copy stick available. Compatible with globally applicable standards. All product photos are non-binding examples! Technical changes reserved.

Frequency Inverter, 1x 230V, EASYdrive alpha 0.55 kW Frequency inverterPower= 0.55 kW, Size= alpha, Input voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0- 400 Hz, EMC filter= C2, Protection class= IP65, Dimensions= 187mm x 126mm x 70mm,Rated current output, eff. [IN at 8 kHz]= 2.7 A, Mains current (input)= 5.8 A, Product InformationThe Frequency inverter optionally offers the possibility  to become “bus capable” with the help of fieldbus modules.With Modbus (already included) and CANopen, the EASYdrive offers  alpha compatibility with control environments. The required optional control variant must be specified when ordering. The EASYdrive  alpha drive controllers are CE, UL and CSA certified.  The EASYdrive lasts without external filter measuresthe  EMC class C2 (with 1-phase mains supply).                      ! Possible variant selection!   Product selectionWhen selecting the frequency inverter, it should be noted that there are 2 variants. Firstly, this includes the devicein standard version and secondly the device with a membrane keyboard. There is a potentiometer in both versionsoptional to order.The one shown “ Frequency inverter in standard version” is fully usable.but requires a corresponding control panel to control it. One of the following options must be ordered:- External control device (MMI with cable and plug)- Interface cable for PC programming  - Bluetooth adapter The variant "Frequency inverter with membrane keyboard” offers the possibility of controlling the FU directly,such as start-stop, left-right running, etc. One of the following options must also be ordered for parameterization:- External control device  (MMI with cable and connector)- Interface cable for PC programming  - Bluetooth adapter  The variant "Frequency inverter with MMI control unit"  needed  no optional control panel,There is also a display in the device lid. The options mentioned are if required  usable.          All product photos are non-binding examples! Technical changes reserved.

Frequency Inverter, 1x 230V, EASYdrive alpha 0.37 kW Frequency inverterPower= 0.37 kW, Size= alpha, Input voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0- 400 Hz, EMC filter= C2, Protection class= IP65, Dimensions= 187mm x 126mm x 70mm,Rated current output, eff. [IN at 8 kHz]= 2.2 A, Mains current (input)= 4.5 A, Product InformationThe Frequency inverter optionally offers the possibility  to become “bus capable” with the help of fieldbus modules.With Modbus (already included) and CANopen, the EASYdrive offers  alpha compatibility with control environments. The required optional control variant must be specified when ordering. The EASYdrive  alpha drive controllers are CE, UL and CSA certified.  The EASYdrive lasts without external filter measuresthe  EMC class C2 (with 1-phase mains supply).                      ! Possible variant selection!   Product selectionWhen selecting the frequency inverter, it should be noted that there are 2 variants. Firstly, this includes the devicein standard version and secondly the device with a membrane keyboard. There is a potentiometer in both versionsoptional to order.The one shown “ Frequency inverter in standard version” is fully usable.but requires a corresponding control panel to control it. One of the following options must be ordered:- External control device (MMI with cable and plug)- Interface cable for PC programming  - Bluetooth adapter The variant "Frequency inverter with membrane keyboard” offers the possibility of controlling the FU directly,such as start-stop, left-right running, etc. One of the following options must also be ordered for parameterization:- External control device  (MMI with cable and connector)- Interface cable for PC programming  - Bluetooth adapter  The variant "Frequency inverter with MMI control unit"  needed  no optional control panel,There is also a display in the device lid. The options mentioned are if required  usable.          All product photos are non-binding examples! Technical changes reserved.

Frequency inverter, 4.0kW, 380V- 480V, 1,3A, IP20, including operation panel • V/f control, sensorless vector control selectable• PID controller for advanced process control• High torque throughout the engine speed range• 0.1-400Hz output frequency• 1-15kHz clock frequency• Input voltage range -15% to +10%• Error register: last 5 errors• Analog input 0 to +10Vdc / -10 to +10Vdc• 150% torque at 0.5Hz• Degree of protection IP20, UL type 1 (optional)• Torque amplification (boost) manual/automatic• Input signal PNP/NPN selectable• Control and parameter setting for a second motor• Integrated dynamic braking transistor as standard• Automatic tuning: motor vector measurement and autotuning• Integrated communication RS485 (LS Bus / Modbus RTU) with RJ45• Fan with on/off control, easily replaceable

Frequency Inverter, 1x 230V, EASYdrive alpha 0.75 kW Frequency inverterPower= 0.75 kW, Size= alpha, Input voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,Output frequency= 0- 400 Hz, EMC filter= C2, Protection class= IP65, Dimensions= 187mm x 126mm x 70mm,Rated current output, eff. [IN at 8 kHz]= 3.3 A, Mains current (input)= 7.3 A, Product InformationThe Frequency inverter optionally offers the possibility  to become “bus capable” with the help of fieldbus modules.With Modbus (already included) and CANopen, the EASYdrive offers  alpha compatibility with control environments. The required optional control variant must be specified when ordering. The EASYdrive  alpha drive controllers are CE, UL and CSA certified.  The EASYdrive lasts without external filter measuresthe  EMC class C2 (with 1-phase mains supply).                      ! Possible variant selection!   Product selectionWhen selecting the frequency inverter, it should be noted that there are 2 variants. Firstly, this includes the devicein standard version and secondly the device with a membrane keyboard. There is a potentiometer in both versionsoptional to order.The one shown “ Frequency inverter in standard version” is fully usable.but requires a corresponding control panel to control it. One of the following options must be ordered:- External control device (MMI with cable and plug)- Interface cable for PC programming  - Bluetooth adapter The variant "Frequency inverter with membrane keyboard” offers the possibility of controlling the FU directly,such as start-stop, left-right running, etc. One of the following options must also be ordered for parameterization:- External control device  (MMI with cable and connector)- Interface cable for PC programming  - Bluetooth adapter  The variant "Frequency inverter with MMI control unit"  needed  no optional control panel,There is also a display in the device lid. The options mentioned are if required  usable.          All product photos are non-binding examples! Technical changes reserved.

Frequency converter, 1x 230V, SMARTdrive 2.2 kW Power=2.2kW, Size=J1, Input voltage=1 x 230V +10% (single-phase), Input frequency=50/60 Hz,Output frequency=0- 650 Hz, EMC filter=C3, Protection class=IP66, Dimensions=approx. 270mm x 190mm x 165mm,Display=4 line plain text LCD. Ideal control range=5 - 60 Hz, With constant nominal torque, Product Information DSP based high-tech motor control concept with V/Hz, SENSORLESS VECTOR, CLV and PMM algorithms.Intelligent AUTOTUNING functions for easy and quick commissioning. Robust design, full metal housing,thermally decoupled from the motor IP55/NEMA4, vibration-proof (4G). Flexible, configurable 4-line LCD display.Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, therebySuitable for universal use, including retrofit PID controller installed. EMC filter installed as standard,Optional C1 filter with installation kit available. Software tools for inverter control, programming and diagnostics.Parameter copy stick available. Compatible with globally applicable standards. All product photos are non-binding examples! Technical changes reserved.

Speed ​​control for DC motors The PLN20 speed control is suitable for DC motors up to 350 W / 20 A.Extensive control variants of the DC motor are possible. These can be found in the catalog included in the download.  Motor start and stop times:- Acceleration ramp: 0.5 - 10 sec- Deceleration ramp: 0.5 - 10 sec Special features:Room temperature: 0°C / +40°C (alarm below zero) Dimensions:146 mm x 177 mm x 34 mm Attention: Individual electrical protection must be carried out on site by qualified personnel! Alle Produktfotos sind unverbindliche Beispiele! Technische Änderungen vorbehalten.

Frequency inverter, VFD, 4.0 kW, IP20, 380V- 400V- 420V- 480V, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection, Ride Through (LV Trip Delay) protection, Under Load Trip protection, Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

Frequency inverter iS7 – the all-rounder 0.8 kW, 3x400V, 2.5A, Braking resistor, EMC filter, IP21 , intermediate circuit choke (DC reactor), with control panel. ● Constant torque / variable torque for normal load and heavy load operation● U/f and U/f PG control, sensorless vector control, vector control with sensor selectable● 150 MIPS high-speed DSP● Excellent performance and advanced features:Droop control (torque control)KEB protection (Kinetic Energy Buffering: storage of kinetic energy) Ride Through protection(Delay of undervoltage trip) Under Load Trip ProtectionPMSM function (Permanent Magnet Synchronous Motor) Vector control without feedbackPower Braking & Flux Braking Function Automatic Setting:Autotuning of static engine parameters ● Easy to use:simple start mode, user and macro group, multifunctional control panel● Sensorless control and parameter setting of the second motor● Available: IP54/UL Type 12 optional (0.75~22kW[1~30HP]) *● Integrated communication RS485 (LS Bus / Modbus RTU)● Integrated transistor for dynamic braking (0.75~22kW[1~30PS])● Integrated EMC filter and DC reactor optional:EMC filter (0.75~22kW[1~30HP]) / DC reactor (0.75~160kW[1~215HP])● Wide, graphic LCD control panel (6 different languages)● PLC PLC expansion card optional (Programmable Logic Control Card):Master-K platform (max. 14 inputs and max. 7 outputs)● Input/Output expansion card (optional):max. 11 inputs and max. 6 outputs● Optional communication:Profibus DP, DeviceNet, Modbus TCP, Rnet, LonWorks, CANopen, EtherNet/IP *● Software (Drive View) for monitoring and parameterization on the PC
