KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-63-4-0.18 kW-70 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 70 rpm, Ratio (i)= 19,88, Torque (M²)= 22 Nm, Operating factor (fs)= 3,5, Type= B3, Hollow shaft= 20 mm, Weight= 10 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£408.50*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-63-4-0.18 kW-126 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 126 rpm, Ratio (i)= 11,09, Torque (M²)= 12 Nm, Operating factor (fs)= 4,0, Type= B3, Hollow shaft= 20 mm, Weight= 10 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£408.50*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-63-4-0.18 kW-174 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 174 rpm, Ratio (i)= 8,04, Torque (M²)= 9 Nm, Operating factor (fs)= 3,5, Type= B3, Hollow shaft= 20 mm, Weight= 10 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£408.50*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-63-4-0.18 kW-95 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 95 rpm, Ratio (i)= 14,73, Torque (M²)= 16 Nm, Operating factor (fs)= 4,0, Type= B3, Hollow shaft= 20 mm, Weight= 10 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£408.50*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-63-4-0.12 kW-95 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,12 kW, Speed (n²)= 95 rpm, Ratio (i)= 14,73, Torque (M²)= 11 Nm, Operating factor (fs)= 4,0, Type= B3, Hollow shaft= 20 mm, Weight= 14 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£410.70*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-63-4-0.12 kW-174 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,12 kW, Speed (n²)= 174 rpm, Ratio (i)= 8,04, Torque (M²)= 6 Nm, Operating factor (fs)= 4,0, Type= B3, Hollow shaft= 20 mm, Weight= 14 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£410.70*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-63-4-0.12 kW-126 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,12 kW, Speed (n²)= 126 rpm, Ratio (i)= 11,09, Torque (M²)= 8 Nm, Operating factor (fs)= 4,0, Type= B3, Hollow shaft= 20 mm, Weight= 14 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£410.70*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-63-4-0.12 kW-70 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,12 kW, Speed (n²)= 70 rpm, Ratio (i)= 19,88, Torque (M²)= 15 Nm, Operating factor (fs)= 4,0, Type= B3, Hollow shaft= 20 mm, Weight= 14 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£410.70*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV003-63-4-0.12 kW-14 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,12 kW, Speed (n²)= 14 rpm, Ratio (i)= 98,44, Torque (M²)= 73 Nm, Operating factor (fs)= 1,1, Type= B3, Hollow shaft= 20 mm, Weight= 15 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£425.50*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV003-63-4-0.12 kW-59 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,12 kW, Speed (n²)= 59 rpm, Ratio (i)= 23,79, Torque (M²)= 17 Nm, Operating factor (fs)= 4,0, Type= B3, Hollow shaft= 20 mm, Weight= 15 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£425.50*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV003-63-4-0.12 kW-21 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,12 kW, Speed (n²)= 21 rpm, Ratio (i)= 67,44, Torque (M²)= 50 Nm, Operating factor (fs)= 1,6, Type= B3, Hollow shaft= 20 mm, Weight= 15 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£425.50*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV003-63-4-0.12 kW-31 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,12 kW, Speed (n²)= 31 rpm, Ratio (i)= 45,41, Torque (M²)= 34 Nm, Operating factor (fs)= 2,3, Type= B3, Hollow shaft= 20 mm, Weight= 15 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£425.50*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-71-4-0.25 kW-149 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,25 kW, Speed (n²)= 149 rpm, Ratio (i)= 9,40, Torque (M²)= 15 Nm, Operating factor (fs)= 4,0, Type= B3, Hollow shaft= 20 mm, Weight= 16 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£429.58*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-71-4-0.25 kW-188 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,25 kW, Speed (n²)= 188 rpm, Ratio (i)= 7,46, Torque (M²)= 12 Nm, Operating factor (fs)= 4,0, Type= B3, Hollow shaft= 20 mm, Weight= 16 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£429.58*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-71-4-0.25 kW-70 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,25 kW, Speed (n²)= 70 rpm, Ratio (i)= 19,88, Torque (M²)= 31 Nm, Operating factor (fs)= 2,5, Type= B3, Hollow shaft= 20 mm, Weight= 16 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£429.58*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-71-4-0.25 kW-95 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,25 kW, Speed (n²)= 95 rpm, Ratio (i)= 14,73, Torque (M²)= 23 Nm, Operating factor (fs)= 3,2, Type= B3, Hollow shaft= 20 mm, Weight= 16 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£429.58*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV003-63-4-0.18 kW-55 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 55 rpm, Ratio (i)= 25,64, Torque (M²)= 29 Nm, Operating factor (fs)= 2,7, Type= B3, Hollow shaft= 20 mm, Weight= 15 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£429.91*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV003-63-4-0.18 kW-31 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 31 rpm, Ratio (i)= 45,41, Torque (M²)= 51 Nm, Operating factor (fs)= 1,6, Type= B3, Hollow shaft= 20 mm, Weight= 15 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£429.91*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV003-63-4-0.18 kW-21 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,18 kW, Speed (n²)= 21 rpm, Ratio (i)= 67,44, Torque (M²)= 76 Nm, Operating factor (fs)= 1,0, Type= B3, Hollow shaft= 20 mm, Weight= 15 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£429.91*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-71-4-0.37 kW-188 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,37 kW, Speed (n²)= 188 rpm, Ratio (i)= 7,46, Torque (M²)= 17 Nm, Operating factor (fs)= 3,8, Type= B3, Hollow shaft= 20 mm, Weight= 16 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£436.14*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-71-4-0.37 kW-126 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,37 kW, Speed (n²)= 126 rpm, Ratio (i)= 11,09, Torque (M²)= 26 Nm, Operating factor (fs)= 2,8, Type= B3, Hollow shaft= 20 mm, Weight= 16 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£436.14*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV002-71-4-0.37 kW-70 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,37 kW, Speed (n²)= 70 rpm, Ratio (i)= 19,88, Torque (M²)= 47 Nm, Operating factor (fs)= 1,7, Type= B3, Hollow shaft= 20 mm, Weight= 16 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£436.14*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV003-71-4-0.25 kW-29 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,25 kW, Speed (n²)= 29 rpm, Ratio (i)= 48,93, Torque (M²)= 77 Nm, Operating factor (fs)= 1,0, Type= B3, Hollow shaft= 20 mm, Weight= 16 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£444.37*
Details
KV203-90-4-1,1 kW-53 U/min Kegelradgetriebemotor
KV003-71-4-0.25 kW-59 rpm Bevel Geared Motor
Bevel geared motor with IEC flange between gearbox and Electro motor Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz. Power= 0,25 kW, Speed (n²)= 59 rpm, Ratio (i)= 23,79, Torque (M²)= 37 Nm, Operating factor (fs)= 2,1, Type= B3, Hollow shaft= 20 mm, Weight= 16 kg, Paint= RAL5010. Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable). The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The bevel gear can be operated in both directions and contains an oil filling on delivery. According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel perform. For modifications or special designs please send inquiry. When ordering, please select the desired installation position. Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!

£444.37*
Details

The bevel geared motor for your application

JS-Technik GmbH specialises in extensive challenges in the field of professional drive technology with a focus on bevel gearboxes, electric motors and frequency inverters.

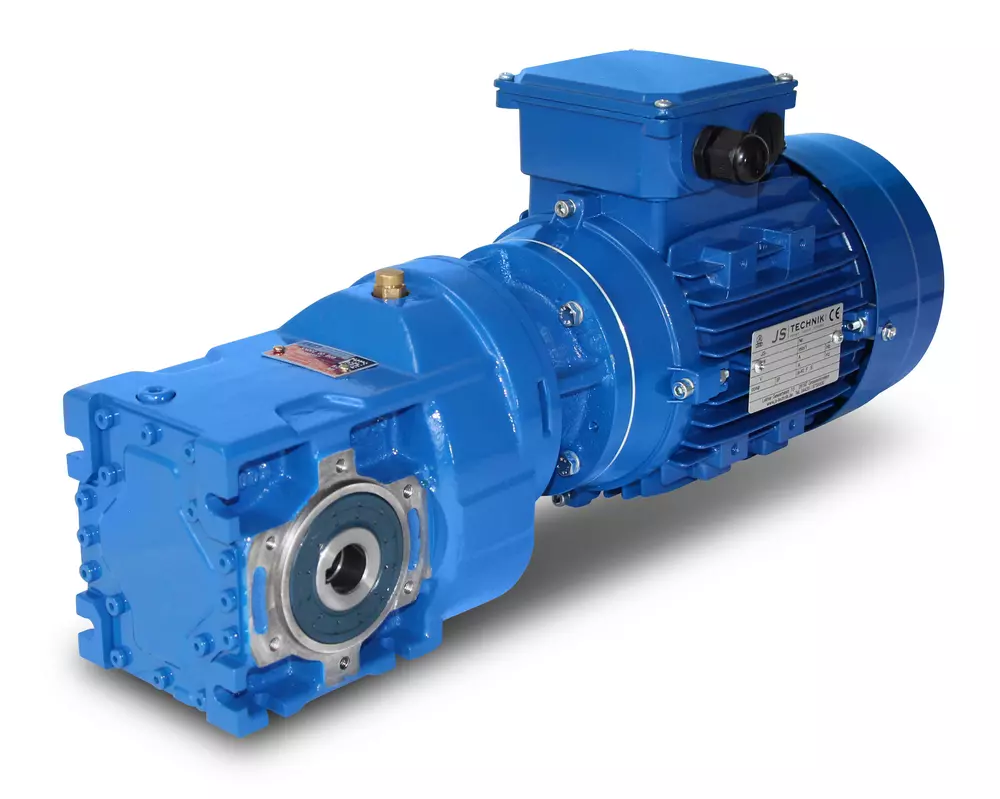

Helical-bevel geared motor


Helical bevel gearbox with three-phase motor

Extensive range of bevel gearboxes

This is just a small selection of the many possible combinations in our gearbox shop. You will find power ratings of 0.12kW, 0.25kW, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3.0kW, 4.0kW, 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 37kW, 45kW, 55kW, 75kW and 90kW. Our bevel gearboxes are characterised by special application possibilities. For example, they are available in 14 different sizes up to 165,000 Nm and are available with a parallel axis or a bevel gear input stage. The bevel gearboxes have the following cooling options: Water heat exchanger, air heat exchanger, cooling coil or a fan. There is also a pressure lubrication option, a hydraulic clutch or an integrated brake between the AC motor and gearbox. We also offer an integrated backstop, an electromagnetic brake, a shrink disc or a special shaft with a multi-spline profile in accordance with DIN 5480.

Helical bevel geared motor with pressure equalisation tank

Bevel geared motor with pressure equalisation tank


The special features of the bevel gearbox

The generously dimensioned working shaft and bearings, the gear wheels made of high-quality case-hardened steel and a long service life should be emphasised here. The gearboxes are also available in an Atex version.



Bevel geared motor with torque support (plate) at the top

Structure of the bevel geared motors

A bevel gearbox consists of a bevel gear and a bevel pinion. The axes are often offset by 90°, other angles are possible. These bevel gearboxes are used where high reduction ratios, torques and movements are required. They are usually driven via the bevel pinion, and left and right directions of rotation are possible. The transmission ratio is the quotient of the number of teeth z2 of the bevel gear by the number of teeth z1 of the bevel pinion. Self-locking as in a worm gear does not occur. Bevel gearboxes are used as power gearboxes in presses, in rolling mills, in machine tool construction and in automation. In other words, wherever movements and forces are transmitted at an angle.
