ESD40-631-4 - 0.12 kW - 35 rpm- Worm Gearbox Motor
£1,441.76*

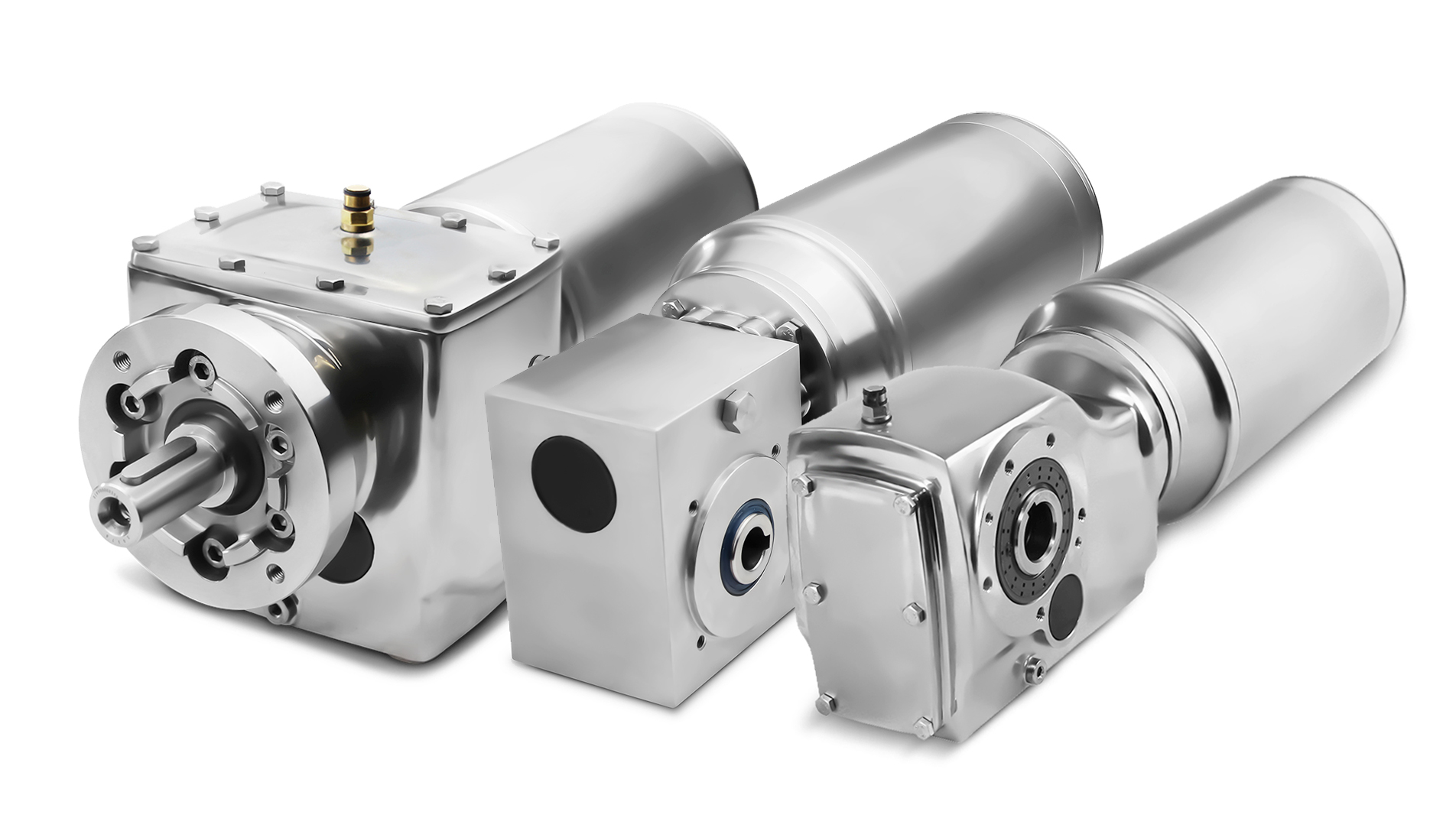

Stainless steel worm gear motor, Power= 0,12 kW, Speed= 35 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 40, Torque= 21 Nm,
Permitted overhung loads (radial)= 2290 N, Service factor (f.s.)= 1,9, Cable outlet = on the back, Weight= 16 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-631-4 - 0.12 kW - 17.5 rpm- Worm Gearbox Motor
£1,441.76*
Stainless steel worm gear motor, Power= 0,12 kW, Speed= 17,5 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 80, Torque= 34 Nm,
Permitted overhung loads (radial)= 2890 N, Service factor (f.s.)= 1.0, Cable outlet = on the back, Weight= 16 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-631-4 - 0.12 kW - 46.7 rpm- Worm Gearbox Motor
£1,441.76*
Stainless steel worm gear motor, Power= 0,12 kW, Speed= 46,7 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 30, Torque= 17 Nm,
Permitted overhung loads (radial)= 2080 N, Service factor (f.s.)= 2,6, Cable outlet = on the back, Weight= 16 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-631-4 - 0.12 kW - 23.3 rpm- Worm Gearbox Motor
£1,441.76*
Stainless steel worm gear motor, Power= 0,12 kW, Speed= 23,3 rpm,
Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 60, Torque= 28 Nm,
Permitted overhung loads (radial)= 2630 N, Service factor (f.s.)= 1,3. Terminal box= top (rotatable), Weight= 16 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-631-4 - 0.12 kW - 14 rpm- Worm Gearbox Motor
£1,441.76*
Stainless steel worm gear motor, Power= 0,12 kW, Speed= 14 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 100, Torque= 38 Nm.
Permitted overhung loads (radial)= 3110 N, Service factor (f.s.)= 0,8. Terminal box= top (rotatable), Weight= 16 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-631-4 - 0.12 kW - 28 rpm- Worm Gearbox Motor
£1,441.76*
Stainless steel worm gear motor, Power= 0,12 kW, Speed= 28 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 50, Torque= 25 Nm,
Permitted overhung loads (radial)= 2470 N, Service factor (f.s.)= 1,5, Cable outlet = on the back, Weight= 16 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-632-4 - 0.18 kW - 28 rpm- Worm Gearbox Motor
£1,468.06*
Stainless steel worm gear motor, Power= 0,18 kW, Speed= 28 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 50, Torque= 38 Nm,
Permitted overhung loads (radial)= 2470 N, Service factor (f.s.)= 1.0, Cable outlet = on the back, Weight= 18 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-632-4 - 0.18 kW - 56 rpm- Worm Gearbox Motor
£1,468.06*
Stainless steel worm gear motor, Power= 0,18 kW, Speed= 56 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 25, Torque= 23 Nm,
Permitted overhung loads (radial)= 1960 N, Service factor (f.s.)= 1,7, Cable outlet = on the back, Weight= 18 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-632-4 - 0.18 kW - 70 rpm- Worm Gearbox Motor
£1,468.06*
Stainless steel worm gear motor, Power= 0,18 kW, Speed= 70 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 20, Torque= 19 Nm,
Permitted overhung loads (radial)= 1820 N, Service factor (f.s.)= 2.0, Cable outlet = on the back, Weight= 18 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-632-4 - 0.18 kW - 46.7 rpm- Worm Gearbox Motor
£1,468.06*
Stainless steel worm gear motor, Power= 0,18 kW, Speed= 46,7 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 30, Torque= 26 Nm,
Permitted overhung loads (radial)= 2080 N, Service factor (f.s.)= 1,7, Cable outlet = on the back, Weight= 18 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-632-4 - 0.18 kW - 23.3 rpm- Worm Gearbox Motor
£1,468.06*
Stainless steel worm gear motor, Power= 0,18 kW, Speed= 23,3 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 60, Torque= 43 Nm,
Permitted overhung loads (radial)= 2630 N, Service factor (f.s.)= 0,8, Cable outlet = on the back, Weight= 18 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-632-4 - 0.18 kW - 35 rpm- Worm Gearbox Motor
£1,468.06*
Stainless steel worm gear motor, Power= 0,18 kW, Speed= 35 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 40, Torque= 32 Nm,
Permitted overhung loads (radial)= 2290 N, Service factor (f.s.)= 1,3, Cable outlet = on the back, Weight= 18 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD50-631-4 - 0.12 kW - 14 rpm- Worm Gearbox Motor
£1,518.17*
Stainless steel worm gear motor, Power= 0,12 kW, Speed= 14 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 25mm, Engine Speed= 4 pole, Ratio (i)= 100, Torque= 40 Nm,
Permitted overhung loads (radial)= 4280 N, Service factor (f.s.)= 1,4, Cable outlet = on the back, Weight= 19 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD50-631-4 - 0.12 kW - 23.3 rpm- Worm Gearbox Motor
£1,518.17*
Stainless steel worm gear motor, Power= 0,12 kW, Speed= 23,3 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 25mm, Engine Speed= 4 pole, Ratio (i)= 60, Torque= 29 Nm,
Permitted overhung loads (radial)= 3610 N, Service factor (f.s.)= 2,3, Cable outlet = on the back, Weight= 19 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD50-631-4 - 0.12 kW - 17.5 rpm- Worm Gearbox Motor
£1,518.17*
Stainless steel worm gear motor, Power= 0,12 kW, Speed= 17,5 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 25mm, Engine Speed= 4 pole, Ratio (i)= 80, Torque= 35 Nm,
Permitted overhung loads (radial)= 3970 N, Service factor (f.s.)= 1,9, Cable outlet = on the back, Weight= 19 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-711-4 - 0.25 kW - 35 rpm- Worm Gearbox Motor
£1,519.42*
Stainless steel worm gear motor, Power= 0,25 kW, Speed= 35 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 40, Torque= 44 Nm,
Permitted overhung loads (radial)= 2290 N, Service factor (f.s.)= 0,9, Cable outlet = on the back, Weight= 19 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-711-4 - 0.25 kW - 46.7 rpm- Worm Gearbox Motor
£1,519.42*
Stainless steel worm gear motor, Power= 0,25 kW, Speed= 46,7 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 30, Torque= 36 Nm,
Permitted overhung loads (radial)= 2080 N, Service factor (f.s.)= 1,3, Cable outlet = on the back, Weight= 19 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-711-4 - 0.25 kW - 186.7 rpm- Worm Gearbox Motor
£1,519.42*
Stainless steel worm gear motor, Power= 0,25 kW, Speed= 186,7 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 7,5, Torque= 11 Nm,
Permitted overhung loads (radial)= 1310 N, Service factor (f.s.)= 3,6, Cable outlet = on the back, Weight= 19 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-711-4 - 0.25 kW - 70 rpm- Worm Gearbox Motor
£1,519.42*
Stainless steel worm gear motor, Power= 0,25 kW, Speed= 70 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 20, Torque= 27 Nm,
Permitted overhung loads (radial)= 1820 N, Service factor (f.s.)= 1,5, Cable outlet = on the back, Weight= 19 kg ,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-711-4 - 0.25 kW - 93.3 rpm- Worm Gearbox Motor
£1,519.42*
Stainless steel worm gear motor, Power= 0,25 kW, Speed= 93,3 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 15, Torque= 21 Nm,
Permitted overhung loads (radial)= 1650 N, Service factor (f.s.)= 1,9, Cable outlet = on the back, Weight= 19 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-711-4 - 0.25 kW - 56 rpm- Worm Gearbox Motor
£1,519.42*
Stainless steel worm gear motor, Power= 0,25 kW, Speed= 56 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 25, Torque= 32 Nm,
Permitted overhung loads (radial)= 1960 N, Service factor (f.s.)= 1,2, Cable outlet = on the back, Weight= 19 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD40-711-4 - 0.25 kW - 140 rpm- Worm Gearbox Motor
£1,519.42*
Stainless steel worm gear motor, Power= 0,25 kW, Speed= 140 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 18mm, Engine Speed= 4 pole, Ratio (i)= 10, Torque= 14 Nm,
Permitted overhung loads (radial)= 1440 N, Service factor (f.s.)= 2,8, Cable outlet = on the back, Weight= 19 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD50-632-4 - 0.18 kW - 17.5 rpm- Worm Gearbox Motor
£1,544.48*
Stainless steel worm gear motor, Power= 0,18 kW, Speed= 17,5 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 25mm, Engine Speed= 4 pole, Ratio (i)= 80, Torque= 52 Nm,
Permitted overhung loads (radial)= 3970 N, Service factor (f.s.)= 1,2, Cable outlet = on the back, Weight= 21 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
ESD50-632-4 - 0.18 kW - 28 rpm- Worm Gearbox Motor
£1,544.48*
Stainless steel worm gear motor, Power= 0,18 kW, Speed= 28 rpmVoltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530),
Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%,
Hollow shaft= 25mm, Engine Speed= 4 pole, Ratio (i)= 50, Torque= 39 Nm,
Permitted overhung loads (radial)= 3390 N, Service factor (f.s.)= 1,9, Cable outlet = on the back, Weight= 21 kg,
Temperature sensor= 3 x PTC-thermistors, Housing= AISI 304 (V2A), Ball bearings= SKF, C & U or equivalent.
The worm geared motor is suitable for frequency converter use and
complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains
an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified
specialist personnel. For modifications or special designs please send inquiry.
Important instructionsThis drive is a custom-made product. A resignation or revocation of the purchase is excluded!All product photos are non-binding examples!
Stainless steel worm geared motors up to 5.5 kW
JS-Technik's broad product portfolio with its wide range of drive types also offers the right stainless steel worm geared motor for hygienic applications. The areas of application are in the chemical, petrochemical, pharmaceutical and food industries. Stainless steel drives are the ideal solution for aggressive environments with very high demands on hygiene, cleanliness and corrosion protection.
Advantages of stainless steel worm geared motors
Stainless steel worm geared motors are manufactured in accordance with HACCP and EHEDG regulations. They have the advantage of extreme corrosion resistance and offer exceptional resistance to harsh chemicals. With conventional gearboxes, the chipping of paint or metal during cleaning can lead to considerable production problems due to aggressive cleaning agents. To avoid this, worm geared motors made of stainless steel are used. The geared motors are available with matching flanges, output shafts, in terminal box design and up to 5.5 kW.
Special technical features:
-smooth surface (food, beverage, pharmaceutical industry, etc.)
-no dirt deposits and bacteria centres
-reduced interfering edges due to lack of cooling fins
-good cleaning properties
-up to 1.5 kW in protection class IP69K, higher power in IP66
-three-phase motor without fan (important cleanroom feature)
-designed for harsh continuous operation
-above-average service life
-optimum running smoothness
Protection class IP69K
Protection class IP69K was developed for high-pressure jet cleaning at high temperatures. The code number "6" stands for protection against the ingress of dust, the number "9" for protection during high-pressure cleaning at close distances. The IP69K degree of protection was introduced in 1993 and is based on the DIN40050-9 standard. It was originally developed for motor vehicles to protect against the ingress of foreign bodies such as dust or dirt and hot water jets. The latest version of the IEC60529 standard now only refers to IP69 (IP69K=IP69).
