CMRV040/030 561-4 - 0.06 kW - 4.7 rpm- Worm Gearbox Motor

Mounting position for gearmotors: M1

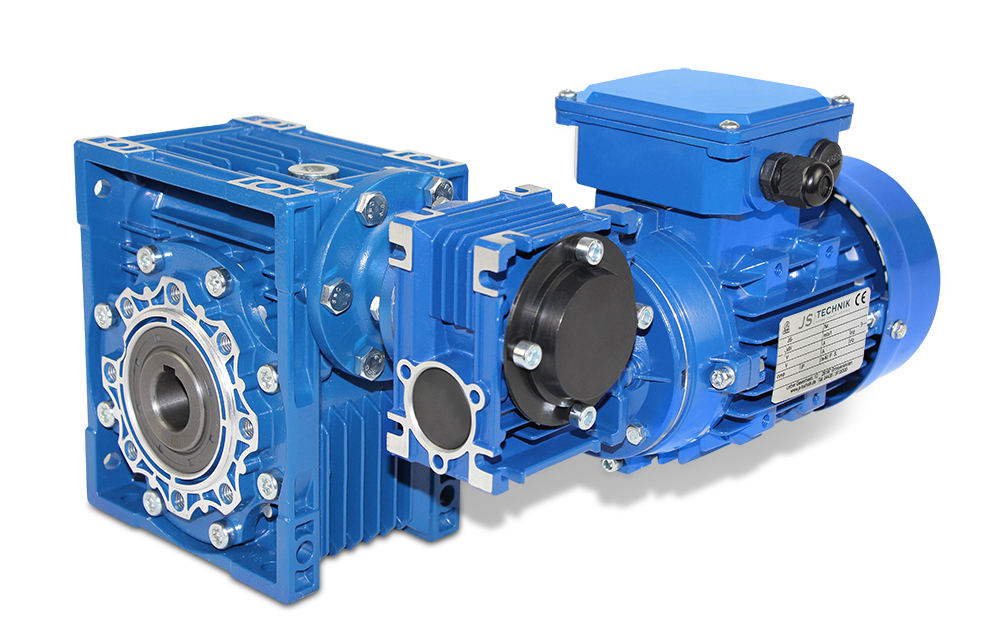

Double Worm Geared Motor, Power= 0,06 kW, Speed= 4,7 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 18 mm, Engine Speed= 4 pole, Ratio (i)= 300, Torque= 57 Nm, Service factor (f.s.)= 1,3, Terminal box= top (rotatable), Weight= 8,18kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£352.05*

Details

CMRV040/030 561-4 - 0.06 kW - 3.5 rpm- Worm Gearbox Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,06 kW, Speed= 3,5 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 18 mm, Engine Speed= 4 pole, Ratio (i)= 400, Torque= 70 Nm, Service factor (f.s.)= 0,9, Terminal box= top (rotatable), Weight= 8,2kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£352.05*

Details

CMRV040/030 562-4 - 0.09 kW - 4.7 rpm- Worm Gearbox Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,09 kW, Speed= 4,7 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 18 mm, Engine Speed= 4 pole, Ratio (i)= 300, Torque= 88 Nm, Service factor (f.s.)= 0,8, Terminal box= top (rotatable), Weight= 8,18kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£361.73*

Details

CMRV050/030 561-4 - 0.06 kW - 1.6 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,06 kW, Speed= 1,6 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 900, Torque= 141 Nm, Service factor (f.s.)= 1, Terminal box= top (rotatable), Weight= 9,5kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£391.20*

Details

CMRV050/030 562-4 - 0.09 kW - 1.6 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,09 kW, Speed= 1,6 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 900, Torque= 212 Nm, Service factor (f.s.)= 0,7, Terminal box= top (rotatable), Weight= 9,5kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£400.89*

Details

CMRV050/030 562-4 - 0.09 kW - 3.5 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,09 kW, Speed= 3,5 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 400, Torque= 107 Nm, Service factor (f.s.)= 1,2, Terminal box= top (rotatable), Weight= 9,5kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£400.89*

Details

CMRV050/030 562-4 - 0.09 kW - 2.8 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,09 kW, Speed= 2,8 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 500, Torque= 123 Nm, Service factor (f.s.)= 1, Terminal box= top (rotatable), Weight= 9,5kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£400.89*

Details

CMRV050/030 562-4 - 0.09 kW - 1.9 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,09 kW, Speed= 1,9 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 750, Torque= 185 Nm, Service factor (f.s.)= 0,8, Terminal box= top (rotatable), Weight= 9,5kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£400.89*

Details

CMRV050/030 562-4 - 0.09 kW - 2.3 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,09 kW, Speed= 2,3 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 600, Torque= 159 Nm, Service factor (f.s.)= 0,9, Terminal box= top (rotatable), Weight= 9,5kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£400.89*

Details

CMRV050/030 631-4 - 0.12 kW - 3.5 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,12 kW, Speed= 3,5 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 400, Torque= 142 Nm, Service factor (f.s.)= 0,9, Terminal box= top (rotatable), Weight= 10 kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£413.01*

Details

CMRV050/030 631-4 - 0.12 kW - 4.7 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,12 kW, Speed= 4,7 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 300, Torque= 119 Nm, Service factor (f.s.)= 1,2, Terminal box= top (rotatable), Weight= 9,6kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£413.01*

Details

CMRV063/030 561-4 - 0.06 kW - 0.58 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,06 kW, Speed= 0,58 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 2400, Torque= 276 Nm, Service factor (f.s.)= 0,8, Terminal box= top (rotatable), Weight= 12,47kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£430.72*

Details

CMRV063/030 561-4 - 0.06 kW - 0.9 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,06 kW, Speed= 0,9 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 1500, Torque= 204 Nm, Service factor (f.s.)= 1,1, Terminal box= top (rotatable), Weight= 12,47kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£430.72*

Details

CMRV063/030 561-4 - 0.06 kW - 0.78 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,06 kW, Speed= 0,78 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 1800, Torque= 225 Nm, Service factor (f.s.)= 0,9, Terminal box= top (rotatable), Weight= 12,47kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£430.72*

Details

CMRV063/030 562-4 - 0.09 kW - 1.6 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,09 kW, Speed= 1,6 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 900, Torque= 200 Nm, Service factor (f.s.)= 1, Terminal box= top (rotatable), Weight= 12,47kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£440.40*

Details

CMRV063/030 562-4 - 0.09 kW - 1.2 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,09 kW, Speed= 1,2 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 1200, Torque= 263 Nm, Service factor (f.s.)= 0,9, Terminal box= top (rotatable), Weight= 12,47kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£440.40*

Details

CMRV063/030 631-4 - 0.12 kW - 2.3 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,12 kW, Speed= 2,3 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 600, Torque= 208 Nm, Service factor (f.s.)= 1,1, Terminal box= top (rotatable), Weight= 12,57kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£452.54*

Details

CMRV063/030 631-4 - 0.12 kW - 1.9 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,12 kW, Speed= 1,9 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 750, Torque= 241 Nm, Service factor (f.s.)= 0,9, Terminal box= top (rotatable), Weight= 12,57kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£452.54*

Details

CMRV063/030 631-4 - 0.12 kW - 2.8 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,12 kW, Speed= 2,8 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 500, Torque= 171 Nm, Service factor (f.s.)= 1,3, Terminal box= top (rotatable), Weight= 12,57kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£452.54*

Details

CMRV063/030 632-2 - 0.25 kW - 5.6 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Grill motor as worm gear + three-phase motor, Power= 0,25 kW, Speed= 5.6 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 2 pole, Ratio (i)= 500, Torque= 185 Nm, Service factor (f.s.)= 1.2, Terminal box= top (rotatable), Weight= 12.7kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified All product photos are non-binding examples! Technical changes reserved.

£454.21*

Details

CMRV063/030 632-2 - 0.25 kW - 7 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,25 kW, Speed= 7 rpm, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 2 pole, Ratio (i)= 400, Torque= 159 Nm, Service factor (f.s.)= 1,4, Terminal box= top (rotatable), Weight= 12,67kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£454.21*

Details

CMRV063/030 632-4 - 0.18 kW - 3.5 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0.18 kW, Speed= 3.5 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 400, Torque= 222 Nm, Service factor (f.s.)= 1.0, Terminal box= top (rotatable), Weight= 13 kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Getriebegehäuse=Aluminium, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified All product photos are non-binding examples! Technical changes reserved.

£460.06*

Details

CMRV063/030 632-4 - 0.18 kW - 2.8 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,18 kW, Speed= 2,8 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 4 pole, Ratio (i)= 500, Torque= 257 Nm, Service factor (f.s.)= 0,8, Terminal box= top (rotatable), Weight= 12,97kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£460.06*

Details

CMRV063/030 633-2 - 0.37 kW - 7 rpm- Worm Gear Motor

Mounting position for gearmotors: M1

Double Worm Geared Motor, Power= 0,37 kW, Speed= 7 rpm Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode = S1, Type of duty = S1- 100%, Hollow shaft= 25 mm, Engine Speed= 2 pole, Ratio (i)= 400, Torque= 236 Nm, Service factor (f.s.)= 1, Terminal box= top (rotatable), Weight= 13,47kg. Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. Open Hollow shafts are to be closed with caps. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified From gearbox size 110, the installation position must be specified. All product photos are non-binding examples!

£464.07*

Details

Worm gearboxes and worm geared motors

JS-Technik GmbH specialises in extensive challenges in the field of professional drive technology with a focus on electric motors, frequency inverters and geared motors. Test our worm gearboxes and be surprised and convinced by the short delivery time and high quality.

Drive combinations

The worm gearboxes are available in various speeds, i.e. from 2 to 600 rpm (revolutions per minute). In many cases, worm gearboxes - electric motors - combinations with customised requirements are needed. We are the ideal partner for you here, because with decades of experience and our own final assembly, we can cover a wide range: worm gearboxes with brake motors, special shafts, grill motors with gearboxes, as worm gearbox motors with forced cooling fans, special voltage or in explosion-proof design.

Worm gearboxes with motor and forced cooling fan

Size and performance of worm geared motors

In our online shop, you will find a selection of worm geared motors with various revolutions per minute (rpm, rpm, rpm or 1/min). The worm geared motors are made from an aluminium or grey cast iron housing and are available in sizes NMRV, 30, 40, 50, 63, 75, 80, 90, 100, 110, 125, 130 and 150. The gearboxes are available with an output of 0.09kW, 0.12kW, 0.25kW, 0.37kW, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3.0kW, 4.0kW, 5.5kW, 7.5kW and 11kW.

Shaft diameters and torques

The aluminium worm gearboxes are available with the following hollow shafts: 14 mm, 18 mm, 20 mm, 25 mm, 28 mm, 30 mm, 35 mm, 40 mm, 45 mm and 50 mm. The torque output depends on the motor power, the efficiency and the output speed. Taking these points into account, we supply worm gearboxes in a range of 10 - 2000 Nm.

Worm geared motor / grill geared motor

Angular gearbox function

Worm gearboxes, also known as angular gearboxes, consist of a shaft with one or more helical gears, the worm and a meshing helical gear, the worm wheel. The axes of the two are offset by 90°. Special areas of application for such a gearbox are where high reduction ratios are required in one step. There are left-hand and right-hand worm geared motors. Both directions of rotation are equally possible. The complete flexibility of the mounting options includes foot, flange and centring solutions with a torque arm. Self-locking is available from an efficiency of less than 50 %.

Worm gearbox - mounting

The motor terminal box can be mounted in 90° steps around the motor. The JS geared motor can be installed in almost any required position. The installation positions are labelled M1, M2, M3, M4, M5, M6.

Worm geared motor in grey cast iron design

Geared motors with advantages

Due to the high interchangeability and smooth running of the geared motor components (IEC flange), the customer benefits from a wide range of options, including reduced costs, faster delivery times and simple installation and maintenance. the operating instructions for the worm geared motor can be found in the download directory.
