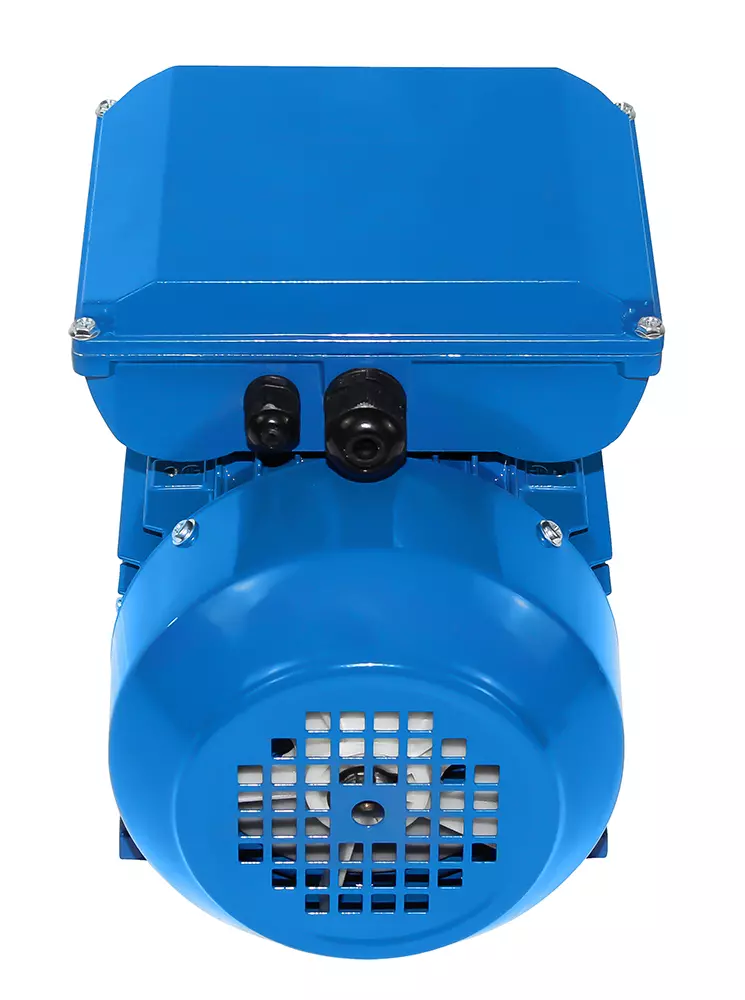

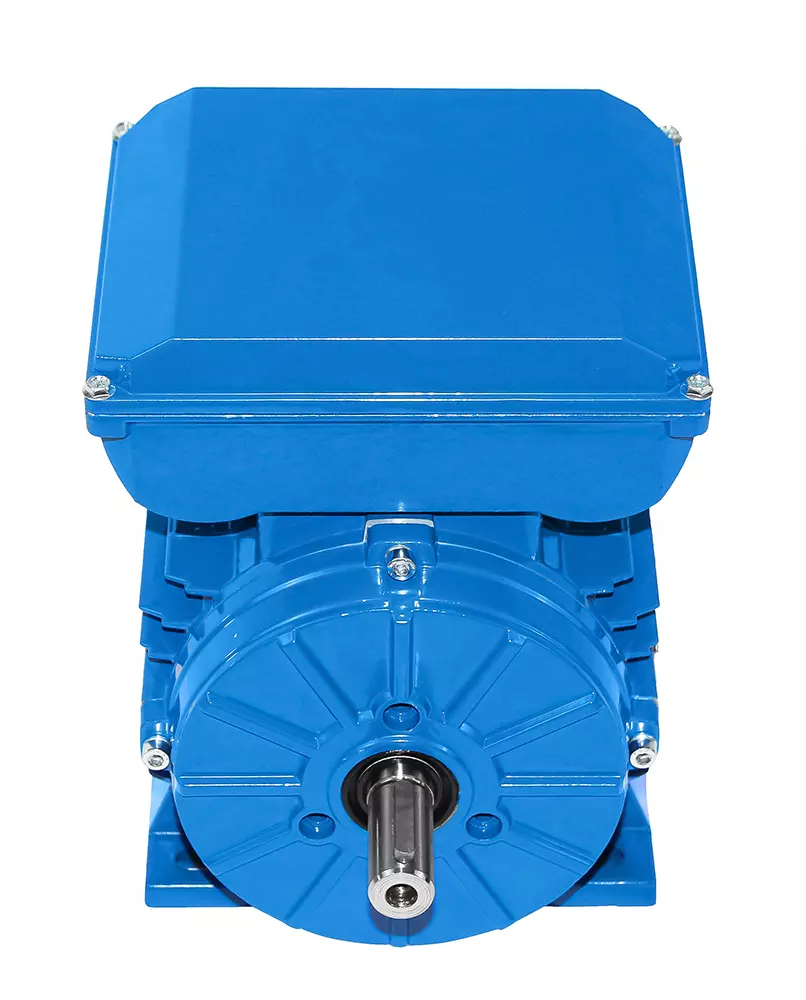

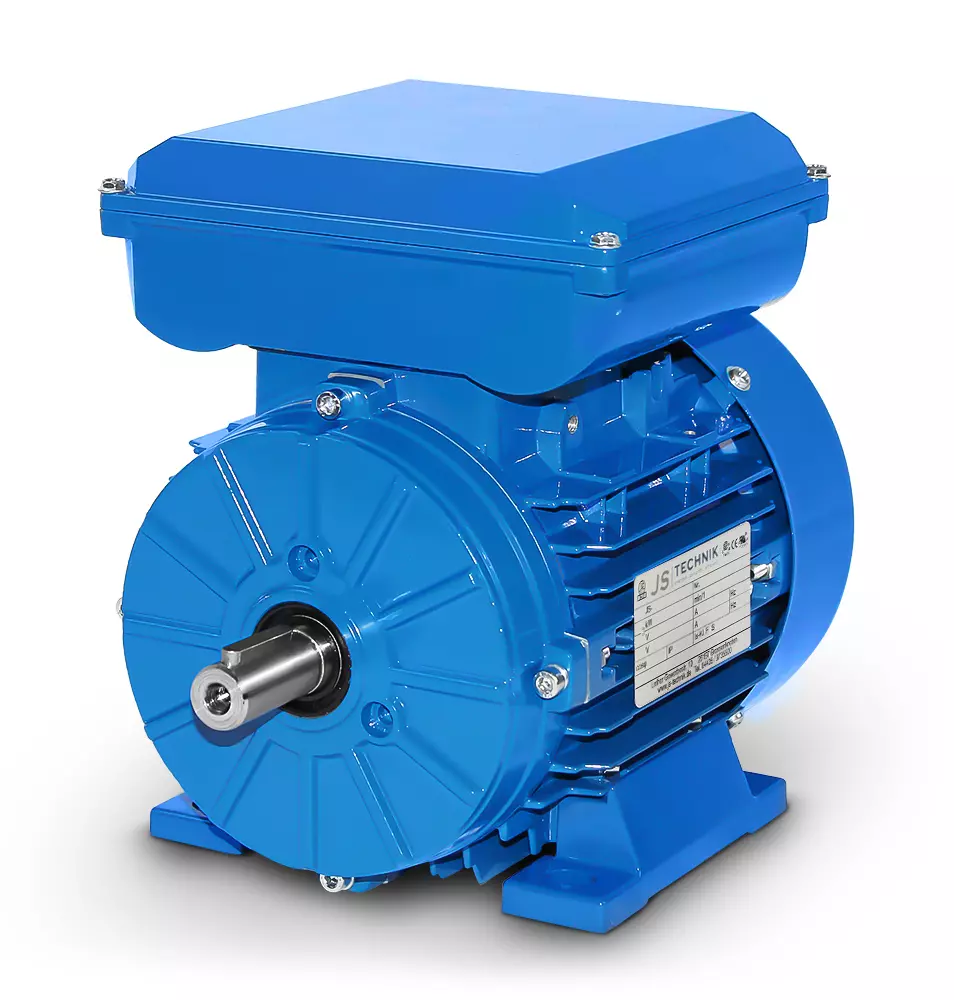

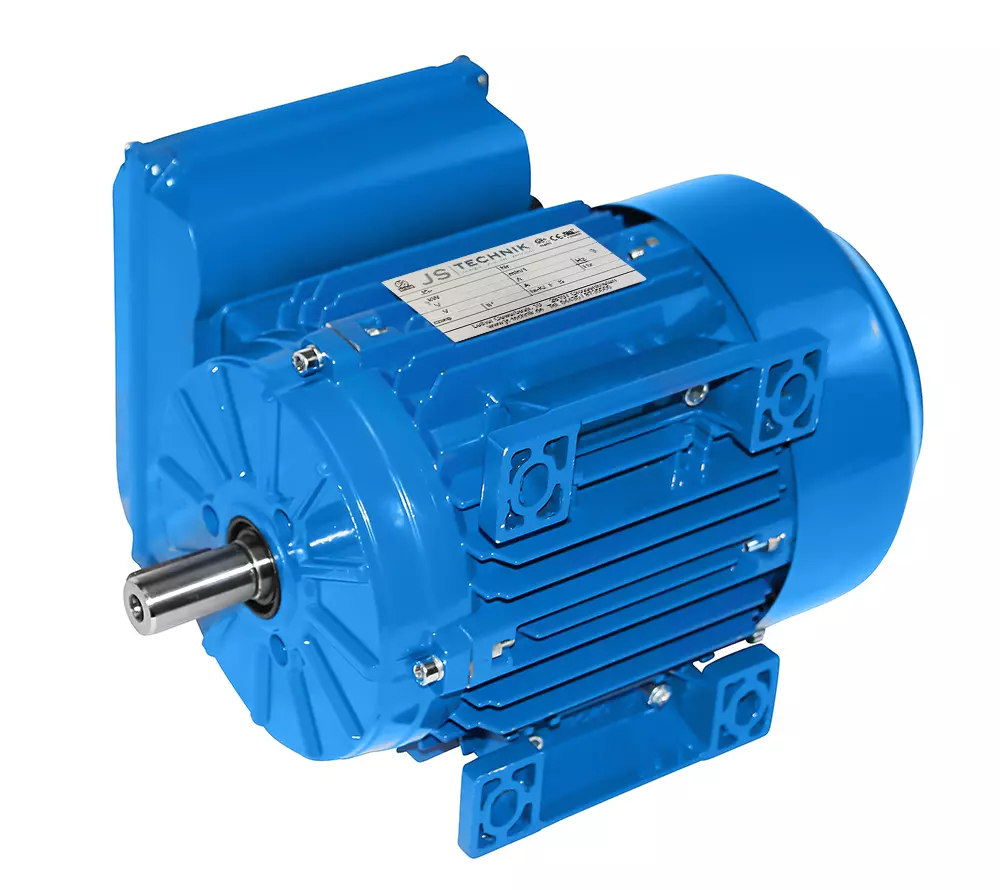

Single phase motor -ML2 100L-4, 3.0 kW, 4pol, B3

£469.95*

Prices incl. VAT plus shipping costs

Available, delivery time: on demand

Product number: 2W25111510F005M

Shipping fees: Article + Packaging

Downloads

Product information "Single phase motor -ML2 100L-4, 3.0 kW, 4pol, B3"

Single-phase motor with Operating and starting capacitor

Power= 3.0 kW, Speed= 4 pole, Voltage= 1 x 230 V (± 5% according to VDE 0530), Design= B3,

Weight approx. 30.1 kg, Shaft = 28 x 60 mm, Frequency= 50 Hertz, Protection class= IP55, Operating mode= S1- 100% ED,

Temperature sensor= 1 x PTO thermal sensor, Cooling= axial fan (plastic). Insulation class= F (155°C),

Efficiency class= IE2, Efficiency= 85.5%, Terminal box= aluminum, Terminal box position= top,

Housing= die-cast aluminum, Ball bearings= SKF, C&U, or equivalent.

AC motors are suitable for both directions of rotation.

General:

Due to the start-up and Operating capacitor gives the 230V motor a stronger starting torque.

The starting capacitor is switched off by a starting relay when the Speed is reached.

Speed control via Frequency converters or similar therefore leads to faults and is not permitted.

All product photos are non-binding examples! Technical changes reserved.

Ambient temperature:	40 °C
Engine protection:	Thermocouple PTO- single
Frequency:	50 Hz
Installation altitude:	1000 m
Kühlungsart:	IC 411
Operating mode:	S1
Performance:	3,0 kW
Shaft dimensions:	28 x 60 mm
Rotation speed:	1500 rpm / 4 polig
Shaft diameter:	28 mm
Type of construction:	B3
Tension:	1 x 230 V
Protection class:	IP55
Direction of rotation:	Left, Right
Efficiency Class:	IE 2

Properties "Single phase motor -ML2 100L-4, 3.0 kW, 4pol, B3"

Ambient temperature:	40 °C
Engine protection:	Thermocouple PTO- single
Frequency:	50 Hz
Installation altitude:	1000 m
Kühlungsart:	IC 411
Operating mode:	S1
Performance:	3,0 kW
Shaft dimensions:	28 x 60 mm
Rotation speed:	1500 rpm / 4 polig
Shaft diameter:	28 mm
Type of construction:	B3
Tension:	1 x 230 V
Protection class:	IP55
Direction of rotation:	Left, Right
Efficiency Class:	IE 2
