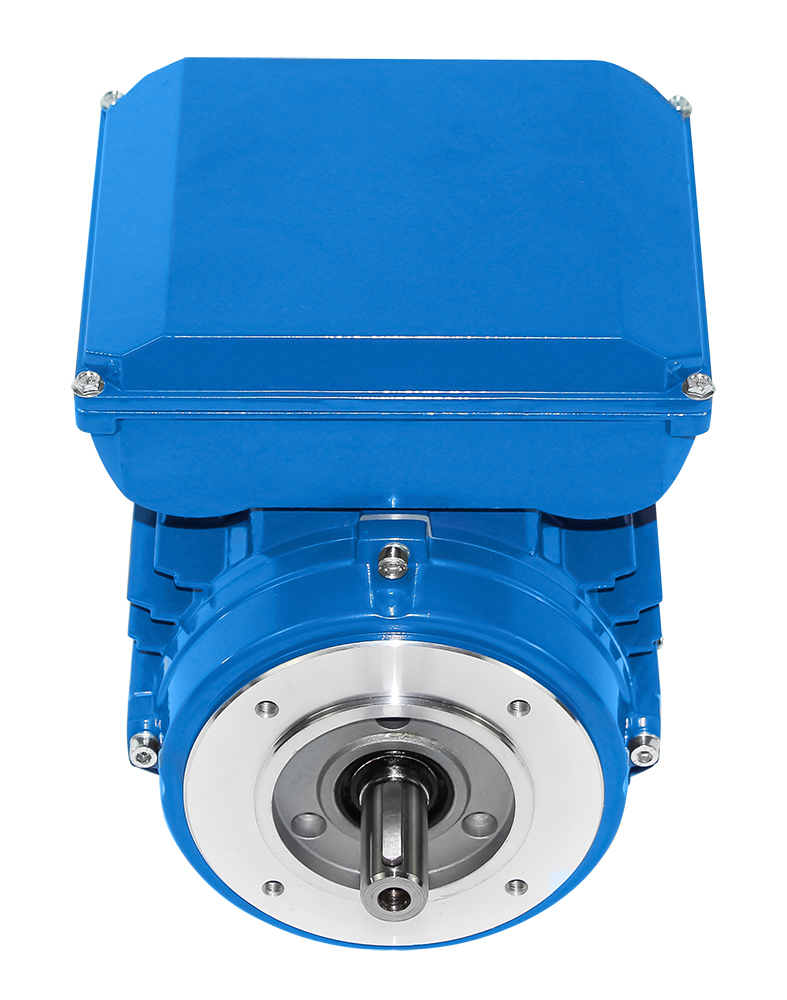

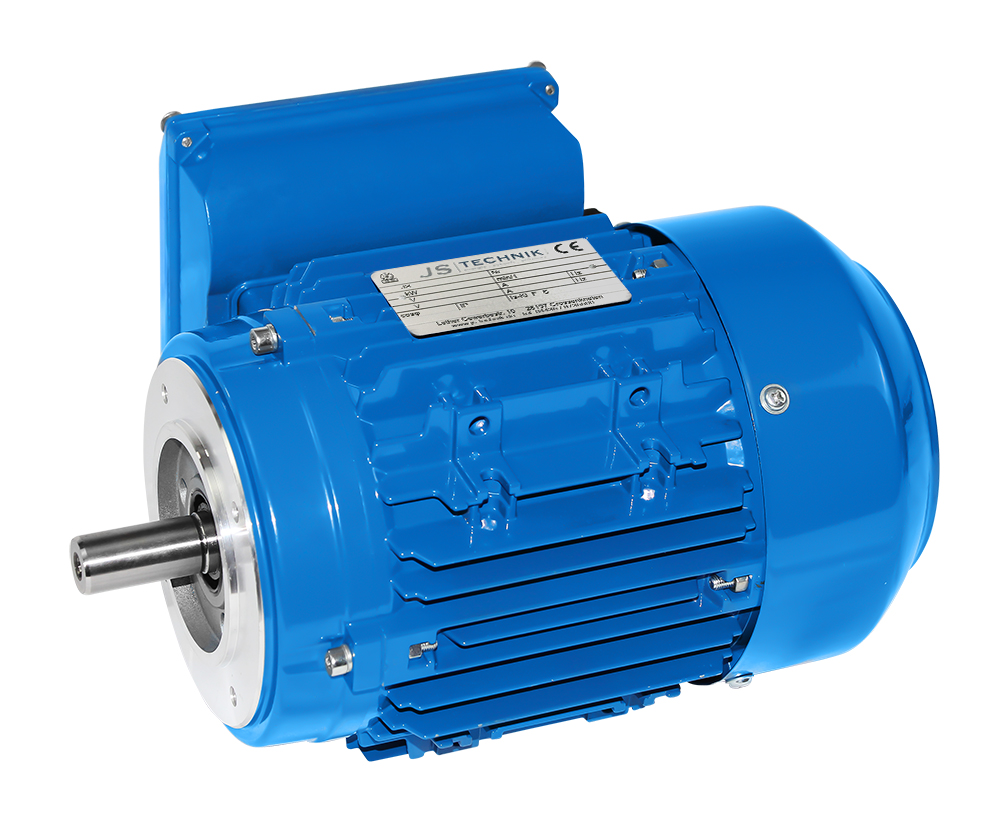

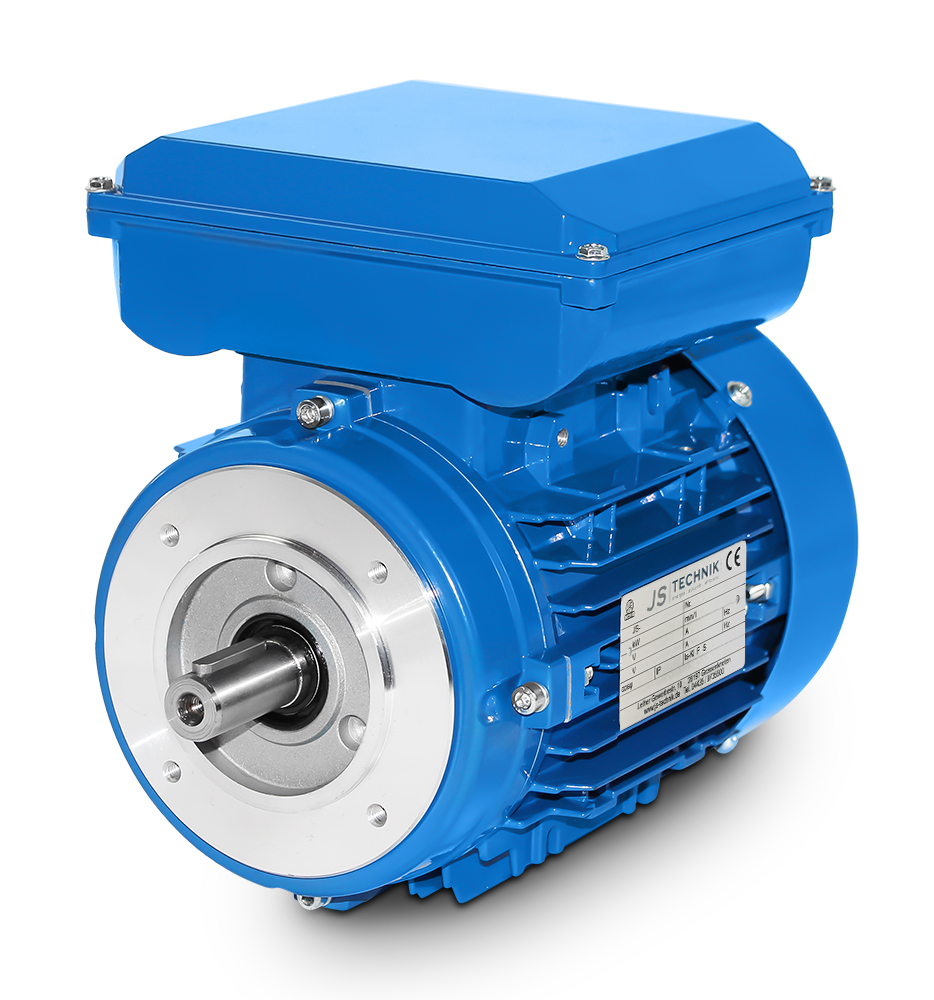

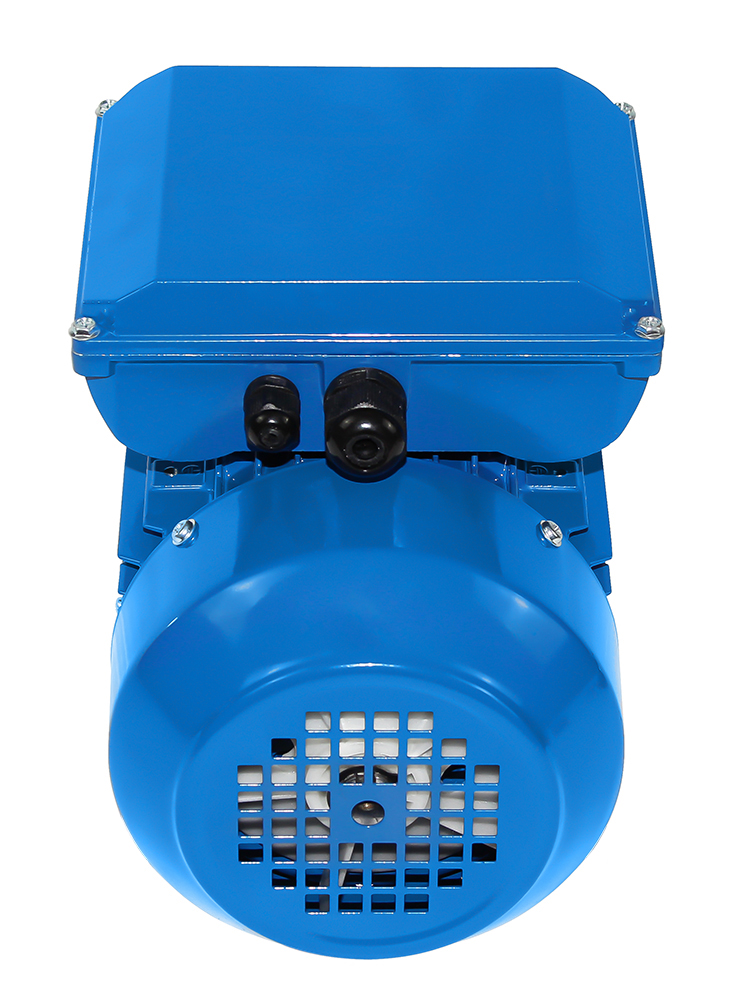

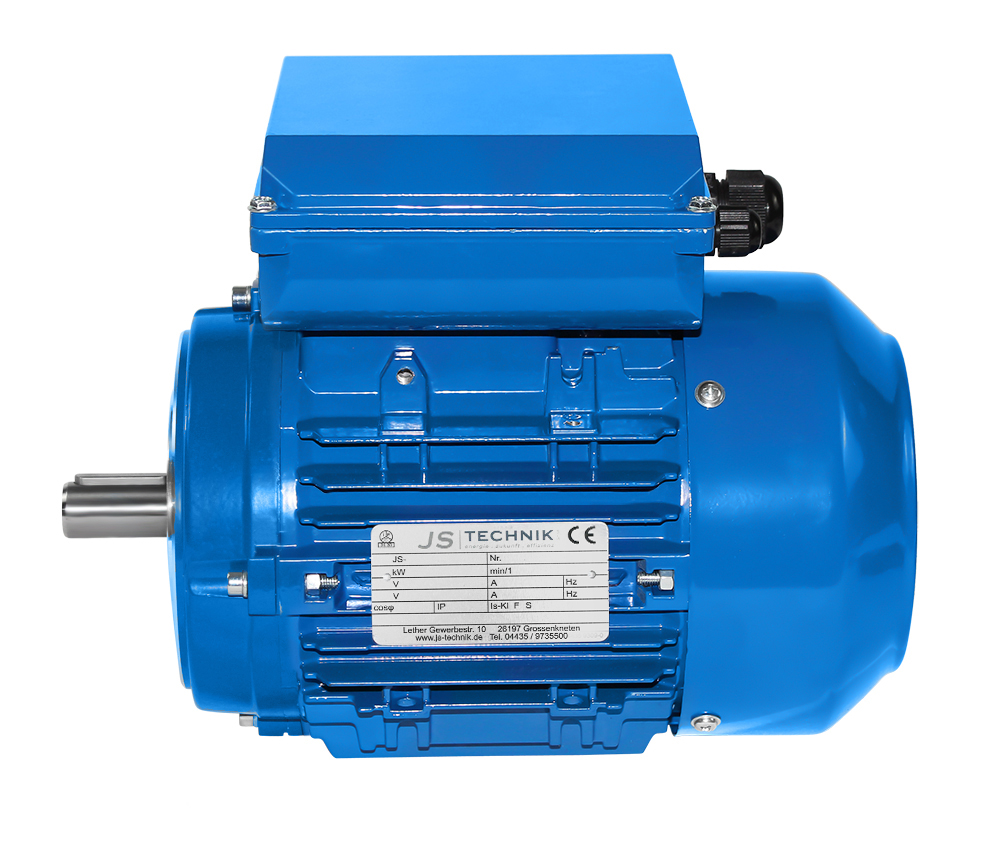

Single phase motor -ML2 112M-6, 2.2 kW, 6pol, B14
Product information "Single phase motor -ML2 112M-6, 2.2 kW, 6pol, B14"
Single-phase motor with Operating and starting capacitor
Power= 2.2 kW, Speed= 6 pole, Voltage= 1 x 230 V (± 5% according to VDE 0530), Design= B14,
Weight approx. 31.8 kg, Shaft = 28 x 60 mm, Frequency= 50 Hertz, Protection class= IP55, Operating mode= S1- 100% ED,
Temperature sensor= 1 x PTO thermal sensor, Cooling= axial fan (plastic). Insulation class= F (155°C),
Efficiency class= IE2, Efficiency= 81.8%, Terminal box= aluminum, Terminal box position= top,
Housing= die-cast aluminum, Ball bearings= SKF, C&U, or equivalent.
AC motors are suitable for both directions of rotation.
Optional:
On/off switch with reversing switch for left/right rotation, underVoltage release,
Collar plug= 1 x 230 V, Switching capacity= 16 A, Ambient temperature= -5°C to +40°C,
Cable between motor and switch housing= approx. 90 cm.
General:
Due to the start-up and Operating capacitor gives the 230V motor a stronger starting torque.
The starting capacitor is switched off by a starting relay when the Speed is reached.
Speed control via Frequency converters or similar therefore leads to faults and is not permitted.
All product photos are non-binding examples! Technical changes reserved.
| Ambient temperature: | 40 °C |
|---|---|
| Engine protection: | Thermocouple PTO- single |
| Flange dimensions: | 160 x 110 x 130 mm |
| Frequency: | 50 Hz |
| Installation altitude: | 1000 m |
| Kühlungsart: | IC 411 |
| Operating mode: | S1 |
| Performance: | 2,2 kW |
| Shaft dimensions: | 28 x 60 mm |
| Rotation speed: | 1000 rpm / 6 polig |
| Shaft diameter: | 28 mm |
| Type of construction: | B14 |
| Tension: | 1 x 230 V |
| Protection class: | IP55 |
| Direction of rotation: | Left, Right |
| Efficiency Class: | IE 2 |
| Ambient temperature: | 40 °C |
|---|---|
| Engine protection: | Thermocouple PTO- single |
| Flange dimensions: | 160 x 110 x 130 mm |
| Frequency: | 50 Hz |
| Installation altitude: | 1000 m |
| Kühlungsart: | IC 411 |
| Operating mode: | S1 |
| Performance: | 2,2 kW |
| Shaft dimensions: | 28 x 60 mm |
| Rotation speed: | 1000 rpm / 6 polig |
| Shaft diameter: | 28 mm |
| Type of construction: | B14 |
| Tension: | 1 x 230 V |
| Protection class: | IP55 |
| Direction of rotation: | Left, Right |
| Efficiency Class: | IE 2 |
