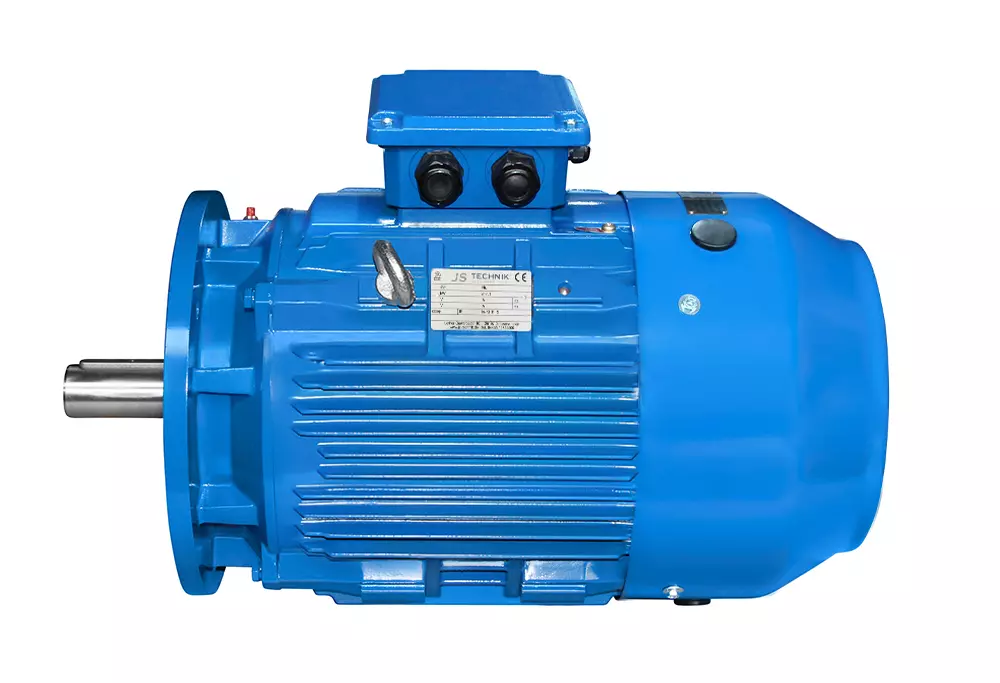

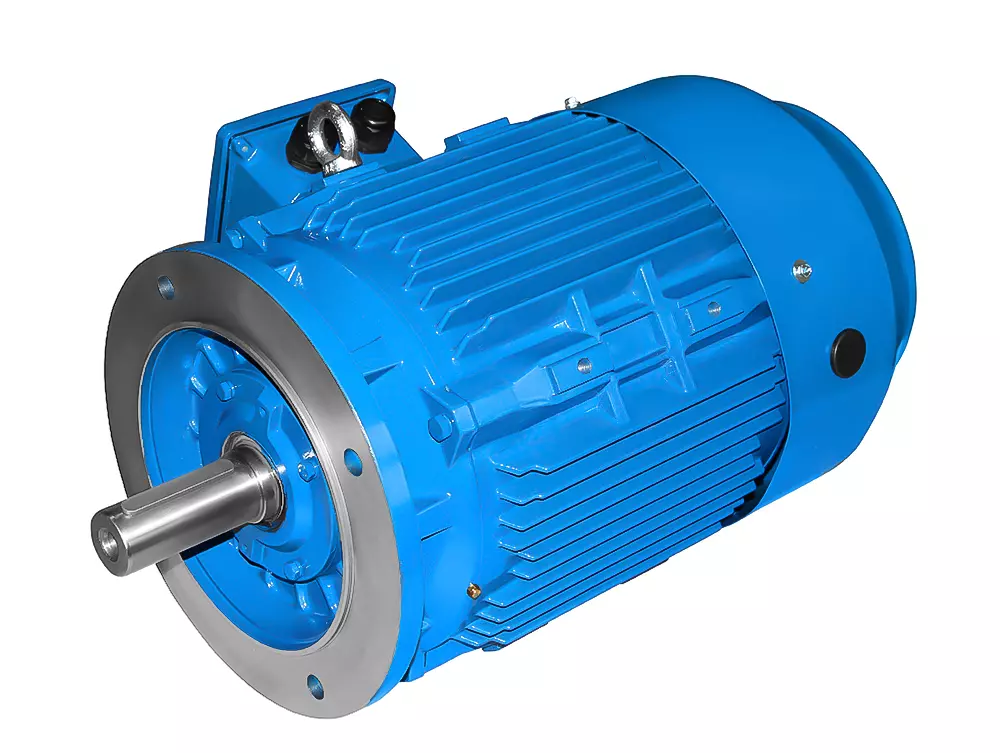

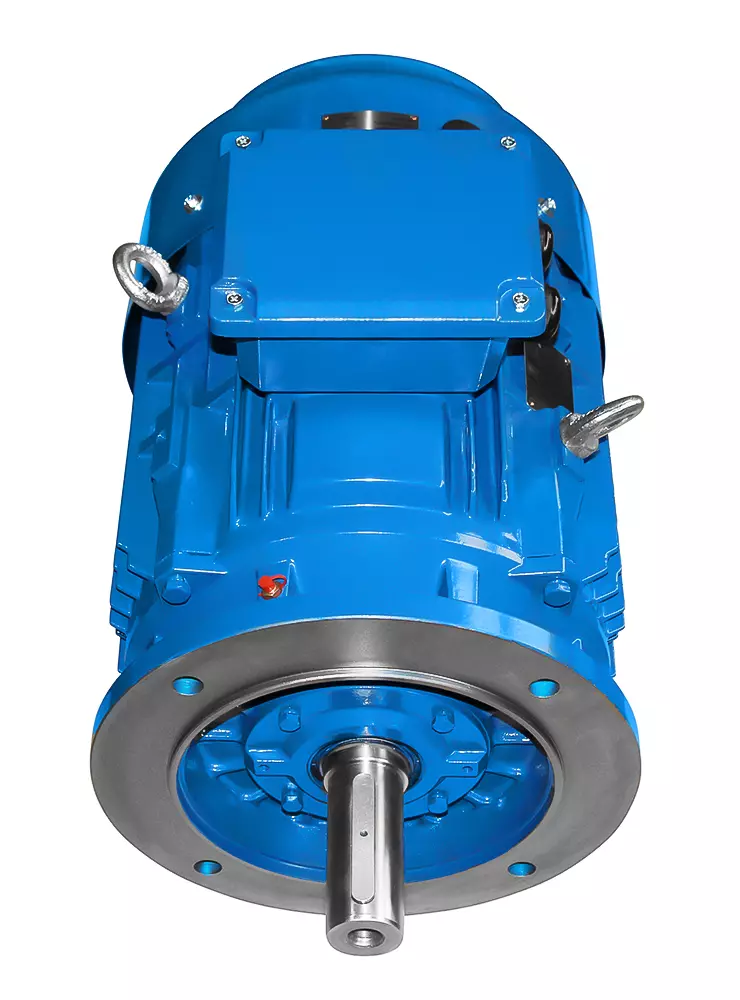

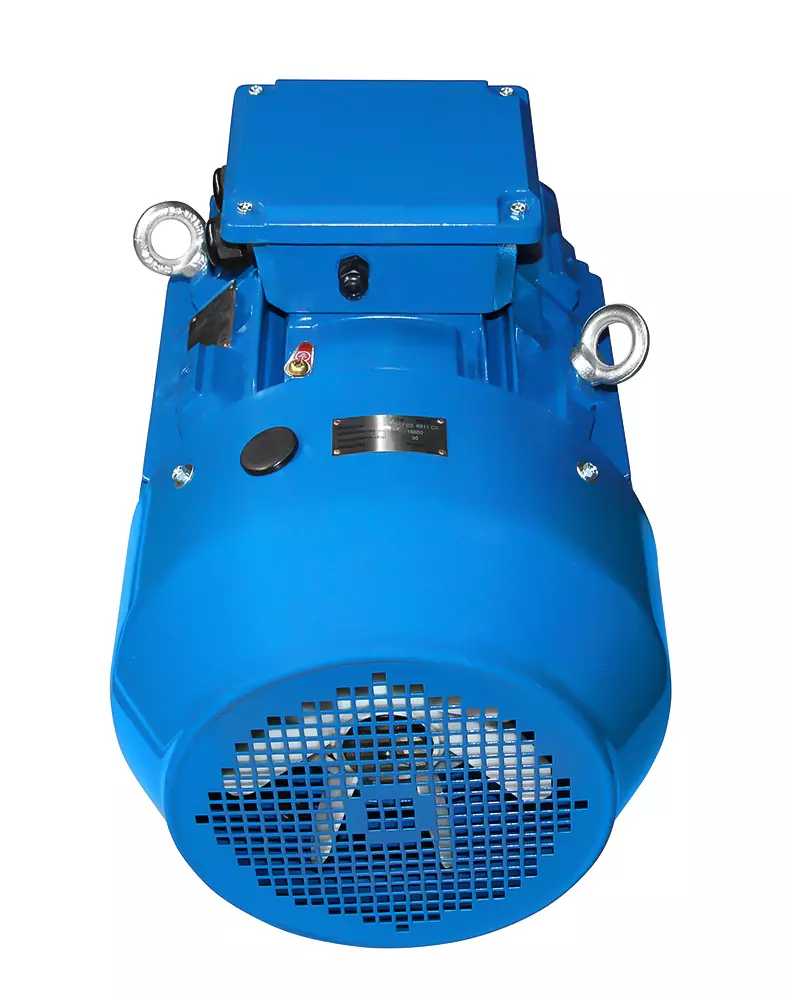

Three-phase motor IE5 160M2-2, 15 kW, 2 pole, B5

£1,389.60*

Delivery time on demand

Product number: 5F21160216A000

Downloads

Product information "Three-phase motor IE5 160M2-2, 15 kW, 2 pole, B5"

Electric motor, power=15 kW, speed=3000 rpm, design=B5

Shaft=42 x 110 mm, voltage=3 x 400/690 V-50 Hz, 3 x 480/830 V-60 Hz (± 5% according to VDE 0530), frequency=50/60 Hertz.

Efficiency class=IE5, efficiency=95.1%, paint finish=RAL 5010 (gentian blue), protection class=IP55, temperature sensor=3 x PTC thermistors,

Weight=125.0 kg, operating mode=S1- 100% ED, terminal box position=top, housing=grey cast iron, insulation class=F (155°C),

Ball bearing=SKF or equivalent, cooling=axial fan (plastic), motor feet=screwable (if available).

The motor bearings are designed for clutch operation. For belt drive, we recommend reinforced cylindrical roller bearings

The electric motor is suitable for use with frequency inverters and for both directions of rotation.

In accordance with VDE 0105 and IEC 364, all work on the electric drive must only be carried out by qualified personnel

Qualified personnel. For modifications or special designs, please send us an enquiry.

All product photos are non-binding examples! Subject to technical changes.

Ambient temperature:	40 °C
Engine protection:	PTC thermistor 3-fold
Frequency:	50 Hz, 60 Hz
Installation altitude:	1000 m
Kühlungsart:	IC 411
Operating mode:	S1
Performance:	15 kW
Shaft dimensions:	42 x 110 mm
Rotation speed:	3000 rpm / 2 polig
Shaft diameter:	42 mm
Type of construction:	B5
Tension:	3 x 400/690 V
Protection class:	IP55
Direction of rotation:	Left, Right
Efficiency Class:	IE 5

Properties "Three-phase motor IE5 160M2-2, 15 kW, 2 pole, B5"

Ambient temperature:	40 °C
Engine protection:	PTC thermistor 3-fold
Frequency:	50 Hz, 60 Hz
Installation altitude:	1000 m
Kühlungsart:	IC 411
Operating mode:	S1
Performance:	15 kW
Shaft dimensions:	42 x 110 mm
Rotation speed:	3000 rpm / 2 polig
Shaft diameter:	42 mm
Type of construction:	B5
Tension:	3 x 400/690 V
Protection class:	IP55
Direction of rotation:	Left, Right
Efficiency Class:	IE 5

Zubehör

Rain cover BG160

Fan cover with rain protection roof for Electric motors in size 160. When ordering with an Electric motor, the rain protection cover is mounted directly on the JS Electric motor.

£104.99*

Details

Motor-slide-plate IEC160

Electric motor slide plate in size IEC 160 Dimensions: 450 x 350 x 40mm (LxWxH)Weight capacity: 160kgWeight: approx. 9.7kgInstallation position: horizontal and vertical Electric motor slide bases are used to compensate for vibrations and friction that can lead to either slipping or unnecessary wear on electricmotors and belts. They will allow you to precisely adjust the mounted motors lateral position to the millimetre. The life span of the equipmentwill be maximised, therefore decreasing costs and increasing profits.All product photos are non-binding examples!

£169.73*

Details

Slide rails sice 160

Motor mounting rails for size 160 Electric motors, with adjustable clamping blocks,made of galvanized sheet steel. Total length: 530 mmSlide length: 413 mmWeight: approx. 7.2 kgMotor slide rails are used for belt drive applications. The motor slide railsare made of a steel structure and galvanized. They enable the construction of the drivea simple alignment of the motor to the pulley. Slide rails are suitable for almost everyoneMotor types and are characterized by a flat and compact design.Delivery is in pairs. All product photos are non-binding examples!

£98.62*

Details

Slide rails sice 160/180

Motor mounting rails for size 160-180 Electric motors, with adjustable clamping blocks,made of galvanized sheet steel. Total length: 686 mmSlide length: 538 mmWeight: approx. 12.8 kgMotor slide rails are used for belt drive applications. The motor slide railsare made of a steel structure and galvanized. They enable the construction of the drivea simple alignment of the motor to the pulley. Slide rails are suitable for almost everyoneMotor types and are characterized by a flat and compact design.Delivery is in pairs. All product photos are non-binding examples!

£173.80*

Details

Thermal sensor opener NAT 130 ° C triple up to BG315

PTO temperature monitoring of the motor winding

£88.52*

Details

Protective roof size 160

Protective roof (with / without cover) for electric motors in size 160 Diameter: Ø308 mm When ordered with a motor, the protective roof can also be delivered assembled. Also available with fan cover. Please select. All product photos are non-binding examples! Technical changes reserved.

From £27.53*

Details

Cylindrical roller bearing BG160

Cylindrical roller bearing, A-side Reinforced bearing for electric motors of size 160. To accommodate increased radial loads. Minimum load of 20% required!

£90.01*

Details

CSA/UL certificate for cast iron motors

Certified and documented CSA/UL certificate 70197087 For gray cast iron motors up to IE3.

£109.70*

Details

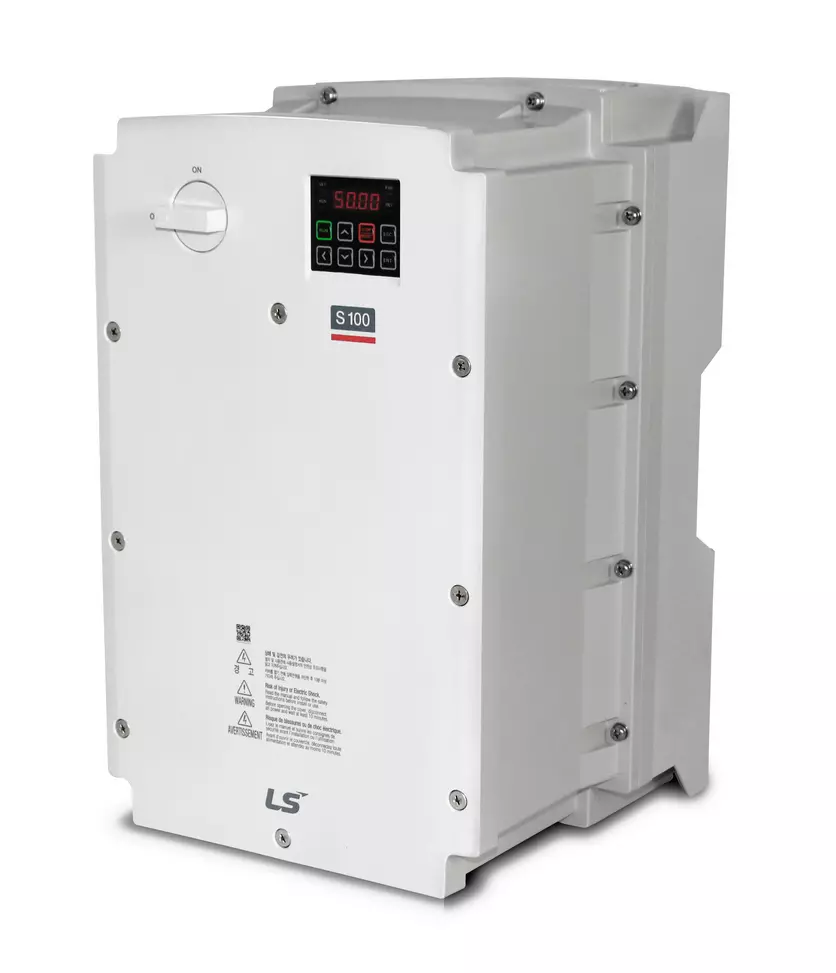

1-JS-IP66-11KW-15KW-18,5KW-22KW-Frequency-Inverter

Frequency Inverter LS 0150S100-4EXFNS

Frequency inverter, 15.0 kW, 380V- 400V- 420V- 480V, IP66, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection, Ride Through (LV Trip Delay) protection, Under Load Trip protection, Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

£1,389.22*

Details

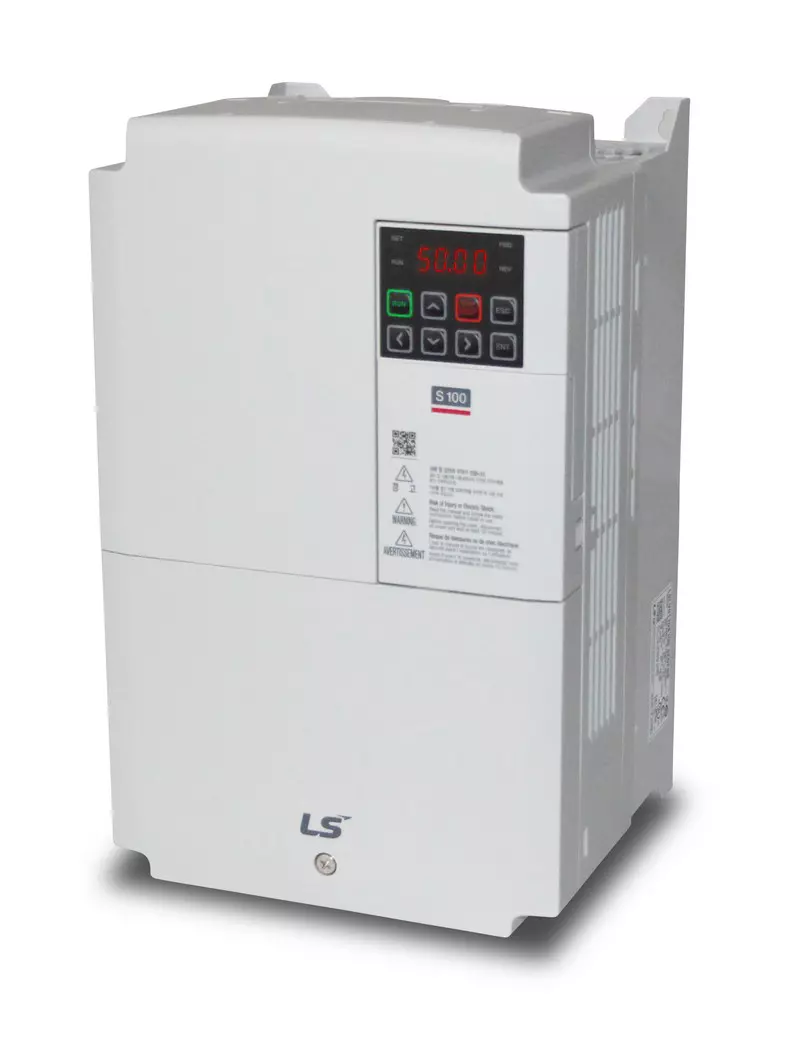

Frequency Inverter LS 0150S100-4EOFNS

Frequency inverter, VFD, 15.0 kW, 380V-400V-420V-480V, IP20, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection, Ride Through (LV Trip Delay) protection, Under Load Trip protection, Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

£823.09*

Details

Frequency Inverter LS 0150H100-4COFN

Frequency inverter for pump / fan operation, 15 kW, 400V, IP20, EMC filter (C3) Specific functions for pumps and fans- MMC function (control of several motors)- Time switch function (time event: real-time clock)- flow compensation- gentle filling- Initial acceleration & final acceleration- valve down ramp- Pump cleaning- load balancing- Fire mode- Energy saving display (amortization counter)- Boost, wake-up function- U / f control- Integrated BACnet communication- LonWorks (optional)- Control panel especially for pumps / fans- Integrated EMC filter / DC reactor- Side by side installation- Intermediate plate option- Small size- Condenser / fan life monitoring function- Smart Copy function (flash drop, download of parameters andof the main operating system possible without Voltage) >

£809.50*

Details

Frequency inverter LS 0150-iS7-4-SOFD

Frequency inverter iS7 – the all-rounder 15 kW, 3x400V, 30A, Braking resistor, EMC filter, IP21 , DC reactor, with control panel. ● Constant torque / variable torque for normal load and heavy load operation● U/f and U/f PG control, sensorless vector control, vector control with sensor selectable● 150 MIPS high-speed DSP● Excellent performance and advanced features:Droop control (torque control)KEB protection (Kinetic Energy Buffering: storage of kinetic energy) Ride Through protection(Delay of undervoltage trip) Under Load Trip ProtectionPMSM function (Permanent Magnet Synchronous Motor) Vector control without feedbackPower Braking & Flux Braking Function Automatic Setting:Autotuning of static engine parameters ● Easy to use:simple start mode, user and macro group, multifunctional control panel● Sensorless control and parameter setting of the second motor● Available: IP54/UL Type 12 optional (0.75~22kW[1~30HP]) *● Integrated communication RS485 (LS Bus / Modbus RTU)● Integrated transistor for dynamic braking (0.75~22kW[1~30PS])● Integrated EMC filter and DC reactor optional:EMC filter (0.75~22kW[1~30HP]) / DC reactor (0.75~160kW[1~215HP])● Wide, graphic LCD control panel (6 different languages)● PLC PLC expansion card optional (Programmable Logic Control Card):Master-K platform (max. 14 inputs and max. 7 outputs)● Input/Output expansion card (optional):max. 11 inputs and max. 6 outputs● Optional communication:Profibus DP, DeviceNet, Modbus TCP, Rnet, LonWorks, CANopen, EtherNet/IP *● Software (Drive View) for monitoring and parameterization on the PC

£984.43*

Details

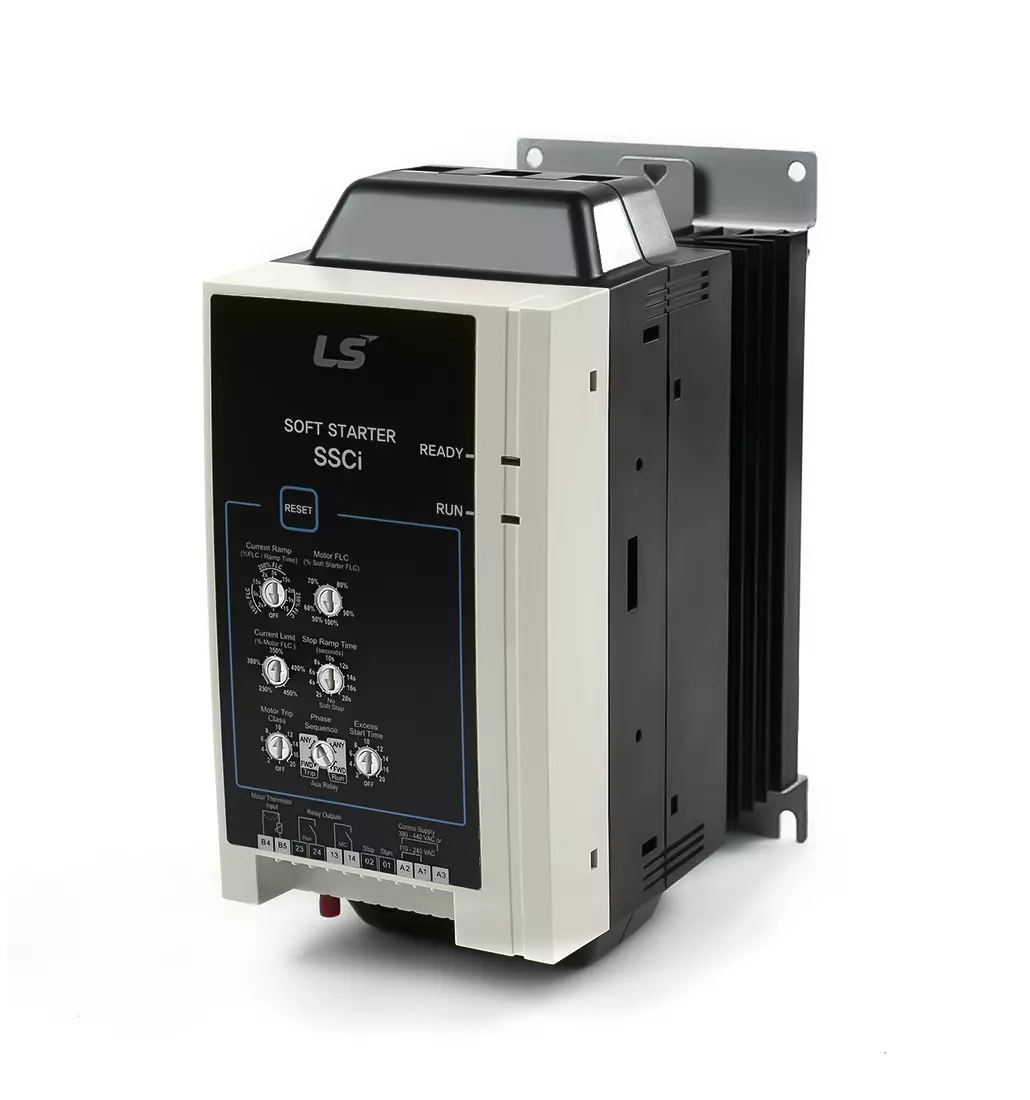

Soft start device 15 kW SSCi-034-V6-C1

Performance data Rated current= 34 A, input voltage= 200 - 575 VAC, protection class= IP20, 15 kW,Installation altitude= <1000 m, dimensions (H x W x D)= 201 x 98 x 165 mm, weight= 2.2 kg, Settings • Current ramp - current value and ramp time• Electric motor current limit• Overload protection trip time• Motor current FLC (full load current)• Ramp stop time• Expected motor start time• Auxiliary relay function Basic Advantages • soft voltage start• easy voltage stop• built-in bypass• current limitation for soft start• soft start plus (limit values adjustable)• thermal motor protection• connection of a motor sensor (thermistor).• 2 relay outputs• protection against exceeding the start-up time All product photos are non-binding examples! Technical changes reserved.

£418.39*
