SG EN050-71

<p>worm gear, i=100, Shaft 24mm, Hollow shaft Ø 24mm, IEC input shaft 14 x 30 mm, flange Ø 105 x 70 x 85mm, Weight: 4.1kg ! In order to select desired mounting position! No output shafts available ! Remainders - Only while stocks last!

£120.45*

Details

EV 030-631 - 0.12 kW - 65 rpm Worm Worm gear Motor

Worm gear motor, Power= 0,12 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 65 rpm, Ratio (i)= 21, Torque= 12 Nm, Service factor (fs)= 1,4, Hollow shaft= 14mm. Wight= 4,9kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£211.47*

Details

EV 030-631 - 0.12 kW - 47 rpm Worm Worm gear Motor

Worm gear motor, power= 0.12 kW, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Protection class= IP55, insulation class= F (155°C), operating mode= S1- 100% ED, speed (n²)= 47 rpm, Transmission ratio (i)= 29, torque= 15 Nm, operating factor (fs)= 1.2, hollow shaft= 14 mm. Weight= 4.9 kg, color= RAL 5010 (gentian blue), temperature sensor= 3 x PTC thermistor, Housing= die-cast aluminum, ball bearing= SKF, C&U or equivalent, cooling= axial fan (plastic). The worm gear motor is suitable for frequency converter operation and complies with IEC 60034-30:2008. The gear motor can be operated in both directions and contains an oil filling upon delivery. In accordance with VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel. Please send an inquiry for modifications or special designs. All product photos are non-binding examples! Technical changes reserved.

£211.47*

Details

EV 030-562 - 0.09 kW - 28 rpm Worm Worm gear Motor

Worm gear motor, power= 0.12 kW, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Protection class= IP55, insulation class= F (155°C), operating mode= S1- 100% ED, speed (n²)= 28 rpm, Transmission ratio (i)= 34, torque= 16 Nm, operating factor (fs)= 0.9, hollow shaft= 14 mm. Weight= 4 kg, color= RAL 5010 (gentian blue), temperature sensor= 3 x PTC thermistor, Housing= die-cast aluminum, ball bearings= SKF, C&U or equivalent, cooling= axial fan (plastic). The worm gear motor is suitable for frequency converter operation and complies with IEC 60034-30:2008. The gear motor can be operated in both directions of rotation and contains an oil filling upon delivery. In accordance with VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel. Please send an inquiry for modifications or special designs. Please note: Limited quantities due to stock clearance! Reorders approx. 28 working days. All product photos are non-binding examples! Technical changes reserved.

£211.47*

Details

EV 040-631 - 0.12 kW - 17 rpm Worm Worm gear Motor

Worm gear motor, Power= 0,12 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 17 rpm, Ratio (i)= 80, Torque= 32 Nm, Service factor (fs)= 1,0, Hollow shaft= 20mm. Wight= 6,1kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£244.43*

Details

EV 040-632 - 0.18 kW - 113 rpm Worm Worm gear Motor

Worm gear motor, Power= 0,18 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 113 rpm, Ratio (i)= 12, Torque= 12 Nm, Service factor (fs)= 3,7, Hollow shaft= 20mm. Wight= 6,7kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£248.96*

Details

EV 040-632 - 0.18 kW - 42 rpm Worm Worm gear Motor

Worm gear motor, Power= 0.18 kW, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Protection class= IP55, insulation class= F (155°C), operating mode= S1- 100% ED, speed (n²)= 42 rpm, Transmission ratio (i)= 32, torque= 26 Nm, operating factor (fs)= 1.4, hollow shaft= 20 mm. Weight= 6.7 kg, color= RAL 5010 (gentian blue), temperature sensor= 3 x PTC thermistor, Housing= die-cast aluminum, ball bearing= SKF, C&U or equivalent, cooling= axial fan (plastic). The worm gear motor is suitable for frequency converter operation and complies with IEC 60034-30:2008. The gear motor can be operated in both directions and contains an oil filling upon delivery. In accordance with VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel. Please send an inquiry for modifications or special designs. All product photos are non-binding examples! Technical changes reserved.

£253.85*

Details

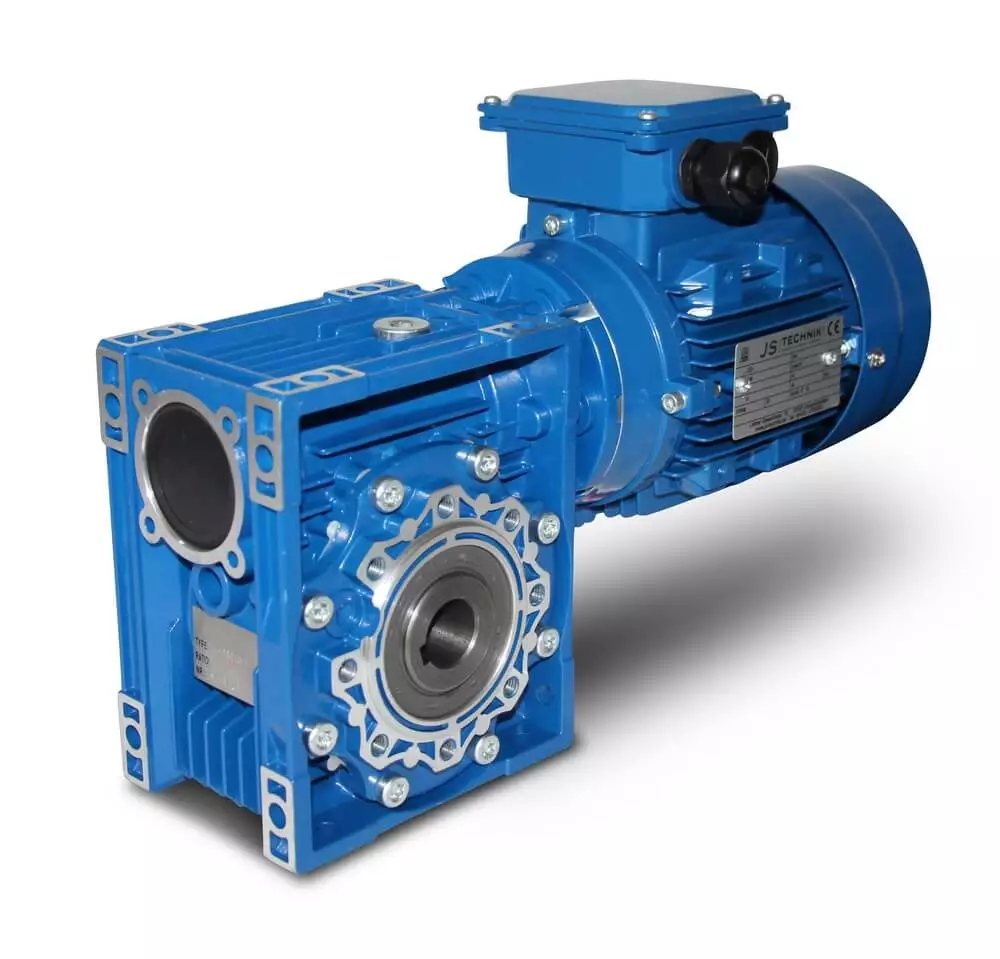

EV 063-712 - 0.37 kW - 27 rpm Worm gear Motor

Worm gear motor Hollow shaft 24mm, Power= 0.37 kW, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 27 rpm, Ratio (i)= 51, Torque= 85 Nm, Service factor (fs)= 1.5, Hollow shaft= 24mm. Wight= 12.6kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 or IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. All product photos are non-binding examples!

£279.60*

Details

EV 050-712 - 0.37 kW - 189 rpm Worm Worm gear Motor

Worm gear motor, Power= 0,37 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 189 rpm, Ratio (i)= 7,25, Torque= 16 Nm, Service factor (fs)= 4,1, Hollow shaft= 25mm. Wight= 10,3kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£309.80*

Details

EV 050-712 - 0.25 kW - 62 rpm Worm Worm gear Motor

Worm gear motor, Power= 0,25 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 62 rpm, Ratio (i)= 14,5, Torque= 30 Nm, Service factor (fs)= 2,8, Hollow shaft= 25mm. Wight= 10,6kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£316.41*

Details

EV 063-711 - 0.25 kW - 35 rpm Worm Worm gear Motor

Schneckengetriebemotor, Power= 0,25 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 35, Ratio (i)= 39, Torque= 46 Nm, Service factor (fs)= 3,0, Hollow shaft= 30mm. Wight= 11,8kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£362.33*

Details

EV 063-712 - 0.25 kW - 9,0 rpm Worm Worm gear Motor

Worm gear motor, power= 0.25 kW, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Protection class= IP55, insulation class= F (155°C), operating mode= S1- 100% ED, speed (n²)= 9.0 rpm, Transmission ratio (i)= 100, torque= 114 Nm, operating factor (fs)= 0.9, hollow shaft= 30 mm. Weight= 12.9 kg, color= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistors, Housing = die-cast aluminum, ball bearing = SKF, C&U or equivalent, cooling = axial fan (plastic). The worm gear motor is suitable for frequency converter operation and complies with IEC 60034-30:2008. The gear motor can be operated in both directions of rotation and contains an oil filling upon delivery. In accordance with VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel. Please send an inquiry for modifications or special designs. All product photos are non-binding examples! Technical changes reserved.

£375.49*

Details

EV 050-90S - 1.1 kW - 193 rpm Worm Worm gear Motor

Worm gear motor, Power= 1.1 kW, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Protection class= IP55, insulation class= F (155°C), operating mode= S1- 100% ED, speed (n²)= 193 rpm, Transmission ratio (i)= 7.25, torque= 48 Nm, operating factor (fs)= 1.4, hollow shaft= 25 mm. Weight= 16.2 kg, color= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistors, Housing = die-cast aluminum, ball bearings = SKF, C&U or equivalent, cooling = axial fan (plastic). The worm gear motor is suitable for frequency converter operation and complies with IEC 60034-30:2008. The gear motor can be operated in both directions of rotation and contains an oil filling upon delivery. In accordance with VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel. Please send an inquiry for modifications or special designs. Please note: Limited quantities due to stock clearance! Reorders approx. 28 working days. All product photos are non-binding examples! Technical changes reserved.

£408.47*

Details

EV 063-802 - 0.75 kW - 142 rpm Worm Worm gear Motor

Worm gear motor, Power= 0,75 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 142 rpm, Ratio (i)= 9,75, Torque= 43 Nm, Service factor (fs)= 2,8, Hollow shaft= 30mm. Wight= 16,4kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£430.32*

Details

EV 063-802 - 0.75 kW - 108 rpm Worm Worm gear Motor

Worm gear motor, Power= 0,75 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 108 rpm, Ratio (i)= 12,75, Torque= 57 Nm, Service factor (fs)= 1,9, Hollow shaft= 30mm. Wight= 16,4kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£430.32*

Details

CMRV063 90S-4 - 1.1 kW - 140 rpm- Worm Gearbox Motor

Worm Gear Motor, Power= 1,1 kW, Speed= 140 rpm,Special Hollow shaft, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% In according to the VDE 0530), Degree of protection= IP55, Insulation class= F (155°C), Operating mode= S1, Type of duty= S1- 100%, Hollow shaft= 28mm, Engine Speed= 4 pole, Ratio (i)= 10, Torque= 65 Nm, Service factor (f.s.)= 2 . Terminal box= top (rotatable), Weight= 23,2 kg, Paint= RAL 5010 (gentian blue), Temperature sensor= 3 x PTC-thermistors, Housing= Aluminum or cast iron, Ball bearings= SKF, C & U or equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter use and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery. In according to the VDE 0105 bzw. IEC 364 all work on the electric drive must only becarried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples! Technical changes reserved.

£489.14*

Details

EV 075-90S - 1.1 kW - 28 rpm Worm Worm gear Motor

Worm gear motor, Power= 1.1 kW, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Protection class= IP55, insulation class= F (155°C), operating mode= S1- 100% ED, speed (n²)= 28 rpm, Transmission ratio (i)= 50, torque= 255 Nm, operating factor (fs)= 0.8, hollow shaft= 35 mm. Weight= 21.3 kg, color= RAL 5010 (gentian blue), temperature sensor= 3 x PTC thermistor, Housing= die-cast aluminum, ball bearing= SKF, C&U or equivalent, cooling= axial fan (plastic). The worm gear motor is suitable for frequency converter operation and complies with IEC 60034-30:2008. The gear motor can be operated in both directions of rotation and contains an oil filling upon delivery. In accordance with VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel. Please send an inquiry for modifications or special designs. All product photos are non-binding examples! Technical changes reserved.

£533.86*

Details

EV 075-90S - 1.1 kW - 35 rpm Worm gear Motor

Worm gear motor, Power= 1.1 kW, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Protection class= IP55, insulation class= F (155°C), operating mode= S1- 100% ED, speed (n²)= 28 rpm, Transmission ratio (i)= 50, torque= 255 Nm, operating factor (fs)= 0.8, hollow shaft= 35 mm. Weight= 21.3 kg, color= RAL 5010 (gentian blue), temperature sensor= 3 x PTC thermistor, Housing= die-cast aluminum, ball bearing= SKF, C&U or equivalent, cooling= axial fan (plastic). The worm gear motor is suitable for frequency converter operation and complies with IEC 60034-30:2008. The gear motor can be operated in both directions of rotation and contains an oil filling upon delivery. In accordance with VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel. Please send an inquiry for modifications or special designs. All product photos are non-binding examples! Technical changes reserved.

£533.86*

Details

EV 080-90L1 - 1.5 kW - 93 rpm Worm Worm gear Motor

Worm gear motor, Power= 1,5 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 93 rpm, Ratio (i)= 15, Torque= 129 Nm, Service factor (fs)= 2,1, Hollow shaft= 35mm. Wight= 25,6kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£604.88*

Details

EV 080-100L2 - 3 kW - 142 rpm Worm Worm gear Motor

Worm gear motor, Power= 3,0 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 142 rpm, Ratio (i)= 10, Torque= 182 Nm, Service factor (fs)= 1,3, Hollow shaft= 35mm. Wight= 35,7kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Die-cast aluminum, Ball bearing= SKF, C & U o. equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£709.48*

Details

EV 125-100L2 - 3 kW - 23 rpm Worm Worm gear Motor

Worm gear motor, Power= 3,0 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 23 rpm, Ratio (i)= 62, Torque= 825 Nm, Service factor (fs)= 1,0, Hollow shaft= 45mm. Wight= 86,9kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Cast iron, Ball bearing= SKF, C & U o equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£1,265.12*

Details

EV 125-90L - 1.1 kW - 11 rpm Worm Worm gear Motor

Worm gear motor, Power= 1,1 kW,Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 11 rpm, Ratio (i)= 83, Torque= 601 Nm, Service factor (fs)= 1,1, Hollow shaft= 45mm. Wight= 77,3kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Cast iron, Ball bearing= SKF, C & U o equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£1,288.83*

Details

EV 125-112M - 4 kW - 36 rpm Worm Worm gear Motor

Worm gear motor, Power= 4,0 kW,Voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530),Protection class= IP55, Isoclass= F (155 °C), Operating mode= S1- (100% cdf), Speed (n²)= 36 rpm, Ratio (i)= 40, Torque= 829 Nm, Service factor (fs)= 1,0, Hollow shaft= 45mm. Wight= 92,7kg, Paint= RAL 5010 (gentian blue), Temperature sensor = 3 x PTC thermistor, Housing= Cast iron, Ball bearing= SKF, C & U o equivalent, Cooling= axial fan (plastic). The worm geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008. The geared motor can be operated in both directions and contains an oil filling on delivery! According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified specialist personnel. For modifications or special designs please send inquiry. All product photos are non-binding examples!

£1,350.22*

Details

Modifications of worm geared motors

The worm geared motors of the EV series are often required in combinations with customised requirements. We are the ideal partner for you here, because with decades of experience and our own final assembly, we can cover a wide range: worm gearboxes with brake motors, special shafts, grill motors with gearboxes, as worm geared motors with forced cooling fan, special voltage or in explosion-proof design.

Worm gearboxes with motor and forced cooling fan

Size and performance of the geared motors

The worm geared motors are made from an aluminium or grey cast iron housing and are available in sizes 30, 40, 50, 63, 75, 80, 90, 100, 110, 125, 130 and 150. The gearboxes are available with an output of 0.09kW, 0.12kW, 0.25kW, 0.37kW, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3.0kW, 4.0kW, 5.5kW, 7.5kW and 11kW.

Torque

The torque output depends on the motor power, the efficiency and the output speed, among other factors. Taking these points into account, we supply worm gearboxes in a range of 10 - 2000 Nm.

Worm gearbox assembly

The motor terminal box can be mounted around the motor in 90° steps as required. The JS geared motor can be installed in almost any required position. The installation positions are marked withM1, M2, M3, M4, M5, M6.

Geared motors with advantages

Due to the high interchangeability and smooth running of the geared motor components (IEC flange), the customer benefits from a wide range of options, including reduced costs, faster delivery times and simple installation and maintenance. the operating instructions for the worm geared motor can be found in the download directory.
